iiyama ProLite T1731SR-W5 17″ 5-wire Resistive Touchscreen Monitor
- Description
- Specifications
- Warranty
-

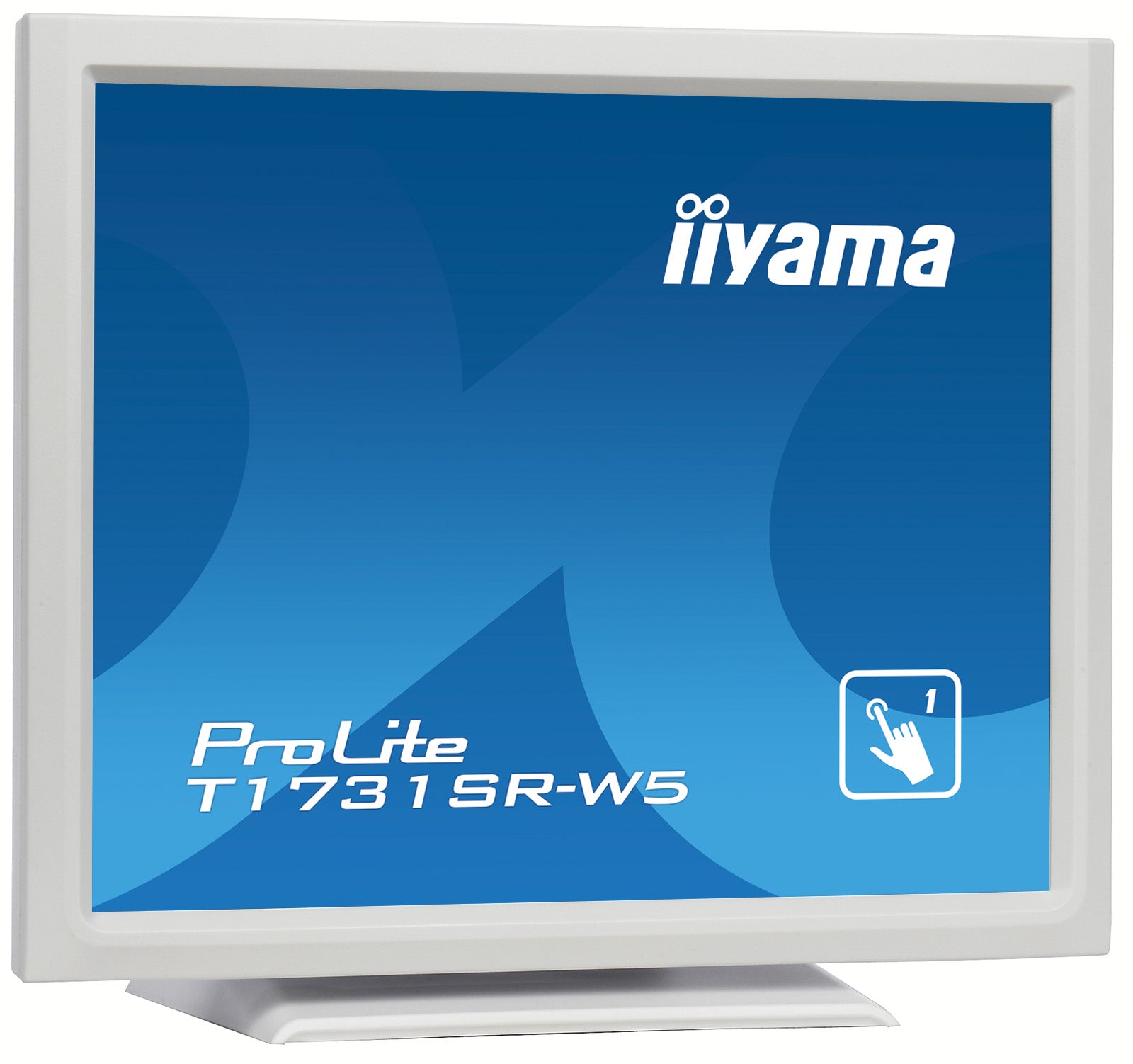

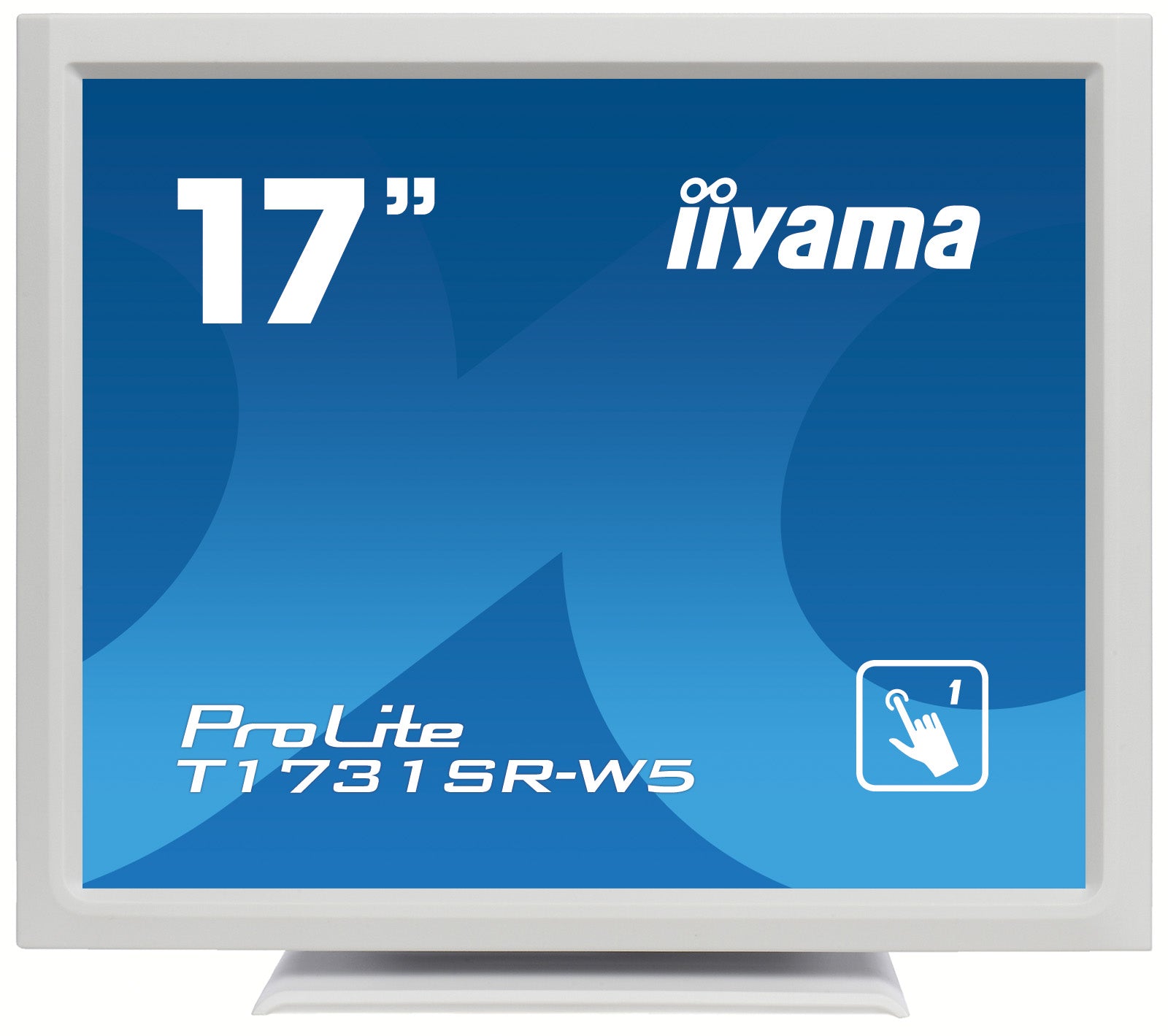

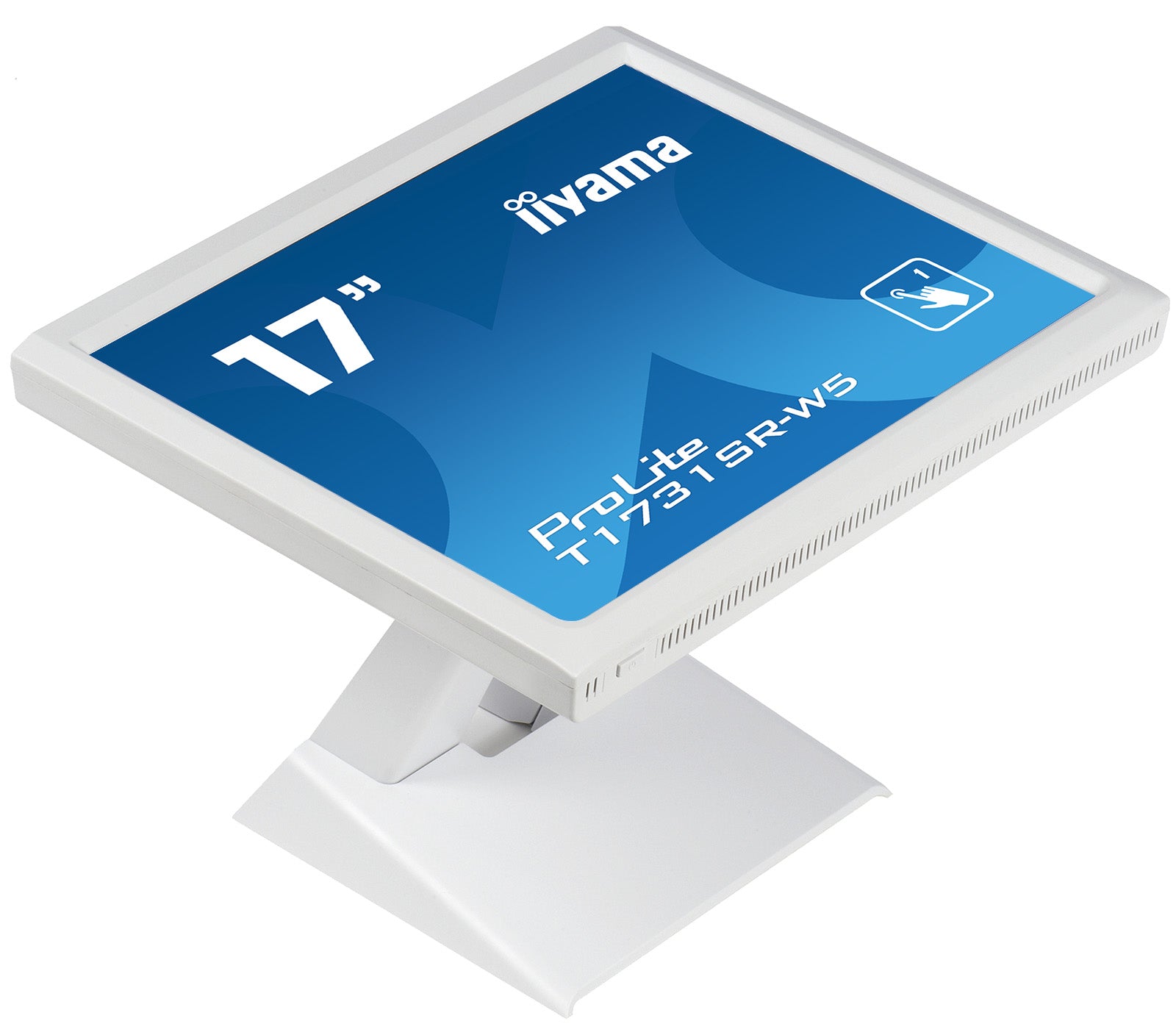

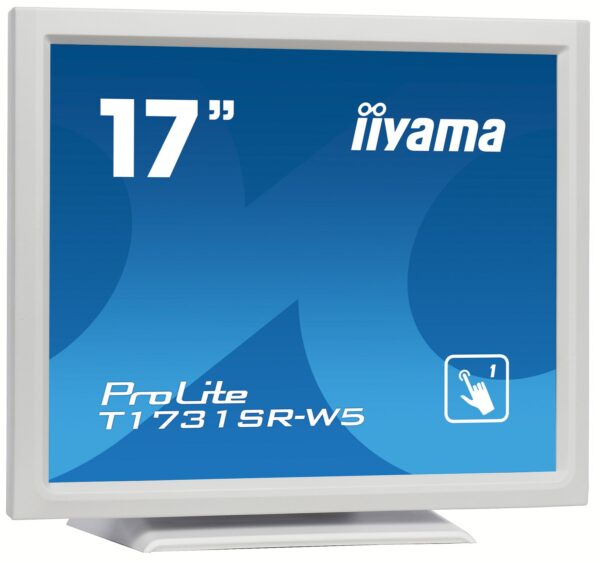

PROLITE T1731SR-W5
17” 5-wire resistive touchscreen
ProLite T1731SR-W5 is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (VGA, HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. A solid and steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The ProLite T1731SR-W5 can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes. Available in black and white.
TOUCH TECHNOLOGY – RESISTIVE
5-wire resistive touchscreens are very durable and can be used in a variety of environments. They are especially recommended for shops, restaurants and industrial purposes.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
LED-BACKLIT
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product. -
DISPLAY CHARACTERISTICS Diagonal 17″, 43cm Panel TN LED Native resolution 1280 x 1024 (1.3 megapixel) Aspect ratio 5:4 Panel brightness 250 cd/m² Brightness (with touch) 200 cd/m² Light transmittance 80% Static contrast 1000:1 (with touch) Response time (GTG) 5ms Viewing zone horizontal/vertical: horizontal 170°, right/left: 0°/0°, up/down: 0°/0° Colour support 16.7 million Horizontal Sync 31 – 80kHz Viewable area W x H 338 x 270mm, 13.3 x 10.6″ Pixel pitch 0.264mm Bezel colour and finish white, matte TOUCH Touch technology serial resistive Touch points 1 Touch method stylus, finger, glove Touch interface USB Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. INTERFACES / CONNECTORS / CONTROLS Analog signal input VGA x1 Digital signal input HDMI x1 DisplayPort x1 Audio output Speakers 2 x 1W HDCP yes FEATURES Water and dust protection IP54 (front) OSD key lock yes GENERAL OSD languages EN, DE, FR, ES, IT, CN, JP Control buttons Menu, Scroll up/Brightness, Scroll down/Mute, Select, Power User controls contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute Convenience Kensington-lock™ prepared Plug&Play DDC2B MECHANICAL Tilt angle 90° up; 5° down VESA mounting 100 x 100mm Cable management system yes ACCESSORIES INCLUDED Cables power, USB, HDMI, Audio, DP Guides quick start guide, safety guide Other Touch Panel Driver Disk (CD-ROM) Cable cover yes POWER MANAGEMENT Power supply unit internal Power supply AC AC – 100V, 240/V, 50Hz Power usage 20W typical, 2W standby, 2W off mode SUSTAINABILITY Regulations CB, CE, GOST, RoHS support, ErP, WEEE, VCCI, REACH Energy efficiency class (Regulation (EU) 2017/1369) E REACH SVHC above 0.1%: Lead, Lead monoxide, Boric acid DIMENSIONS / WEIGHT Product dimensions W x H x D 387 x 342 x 201mm Weight (without box) 5.8kg EAN code 4948570116027 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
