iiyama ProLite T1624MSC-B1 15.6″ 10pt PCAP Touch Screen Monitor
- Description
- Specifications
- Warranty
-

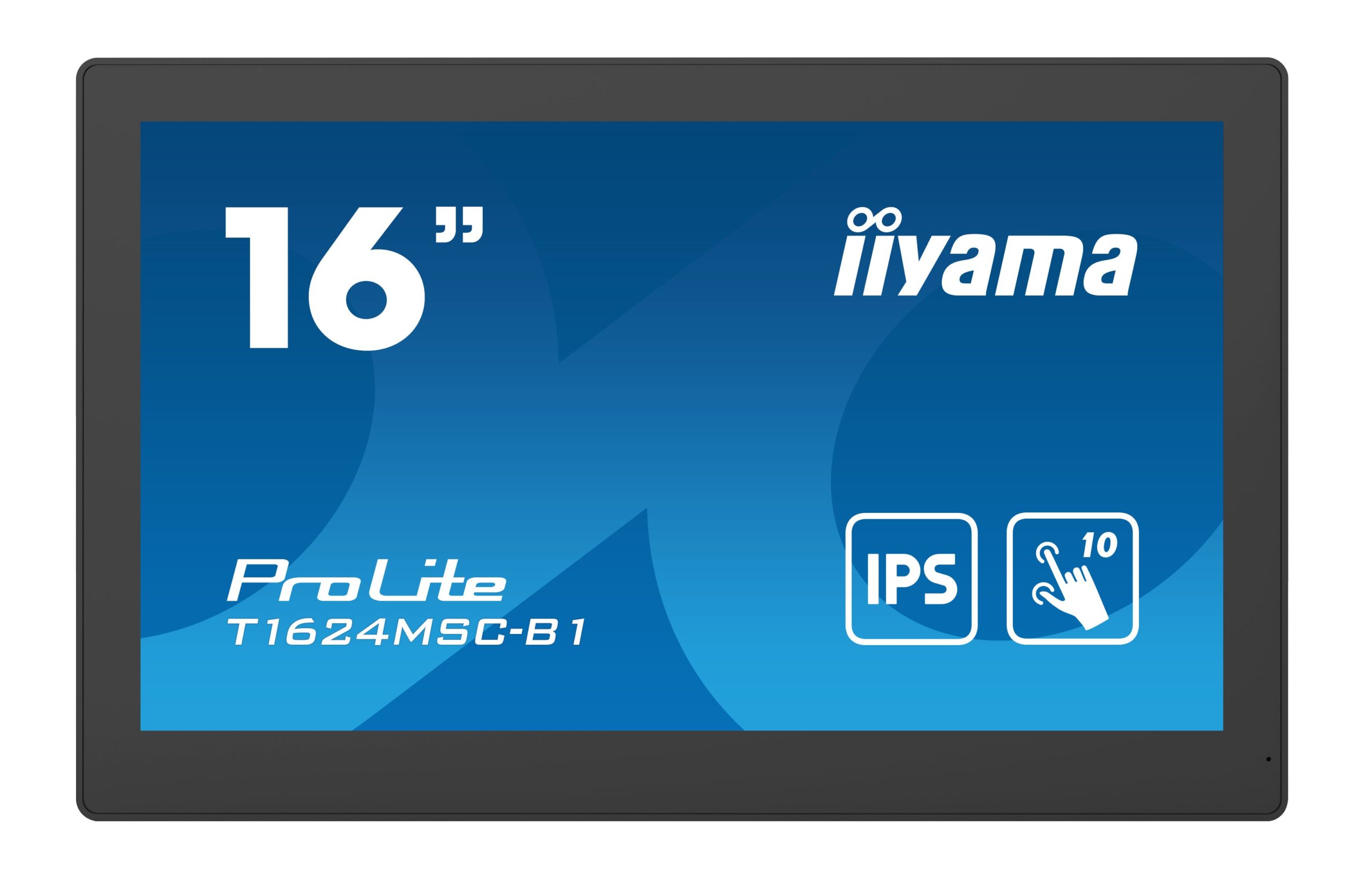

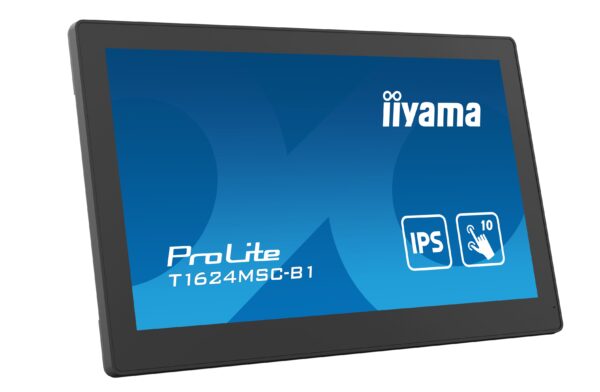

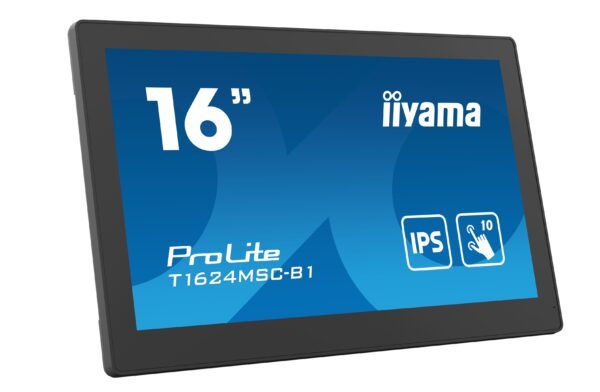

PROLITE T1624MSC-B1

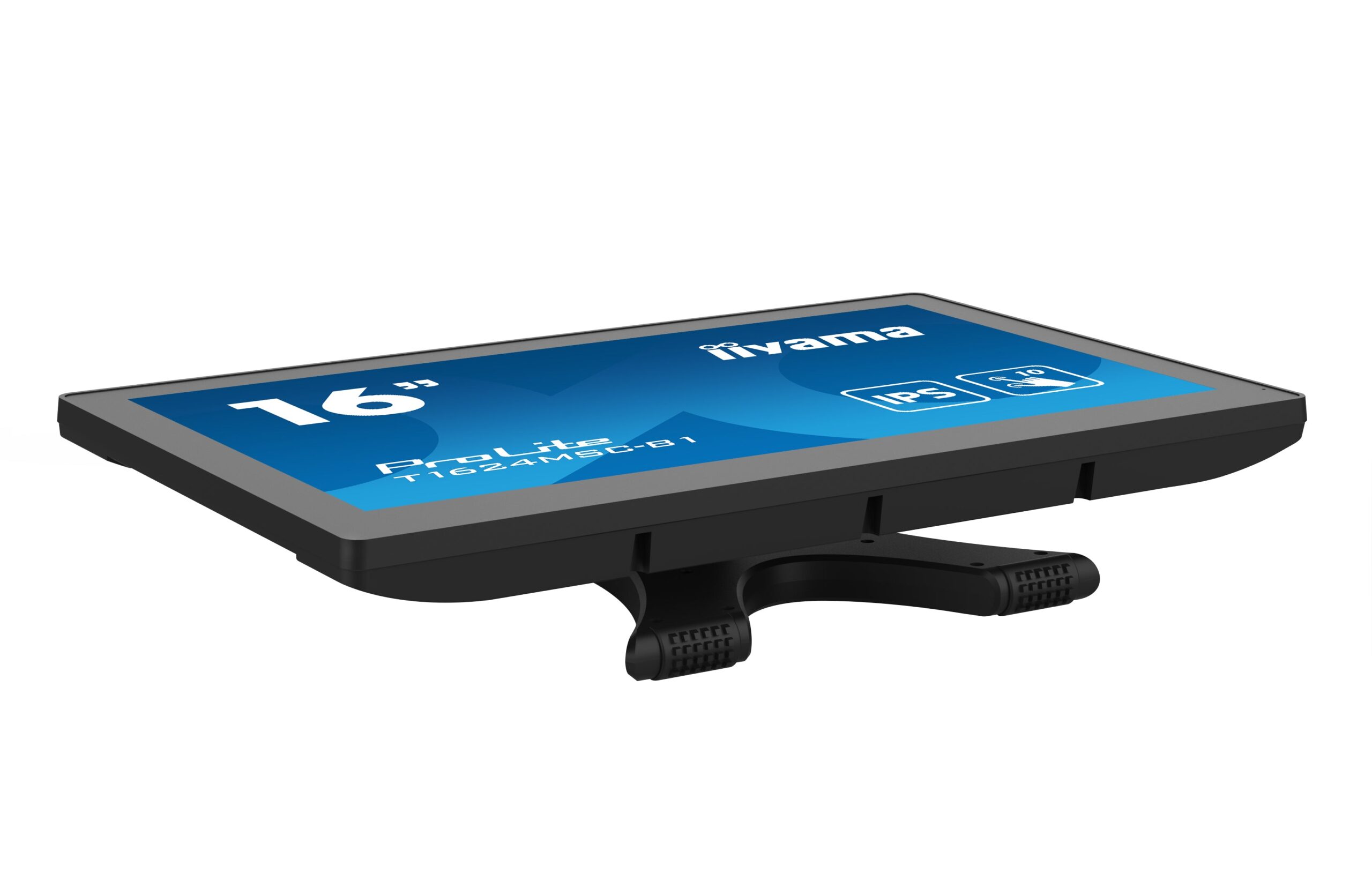

15.6” Full HD PCAP 10pt touchscreen monitor with IPS panel technology, integrated media player and a hinged stand on the back
With 1920×1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite T1624MSC delivers seamless and accurate touch response. Featuring IPS Panel technology, it offers exceptional colour performance and wide viewing angles, making it an excellent choice for a vast array of demanding interactive applications. Users can benefit from its hinged stand allowing the monitor to lay down completely flat for use as a tablet. The T1624MSC comes equipped with several inputs and a SD card slot, as well as stereo speakers delivering good quality sound. An ideal screen for small interactive Digital Signage, InStore Retail and interactive presentations purposes.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
MEDIA PLAYER
Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
FULL HD
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers. -
DISPLAY CHARACTERISTICS Design Edge to edge glass Diagonal 15.6″, 39.5cm Panel IPS Panel Technology, LED Native resolution 1920 x 1080 (2.1 megapixel HD) Aspect ratio 16:9 Panel brightness 450 cd/m² Brightness (with touch) 385 cd/m² Light transmittance 85% Static contrast 800:1 (with touch) Response time (GTG) 25ms Viewing zone horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85° Colour support 16.7 million (8-bit) Horizontal Sync 30 – 84kHz Viewable area W x H 344.16 x 193.59mm, 13.5 x 7.6″ Pixel pitch 0.17925mm Bezel colour and finish black, matte TOUCH Touch technology projective capacitive Touch points 10 Touch method finger, glove (latex), capacitive stylus Touch interface USB INTERFACES / CONNECTORS / CONTROLS Digital signal input HDMI x1 Audio input Mini jack x1 Audio output Speakers 2 x 2W USB ports x2 (2.0) FEATURES Extra media player, SD card slot Max. non-stop operating time 24/7 Glass thickness 1.8mm Glass hardness 6H OSD key lock yes GENERAL Control buttons Power/Input select, navigation button (up, down, left, right, play/enter, pause), menu/exit User controls Photo, music, video, calendar, settings (OSD language, auto play, repeat mode, slideshow time, time, display mode, brightness, contrast, saturation, auto power, restore factory mode) MECHANICAL Orientation landscape, portrait, face-up VESA mounting 100 x 100mm ACCESSORIES INCLUDED Cables USB, HDMI Guides quick start guide, safety guide Other AC adapter POWER MANAGEMENT Power supply unit external Power supply DC 12V Power usage 7W typical, 0.5W standby, 0.1W off mode SUSTAINABILITY Regulations CE, RoHS support, ErP, WEEE, REACH, UKCA Energy efficiency class (Regulation (EU) 2017/1369) E REACH SVHC above 0.1%: Lead DIMENSIONS / WEIGHT Product dimensions W x H x D 388 x 245 x 159.5mm Weight (without box) 2.6kg EAN code 4948570120451 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
ON-SITE SWAP OUT
PIONEERING CUSTOMER SERVICE.
