iiyama ProLite T1531SAW-B5 15″ SAW Touch Screen Monitor
- Description
- Specifications
- Warranty
-

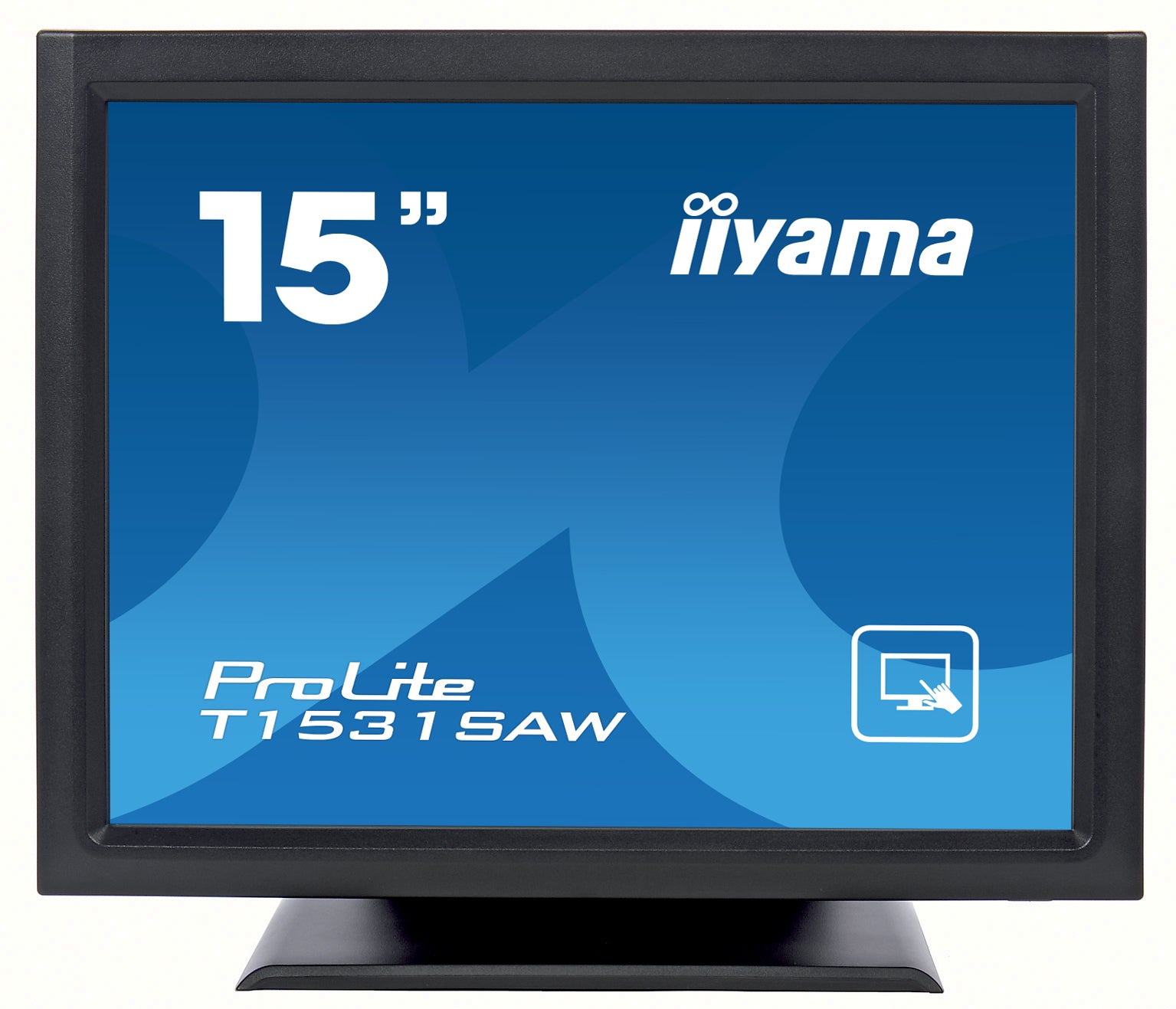

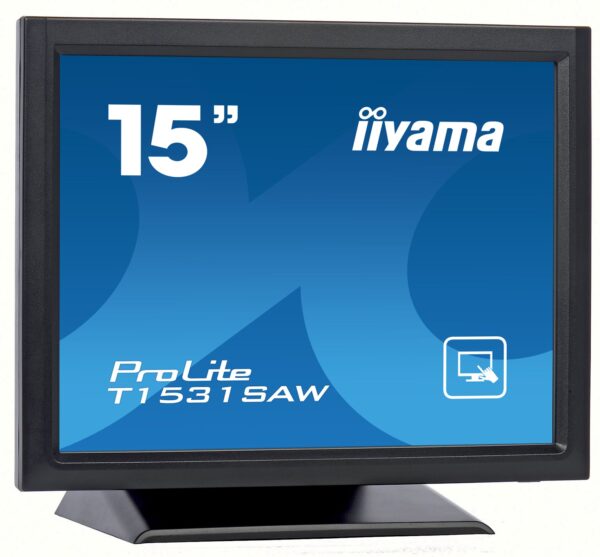

15” monitor with Surface Acoustic Wave touch technology
The ProLite T1531SAW-B5 uses highly accurate Surface Acoustic Wave Touch Technology (SAW) with a pure-glass scratch resistive front, offering superior image clarity and screen durability. The solid but flexible stand ensures resilience in the most demanding environments. Menu buttons are located on the side of the screen which can be locked to prevent tampering, and include a handy function to deactivate the touchscreen for cleaning. The iiyama Prolite T1531SAW-B5 touchscreen is ideal for a wide range of applications including Point of Sale, Kiosks, Hospitality and Entertainment, Control rooms, Education, Training and many others.
-
DISPLAY CHARACTERISTICS
Diagonal 15″, 38cm Panel TN LED Native resolution 1024 x 768 (0.8 megapixel) Aspect ratio 4:3 Panel brightness 370 cd/m² Brightness 340 cd/m² with touch Light transmittance 92% Static contrast 700:1 with touch Response time (GTG) 8ms Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80° Colour support 16.2mln (6bit + Hi-FRC) Horizontal Sync 31.5 – 60.2kHz Viewable area W x H 304 x 228mm, 12 x 9″ Pixel pitch 0.297mm Bezel colour and finish black, matte TOUCH
Touch technology SAW Touch points 1 Touch method finger Touch interface USB Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1 Digital signal input HDMI x1
DisplayPort x1Audio output Speakers 2 x 1W HDCP yes FEATURES
Water and dust protection IP54 (front) OSD key lock yes GENERAL
OSD languages EN, DE, FR, ES, IT, CN, JP Control buttons Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power User controls contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute Convenience Kensington-lock™ prepared Plug&Play DDC2B MECHANICAL
Tilt angle 90° up; 5° down VESA mounting 100 x 100mm Cable management system yes ACCESSORIES INCLUDED
Cables power, USB, HDMI, Audio, DP Guides quick start guide, safety guide Other Touch Panel Driver Disk (CD-ROM) Cable cover yes POWER MANAGEMENT
Power supply unit internal Power supply AC 100 – 240V, 50/60Hz Power usage 16W typical, 1.55W stand by, 3W off mode SUSTAINABILITY
Regulations CB, CE, RoHS support, ErP, WEEE, CU, cULus, VCCI, REACH Energy efficiency class (Regulation (EU) 2017/1369) E REACH SVHC above 0.1%: Lead DIMENSIONS / WEIGHT
Product dimensions W x H x D 351 x 306 x 201mm Weight (without box) 4.8kg EAN code 4948570115976 RELATED INFORMATION
Product series ProLite T1731SAW-B1, ProLite T1931SAW-B1 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
