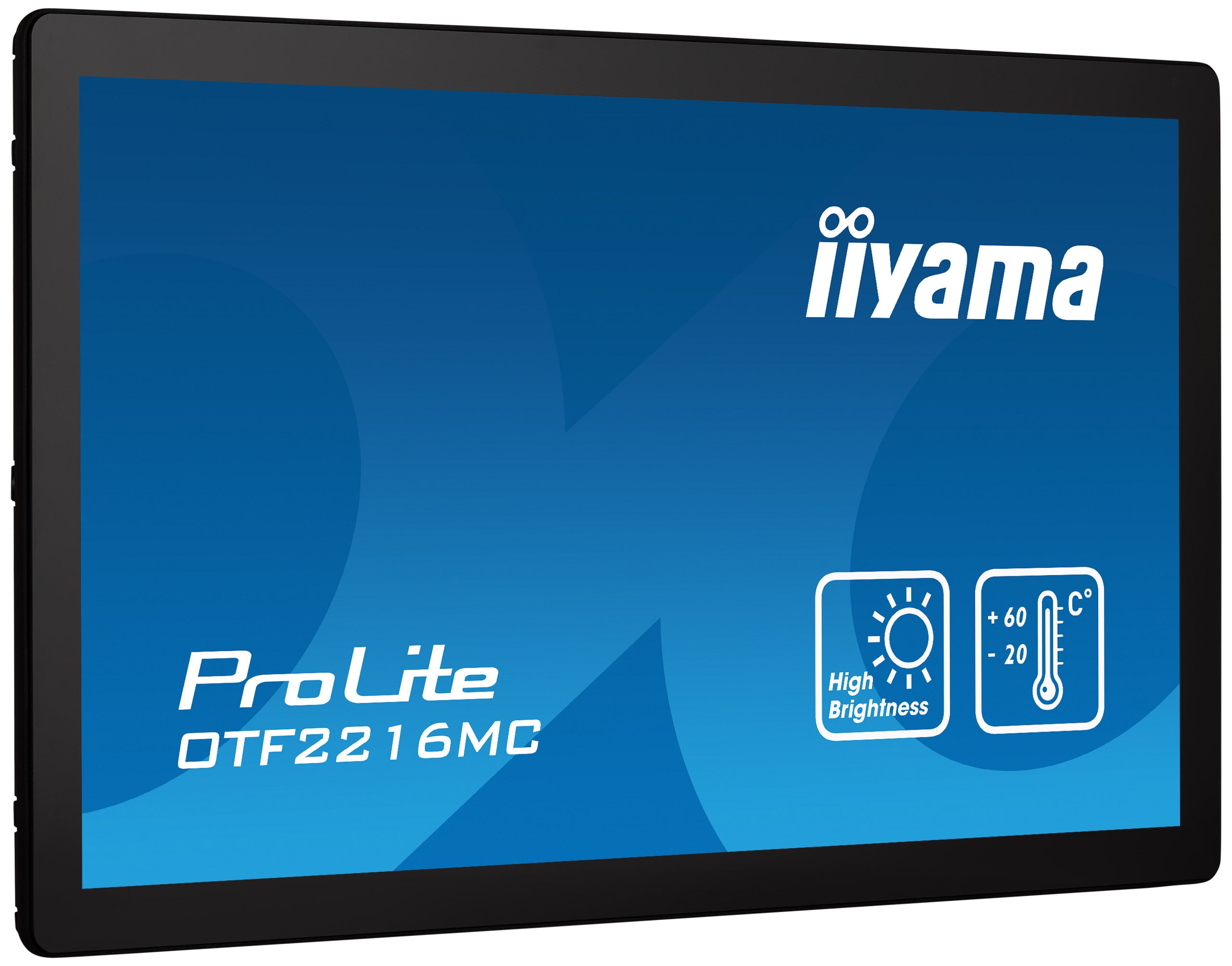

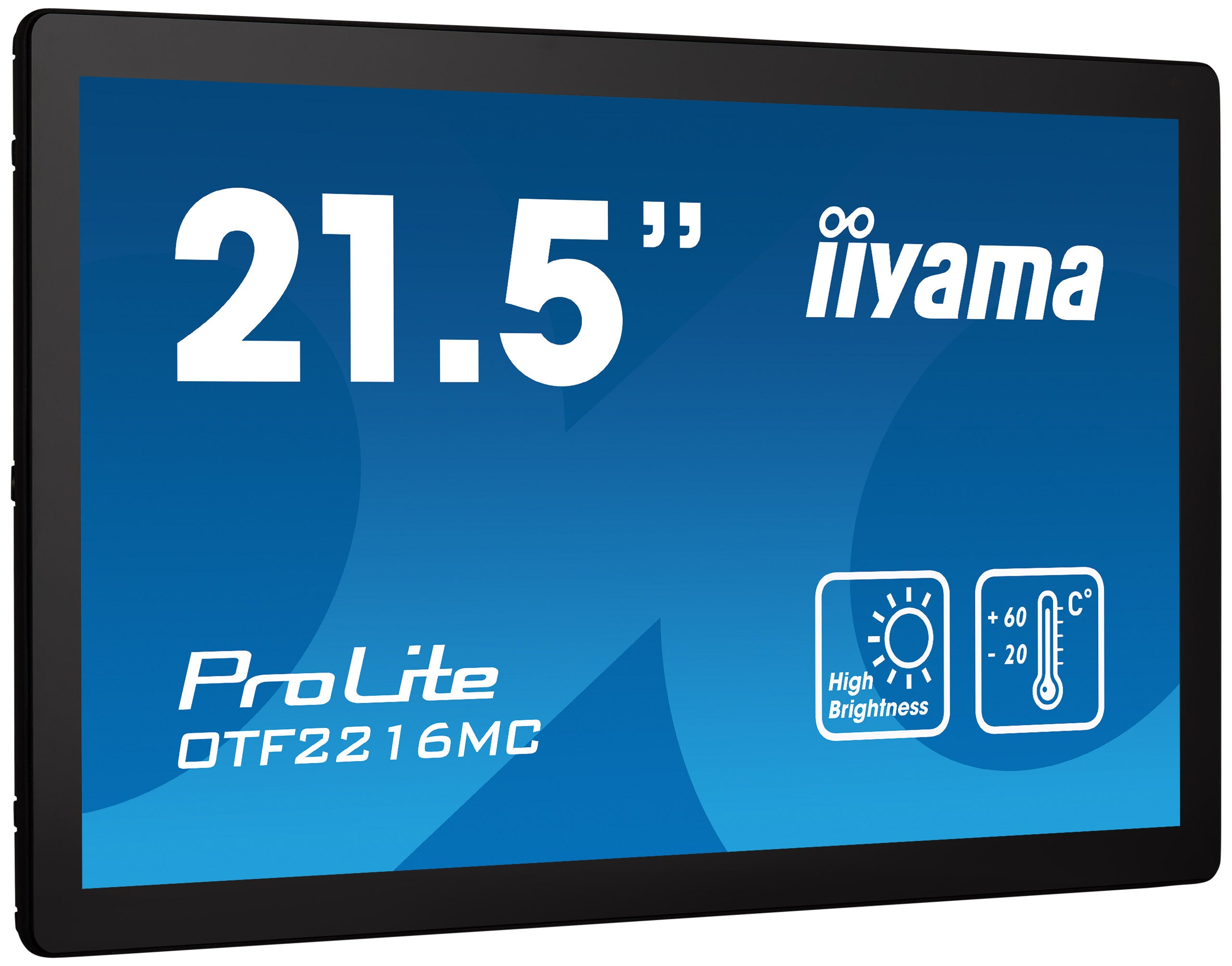

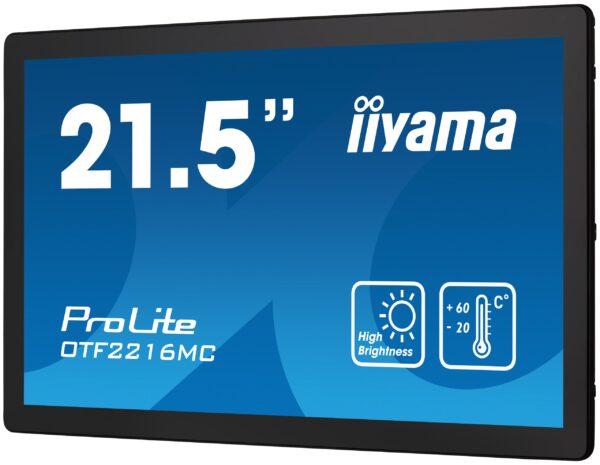

• iiyama ProLite OTF2216MC-B1 21.5″ PCAP High-Brightness Touchscreen Monitor

  21.5″ high-brightness touchscreen with 10 touch points PCAP touch technology for semi-outdoor applications

  Built into a rugged, edge-to-edge glass bezel the ProLite OTF2216MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m², the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20˚C up to +60˚C. The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF2216MC-B1 can be equipped with optional external mounting brackets (OMK3-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.


  HIGH-BRIGHTNESS
  The display offers a brightness of up to 935 cd/m², so that the content displayed on the screen is clearly visible even in very bright environments.


  SMART SENSORS
  A proximity sensor turns the screen off after a while when it detects no one in the environment, an ambient light sensor adjusts the screen brightness when ambient light changes, and a temperature sensor linearly controls the fan speed, cooling the monitor when the temperature rises, resulting in energy savings and extends the durability of the product.


  ENVIRONMENTAL RESISTANCE
  The monitor offers comprehensive protection against various ambient conditions. With UV resistance and IP65 protection, it is safeguarded against sunlight and resulting in dust and water resistance from the front. Additionally, it can operate reliably in temperatures ranging from -20˚C to 60˚C, making it capable of withstanding large temperature variations.


  ANTI-FINGERPRINT COATING
  This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.


  OPEN FRAME BRACKETS
  This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.

• Characteristic	Specification
  Design	Open Frame
  Diagonal	22″, 54.6cm
  Panel	VA
  Native resolution	1920 x 1080 @60Hz (2.1 megapixel)
  Aspect ratio	16:9
  Panel brightness	1100 cd/m²
  Brightness	935 cd/m² with touch
  Light transmittance	85%
  Static contrast	5000:1
  Response time (BTB)	25ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	16.7mln 8bit
  Horizontal Sync	31.4 – 82kHz
  Viewable area W x H	477 x 269mm, 18.8 x 10.6″
  Pixel pitch	0.248mm
  Bezel colour and finish	black
  Touch technology	projective capacitive
  Touch points	10 (HID, only with supported OS)
  Touch method	finger, glove (latex)
  Touch interface	USB
  Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
  Through-Glass	6mm
  Palm rejection	yes
  Analog signal input	VGA x1
  Digital signal input	HDMI x1, DisplayPort x1
  Monitor control input	RJ45 (LAN) x1
  Audio output	Mini jack x1
  HDCP	yes
  Extra	anti-fingerprint coating, touch through-glass, UV resistance, ambient light sensor, proximity sensor, auto FAN control for cooling
  Glass thickness	3.15mm
  Glass hardness	7H60950 Ball drop test
  Water and dust protection	IP65 (front)
  Housing (bezel)	metal
  Water tight seal	yes
  OSD languages	EN, DE, FR, ES, IT, CN, JP
  Control buttons	Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
  User controls	picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch, factory), option (reset, language, source select, display mode, fan control, presence sensor, ambient light sensor)
  Plug&Play	DDC2B
  Orientation	landscape, portrait, face-up
  VESA mounting	100 x 100mm
  Cable management system	yes
  Operation temperature range (-°/+°)	-20°C – 60°C
  MTBF	60000 hours
  Cables included	power, USB, HDMI, DP
  Guides	quick start guide, safety guide
  Other	AC adapter
  Cable cover	yes
  Remote control	external control pad
  Power supply unit	external
  Power supply	DC 12 V
  Power usage	43W typical, 1.5W stand by, 0.3W off mode
  Regulations	CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
  Energy efficiency class (Regulation (EU) 2017/1369)	E
  REACH SVHC above 0.1%	Lead
  Product dimensions W x H x D	520 x 315 x 42.5mm
  Box dimensions W x H x D	608 x 400 x 150mm
  Weight (without box)	4.6kg
  Weight (with box)	4.5kg
  EAN code	4948570123735
