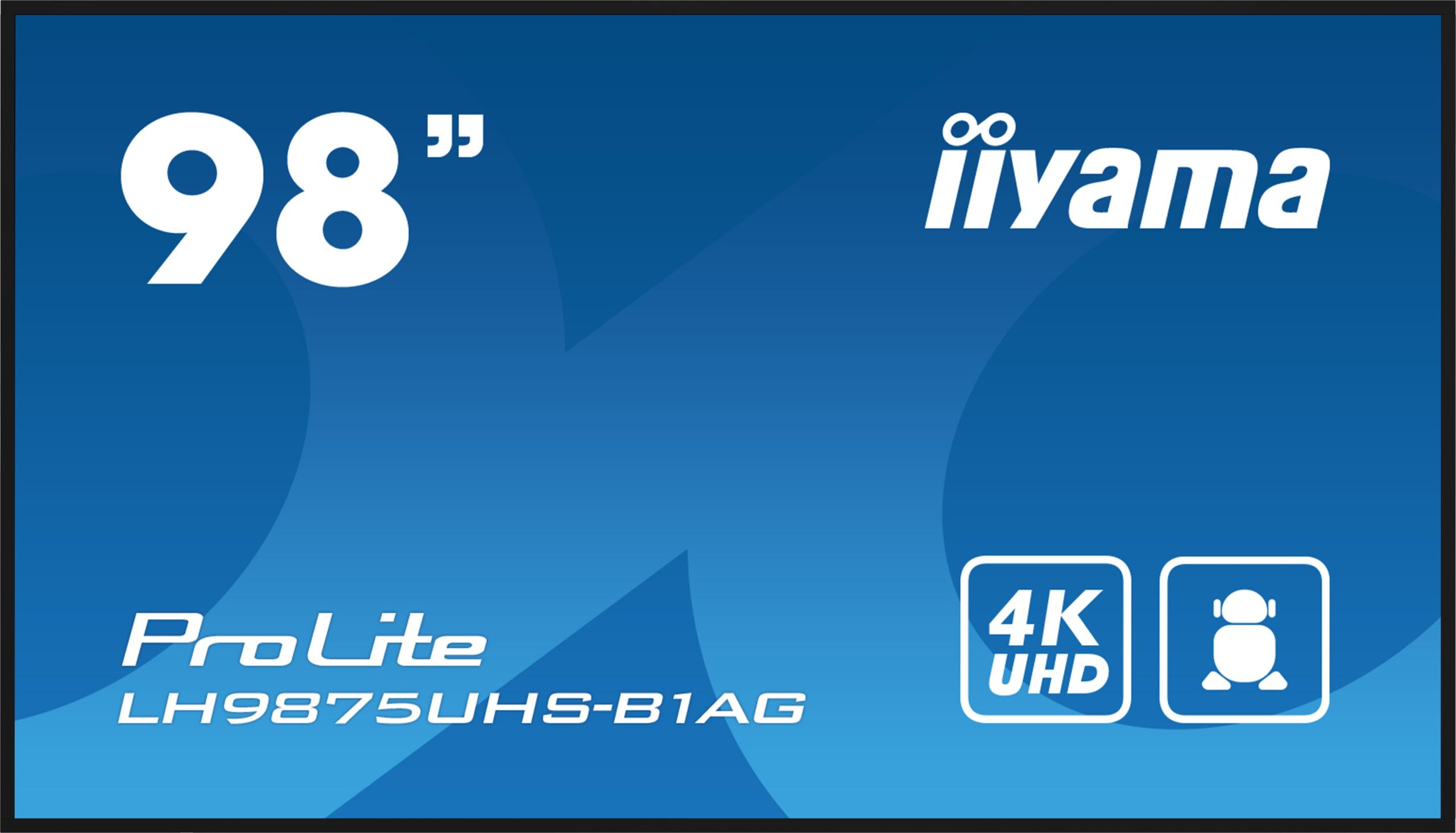

• PROLITE LH9875UHS-B1AG
  98″ 4K UHD Professional Digital Signage display featuring Android OS, iiSignage² and OPS PC slot

  Choose non-stop high performance and uninterrupted reliability with the ideal all-in-one signage solution for mission critical environments. This 500cd/m² high brightness display featuring on-board Android 11 OS,iiSignage² (Content Management Software), Signal FailOver and EShare offers a straightforward user experience, making content creation, management, and sharing a breeze. The OPS PC Slot provides an embedded PC option for total flexibility, security and control. WiFi enabled, the LH9875UHS is ready for remote content delivery using your network or you can choose to utilise LAN control.

  Its versatile orientation, sleek design, and 24/7 reliability ensures seamless integration into any business environment. Whether it’s used in retail, corporate, hospitality, or educational settings, the LH9875UHS -B1AG will undoubtedly captivate your audience and leave a lasting impression.

  ANDROID OS
  Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

  IISIGNAGE²
  iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

  SIGNAL FAILOVER
  FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

  OPS PC SLOT
  Built-in expansion slot supports the Open Pluggable Specification (OPS) standard; it simplifies the installation of a plug-in PC for digital signage applications.

  4K
  UHD resolution (3840×2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

• Specification	Details
  Design	Thin bezel
  Diagonal	97.5″, 247.7cm
  Panel	IPS, AG coated glass, matte finish, haze 25%
  Native resolution	3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
  Aspect ratio	16:9
  Panel brightness	500 cd/m²
  Static contrast	1200:1
  Response time (GTG)	8ms
  Viewing zone	Horizontal/vertical: 178°/178°, Right/left: 89°/89°, Up/down: 89°/89°
  Colour support	1.07G (8 Bits+FRC) (NTSC 72%)
  Horizontal Sync	28 – 160kHz
  Viewable area W x H	2159 x 1214mm, 85 x 47.8″
  Bezel width (sides, top, bottom)	14.9mm, 14.9mm, 14.9mm
  Pixel pitch	0.562mm
  Bezel colour and finish	Black, matte
  Interfaces / Connectors / Controls
  Analog signal input	VGA x1 (DVI-I: VGA+DVI)
  Digital signal input	DVI x1 (max. 1920×1080@60Hz)
  HDMI x3	(v.2.0, max. 3840×2160 @60Hz, ARC on HDMI #3)
  DisplayPort x1	(v.1.4, max. 3840×2160 @60Hz)
  Audio input	Mini jack x1 (3.5mm)
  Monitor control input	RS-232c x1 (2.5mm sub-mini jack)
  RJ45 (LAN)	x1
  IR	x1 (3.5mm stereo mini)
  Digital signal output	DisplayPort x1 (max. 3840×2160 @60Hz, MST-out Daisy Chain v.1.2)
  Audio output	Mini jack x1 (3.5mm)
  Speakers	2 x 16W
  Monitor control output	RS-232c x1 (2.5mm sub-mini jack)
  IR loop through	x1 (3.5mm stereo mini)
  HDCP	v.1.4 & 2.2
  USB ports	x2 (v.2.0)
  Integrated software	Android 11 OS, iiSignage², FailOver, EShare
  WiFi	Yes (Built-in, 2.4G/ 5G)
  Hardware	CPU: A53*4, GPU: G52 DDR4, RAM: 2GB, ROM: 16GB
  Extra	OPS PC Slot, micro SD card slot, Wall mounting kit included (VESA 800x600mm)
  Max. non-stop operating time	24/7
  Anti-image retention	Yes
  Video wall / daisy chain	Yes, (MST-output)
  Media playback	Yes
  Housing (bezel)	Metal
  OSD languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
  Control buttons	Power, Mute, Input, Volume +, Volume -, Up, Down, Menu
  User controls	Various settings including picture, screen, audio, configuration, advanced options, and Android settings
  Plug&Play	DDC2B

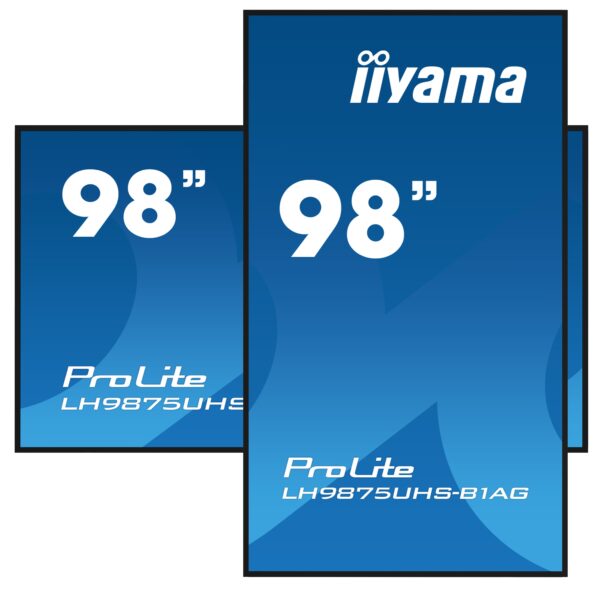

  Orientation	Landscape, portrait
  Fanless design	Yes
  VESA mounting	800 x 600mm
  Operation temperature range	0°C – 40°C
  Storage temperature range	-20°C – 60°C
  MTBF	50,000 hours (excluding backlight)
  Cables	Power, HDMI, RS-232c
  Guides	Quick start guide, safety guide
  Other	Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes
  Remote control	Yes (batteries included)
  Power supply unit	Internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	331W typical, 0.5W standby, 0.3W off mode
  Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
  Energy efficiency class	G
  Product dimensions W x H x D	2204.9 x 101.7 x 1260.4mm
  Box dimensions W x H x D	2525 x 435 x 1750mm
  Weight (without box)	83.6kg
  EAN code	4948570123438
