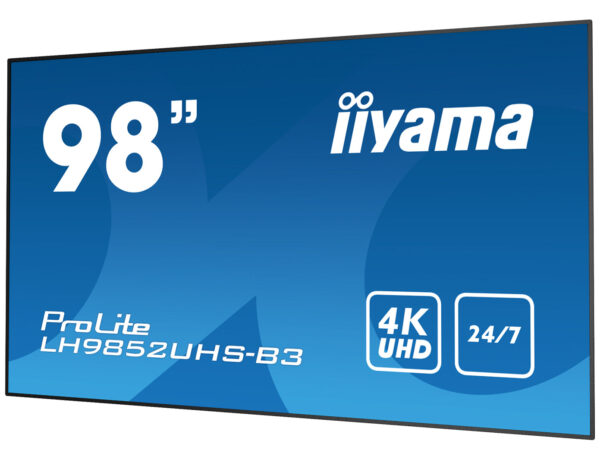

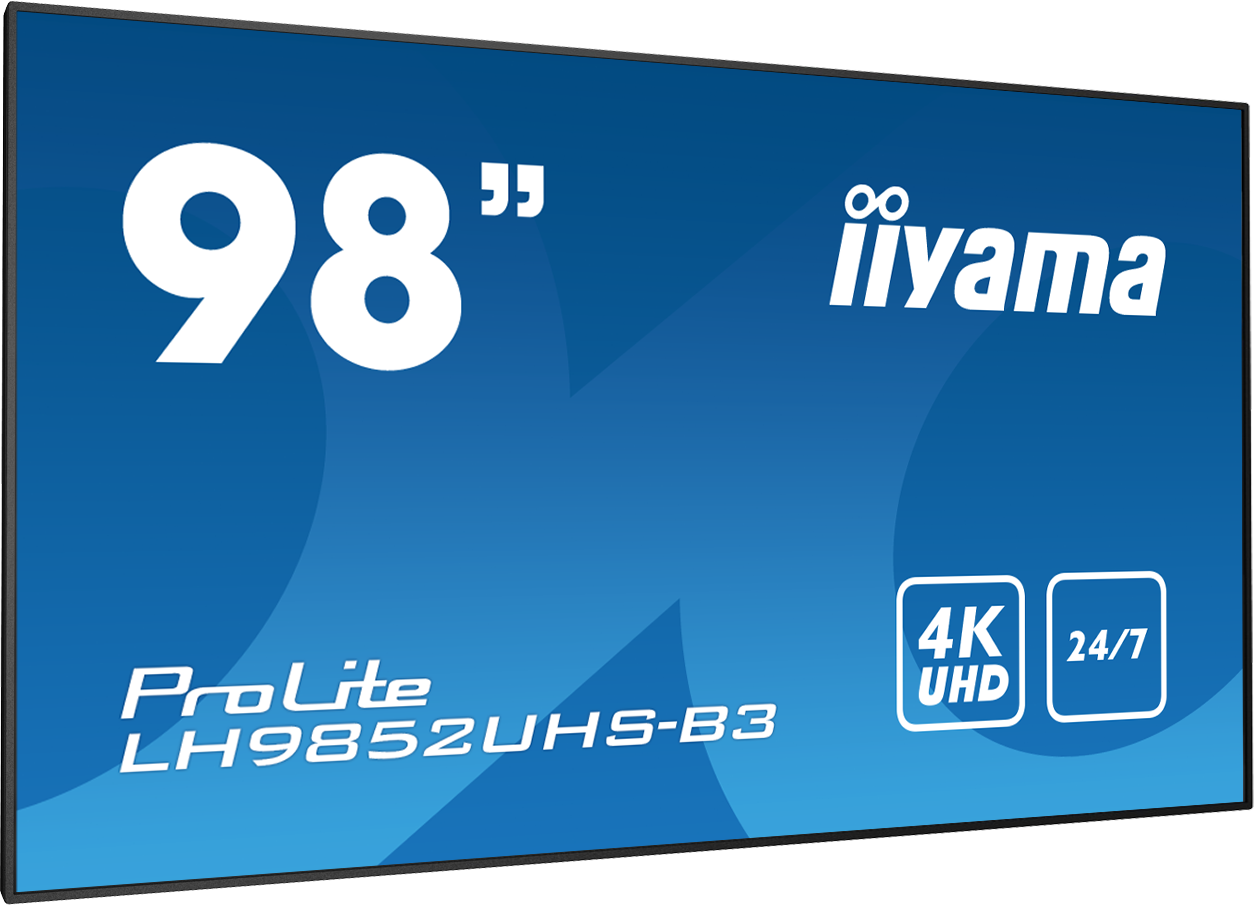

• iiyama Prolite LH9852UHS-B3 98″ 4K UHD Professional Digital Signage Display


  The ideal all-in-one solution for environments where performance and reliability are mission critical. The iiyama ProLite LH9852UHS is a 500cd/m² high brightness professional large format display with a 24/7 operating time. On-board Android 8.0 OS means you can easily customize the display to your needs and install applications directly to it. The embedded option of Nsign* empowers you to create and schedule a range of content across multiple screens using a powerful cloud-based solution. The OPS PC Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs.

  SIGNAL FAILOVER
  FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.


  ANDROID OS
  Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.


  NSIGN
  Nsign is a powerful, intuitive and scalable Smart Digital Signage Cloud-based solution allowing users to easily create highly impactful advertising utilizing rich content like video’s and widgets and schedule it across multiple screens.


  IPS
  IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

  4K
  UHD resolution (3840×2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

• Parameter	Value
  Design	Thin bezel
  Diagonal	97.5″, 247.7cm
  Panel	IPS, haze 1%
  Native resolution	3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
  Aspect ratio	16:9
  Panel brightness	500 cd/m²
  Static contrast	1200:1
  Response time (GTG)	8ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	1.07B 8bit+FRC
  Horizontal Sync	30 – 83kHz
  Viewable area W x H	2159 x 1214mm, 85 x 47.8″
  Bezel width (sides, top, bottom)	16mm, 16mm, 16mm
  Pixel pitch	0.5622mm
  Bezel colour and finish	black, glossy
  Analog signal input	VGA x1 (DVI-I: VGA + DVI)
  Digital signal input	DVI x1 (max. 1920×1080 @60Hz)
  	HDMI x3 (v.2.0, max. 3840×2160 @60Hz)
  	DisplayPort x1 (v.1.4, max. 3840×2160 @60Hz)
  Audio input	Mini jack x1 (3.5mm)
  Monitor control input	RS-232c x1 (2.5mm sub-mini jack)
  	RJ45 (LAN) x1
  	IR x1 (3.5mm stereo mini)
  Digital signal output	DisplayPort x1 (max. 3840×2160 @60Hz, MST-out Daisy Chain v.1.2)
  Audio output	RCA (L/R) x1
  Speakers	2 x 10W
  Monitor control output	RS-232c x1 (2.5mm sub-mini jack)
  	IR loop through x1 (3.5mm stereo mini)
  HDCP	v.2.2
  USB ports	x2 (v.2.0)
  Integrated software	Android OS 8.0 (Full HD), EShare, FailOver
  Hardware	CPU: MTK96B+MSB6000, CA732+A532
  	Memory: 3GB DDR4
  	Storage: 32GB eMMC
  Extra	OPS PC slot, micro SD card slot
  Max. non-stop operating time	24/7
  Anti image retention	yes
  Video wall / daisy chain	Yes, (MST-output)
  Media playback	yes
  Housing (bezel)	metal
  OSD languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
  Control buttons	Power, Mute, Input, Plus, Minus, Up, Down, Menu
  Plug&Play	DDC2B

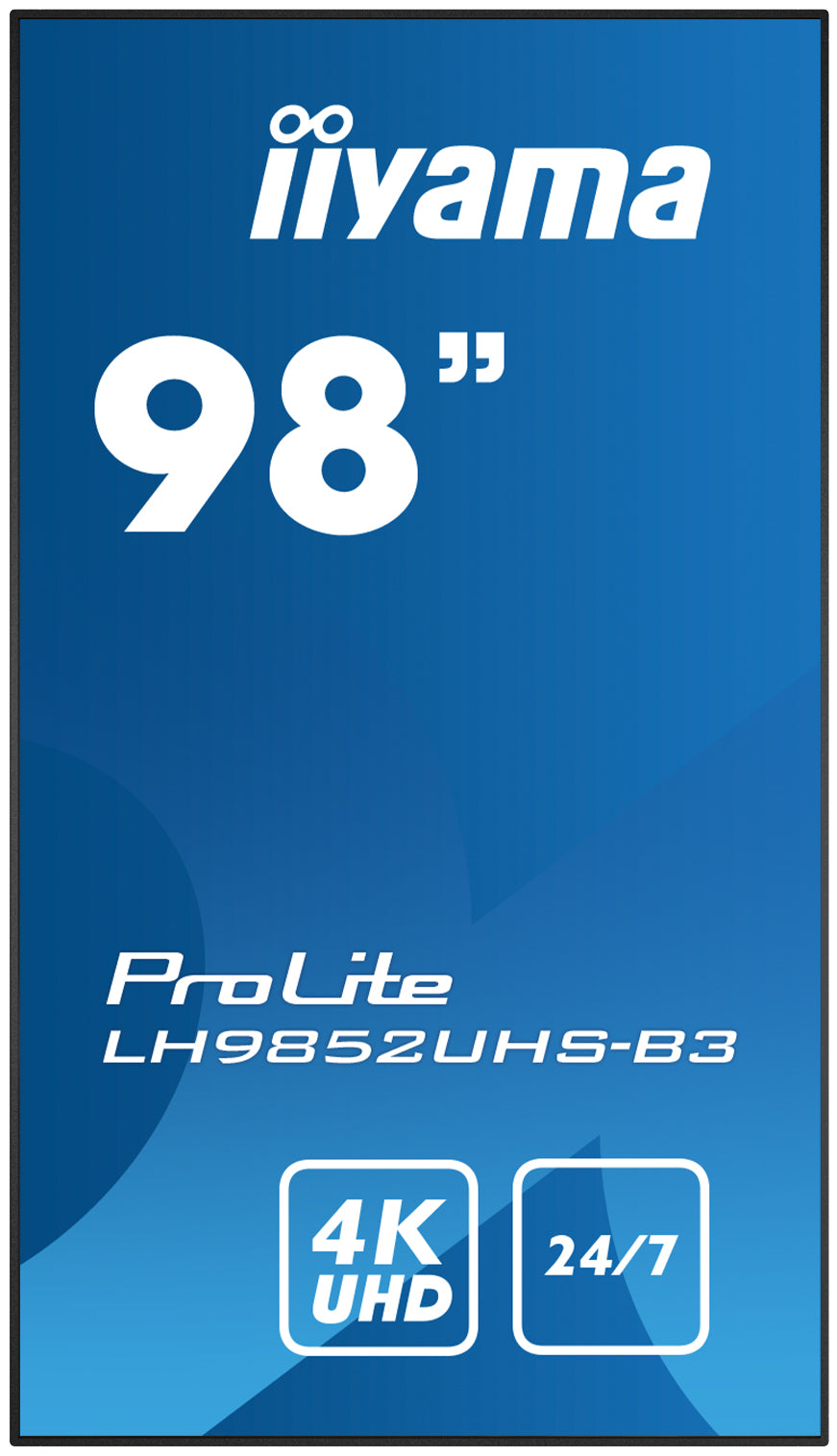

  Orientation	landscape, portrait
  VESA mounting	800 x 400mm
  Operation temperature range	0°C – 40°C
  Storage temperature range	– 20°C – 60°C
  MTBF	50.000 hours (excluding backlight)
  Cables	power, HDMI, RS-232c
  Guides	quick start guide, safety guide
  Other	Stickers for screw holes
  Remote control	yes (batteries included)
  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	347W typical, 0.5W stand by, 0.5W off mode
  Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
  Energy efficiency class	G
  Product dimensions W x H x D	2193 x 1248 x 108.5mm
  Box dimensions W x H x D	2340 x 1692 x 301mm
  Pallet volume	1pcs
  Weight (without box)	91.4kg
  EAN code	4948570120734

• Description	Downloads
  iiyama Prolite LH9852UHS-B3 User manual	Download
  iiyama Prolite LH9852UHS-B3 Drawing	Download
  iiyama Prolite LH9852UHS-B3 EU Energy Label	Download
  iiyama Prolite LH9852UHS-B3 UK Energy Label	Download
