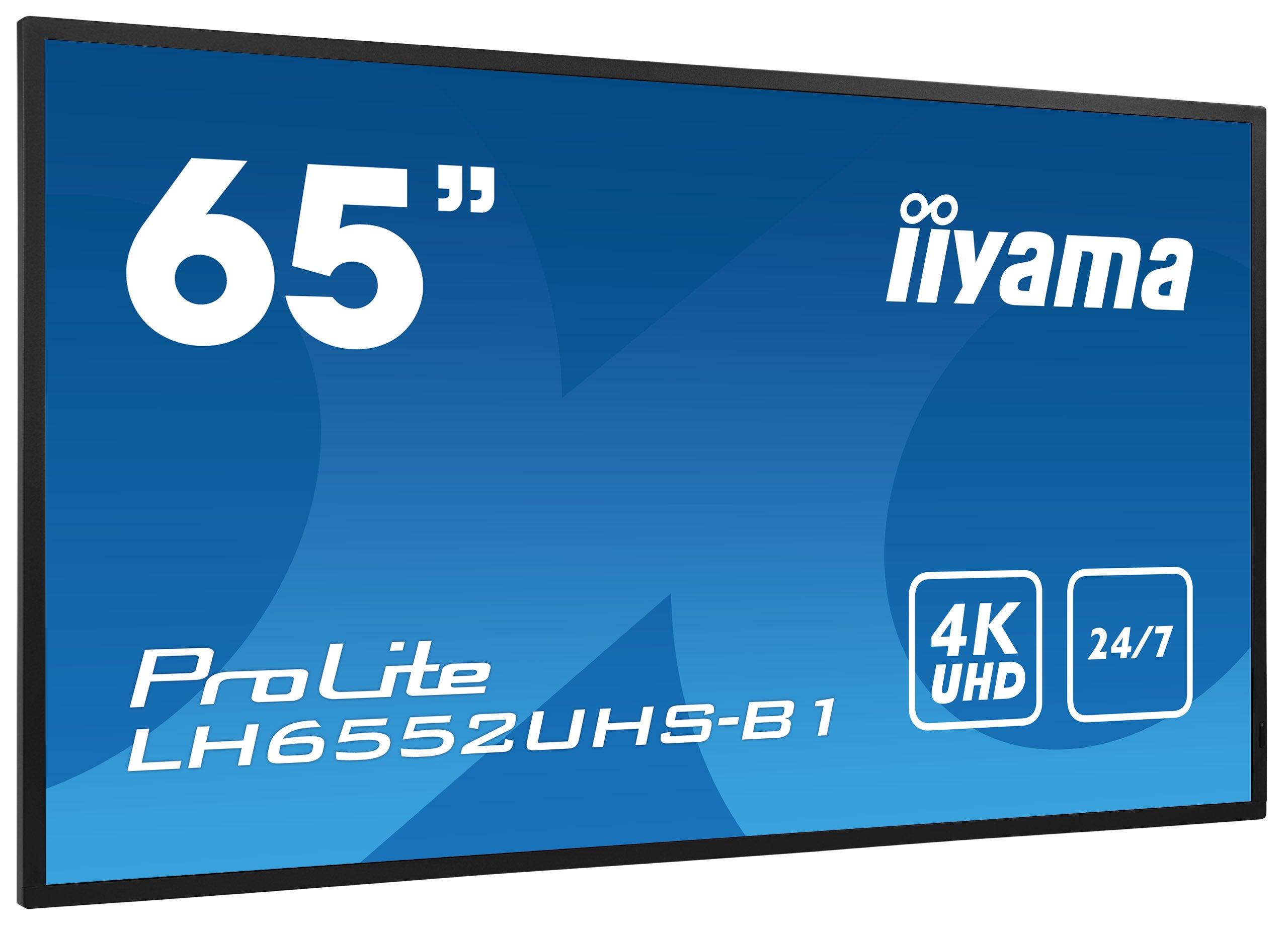

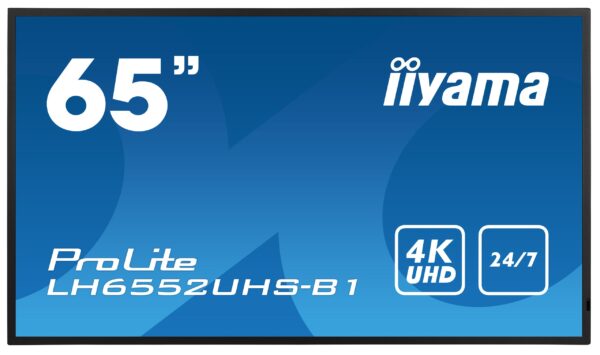

iiyama ProLite LH6552UHS-B1 65″ 4K UHD Professional Digital Signage
iiyama ProLite LH6552UHS-B1
65″ 4K UHD Professional Digital Signage
- Description
- Specifications
- Warranty
-
iiyama PROLITE LH6552UHS-B1

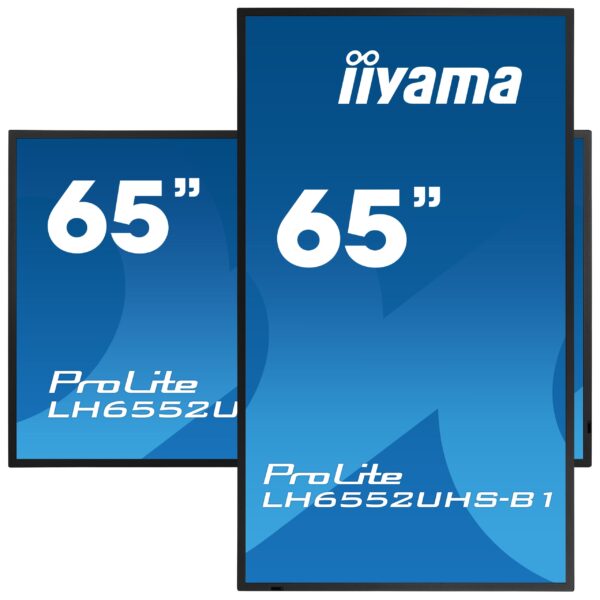

65″ 4K UHD Professional Digital Signage 24/7 display (Landscape and Portrait) featuring Android OS, FailOver and Intel® SDM slot
The ideal all-in-one solution for environments where performance and reliability are mission critical. The iiyama ProLite LH6552UHS is a 500cd/m² high brightness professional large format display with a 24/7 operating time. On-board Android 8.0 OS means you can easily customize the display to your needs and install applications directly to it. The embedded option of Nsign* empowers you to create and schedule a range of content across multiple screens using a powerful cloud-based solution. The Intel® SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs.
*Nsign license required – please see our nsign landing page for more information
Introducing the iiyama ProLite LH6552UHS-B1, a 65″ 4K UHD Professional Digital Signage display designed for 24/7 use in landscape and portrait orientations, where performance and reliability are paramount. Featuring a high brightness of 500cd/m², this large format display delivers vivid visuals for maximum impact.
Take advantage of the on-board Android 8.0 OS to customize your display with ease and install applications directly, ensuring your display meets your unique needs. The Nsign* embedded option offers a potent cloud-based platform for creating and scheduling content across multiple screens.
The Intel® SDM Slot enables an embedded PC option for enhanced flexibility, security, and control. With the FailOver feature, you can trust that your content will always be displayed actively through your preferred inputs, providing a seamless and engaging viewing experience.
Choose the ProLite LH6552UHS-B1 for a powerful, reliable, and versatile digital signage solution.
Signal FailOver ensures your content is always actively displayed
SIGNAL FAILOVER
FailOver is a feature which automatically detects input sources. When there is no signal on the default input
it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs
(incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
Customize your display with Android OS.
ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
Powerful Performance, Minimal Management – Smart Display Modules
SMART DISPLAY MODULE
A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays.
This small sized module delivers great performance with minimum implementation and management.
*Available as optional.
Color perfection from any angle with IPS technology
IPS
IPS displays are best known for wide viewing angles and natural,
highly accurate colours. They are especially suited for colour-critical applications.
See every detail with 4K Digital Signage
4K Digital Signage
UHD resolution (3840×2160), better known as 4K, offers a gigantic viewable area with 4 times more
information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image. -
DISPLAY CHARACTERISTICS
Design Thin bezel Diagonal 64.5″, 163.9cm Panel IPS, matte finish, haze 25% Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD) Aspect ratio 16:9 Panel brightness 500 cd/m² Static contrast 1200:1 Response time (GTG) 8ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 1.07B 8bit+FRC Horizontal Sync 30 – 80kHz Viewable area W x H 1428.5 x 803.5mm, 56.2 x 31.6″ Bezel width (sides, top, bottom) 14.9mm, 14.9mm, 14.9mm Pixel pitch 0.372mm Bezel colour and finish black, matte INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1 (DVI-I: VGA+DVI) Digital signal input DVI x1 (max. 1920×1080 @60Hz)
HDMI x3 (v.2.0, max. 3840×2160 @60Hz)
DisplayPort x1 (v.1.4, max. 3840×2160 @60Hz)Audio input Mini jack x1 (3.5mm) Monitor control input RS-232c x1
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini)Digital signal output DisplayPort x1 (max. 3840×2160 @60Hz, MST-out Daisy Chain v.1.2) Audio output Speakers 2 x 10W Monitor control output RS-232c x1
IR loop through x1 (3.5mm stereo mini)HDCP v.2.2 USB ports x2 (v.2.0) FEATURES
Integrated software Android OS 8.0, EShare, iiSignage, FailOver WiFi optional Hardware CPU: MTK96B+MSB6000, CA73*2+A53*2, Memory: 3GB DDR4, Storage: 32GB eMMC Extra Intel® SDM-L, micro SD card slot Max. non-stop operating time 24/7 Anti image retention yes Media playback yes Housing (bezel) metal GENERAL
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL Control buttons Power, Mute, Input, Plus, Minus, Up, Down, Menu User controls picture (brightness, contrast, sharpness, black level, tint, color, noise reduction, gamma selection, color temperature, color control, smart power, over scan, picture reset), screen (H. position, V. position, clock, clock phase, zoom mode, custom zoom, auto adjust, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio source, audio reset, audio out sync, speaker setting), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD turn off, OSD H-Position, OSD V-position, rotation, information OSD, logo, monitor ID, heat status, monitor information, DP version, HDMI version, configuration 2 reset), advanced option (IR control, power LED light, keyboard control, tiling, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power save, SDM settings, advanced option reset), Android settings (network, signage display, apps, display, security, date & time, developer options, about) Plug&Play DDC2B MECHANICAL
Orientation landscape, portrait Fanless design yes VESA mounting 400 x 400mm Operation temperature range 0°C – 40°C Storage temperature range – 20°C – 60°C MTBF 50.000 hours (excluding backlight) ACCESSORIES INCLUDED
Cables power, HDMI, RS-232c Guides quick start guide, safety guide Other Stickers for screw holes Remote control yes (batteries included) POWER MANAGEMENT
Power supply unit internal Power supply AC 100 – 240V, 50/60Hz Power usage 183W typical, 0.5W stand by, 0.5W off mode SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH Energy efficiency class (Regulation (EU) 2017/1369) G DIMENSIONS / WEIGHT
Product dimensions W x H x D 1462.3 x 837.3 x 93.4mm Box dimensions W x H x D 1616 x 187 x 998mm Pallet volume 12pcs Weight (without box) 27.8kg Weight (with box) 35kg EAN code 4948570118502 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
