• iiyama ProLite LH5575UHS-B1AG 55″ 4K Ultra HD Digital Signage Display

  Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH5575UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it.

  The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network.

  With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

  ANDROID OS
  Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

  IISIGNAGE²
  iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

  SIGNAL FAILOVER
  FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

  SMART DISPLAY MODULE
  A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays. This small sized module delivers great performance with minimum implementation and management. Available as optional.

  4K
  UHD resolution (3840×2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

• Category	Description
  DISPLAY CHARACTERISTICS
  Design	Thin bezel
  Diagonal	54.6″, 139cm
  Panel	IPS, AG coated glass, matte finish, haze 25%
  Native resolution	3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
  Aspect ratio	16:9
  Panel brightness	500 cd/m²
  Static contrast	1200:1
  Response time (GTG)	8ms
  Viewing zone	Horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	1.07B 8bit+FRC (NTSC 72%)
  Horizontal Sync	28 – 160kHz
  Viewable area W x H	1209.6 x 680.4mm, 47.6 x 26.8″
  Bezel width	Sides, Top, Bottom: 14.9mm, 14.9mm, 14.9mm
  Pixel pitch	0.315mm
  Bezel color and finish	Black, matte
  INTERFACES / CONNECTORS / CONTROLS
  Digital signal input	HDMI x3 (v.2.0, max. 3840×2160 @60Hz)
  	DisplayPort x1 (v.1.2, max. 3840×2160 @60Hz)
  Monitor control input	RS-232c x1 (2.5mm sub-mini jack)
  	RJ45 (LAN) x1
  	IR x1 (3.5mm stereo mini)
  Digital signal output	DisplayPort x1 (max. 3840×2160 @60Hz, MST-out Daisy Chain v.1.2)
  Audio output	Mini jack x1
  Speakers	2 x 10W
  Monitor control output	RS-232c x1 (2.5mm sub-mini jack)
  	IR loop through x1 (3.5mm stereo mini)
  HDCP	v.2.2
  USB ports	x2 (v.2.0)
  FEATURES
  Integrated software	Android 11 OS, iiSignage2, FailOver, EShare
  WiFi	Yes (Built-in, 802.11ac)
  Hardware	CPU: A734+A534, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
  	Extra: Intel® SDM-S, micro SD card slot
  Max. non-stop operating time	24/7
  Anti image retention	Yes
  Video wall / daisy chain	Yes, (MST-output)
  Media playback	Yes
  Housing (bezel)	Metal
  GENERAL
  OSD languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
  Control buttons	Power
  User controls	Picture, Screen, Audio, Configuration 1, Configuration 2, Advanced option, Android settings
  Plug&Play	DDC2B
  MECHANICAL

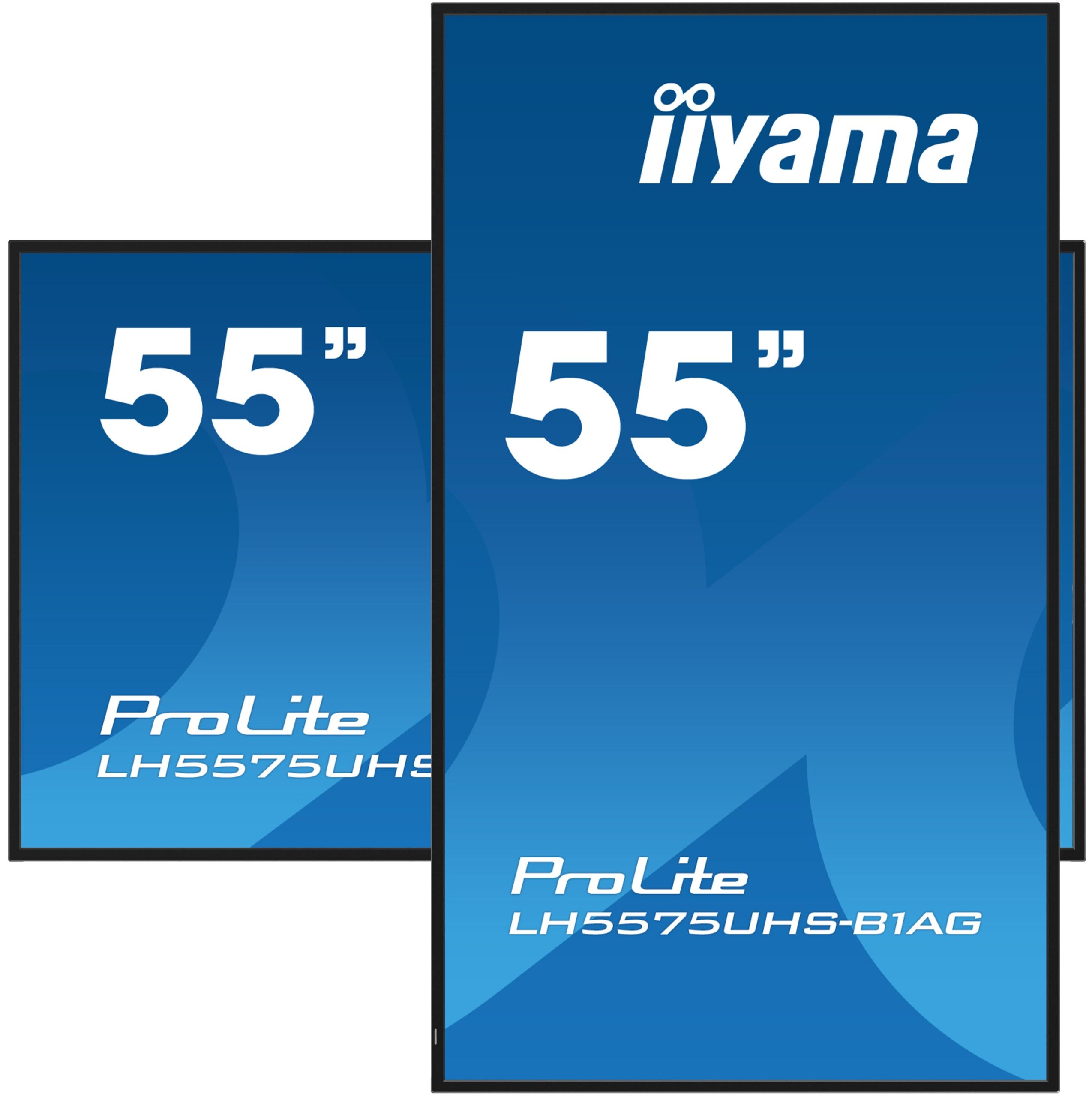

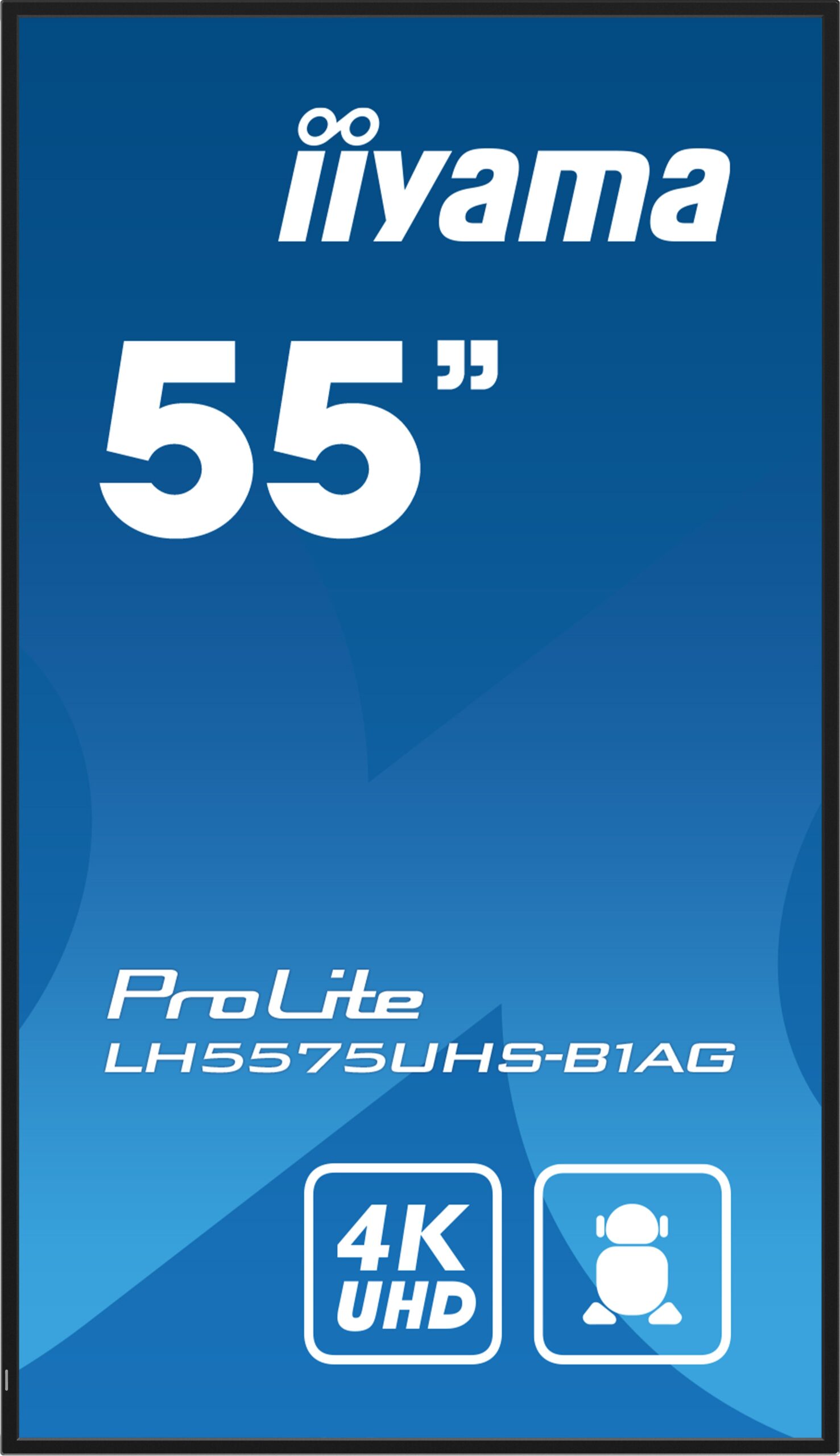

  Orientation	Landscape, Portrait
  Fanless design	Yes
  VESA mounting	400 x 400mm
  Operation temperature range	0°C – 40°C
  Storage temperature range	-20°C – 60°C
  MTBF	44,000 hours (excluding backlight)
  ACCESSORIES INCLUDED
  Cables	Power, HDMI, RS-232c
  Guides	Quick start guide, Safety guide
  Other	Stickers for screw holes, wire buckles
  Remote control	Yes (Batteries included)
  POWER MANAGEMENT
  Power supply unit	Internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	127W typical, 0.5W stand by, 0.3W off mode
  SUSTAINABILITY
  Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
  Energy efficiency class	G
  DIMENSIONS / WEIGHT
  Product dimensions	1237.5 x 710 x 55mm
  Box dimensions	1386 x 845 x 130mm
  Weight (without box)	15.2kg
  EAN code	4948570123469
