iiyama ProLite LH5542UHS-B3 55″ 4K UHD Professional Digital Signage Display

iiyama ProLite LH5542UHS-B3

55″ 4K UHD Professional Digital Signage Display

• Description
• Specifications
• Warranty

• iiyama PROLITE LH5542UHS-B3 (EOL)
  PLEASE PURCHASE REPLACED MODEL: PROLITE LH5554UHS-B1AG

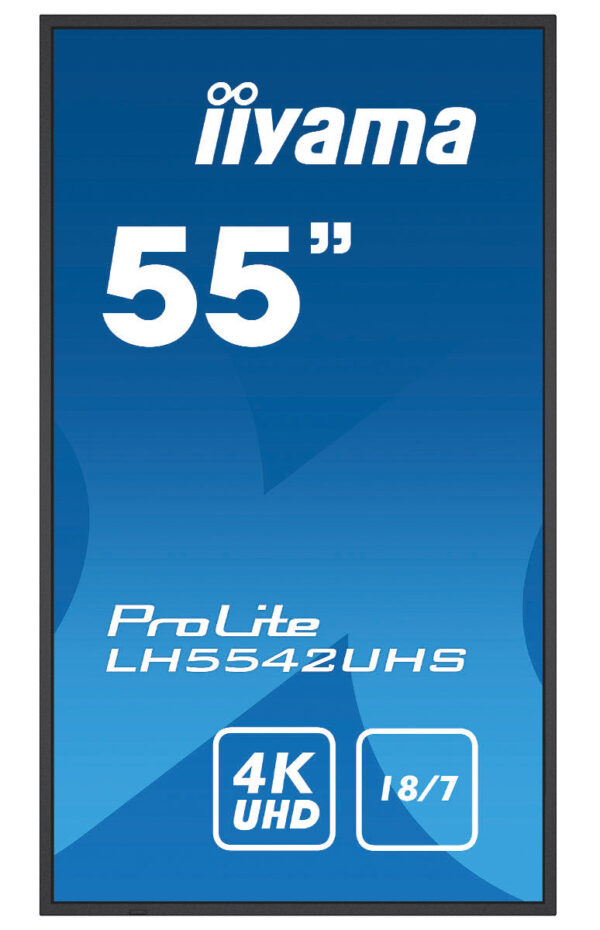

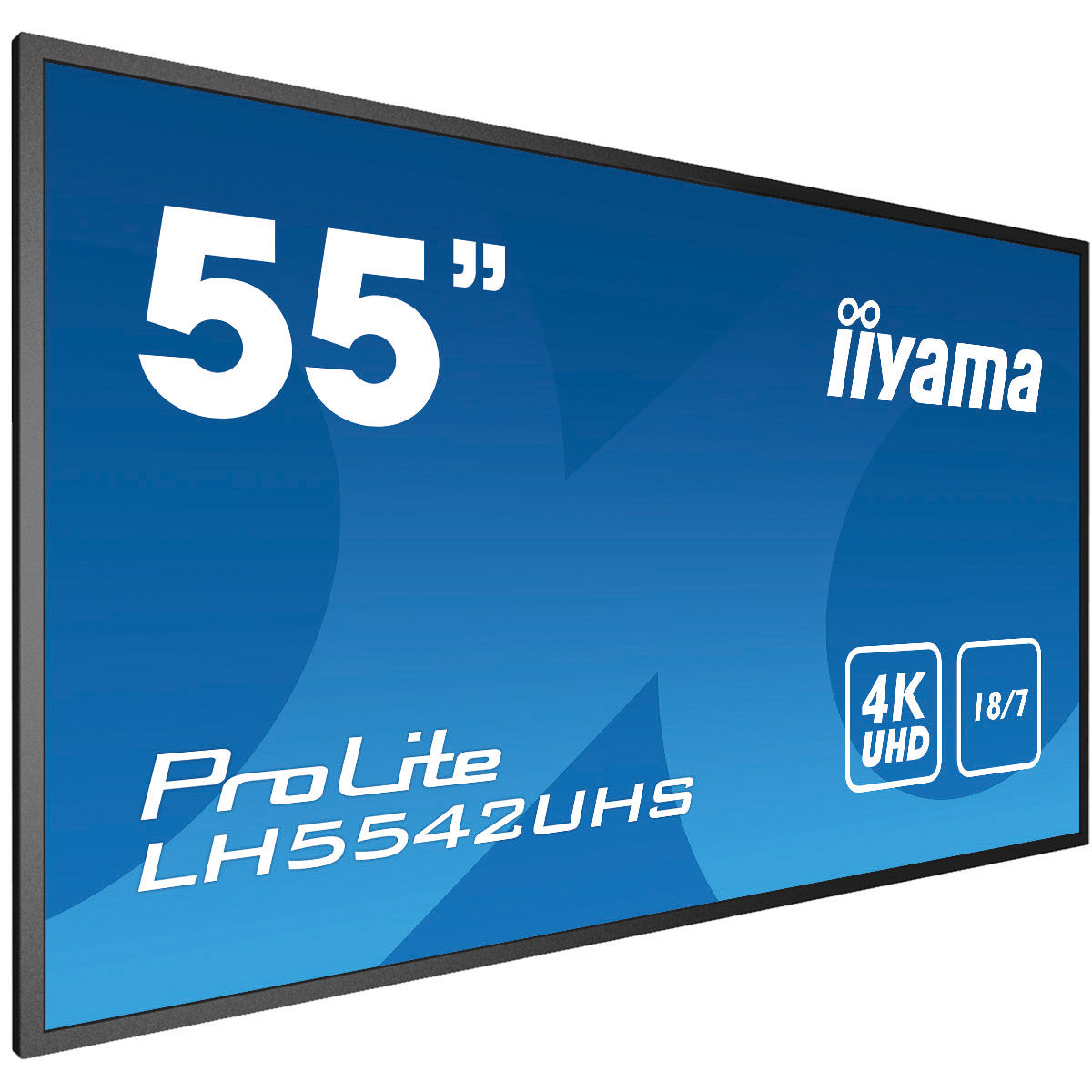

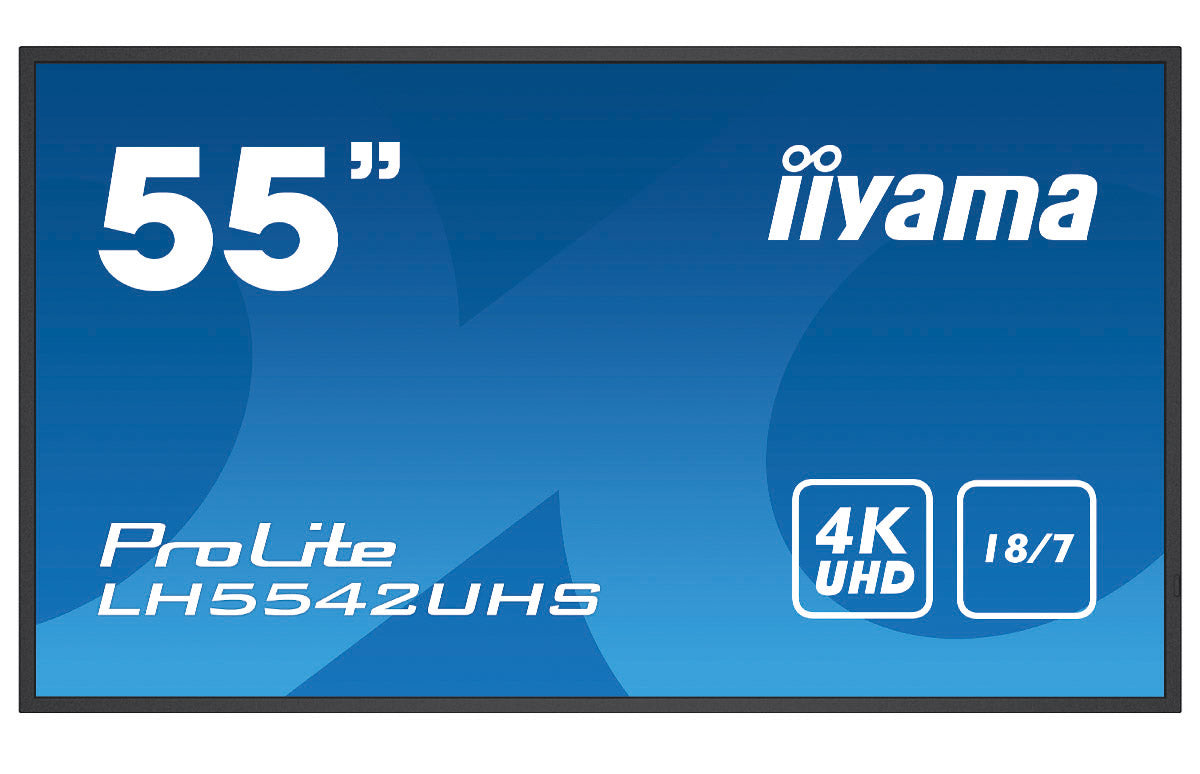

  iiyama PROLITE LH5542UHS-B3 55″ Landscape/Portrait Professional Digital Signage display, 18/7 operating time, 4K UHD resolution with Intel® SDM slot

  Enjoy brighter signage with the ProLite 42 Series. Delivering a slim bezel, a 500 cd/m² brightness display, which can be operated 18/7 in landscape and portrait orientation, for a choice of applications. Thanks to onboard Android 8.0, you can easily customize the display by installing applications directly, making it the perfect choice for Digital Signage and In-store communication.

  Available also: LH5042UHS-B3

  Introducing iiyama ProLite LH5542UHS-B3: a versatile 55″ Landscape/Portrait Professional Digital Signage display designed to elevate your messaging. Boasting a sleek slim bezel and 4K UHD resolution, this stunning display offers 18/7 operating time for maximum visual impact across diverse applications.

  Illuminate your content with 500 cd/m² brightness, ensuring crystal-clear visuals that capture and engage your audience. Powered by Android 8.0, enjoy the freedom to customize your display by directly installing applications, making it an ideal solution for digital signage and in-store communication needs.

  Enhance your signage experience with the Intel® SDM slot, providing seamless integration and powerful performance for diverse content management. Choose iiyama ProLite LH5542UHS-B3 for an innovative and dynamic display that amplifies your message and transforms your space.

  SIGNAL FAILOVER

  FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

  ANDROID OS

  Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

  SMART DISPLAY MODULE

  A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays. This small-sized module delivers great performance with minimum implementation and management. Available as optional.

  4K

  UHD resolution (3840×2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

  MEDIA PLAYER

  Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

• DISPLAY CHARACTERISTICS

  Design	Thin bezel
  Diagonal	54.6″, 138.8cm
  Panel	IPS, haze 2%
  Native resolution	3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
  Aspect ratio	16:9
  Panel brightness	500 cd/m²
  Static contrast	1300:1
  Response time (GTG)	9ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	1.07G (8 Bits+FRC)
  Horizontal Sync	30 – 80kHz
  Viewable area W x H	1209.6 x 680.4mm, 47.6 x 26.8″
  Bezel width (sides, top, bottom)	13.9mm, 13.9mm, 13.9mm
  Pixel pitch	0.315mm
  Bezel colour and finish	black, matte

  INTERFACES / CONNECTORS / CONTROLS

  Analog signal input	VGA x1 (DVI-I: VGA+DVI)
  Digital signal input	DVI x1 (max. 1920×1080 @60Hz) HDMI x3 (v.2.0, max. 3840×2160 @60Hz) DisplayPort x1 (v.1.4, max. 3840×2160 @60Hz)
  Audio input	Mini jack x1 (3.5mm)
  Monitor control input	RS-232c x1 (2.5mm sub-mini jack) RJ45 (LAN) x1 IR x1 (3.5mm stereo mini)
  Digital signal output	DisplayPort x1 (max. 3840×2160 @60Hz, MST-out Daisy Chain)
  Audio output	Mini jack x1 (3.5mm) Speakers 2 x 10W
  Monitor control output	RS-232c x1 IR loop through x1 (3.5mm stereo mini)
  HDCP	v.2.2
  USB ports	x2 (v.2.0)

  FEATURES

  Integrated software	Android OS 8.0, EShare, iiSignage
  WiFi	optional
  Hardware	CPU: MTK96+MSB6000, CA73*2+A53*2, Memory: 3GB DDR4, Storage: 32GB eMMC
  Extra	Intel® SDM-L, micro SD card slot, OTA firmware update
  Max. non-stop operating time	18/7
  Anti image retention	yes
  Media playback	yes
  Housing (bezel)	metal

  GENERAL

  OSD languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
  Control buttons	Power, Mute, Input, Plus, Minus, Up, Down, Menu
  User controls	picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, smart power, overscan, picture reset), screen (H. position, V. position, clock, clock phase, zoom mode, custom zoom, auto adjust, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio source, audio reset, audio out sync, speaker setting), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD turn off, OSD H-Position, OSD V-position, system rotation, information OSD, logo, monitor ID, heat status, monitor information, DP version, HDMI version, configuration 2 reset), advanced option (IR control, power LED light, keyboard control, tiling, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power save, SDM settings, advanced option reset), Android settings (network, signage display, apps, display, security, date & time, developer options, about)
  Plug&Play	DDC2B

  MECHANICAL

  Orientation	landscape, portrait
  Fanless design	yes
  VESA mounting	400 x 400mm
  Operation temperature range	0°C – 40°C
  Storage temperature range	– 20°C – 60°C
  MTBF	50.000 hours (excluding backlight)

  ACCESSORIES INCLUDED

  Cables	power, HDMI, RS-232c
  Guides	quick start guide, safety guide
  Other	Stickers for screw holes
  Remote control	yes (batteries included)

  POWER MANAGEMENT

  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	133W typical, 0.5W stand by, 0.5W off mode

  SUSTAINABILITY

  Regulations	CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
  Energy efficiency class (Regulation (EU) 2017/1369)	G

  DIMENSIONS / WEIGHT

  Product dimensions W x H x D	1242 x 712.5 x 63.5mm
  Box dimensions W x H x D	1350 x 860 x 160mm
  Pallet volume	14pcs
  Pallet dimensions W x H x D	1140 x 1865 x 1370mm
  Weight (without box)	16.7kg
  Weight (with box)	23kg
  EAN code	4948570118595
