iiyama ProLite LH4360UHS-B2AG 43″ 4K Ultra HD Professional Digital Signage Display

• Description
• Specifications
• Downloads

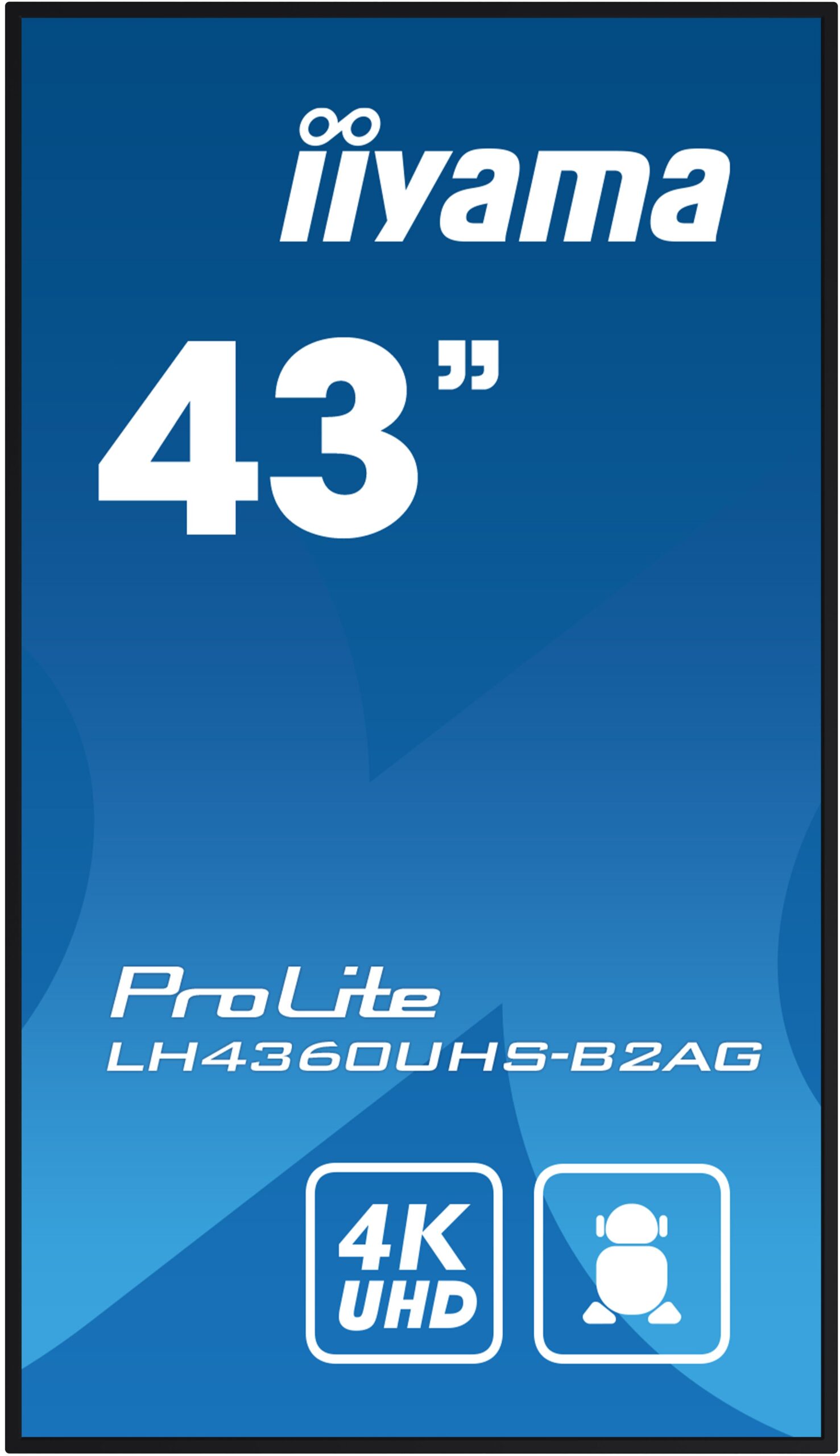

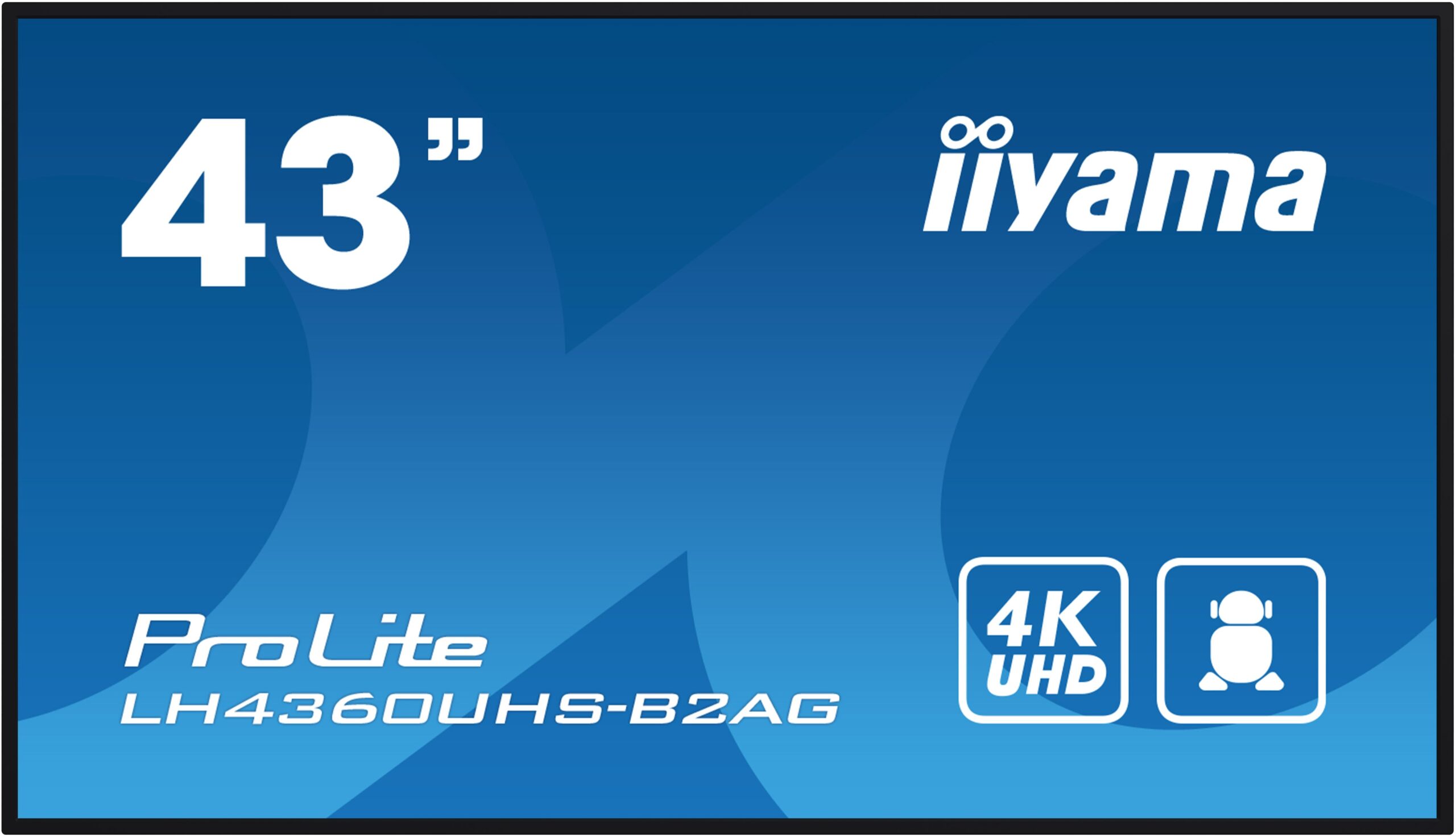

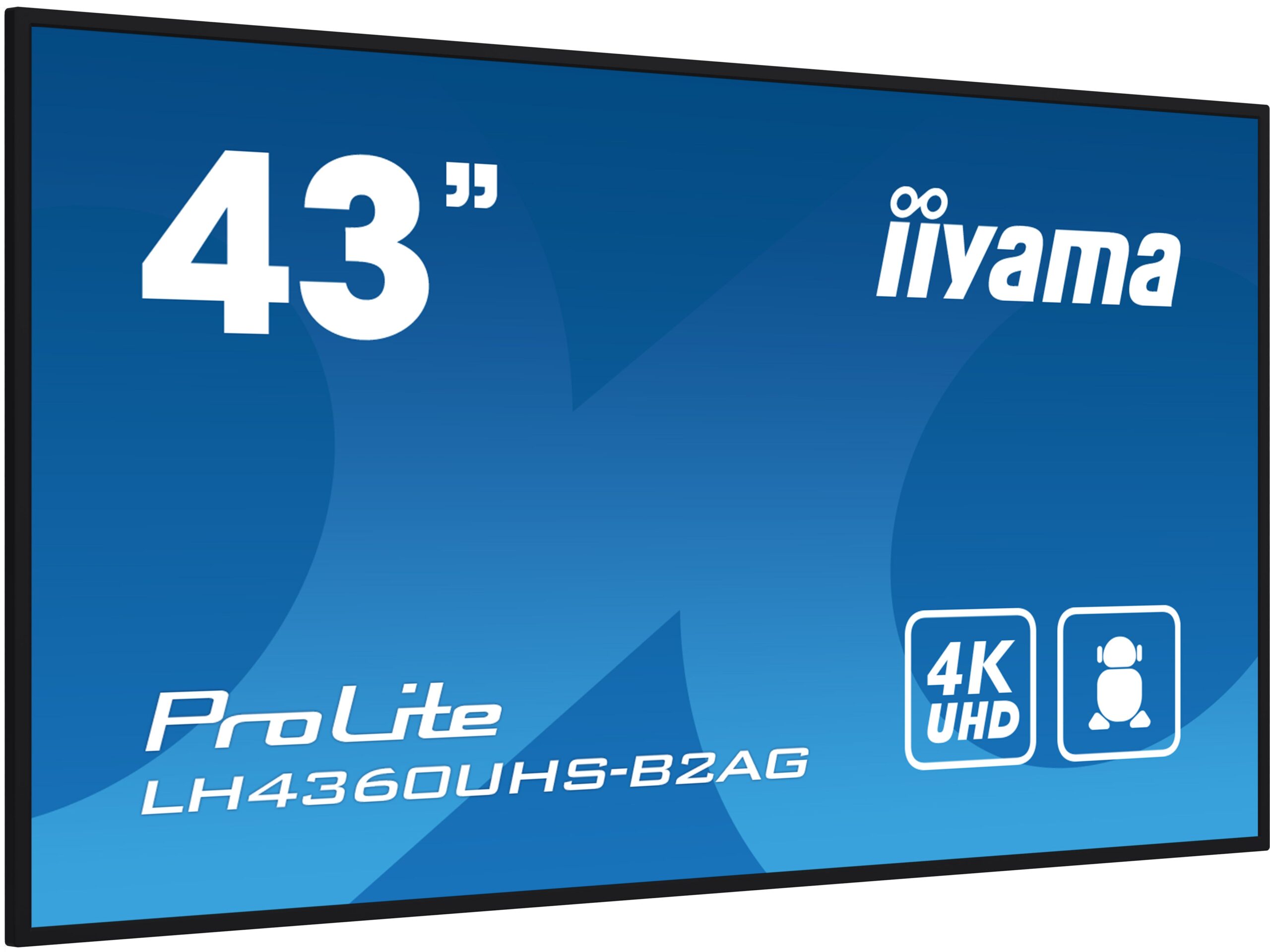

• iiyama ProLite LH4360UHS-B2AG 43″ 4K Ultra HD professional Digital Signage Display

  Elevate your visual communication with the LH4360UHS-B2AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² content management software, Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze.

  This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it’s used in retail, corporate, hospitality, or educational settings, the LH4360UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.


  Android OS
  Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

  iiSignage²
  iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

  Signal FailOver
  FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.


  Ultra Slim
  With 50 percent depth saving over similar models, the jaw-dropping and best in class 40mm total depth display can be installed discretely and elegantly in all areas.

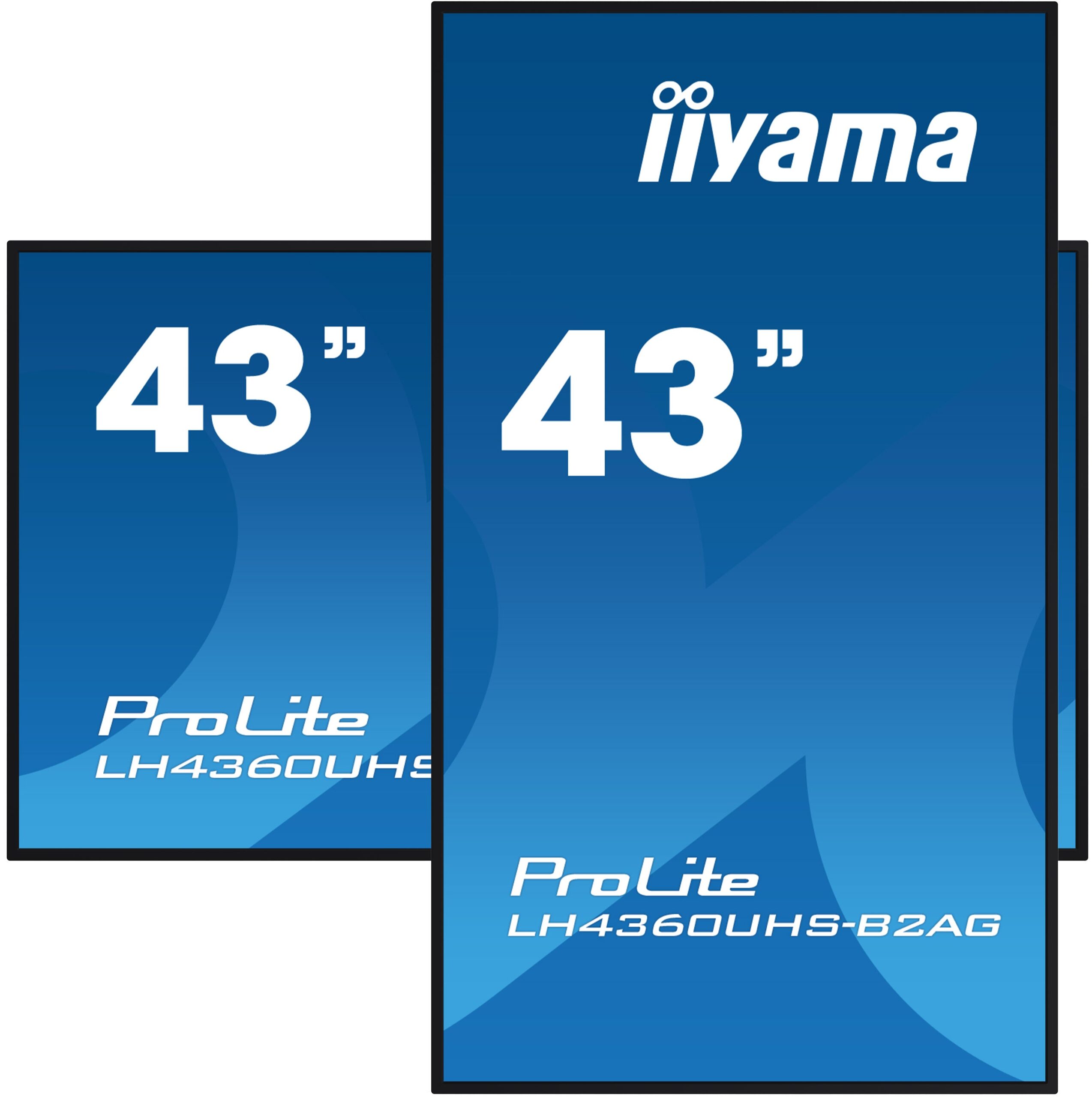

  Flexible Orientation
  With the option to switch between landscape and portrait mode, these displays let you get creative with any space. Whether it’s messaging, ads, videos, or safety info, you can tailor your content to grab attention exactly how you want.

  Speakers
  The built-in speakers offer high-quality sound, ensuring crystal-clear audio during multimedia playback.


  Cable Management
  Cables can be neatly tied and routed with the special cable ducts, so they cannot come loose or move around.

• Category	Details
  DISPLAY CHARACTERISTICS
  Design	Thin bezel
  Diagonal	42.5″, 108cm
  Panel	VA, AG coated glass, matte finish, hard coating (3H), haze 25%
  Native resolution	3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
  Aspect ratio	16:9
  Panel brightness	500 cd/m²
  Static contrast	4000:1
  Response time (GTG)	6.5ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	1.07G (8 Bits+FRC) (NTSC 87%)
  Horizontal Sync	28 – 160kHz
  Viewable area W x H	941.2 x 529.4mm, 37.1 x 20.8″
  Bezel width	9mm, sides, top, bottom
  Pixel pitch	0.245mm
  Bezel colour and finish	black, matte
  INTERFACES / CONNECTORS / CONTROLS
  Digital signal input	HDMI x3 (v.2.0, max. 3840×2160 @60Hz)
  Monitor control input	RS-232c x1, RJ45 (LAN) x1
  Audio output	Mini jack x1 (3.5mm)
  Speakers	2 x 10W
  HDCP	v.1.4 & 2.2
  USB ports	x2 (v.2.0)
  FEATURES
  Integrated software	Android 11 OS, iiSignage², FailOver, EShare
  WiFi	yes (Built-in, 802.11ac)
  Hardware	CPU: A53*4, GPU: G52 MP2, RAM: 2GB, ROM: 16GB
  Extra	Wall mounting kit included (VESA 400x300mm)
  Max. non-stop operating time	24/7
  Anti image retention	yes
  Media playback	yes
  Housing (bezel)	plastic
  GENERAL
  OSD languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
  Control buttons	Power button, Power Indicator, Remote Sensor
  MECHANICAL
  Orientation	landscape, portrait
  Fanless design	yes
  VESA mounting	400 x 300mm
  Operation temperature range	0°C – 40°C
  Storage temperature range	– 20°C – 60°C
  MTBF	50.000 hours (excluding backlight)
  ACCESSORIES INCLUDED	Cables: power, HDMI, RS-232c, Guides: quick start guide, safety guide, Other: Wall mount bracket, etc.
  Remote control	yes (batteries included)
  POWER MANAGEMENT	Power supply unit: internal, Power supply: AC 100 – 240V, 50/60Hz, Power usage: 45W typical, 0.5W stand by, 0.3W off mode
  SUSTAINABILITY	Regulations: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, Energy efficiency class: E
  DIMENSIONS / WEIGHT	Product dimensions W x H x D: 967.4 x 555.9 x 40mm, Box dimensions W x H x D: 1075 x 652 x 144mm, Weight (without box): 9.1kg, Weight (with box): 12.7kg
  EAN code	4948570124442
