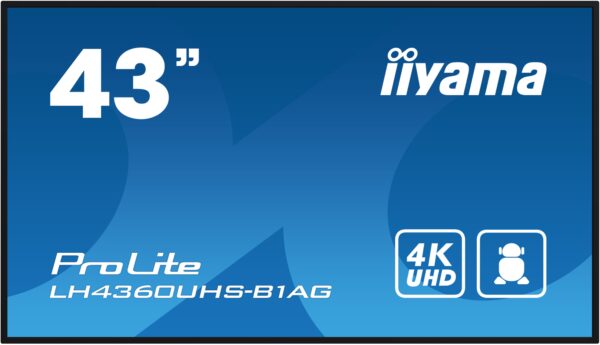

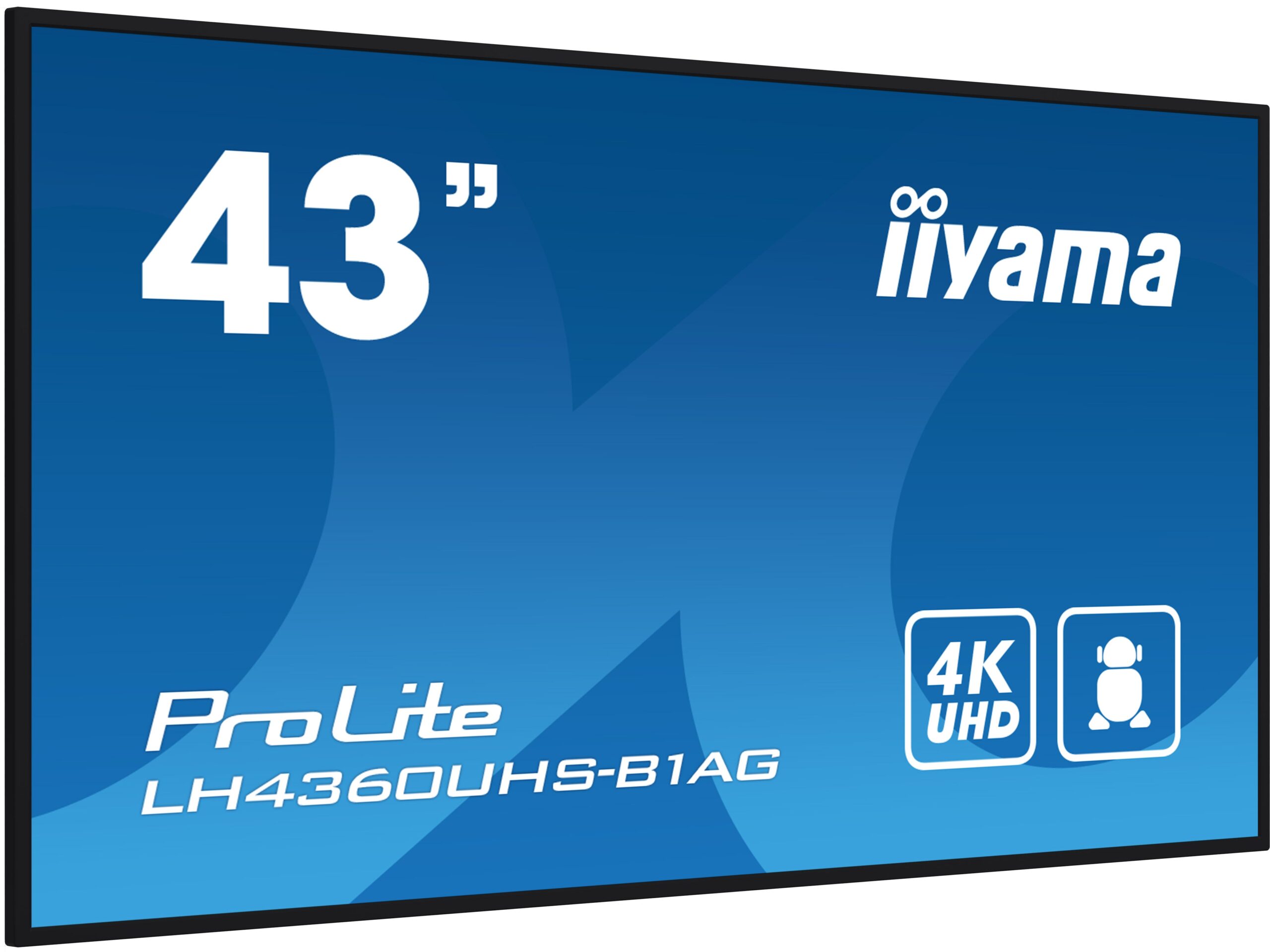

iiyama ProLite LH4360UHS-B1AG 43″ 4K UHD Professional Digital Signage Display
iiyama ProLite LH4360-B1AG 43″ Signage Display
43″ 4K Professional digital signage display with Android OS
Commercial Grade A Panel 24/7 Digital Signage Display
Free Wall Mounting Kit Included (VESA 400x300mm)
- Description
- Specifications
- Warranty
-
Elevate your visual communication with the LH4360UHS-B1AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² content management software, Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze.
This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it’s used in retail, corporate, hospitality, or educational settings, the LH4360UHS -B1AG will undoubtedly captivate your audience and leave a lasting impression.
ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
IISIGNAGE²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
SIGNAL FAILOVER
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
MEDIA PLAYER
Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers. -
DISPLAY CHARACTERISTICS
Design Thin bezel Diagonal 42.5″, 108cm Panel VA, AG coated glass, matte finish, hard coating (3H), haze 25% Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD) Aspect ratio 16:9 Panel brightness 500 cd/m² Static contrast 5000:1 Response time (GTG) 8,5ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 1.07G (8 Bits+FRC) (NTSC 87%) Horizontal Sync 28 – 160kHz Viewable area W x H 941.2 x 529.4mm, 37.1 x 20.8″ Bezel width (sides, top, bottom) 9mm, 9mm, 9mm Pixel pitch 0.245mm Bezel colour and finish black, matte INTERFACES / CONNECTORS / CONTROLS
Digital signal input HDMI x3 (v.2.0, max. 3840×2160 @60Hz) Audio input Mini jack x1 (3.5mm) Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini)Audio output Mini jack x1
Speakers 2 x 10WHDCP v.1.4 & 2.2 USB ports x2 (v.2.0) FEATURES
Integrated software Android 11 OS, iiSignage², FailOver, EShare WiFi yes (Built-in) Hardware CPU: A53*4, GPU: G52 MP2, RAM: 2GB, ROM: 16GB Extra Wall mounting kit included (VESA 400x300mm) Max. non-stop operating time 24/7 Anti image retention yes Media playback yes Housing (bezel) plastic GENERAL
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL Control buttons Power button, Power Indicator, Remote Sensor User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (zoom mode, custom zoom, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio out sync, speaker setting, audio reset), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (IR control, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device) Plug&Play DDC2B MECHANICAL
Orientation landscape, portrait Fanless design yes VESA mounting 400 x 300mm Operation temperature range 0°C – 40°C Storage temperature range – 20°C – 60°C MTBF 50.000 hours (excluding backlight) ACCESSORIES INCLUDED
Cables power, HDMI, RS-232c Guides quick start guide, safety guide Other Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes Remote control yes (batteries included) POWER MANAGEMENT
Power supply unit internal Power supply AC 100 – 240V, 50/60Hz Power usage 73W typical, 0.5W stand by SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA Energy efficiency class (Regulation (EU) 2017/1369) G DIMENSIONS / WEIGHT
Product dimensions W x H x D 967.4 x 555.9 x 40mm Box dimensions W x H x D 1075 x 652 x 144mm Weight (without box) 9.1kg Weight (with box) 12.7kg EAN code 4948570122295 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
