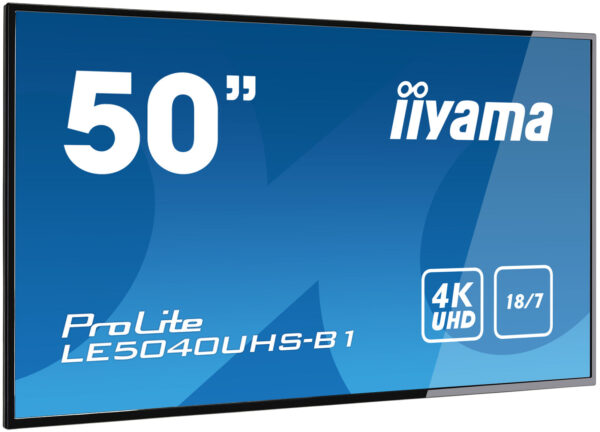

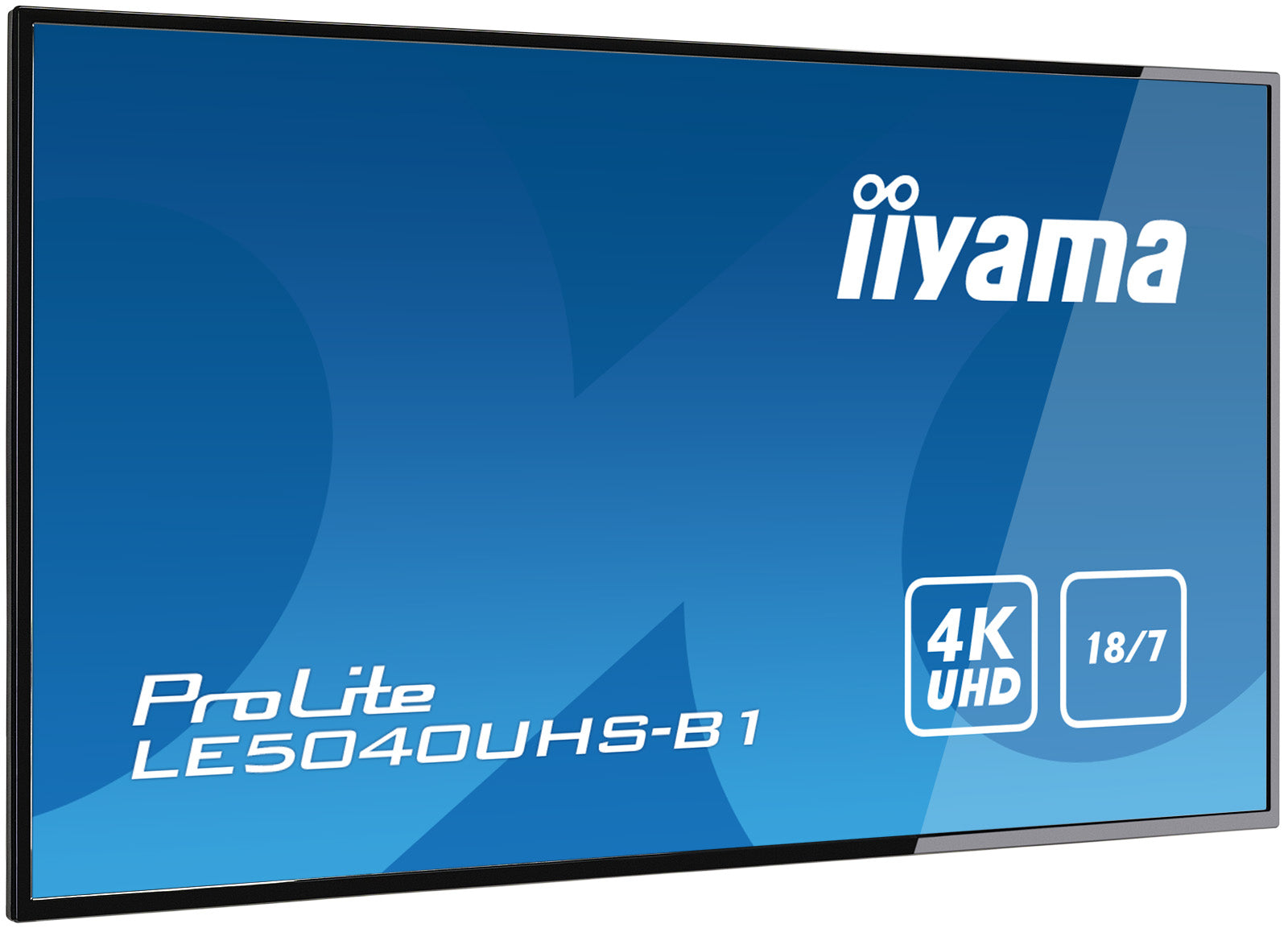

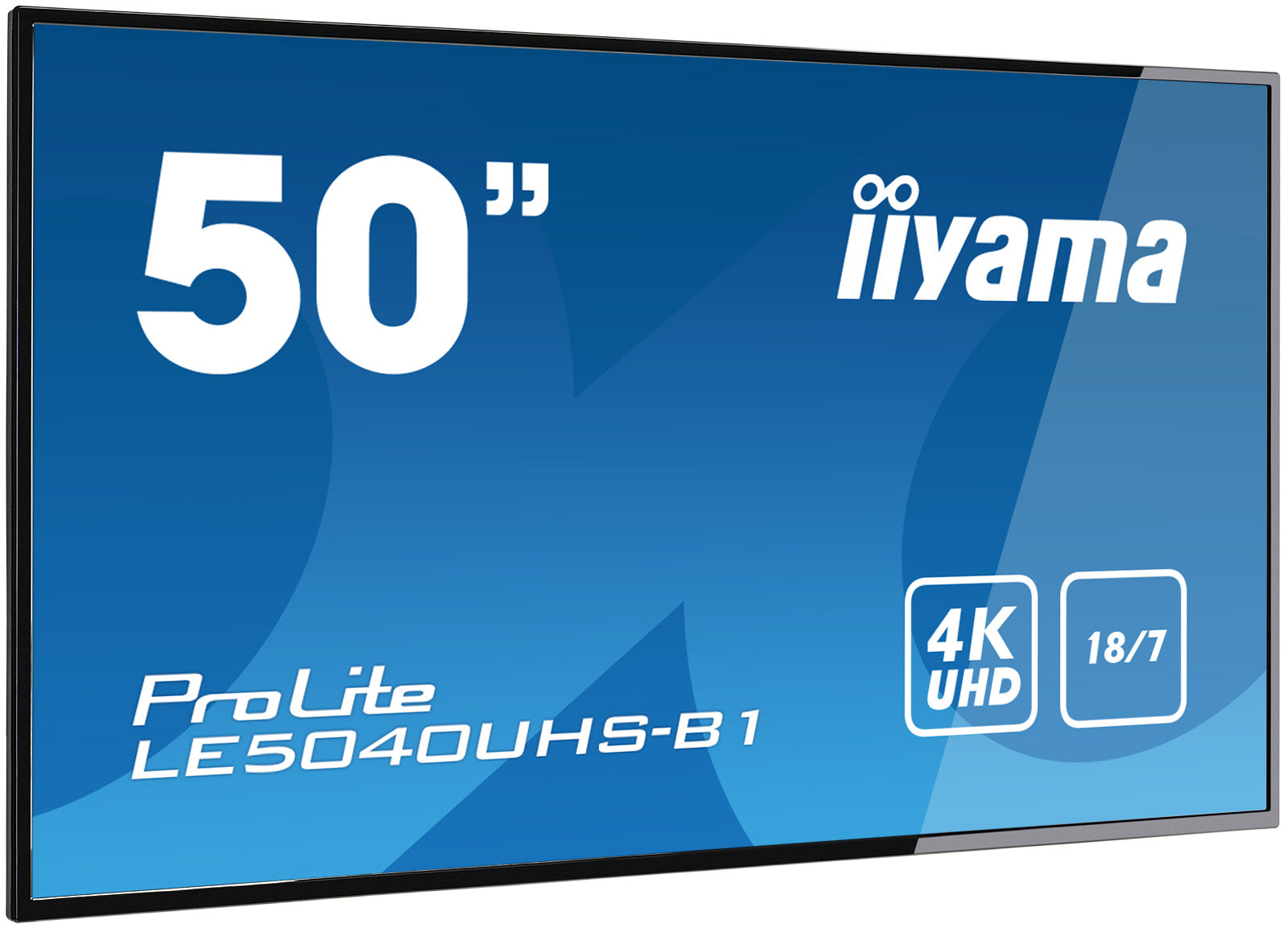

iiyama ProLite LE5040UHS-B1 50″ Professional Digital Signage Display
iiyama ProLite LE5040UHS-B1
50″ Professional Digital Signage Display
- Description
- Specifications
- Warranty
-
PROLITE LE5040UHS-B1
50″ Professional Digital Signage display with a 18/7 operating time and a 4K UHD resolution
See the difference with the ProLite LE5040UHS. A professional digital signage display with 4K graphics, 18/7 operating time and landscape orientation. Featuring a slim bezel and an AMVA3 LED panel for exceptional color and image performance and iiSignage, iiyama’s free signage content creation and management software, the LE5040UHS offers businesses an easy and effective solution to help capture their audience’s attention.
AMVA3
AMVA3 technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
4K
UHD resolution (3840×2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
LAN CONTROL
LAN control enables making adjustments in the display OSD menu through your network (software not included).
MEDIA PLAYER
Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.
-
DISPLAY CHARACTERISTICS
Design Thin bezel Diagonal 50″, 127cm Panel VA, haze 2% Native resolution 3840 x 2160 (8.3 megapixel 4K UHD) Aspect ratio 16:9 Panel brightness 350 cd/m² Static contrast 4000:1 Response time (GTG) 8ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 16.7mln 8bit Horizontal Sync 30 – 83kHz Viewable area W x H 1100 x 620.5mm, 43.3 x 24.4″ Bezel width (sides, top, bottom) 13.9mm, 13.9mm, 14.9mm Pixel pitch 0.2854mm Bezel colour and finish black, glossy INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1 (max. 1920×1080 @60Hz) Digital signal input DVI x1 (max. 1920×1080 @60Hz)
HDMI x2 (max. 3840×2160 @60Hz)Audio input Mini jack x1 Monitor control input RS-232c x1
RJ45 (LAN) x1
IR x1Audio output RCA (L/R) x1
Speakers 2 x 10WMonitor control output RS-232c x1
IR loop through x1HDCP yes USB ports x2 (1x v.2.0, 1x v.3.0) FEATURES
Integrated software Android OS 5.0.1, iiSignage Hardware CPU: MSD95E1D-W4, Quad-Core ARM, 1.4Ghz, Memory: 2GB, Storage: 8GB eMMC Extra micro SD slot Max. non-stop operating time 18/7 Anti image retention yes Media playback yes Housing (bezel) plastic GENERAL
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL Control buttons Power, Mute, Input, Plus, Minus, Up, Down, Menu User controls Picture (brightness, contrast, sharpness, black level, tint, color, noise reduction, gamma selection, color temperature, color control, smart power, over scan, picture reset), Screen (H.position, V.position, clock, clock phase, zoom mode, custom zoom, auto asjust, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio source, audio reset, audio out sync), Configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, RGB range, Config 1 reset, factory reset), Configuration 2 ( OSD turn off, OSD H-Position, OSD V-position, information OSD, logo, monitor ID, heat status, monitor information, HDMI version, config 2 reset), Advanced option (IR control, Power LED light, keyboard control, off timer, date and time, schedule, HDMI with One Wire, language, OSD transparency, power save, advanced option reset), Android settings (ethernet, signage display, system tools, display, apps, date & time, developer options, about) Plug&Play DDC2B, Mac OSX MECHANICAL
Orientation landscape Fanless design yes VESA mounting 400 x 400mm Operation temperature range 0°C – 40°C Storage temperature range – 20°C – 60°C MTBF 50000 hours (excluding backlight) ACCESSORIES INCLUDED
Cables power, DVI, HDMI, RS-232c Guides quick start guide, safety guide Remote control yes (batteries included) POWER MANAGEMENT
Power supply unit internal Power supply AC 100 – 240V, 50/60Hz Power usage 140W typical, 0.5W stand by, 0.5W off mode SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, REACH Energy efficiency class (Regulation (EU) 2017/1369) G REACH SVHC above 0.1%: Lead DIMENSIONS / WEIGHT
Product dimensions W x H x D 1123.5 x 646.5 x 68mm Pallet volume 10pcs Weight (without box) 12.6kg EAN code 4948570116324 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
