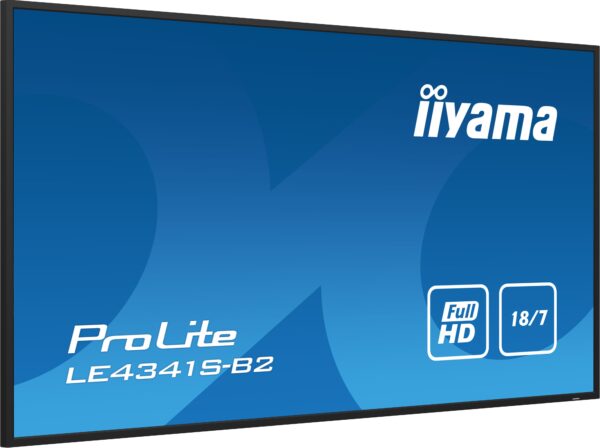

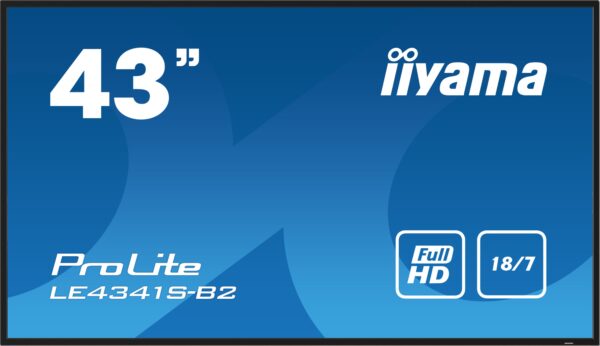

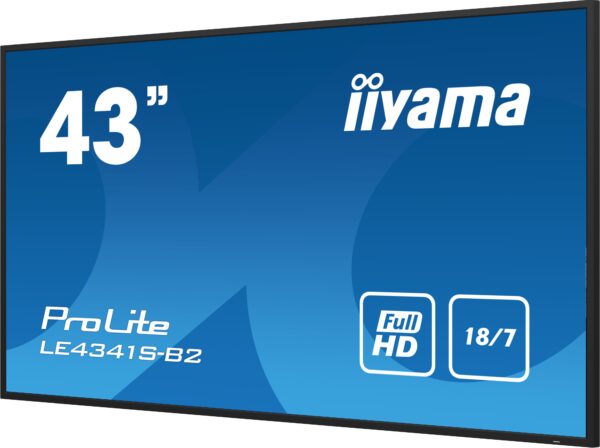

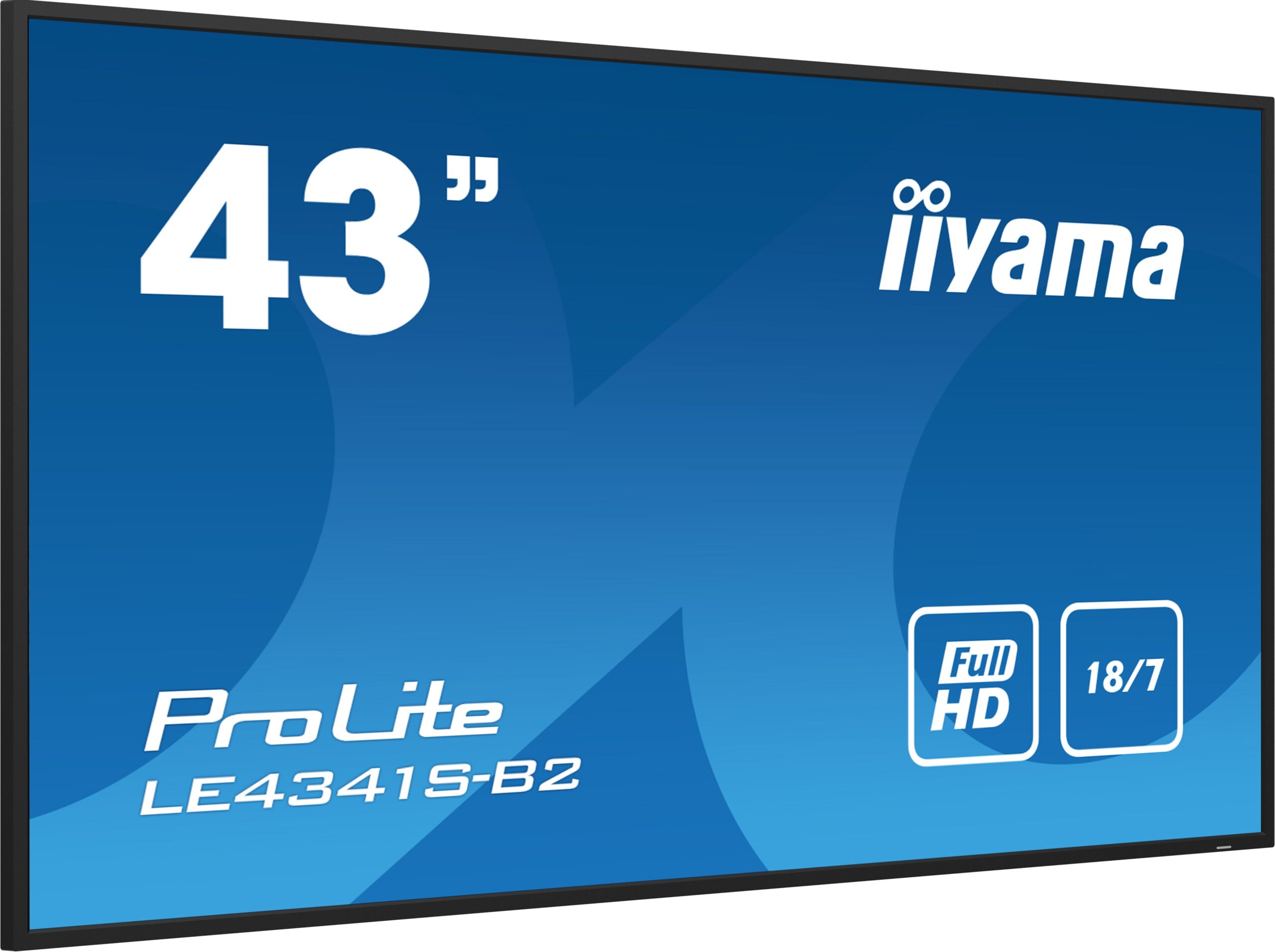

• iiyama ProLite LE4341S-B2 43″ Full HD Large Format Display

  Set in a slim bezel, the iiyama LE4341S is a professional digital signage display offering 18/7 operating time in landscape orientation.

  This Full HD and fanless IPS display guarantees great viewing from all angles, high brightness and exceptional colour clarity. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.

  MEDIA PLAYER
  Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

  LAN CONTROL
  LAN control enables making adjustments in the display OSD menu through your network (software not included).

  IPS
  IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

  FULL HD
  With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.

• DISPLAY CHARACTERISTICS
  Design	Thin bezel
  Diagonal	42.5″, 108cm
  Panel	IPS
  Native resolution	1920 x 1080 (2.1 megapixel Full HD)
  Aspect ratio	16:9
  Panel brightness	350 cd/m²
  Static contrast	1200:1
  Response time (GTG)	8ms
  Viewing zone	Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89°
  Colour support	1.07G (8 Bits+FRC) (NTSC 72%)
  Horizontal Sync	30 – 83kHz
  Viewable area W x H	940.9 x 529.3mm, 37 x 20.8″
  Bezel width (sides, top, bottom)	14mm, 14mm, 14mm
  Pixel pitch	0.490mm
  Bezel colour and finish	Black, glossy

  INTERFACES / CONNECTORS / CONTROLS
  Analog signal input	VGA x1 (max. 1920×1080 @60Hz)
  Digital signal input	HDMI x3 (v2.0, max. 1920×1080 @60Hz)
  Audio input	Mini jack x1
  Monitor control input	RS-232c x1
  RJ45 (LAN)	x1
  IR	x1
  Audio output	RCA (L/R) x1
  Speakers	2 x 10W
  Monitor control output	RS-232c x1
  IR loop through	x1
  HDCP	2.2
  USB ports	x1 (2.0, FW update support)

  FEATURES
  Max. non-stop operating time	18/7
  Anti image retention	Yes
  Media playback	Yes
  Housing (bezel)	Plastic

  GENERAL
  OSD languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
  Control buttons	Power, Mute, Input, Plus, Minus, Up, Down, Menu
  User controls	Picture, Sound, General settings 1, Screen, General settings 2

  MECHANICAL
  Orientation	Landscape
  Fanless design	Yes
  VESA mounting	200 x 200mm
  Operation temperature range	0°C – 40°C
  Storage temperature range	-20°C – 60°C
  MTBF	50,000 hours (excluding backlight)

  ACCESSORIES INCLUDED
  Cables	Power, HDMI, RS-232c
  Guides	Quick start guide, Safety guide
  Remote control	Yes (batteries included)

  POWER MANAGEMENT
  Power supply unit	Internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	53W typical, 0.5W standby, 0.3W off mode

  SUSTAINABILITY
  Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
  Energy efficiency class	G (Regulation (EU) 2017/1369)
  REACH SVHC	Above 0.1%: Lead

  DIMENSIONS / WEIGHT
  Product dimensions W x H x D	968 x 557.5 x 54mm
  Box dimensions W x H x D	1075 x 683 x 127mm
  Weight (without box)	8.4kg
  Weight (with box)	12.3kg
  EAN code	4948570123513

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required

  ON-SITE SWAP OUT

  PIONEERING CUSTOMER SERVICE.

• Description	Downloads
  User Manual	Downloads
  Technical Specification	Downloads
  Drawing	Downloads
