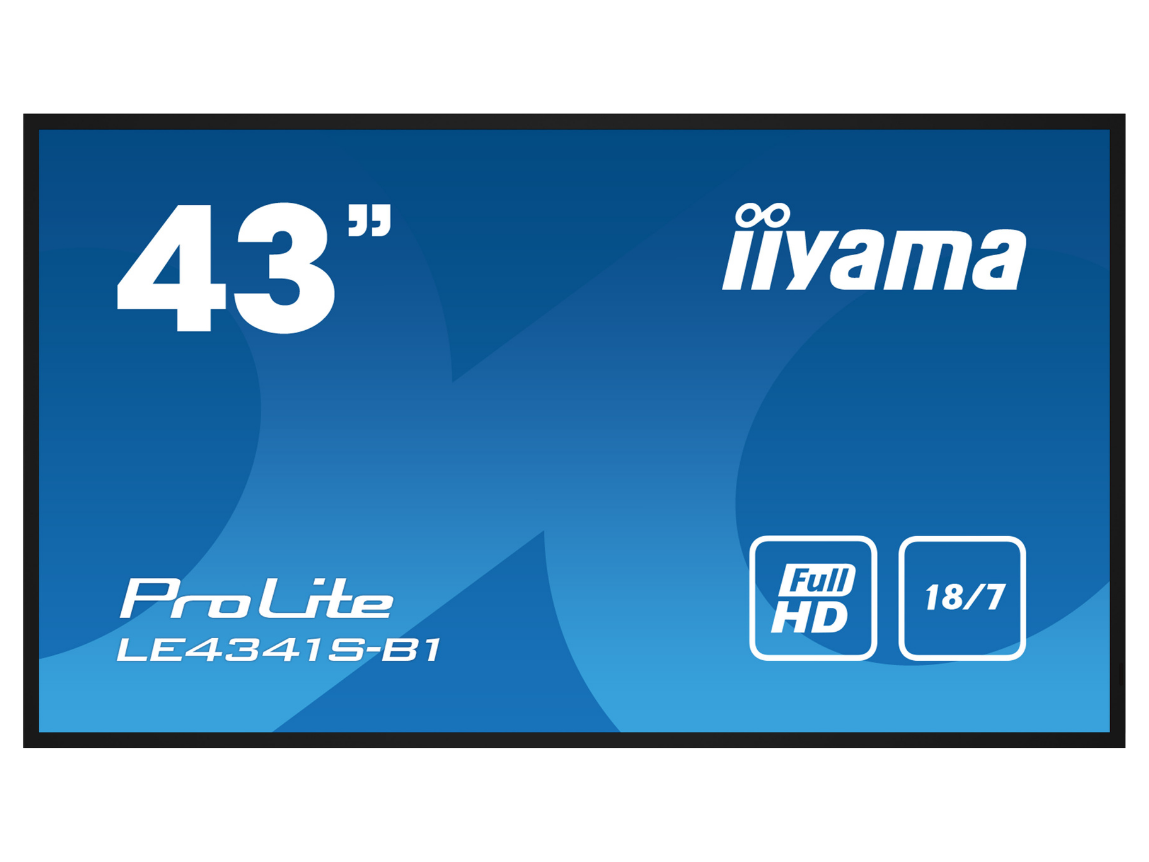

iiyama ProLite LE4341S-B1 43″ Full HD Professional Large Format Display

• Description
• Specifications
• Warranty
• Downloads

• iiyama ProLite LE4341S-B1 43″ Full HD Professional Large Format Display

  MEDIA PLAYER
  Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.


  LAN CONTROL
  LAN control enables making adjustments in the display OSD menu through your network (software not included).

  IPS
  IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

  FULL HD
  With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.

• Category	Details
  DISPLAY CHARACTERISTICS
  Design	Thin bezel
  Diagonal	42.5″, 108cm
  Panel	IPS, haze 1%
  Native resolution	1920 x 1080 (2.1 megapixel Full HD)
  Aspect ratio	16:9
  Panel brightness	350 cd/m²
  Static contrast	1200:1
  Response time (GTG)	8ms
  Viewing zone	Horizontal/Vertical: 178°/178°
  	Right/Left: 89°/89°
  	Up/Down: 89°/89°
  Colour support	1.07G (8 Bits+FRC) (NTSC 72%)
  Horizontal Sync	30 – 83kHz
  Viewable area W x H	941.2 x 529.4mm, 37.1 x 20.8″
  Bezel width (sides, top, bottom)	14mm, 14mm, 14mm
  Pixel pitch	0.490mm
  Bezel colour and finish	Black, glossy
  INTERFACES / CONNECTORS / CONTROLS
  Analog signal input	VGA x1 (max. 1920×1080 @60Hz)
  Digital signal input	HDMI x3 (max. 3840×2160 @60Hz)
  Audio input	Mini jack x1
  Monitor control input	RS-232c x1
  	RJ45 (LAN) x1
  	IR x1
  Audio output	RCA (L/R) x1
  Speakers	2 x 10W
  Monitor control output	RS-232c x1
  	IR loop through x1
  HDCP	2.2
  USB ports	x1 (2.0, FW update support)
  FEATURES
  Max. non-stop operating time	18/7
  Anti image retention	Yes
  Media playback	Yes
  Housing (bezel)	Plastic
  GENERAL
  OSD languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
  Control buttons	Power, Mute, Input, Plus, Minus, Up, Down, Menu
  MECHANICAL
  Orientation	Landscape
  Fanless design	Yes
  VESA mounting	400 x 400mm
  Operation temperature range	0°C – 40°C
  Storage temperature range	-20°C – 60°C
  MTBF	50000 hours (excluding backlight)
  ACCESSORIES INCLUDED
  Cables	Power, HDMI, RS-232c
  Guides	Quick start guide, Safety guide
  Remote control	Yes (batteries included)
  POWER MANAGEMENT
  Power supply unit	Internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	77W typical, 0.5W standby, 0.3W off mode
  SUSTAINABILITY
  Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
  Energy efficiency class	G
  REACH SVHC	Above 0.1%: Lead
  DIMENSIONS / WEIGHT
  Product dimensions W x H x D	972 x 560 x 67.5mm
  Box dimensions W x H x D	1070 x 690 x 139mm
  Weight (without box)	8.8kg
  Weight (with box)	12.3kg
  EAN code	4948570120925

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required

  ON-SITE SWAP OUT

  PIONEERING CUSTOMER SERVICE.

  iiyama has always strived to achieve maximum reliability and to prove our belief in our products we were the first manufacturer to confidently guarantee our display products with a 3-year on-site warranty as standard changing and shaping the warranty landscape forever.
  Visioncare is our comprehensive warranty support scheme for standard desktop display products.  We understand that should a fault occur, downtime needs to be minimised and vision care was designed to do just that.

  1-) If your display should develop a fault within the first 2 years of purchase, iiyama will arrange a replacement unit of an equivalent or higher specification.
  2-) iiyama endeavours to dispatch the replacement unit within 24hrs whenever possible.
  3-) iiyama takes care of the swap out and all carraige charges.

  And it’s not just us at iiyama that believes we provide great service, our customers think so too. iiyama has been proud to receive many reader-voted magazine awards for customer satisfaction and reliability.

  For Desktop and Touchscreen displays (below 42″) service
  Call 01926 819189 between 9:00am – 5:30pm Monday to Friday
  For Large Format Displays (42″ and above) service
  Call 03302 020 463 between 9:00am – 5:30pm Monday to Friday

  Service request form

• Document Type	File Name	Download Link
  User Manual	LE32_4341S-B1-usermanual-e.pdf	Download
  Technical Specification	ProLite 4341s-B1 – en.pdf	Download
  Drawing	LE4341s	Download
  EU Energy Label	LE4341S-B1 EU Energy Label pdf data.pdf	Download
