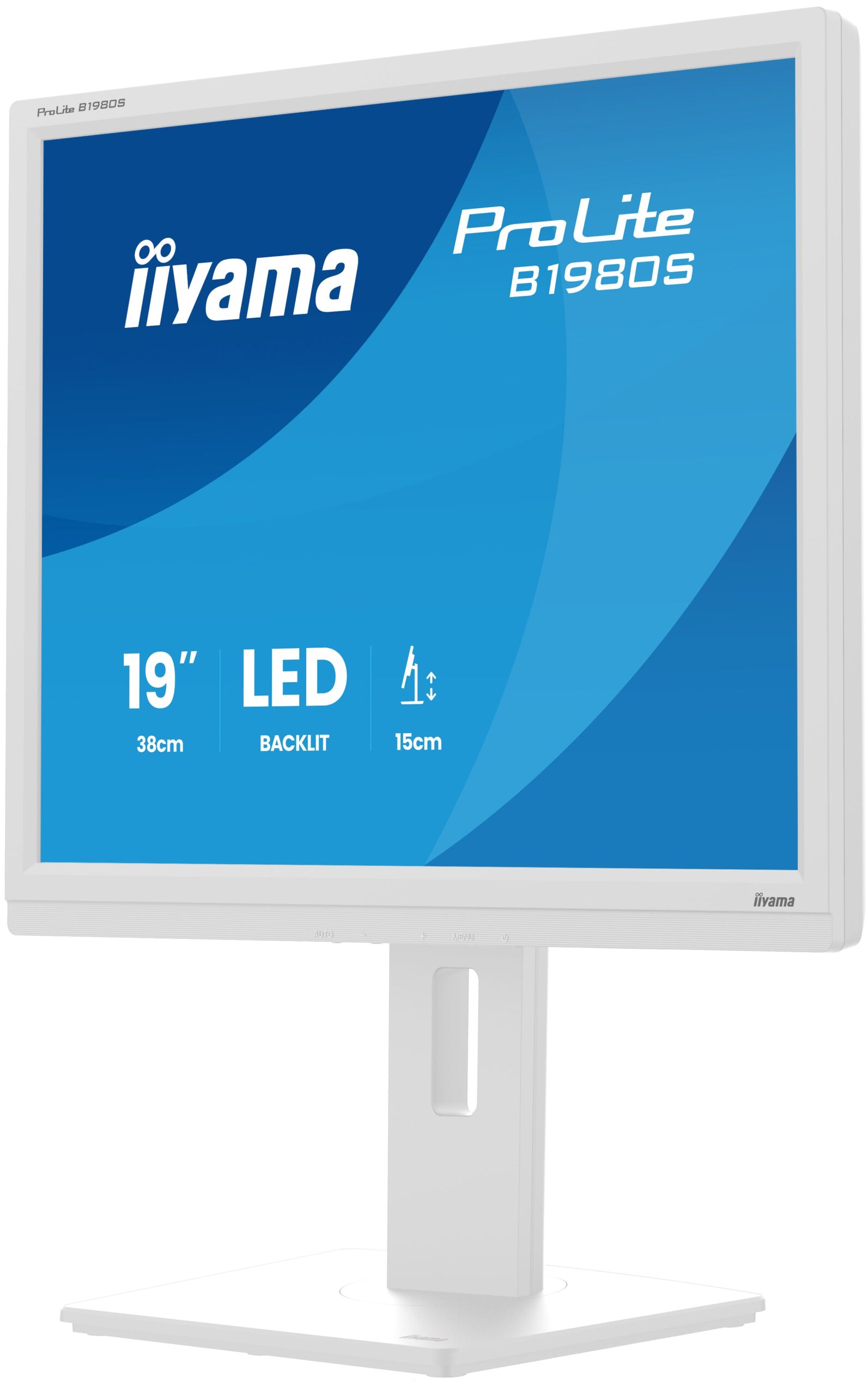

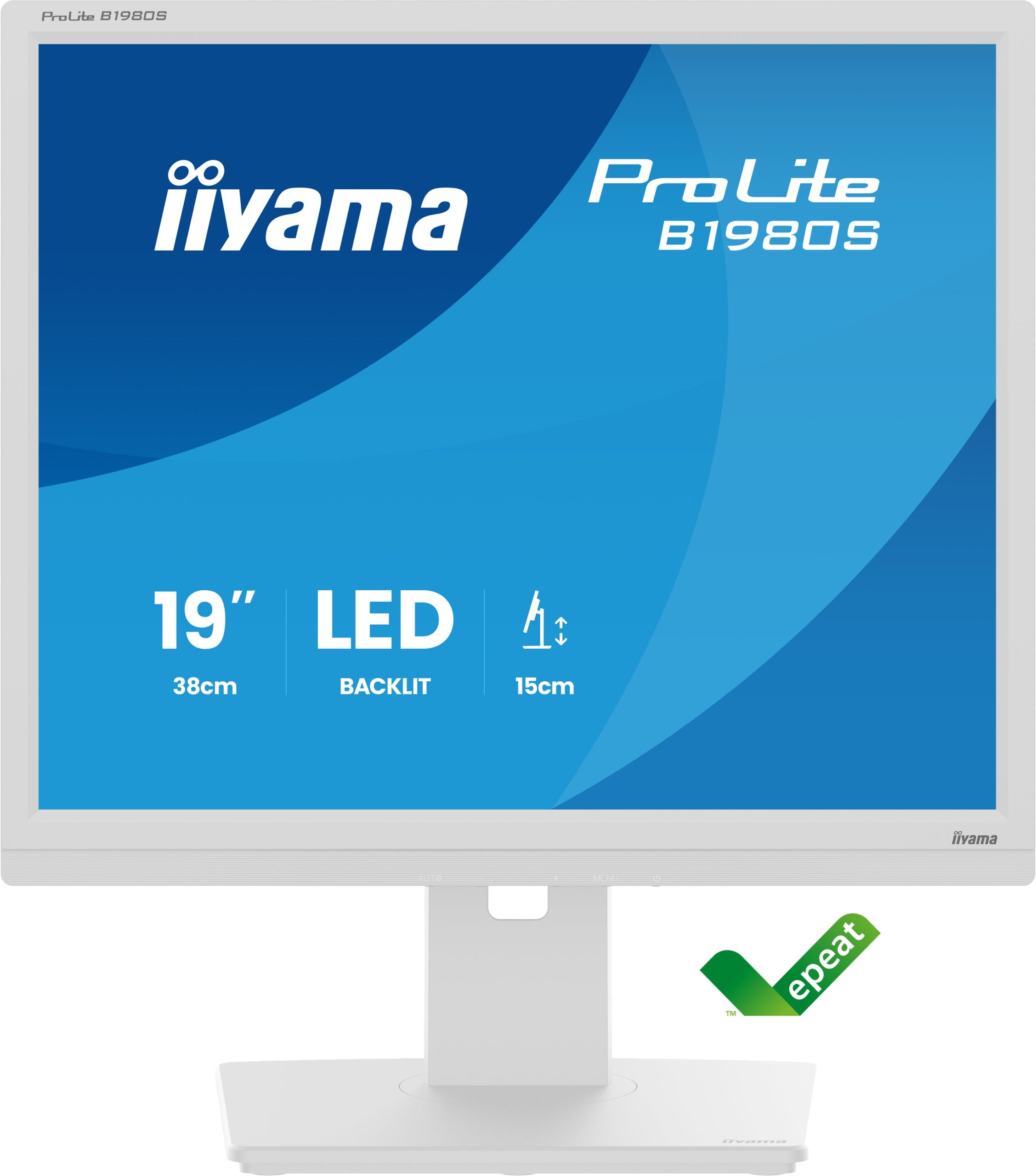

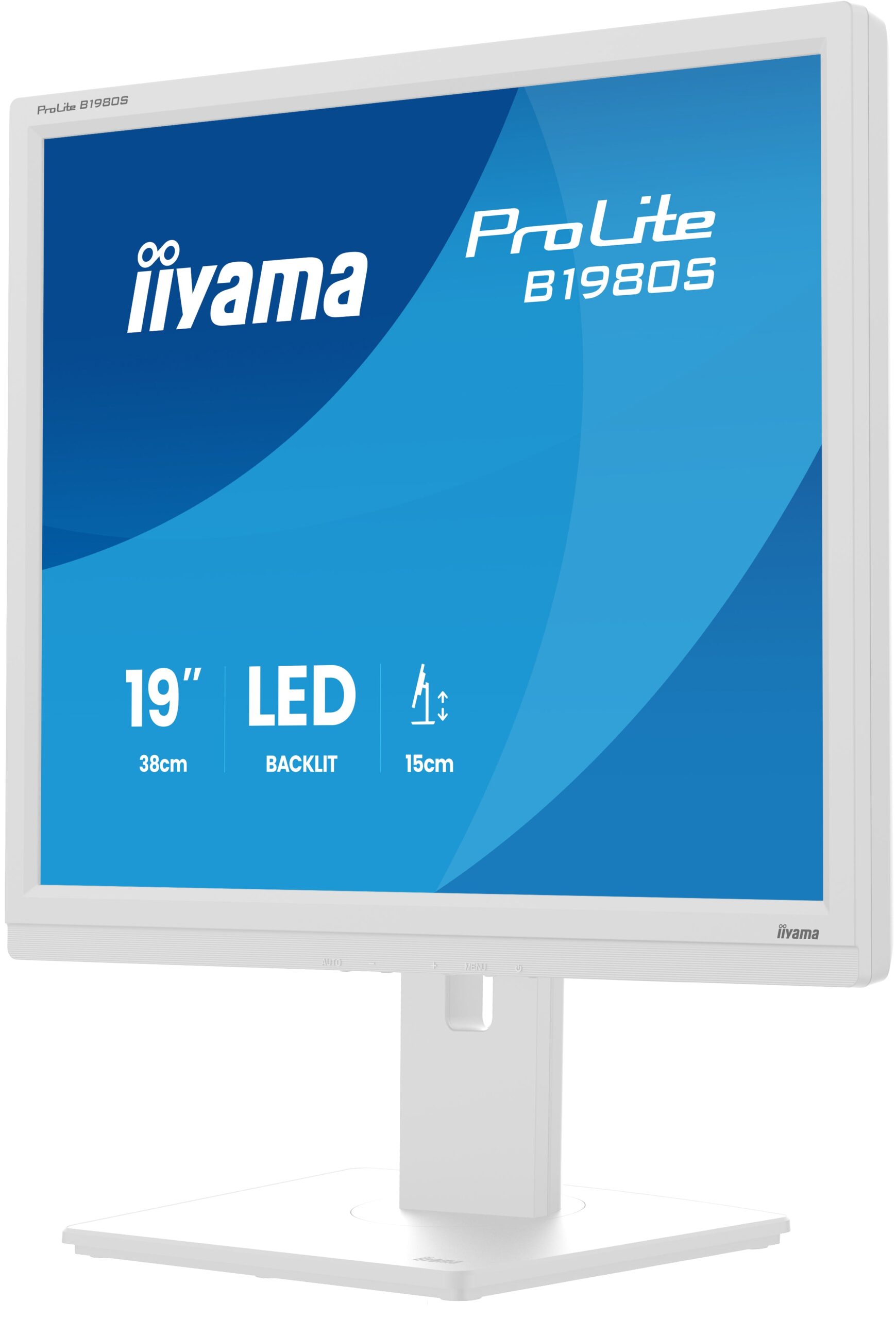

iiyama ProLite B1980S-W1 19″ 75Hz LED-Backlit Monitor

• Description
• Specifications
• Downloads

• iiyama ProLite B1980S-W1 19″ 75Hz LED-Backlit Monitor

  Designed for business, this LED-backlit monitor features 15cm height adjustability and screen rotation, allowing you to position the screen perfectly for ergonomic posture and optimal viewing comfort. With a 3ms response time and high contrast, the B1980S is ideal for a wide range of business applications. sRGB and gamma correction functions ensure precise adjustment of even the finest color nuances. Additionally, the monitor is equipped with integrated speakers for added convenience.


  HAS + Pivot (rotation both sides)
  With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.


  LED-backlit
  A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.


  ACR
  Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.


  VESA
  VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.


  Speakers
  This LED monitor is equipped with two stereo speakers.

• Category	Specification
  DISPLAY CHARACTERISTICS
  Diagonal	19″, 48cm
  Panel	TN
  Native Resolution	1280 x 1024 @75Hz (1.3 megapixel)
  Aspect Ratio	5:4
  Panel Brightness	250 cd/m²
  Static Contrast	1000:1
  Advanced Contrast	12M:1
  Response Time (GTG)	3ms
  Viewing Zone	Horizontal/Vertical: 170°/160°, Right/Left: 85°/85°, Up/Down: 80°/80°
  Colour Support	16.7 million (sRGB: 99%; NTSC: 72%)
  Horizontal Sync	30 – 80kHz
  Viewable Area W x H	376.32 x 301.05mm, 14.8 x 11.9″
  Pixel Pitch	0.294mm
  Colour	Matte, White
  INTERFACES / CONNECTORS / CONTROLS
  Signal Input	HDMI x1 (v.1.4), DisplayPort x1 (v.1.2)
  HDCP	Yes
  FEATURES
  OSD Languages	EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL
  Control Buttons	Power, Menu, + / Volume, -/ Eco, Signal Select (Auto)
  User Controls	Picture adjust (contrast, brightness, i-Style colour, ACR, Eco, OD, X-Res technology), image setup, audio settings
  Speakers	2 x 2W
  Convenience	Kensington-lock™ prepared, DDC2B, Mac OSX
  MECHANICAL
  Display Position Adjustments	Height, Swivel, Tilt, Pivot (rotation both sides)
  Height Adjustment	150mm
  Rotation (PIVOT function)	90°
  Swivel Stand	120°; 60° left; 60° right
  Tilt Angle	23° up; 5° down
  VESA Mounting	100 x 100mm
  Cable Management System	Yes
  ACCESSORIES INCLUDED
  Cables	Power, HDMI
  Other	Quick start guide, safety guide
  POWER MANAGEMENT
  Power Supply Unit	Internal
  Power Supply	AC 100 – 240V, 50/60Hz
  Power Usage	12W typical, 0.5W standby, 0.3W off mode
  SUSTAINABILITY
  Regulations	CE, TÜV-GS, RoHS support, ErP, WEEE, REACH, UKCA
  Energy Efficiency Class	D
  EPEAT	*Registration varies by country, visit www.epeat.net for details
  REACH SVHC	Above 0.1%: Lead
  DIMENSIONS / WEIGHT
  Product Dimensions W x H x D	411 x 453 (603) x 245.5mm
  Box Dimensions W x H x D	490 x 416 x 162mm
  Weight (without box)	4.5kg
  Weight (with box)	5.6kg
  EAN Code	4948570125432
