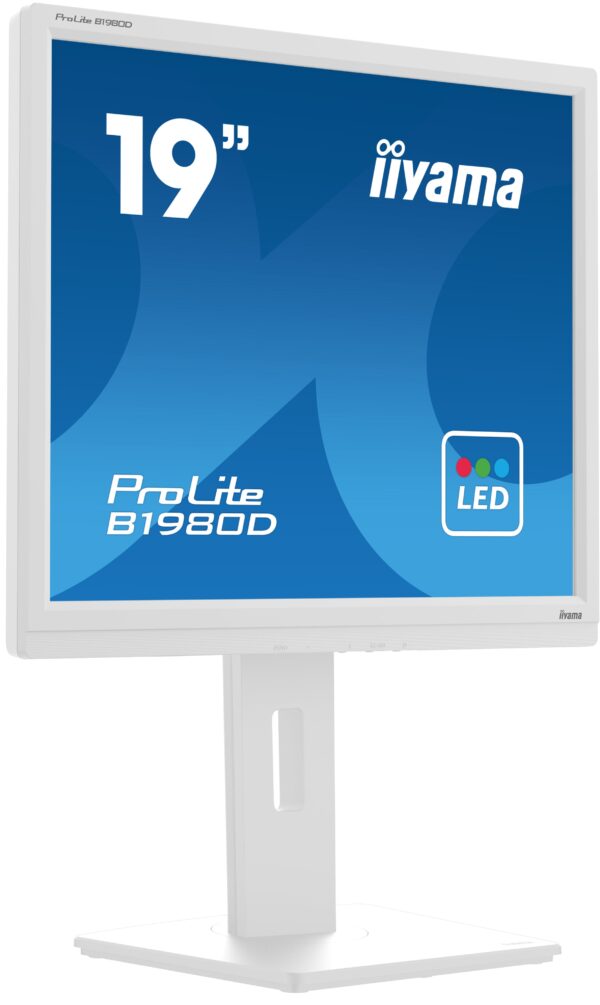

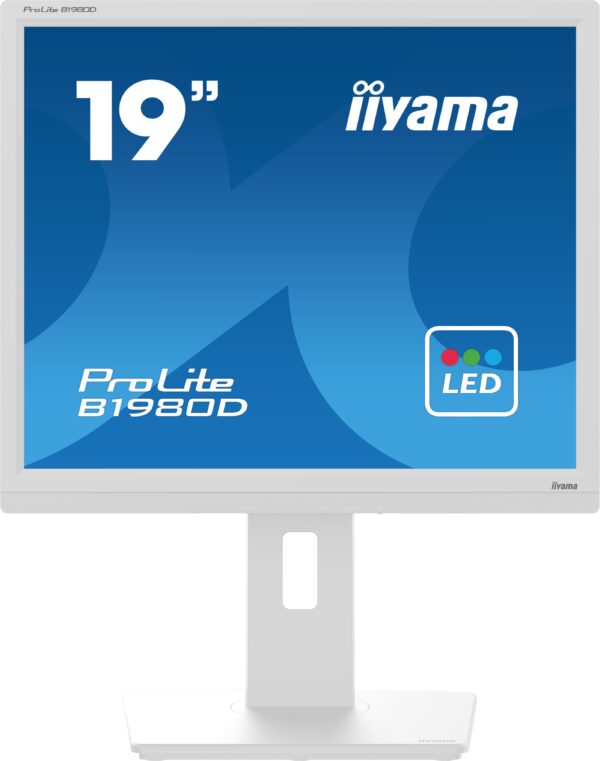

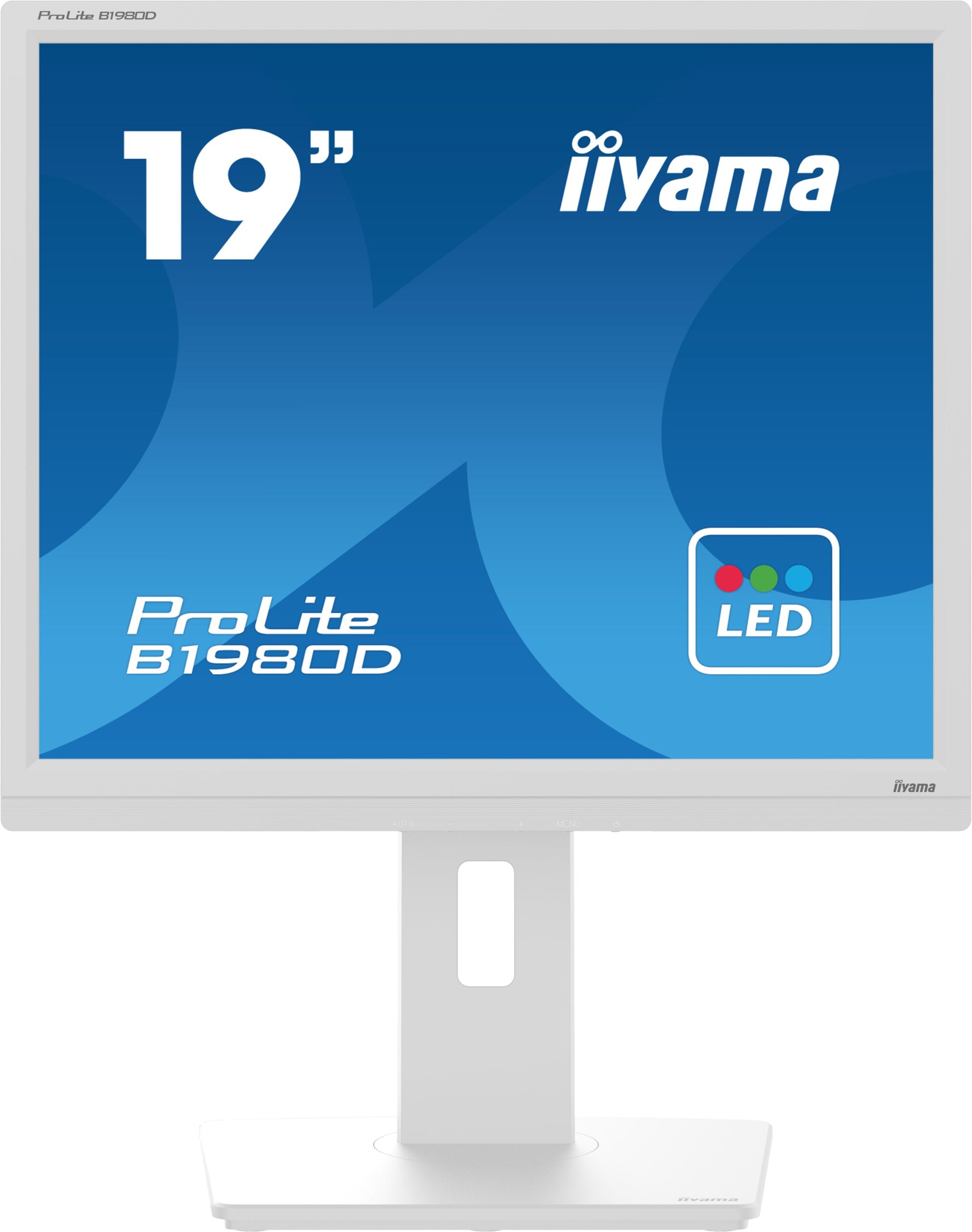

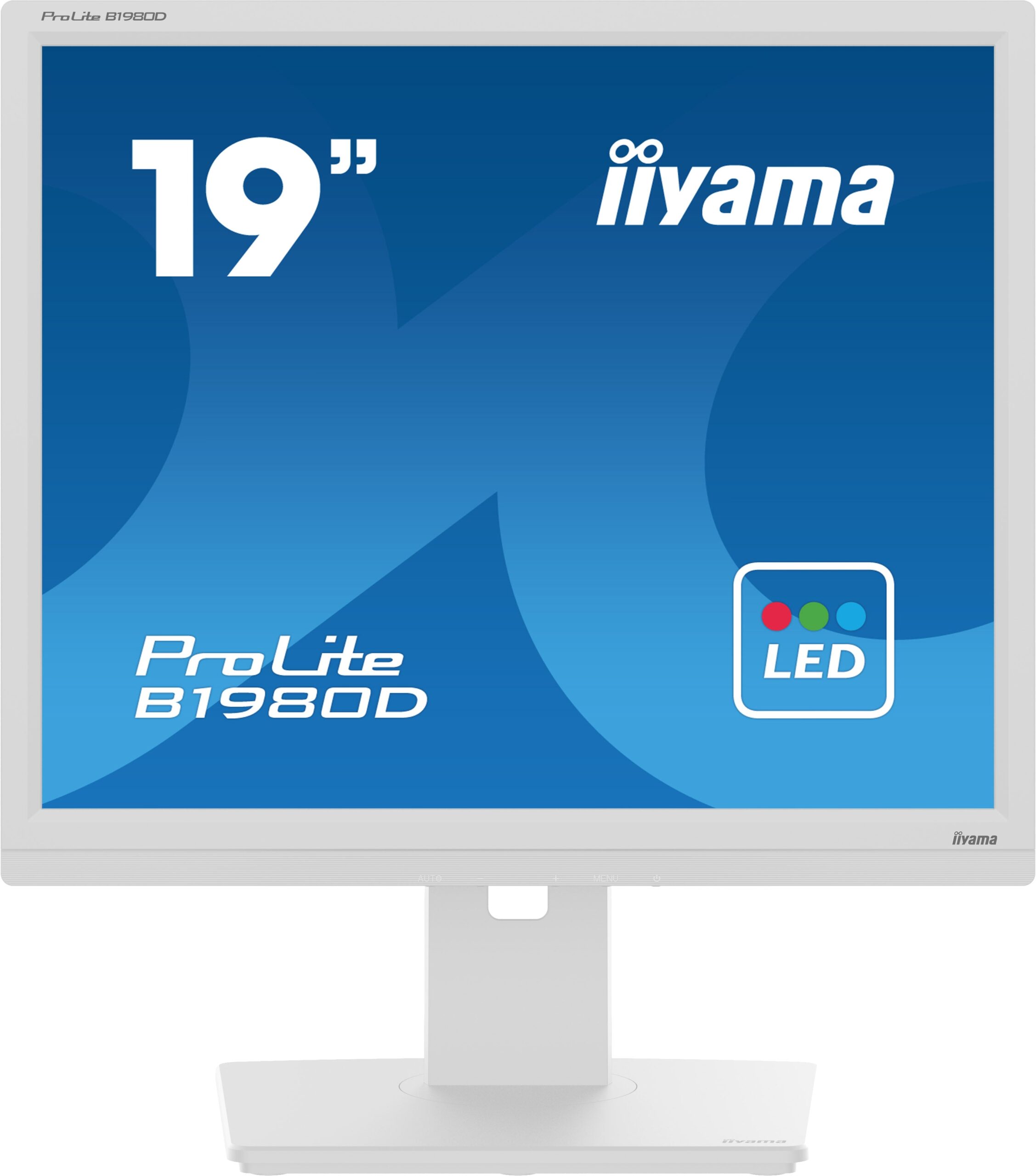

• iiyama ProLite B1980D-W5 19″ LED-Backlit Business Monitor

  PROLITE B1980D-W5
  The 19’’ Prolite B1980D designed for business, is an impressive LED-backlit monitor with height adjustable stand.

  Designed for business, this LED-backlit monitor with the 150mm height adjustability and screen rotation allows you to set the perfect position of the screen ensuring ergonomic posture and optimal viewing comfort. The 5ms response time and high contrast make the B1980D ideal for a wide range of business applications. sRGB and gamma correction functions permit even the finest nuances of colour to be set accurately.

  LED-BACKLIT
  A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly produc

  HAS (150MM) + PIVOT
  With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.

  ACR
  Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.

  VESA
  VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

• DISPLAY CHARACTERISTICS
  Diagonal	19″, 48cm
  Panel	TN
  Native resolution	1280 x 1024 @60Hz (1.3 megapixel)
  Aspect ratio	5:4
  Panel brightness	250 cd/m²
  Static contrast	1000:1
  Advanced contrast	12M:1
  Response time (GTG)	5ms
  Viewing zone	horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
  Colour support	16.7mln (sRGB: 99%; NTSC: 72%)
  Horizontal Sync	24 – 80kHz
  Viewable area W x H	376.32 x 301.05mm, 14.8 x 11.9″
  Pixel pitch	0.294mm
  Colour	matte, white
  INTERFACES / CONNECTORS / CONTROLS
  Signal input	VGA x1
  	DVI x1
  HDCP	yes
  FEATURES
  OSD languages	EN, DE, FR, ES, IT, PT, CN, RU, JP
  Control buttons	Power, Menu, + / Volume, -/ Eco, Auto Adjust / Signal Select
  User controls	luminance (contrast, brightness, Eco, i-Style colour, ACR), image setup (clock, phase, H. position, V. position), colour temperature (gamma, colour temperature), OSD setup (H. position, V. position, timeout, language), extra (reset, signal select, information), auto adjust
  Convenience	Kensington-lock™ prepared, DDC2B, Mac OSX
  MECHANICAL
  Display position adjustments	height, pivot (rotation), swivel, tilt
  Height adjustment	150mm
  Rotation (PIVOT function)	90°
  Swivel stand	90°; 45° left; 45° right
  Tilt angle	23° up; 5° down
  VESA mounting	100 x 100mm
  Cable management system	yes
  ACCESSORIES INCLUDED
  Cables	power, DVI
  Other	quick start guide, safety guide
  POWER MANAGEMENT
  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	16W typical, 0.5W standby, 0.3W off mode
  SUSTAINABILITY
  Regulations	CE, TÜV-GS, RoHS support, ErP, ENERGY STAR®, WEEE, REACH, UKCA
  Energy efficiency class (Regulation (EU) 2017/1369)	E
  REACH SVHC	above 0.1%: Lead
  DIMENSIONS / WEIGHT
  Product dimensions W x H x D	411 x 397 (547) x 2109.5mm
  Box dimensions W x H x D	490 x 416 x 162mm
  Weight (without box)	4.9kg
  Weight (with box)	6.0kg
  EAN code	4948570121373

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required
