iiyama ProLite 27″ FHD IPS Desktop Monitor | XUB2792HSN-B5

• Description
• Specifications
• Warranty

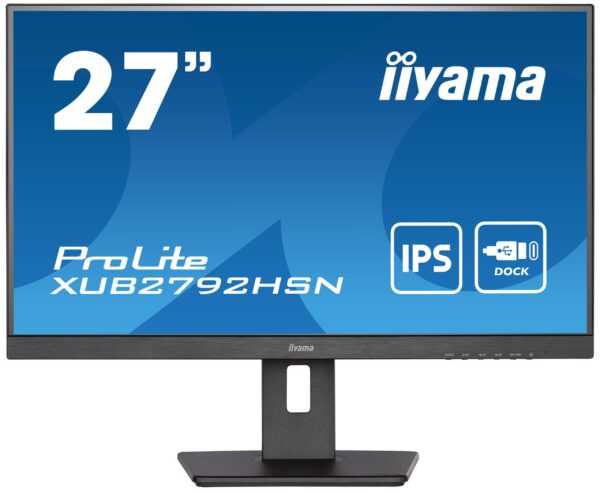

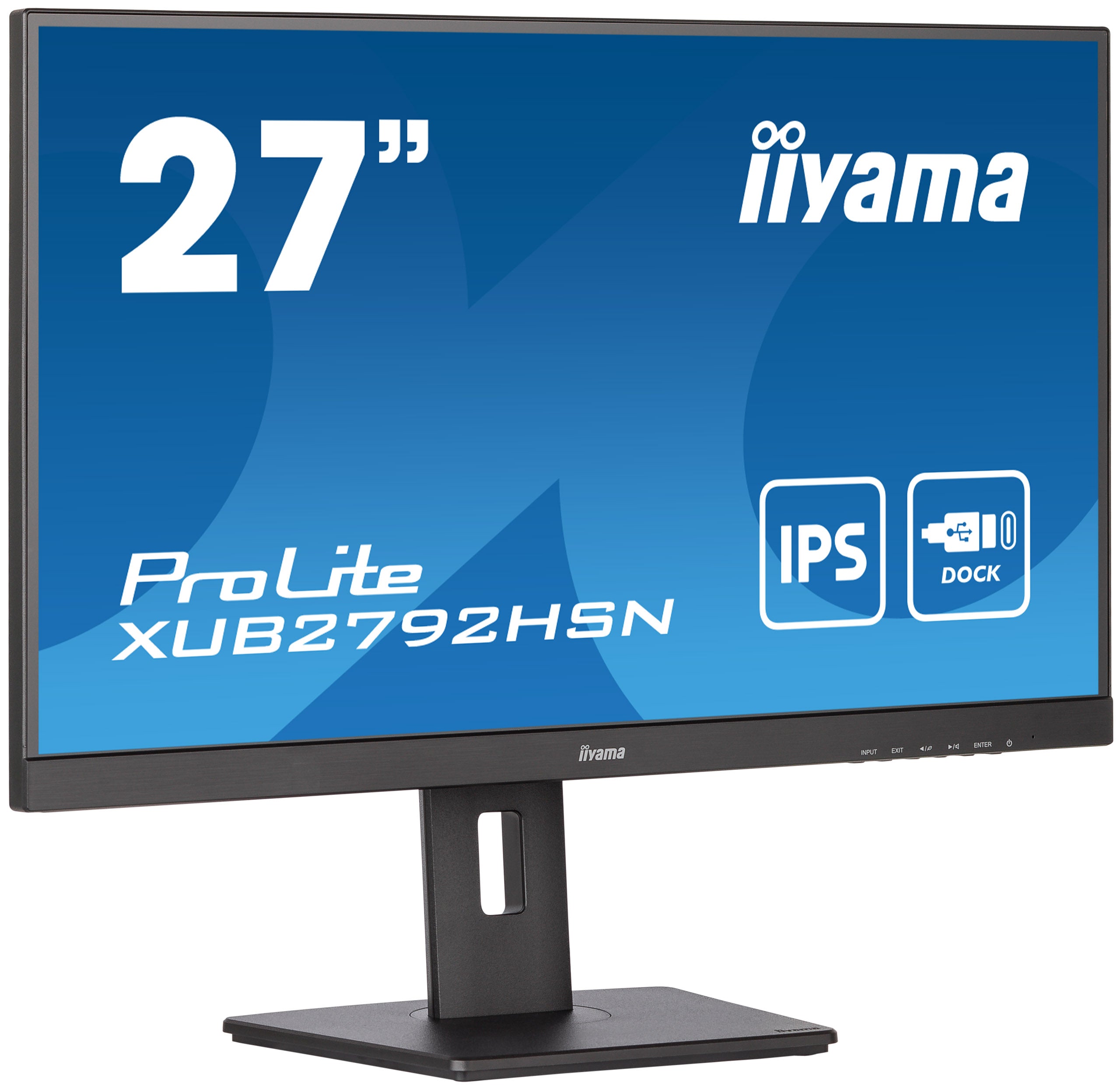

• iiyama PROLITE XUB2792HSN-B5

  27’’ IPS technology panel with USB-C dock and RJ45 (LAN)

  Equipped with a USB-C dock connector, the XUB2792HSN allows you to simplify your workspace by using a single cable to both send signal from your notebook to your monitor and power and charge the notebook from the monitor. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. Supplied with a 150mm height-adjustable stand featuring pivot and swivel functions, the XUB2792HSN allows you to easily adjust the screen position to your preferences.

  USB-C DOCK

  The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
  *Functions vary depending on your laptop USB-C support.

  IPS TECHNOLOGY

  IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

  FLICKER-FREE + BLUE LIGHT

  The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

  HAS (150MM) + PIVOT (ROTATION BOTH SIDES)

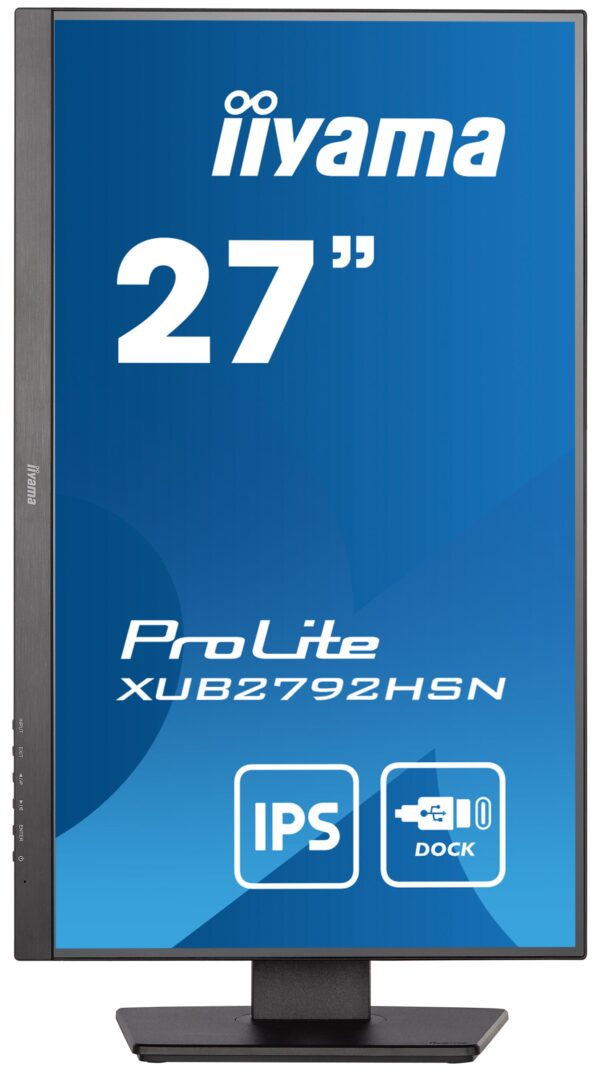

  With a height adjustable stand you will create an ergonomic work posture and position that meets all health and safety requirements. This will not only prevent any health issues but will also increase your productivity. The pivot function allows the screen to rotate from landscape to portrait orientation. This functionality can be useful if the application requires more height than width.

  SPEAKERS AND HEADPHONES

  Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

• DISPLAY CHARACTERISTICS

  Design	3-side borderless
  Diagonal	27″, 68.6cm
  Panel	IPS Panel Technology LED, matte finish
  Native resolution	1920 x 1080 @75Hz (2.1 megapixel Full HD)
  Aspect ratio	16:9
  Panel brightness	250 cd/m²
  Static contrast	1000:1
  Advanced contrast	80M:1
  Response time (GTG)	4ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	16.7mln (sRGB: 99%; NTSC: 72%)
  Horizontal Sync	30 – 85kHz
  Viewable area W x H	597.8 x 336.3mm, 23.5 x 13.2″
  Pixel pitch	0.311mm
  Colour	matte, black

  INTERFACES / CONNECTORS / CONTROLS

  Signal input	HDMI x1 DisplayPort x1 USB-C x1 (Power delivery 65W)
  Signal output	DisplayPort x1 (Daisy Chain MST max. 1920 x 1080)
  USB HUB	x2 (v.3.0 (DC5V, 900mA))
  USB-C DOCK	x1 (Power delivery 65W, LAN, DP out, USB 3.0)
  HDCP	yes
  Headphone connector	yes
  RJ45 (LAN)	x1

  FEATURES

  Blue light reducer	yes
  Flicker free	yes
  OSD languages	EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
  Control buttons	Power, Menu/ Select, Up/ Volume, Down/ Eco, Exit, Input
  User controls	picture adjust (brightness, contrast, Eco, blue light reducer, ACR, OD), colour settings (colour temp., user preset, i-Style colour), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellaneous (sharp and soft, video mode adjust, opening logo, USB, MST, information), input select, audio settings (volume, mute)
  Speakers	2 x 2W
  Convenience	Kensington-lock™ prepared, DDC2B

  MECHANICAL

  Display position adjustments	height, swivel, tilt, pivot (rotation both sides)
  Height adjustment	150mm
  Rotation (PIVOT function)	90°
  Swivel stand	90°; 45° left; 45° right
  Tilt angle	23° up; 5° down
  VESA mounting	100 x 100mm
  Cable management system	yes

  ACCESSORIES INCLUDED

  Cables	power, HDMI, USB-C
  Other	quick start guide, safety guide

  POWER MANAGEMENT

  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	20W typical, 0.5W stand by, 03W off mode

  SUSTAINABILITY

  Regulations	TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
  Energy efficiency class (Regulation (EU) 2017/1369)	E
  REACH SVHC	above 0.1%: Lead

  DIMENSIONS / WEIGHT

  Product dimensions W x H x D	612 x 393.5 (543.5) x 209.5mm
  Box dimensions W x H x D	693 x 170 x 440mm
  Weight (without box)	6.6kg
  Weight (with box)	8.4kg
  EAN code	4948570121779

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required

  ON-SITE SWAP OUT

  PIONEERING CUSTOMER SERVICE.

  iiyama has always strived to achieve maximum reliability and to prove our belief in our products we were the first manufacturer to confidently guarantee our display products with a 3-year on-site warranty as standard changing and shaping the warranty landscape forever.
  Visioncare is our comprehensive warranty support scheme for standard desktop display products.  We understand that should a fault occur, downtime needs to be minimised and vision care was designed to do just that.

  1-) If your display should develop a fault within the first 2 years of purchase, iiyama will arrange a replacement unit of an equivalent or higher specification.
  2-) iiyama endeavours to dispatch the replacement unit within 24hrs whenever possible.
  3-) iiyama takes care of the swap out and all carraige charges.

  And it’s not just us at iiyama that believes we provide great service, our customers think so too. iiyama has been proud to receive many reader-voted magazine awards for customer satisfaction and reliability.

  For Desktop and Touchscreen displays (below 42″) service
  Call 01926 819189 between 9:00am – 5:30pm Monday to Friday
  For Large Format Displays (42″ and above) service
  Call 03302 020 463 between 9:00am – 5:30pm Monday to Friday

  Service request form
