iiyama G-MASTER GB2470HSU-W5 24″ Full HD 165Hz Gaming Monitor
- Description
- Specifications
- Warranty
- Download
-

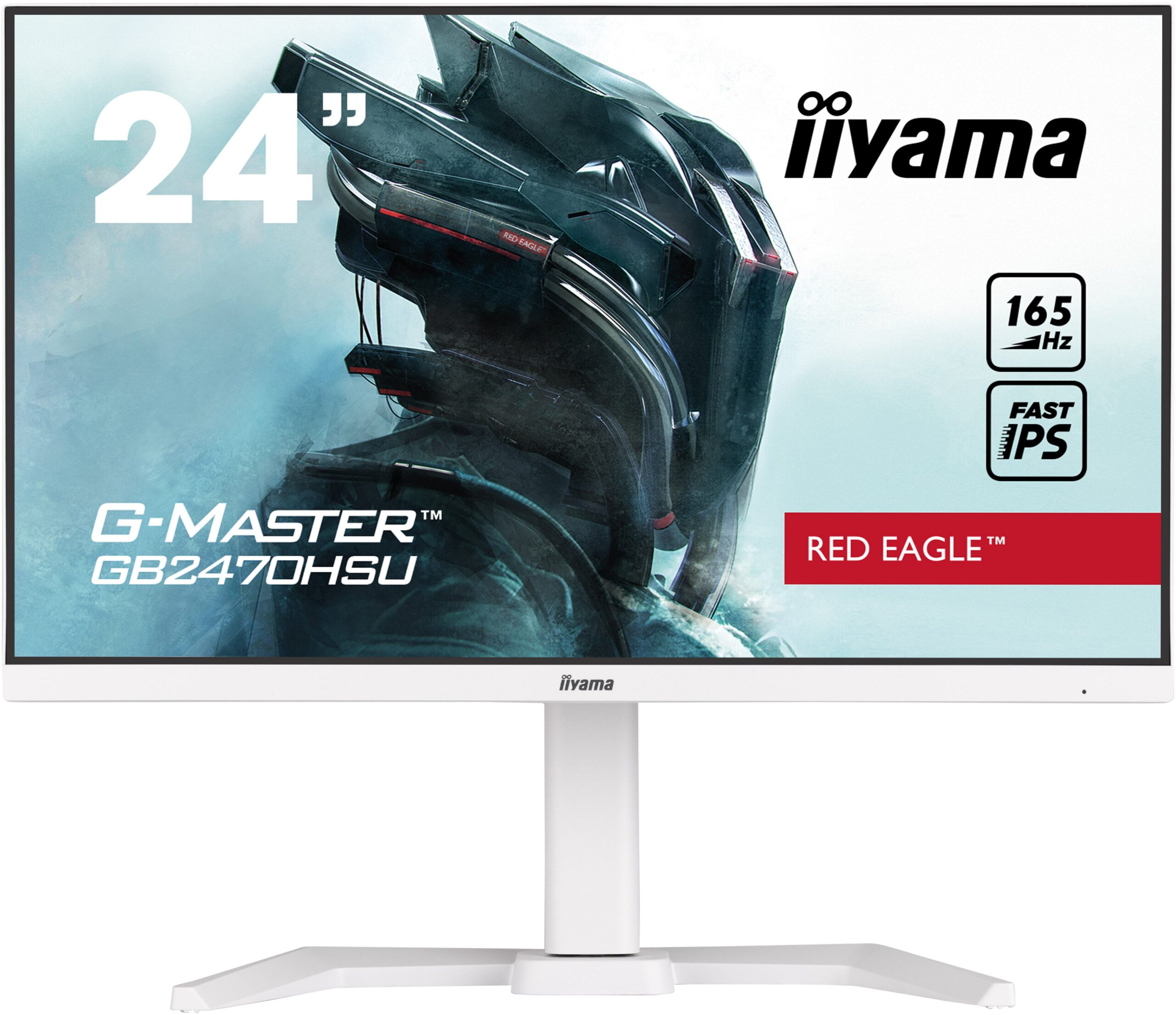

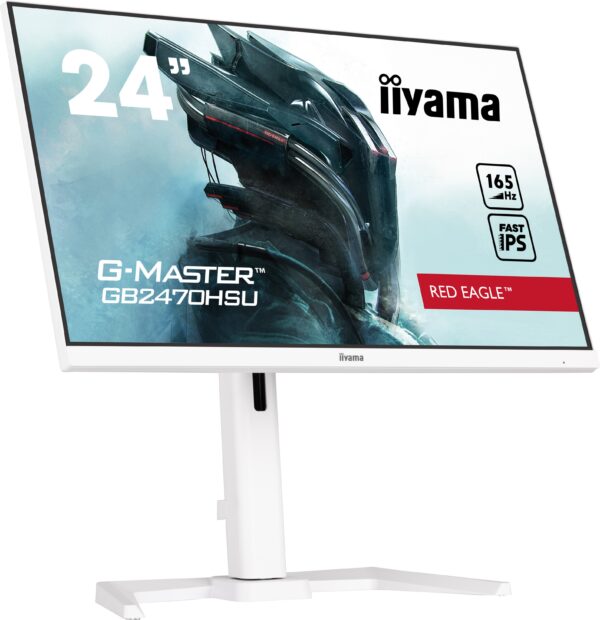

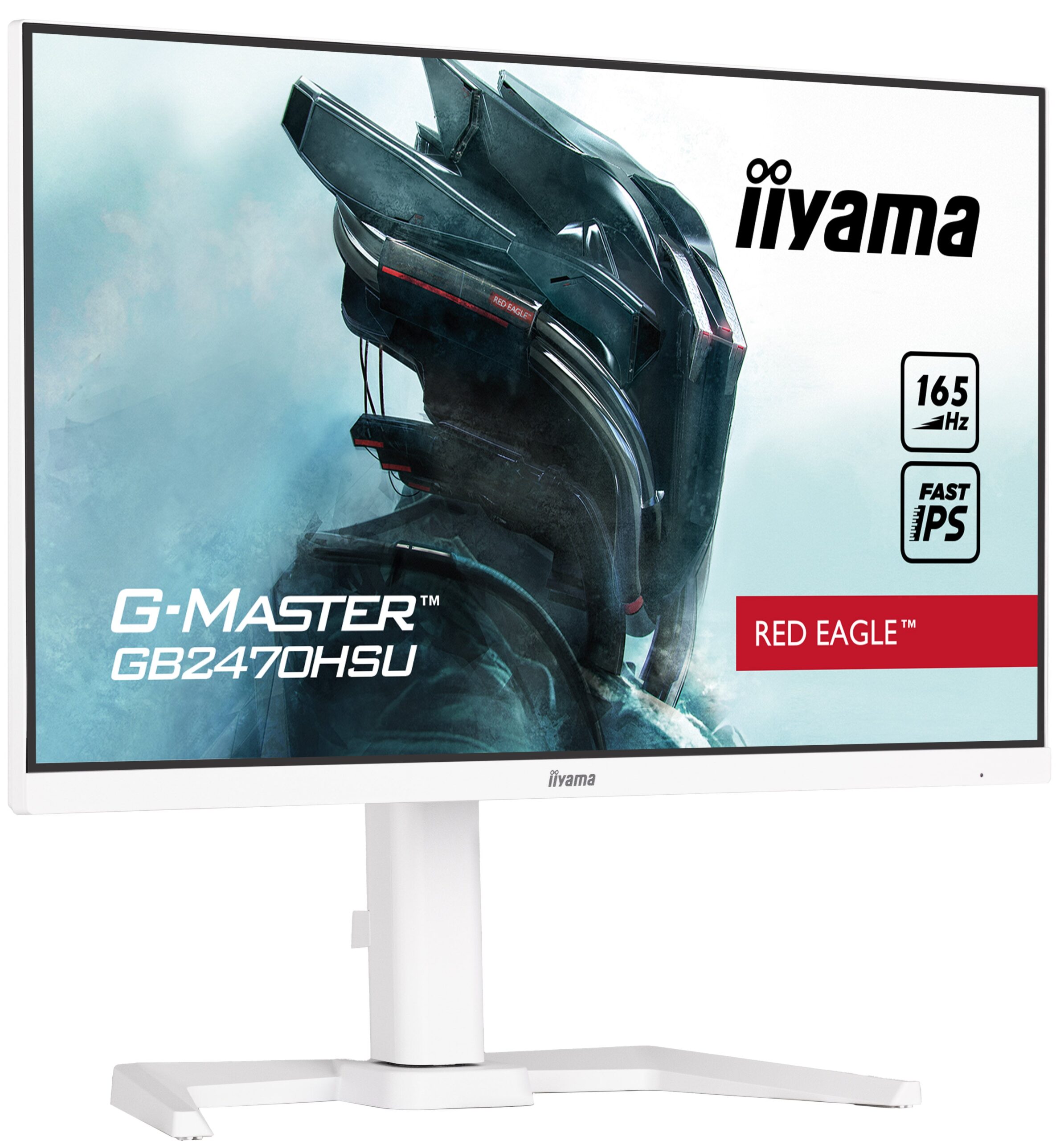

iiyama G-MASTER GB2470HSU-W5
24″ IPS Gaming Monitor
G-MASTER GB2470HSU-W5
Unleash your full gaming potential with the Fast IPS GB2470HSU Red Eagle
Get the competitive edge you need to unleash your full gaming potential with the 24’’ GB2470HSU offering 0.8ms MPRT and 165Hz refresh rate. Armed with FreeSync Premium you can make split second decisions and forget about ghosting effects or smearing issues. The ability to adjust brightness and the dark shades with the Black Tuner delivers greater viewing performance in shadowed areas and the IPS panel technology guarantees superb image quality. Thanks to the height adjustable stand you can easily adjust the screen position to your preferences to ensure comfort during marathon gaming sessions.
FAST IPS
The Fast IPS panel technology guarantees not only high-fidelity, vivid battleground scenes displayed with outstanding colour accuracy but provides also an outstanding 0.8ms Moving Picture Response Time (MPRT).
FREESYNC™ PREMIUM TECHNOLOGY
This monitor guarantees low input latency and low framerate compensation putting an end to any tearing or stuttering issues at virtually any framerate.
BLACK TUNER
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.
PREDEFINED AND CUSTOM GAMING MODES
Have it your way! Choose one of the predefined gaming modes (including FPS and strategy) or set and memorize your own settings. -
DISPLAY CHARACTERISTICS
Diagonal 23.8″, 60.5cm Panel Fast IPS IGZO, matte finish Native resolution 1920 x 1080 @165Hz (2.1 megapixel Full HD, DisplayPort) Aspect ratio 16:9 Panel brightness 250 cd/m² Static contrast 1100:1 Advanced contrast 80M:1 Response time (MPRT) 0.8ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 16.7mln 8bit Horizontal Sync 15 – 195kHz Viewable area W x H 527 x 296.5mm, 20.7 x 11.7″ Pixel pitch 0.275mm Colour matte, white INTERFACES / CONNECTORS / CONTROLS
Signal input HDMI x1 (v.1.4, max. 1920 x 1080 @144Hz)
DisplayPort x1 (v.1.2, max. 1920 x 1080 @165Hz)USB HUB x2 (v.2.0 DC5V, 500mA) HDCP yes Headphone connector yes FEATURES
Blue light reducer yes Flicker free yes FreeSync support HDMI: 1920 x 1080 @48-144Hz, DP: 1920 x 1080 @48-165Hz OSD languages EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL Control buttons Signal select/ Exit, +/ Volume, -/ i-Style Colour, Menu, Power User controls picture adjust (contrast, brightness, overdrive, ACR, ECO, blue light reducer, Black Tuner, MBR, gamma), input select, audio adjust (volume, mute), store user settings, colour settings (colour temperature, 6-Axis, user preset), image adjust (i-Style colour, X-Res Technology, sharp & soft, HDMI RGB range, direct drive mode, video mode adjust), language, setup menu (OSD H. position, OSD V. position, OSD time out, opening logo, AMD FreeSync Premium, LED), display information, reset Speakers 2 x 2W Convenience Kensington-lock™ prepared, DDC2B, Mac OSX MECHANICAL
Display position adjustments height, tilt, pivot (rotation both sides) Height adjustment 150mm Rotation (PIVOT function) 90° Tilt angle 23° up; 5° down VESA mounting 100 x 100mm Cable management system yes ACCESSORIES INCLUDED
Cables power, USB, HDMI, DP Other quick start guide, safety guide POWER MANAGEMENT
Power supply unit internal Power supply AC 100 – 240V, 50/60Hz Power usage 20W typical, 0.5W stand by, 0.3W off mode SUSTAINABILITY
Regulations CE, TÜV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA Energy efficiency class (Regulation (EU) 2017/1369) E REACH SVHC above 0.1%: Lead DIMENSIONS / WEIGHT
Product dimensions W x H x D 539.5 x 355.5 (505.5) x 171mm Weight (without box) 4.5kg EAN code 4948570123131 -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17″ – 43″) 3 years on-site UK warranty. (Upgrades to 5 years available) Touchcare LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available) LFD Large Format Displays Standard Warranty 3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one – Check that all connections have been properly made.
Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
ON-SITE SWAP OUT
PIONEERING CUSTOMER SERVICE.
-
Document Type Download Link User Manual Download Technical Specification Download Drawing Download EU Energy Label Download UK Energy Label Download
