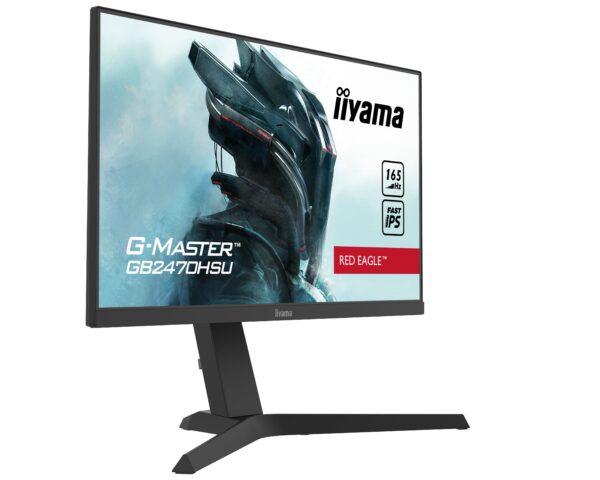

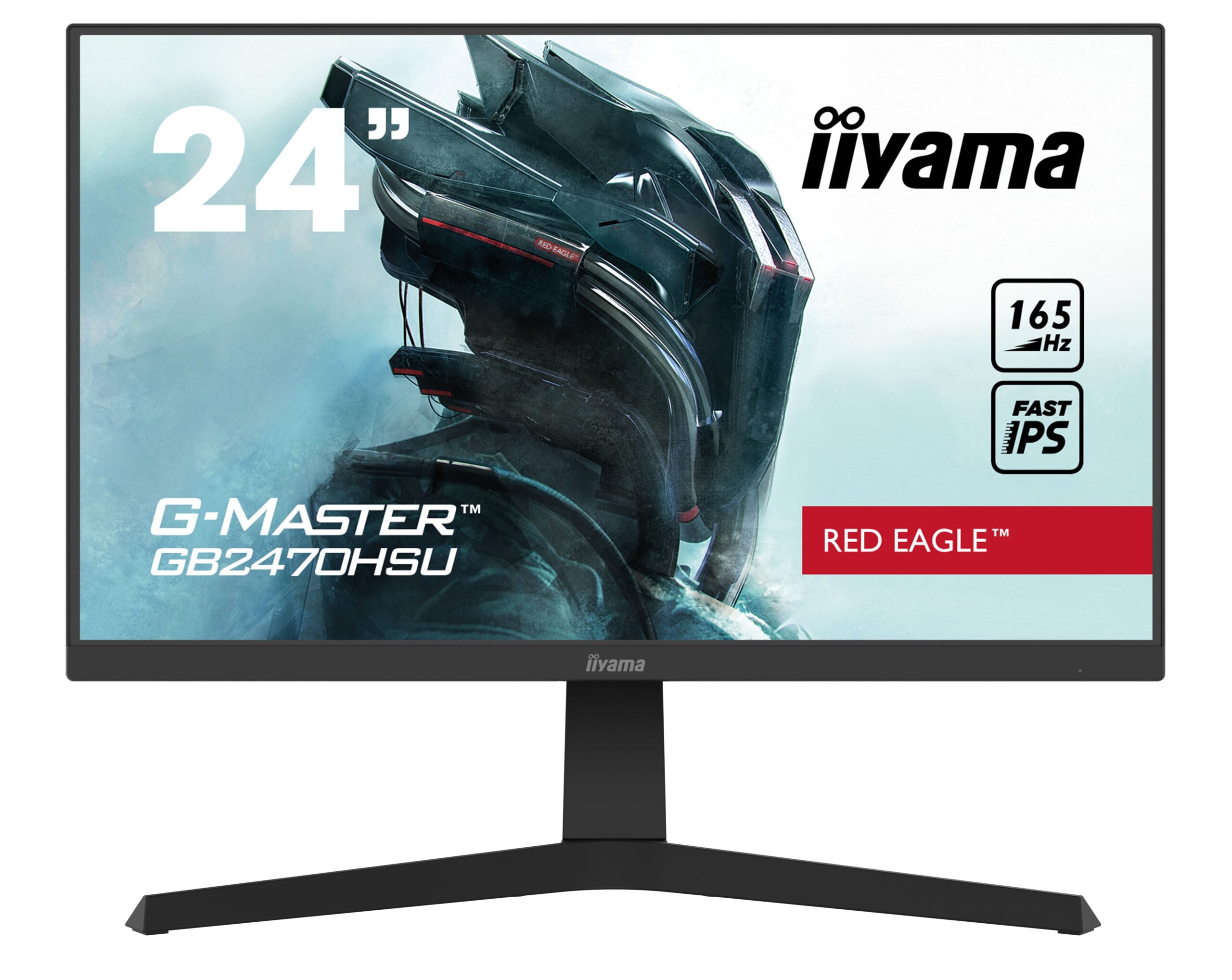

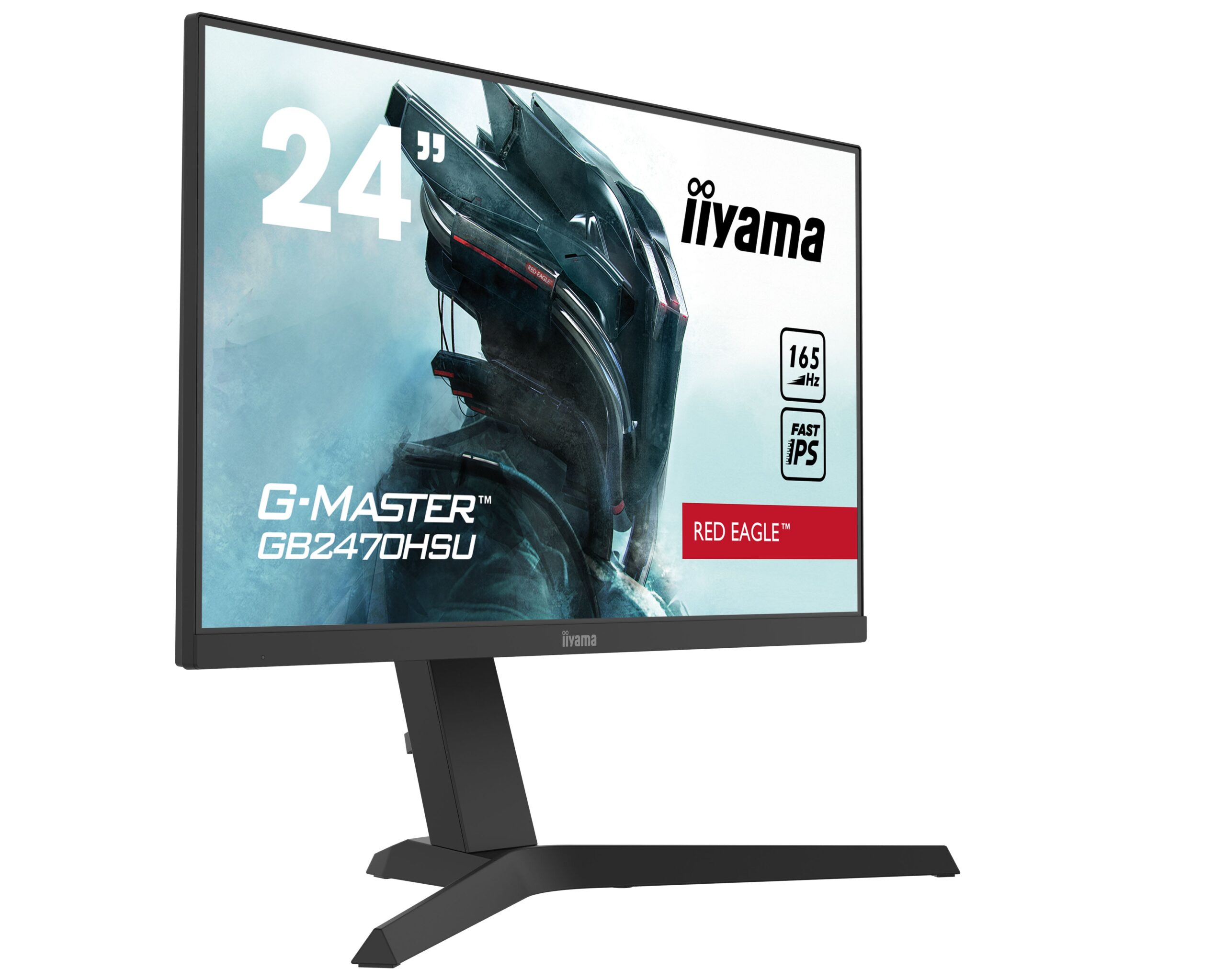

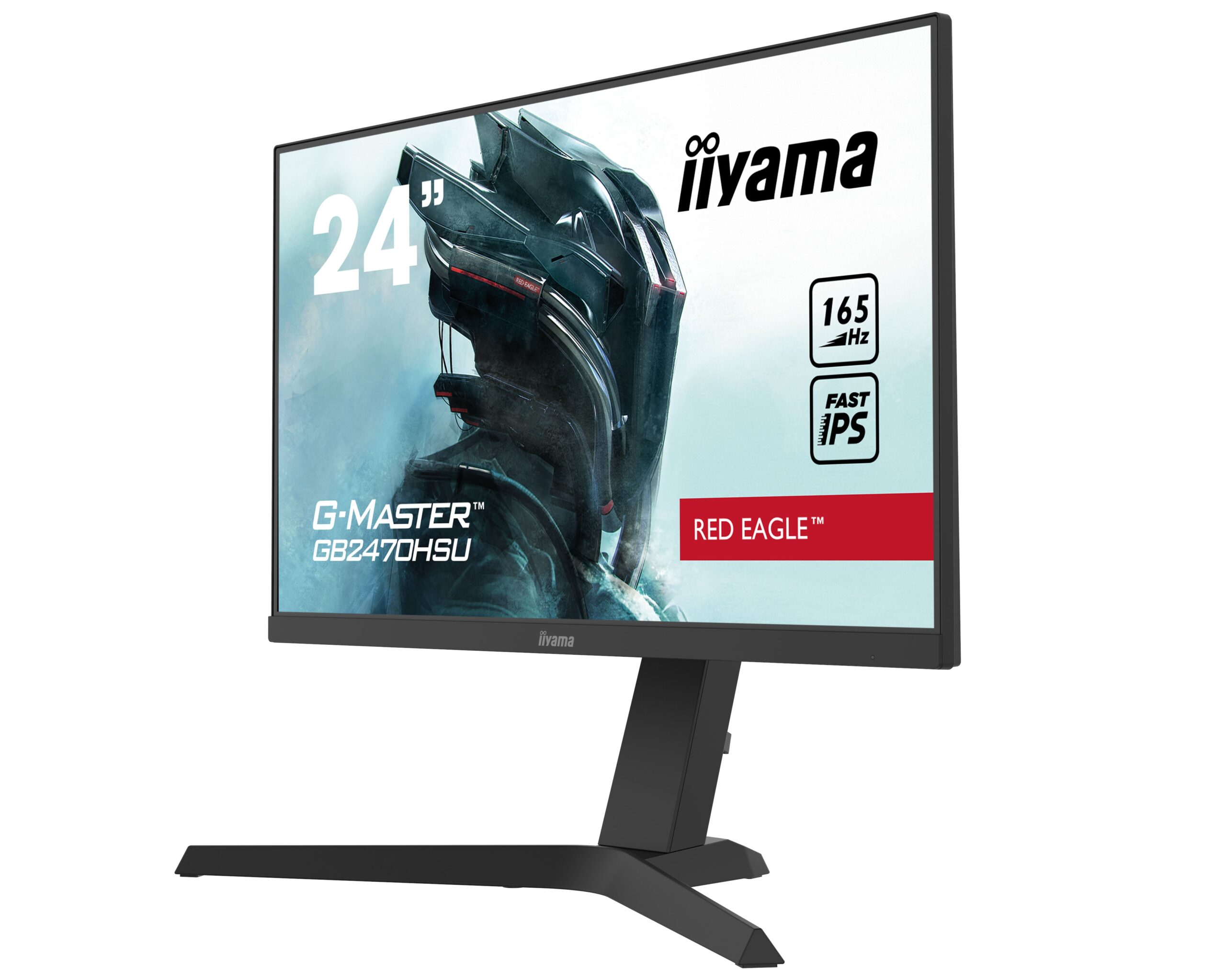

  G-MASTER GB2470HSU-B1


  Unleash your full gaming potential with the Fast IPS GB2470HSU Red Eagle

  Get the competitive edge you need to unleash your full gaming potential with the 24’’ GB2470HSU offering 0.8ms MPRT and 165Hz refresh rate. Armed with FreeSync Premium you can make split-second decisions and forget about ghosting effects or smearing issues. The ability to adjust brightness and the dark shades with the Black Tuner delivers greater viewing performance in shadowed areas and the IPS panel technology guarantees superb image quality. Thanks to the height-adjustable stand you can easily adjust the screen position to your preferences to ensure comfort during marathon gaming sessions.

  FAST IPS

  The Fast IPS panel technology guarantees not only high-fidelity, vivid battleground scenes displayed with outstanding colour accuracy but provides also an outstanding 0.8ms Moving Picture Response Time (MPRT).

  FREESYNC™ PREMIUM TECHNOLOGY

  This monitor guarantees low input latency and low framerate compensation putting an end to any tearing or stuttering issues at virtually any framerate.

  PREDEFINED AND CUSTOM GAMING MODES

  Have it your way! Choose one of the predefined gaming modes (including FPS and strategy) or set and memorize your own settings.

  BLACK TUNER

  The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.

• DISPLAY CHARACTERISTICS

  Diagonal	23.8″, 60.5cm
  Panel	Fast IPS IGZO, matte finish
  Native resolution	1920 x 1080 @165Hz (2.1 megapixels Full HD, DisplayPort)
  Aspect ratio	16:9
  Panel brightness	250 cd/m²
  Static contrast	1100:1
  Advanced contrast	80M:1
  Response time (MPRT)	0.8ms
  Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
  Colour support	16.7mln 8bit
  Horizontal Sync	15 – 225kHz
  Viewable area W x H	527 x 296.5mm, 20.7 x 11.7″
  Pixel pitch	0.275mm
  Colour	matte, black

  INTERFACES / CONNECTORS / CONTROLS

  Signal input	HDMI x1 (v.1.4, max. 1920 x 1080 @144Hz) DisplayPort x1 (v.1.2, max. 1920 x 1080 @165Hz)
  USB HUB	x2 (v.2.0 DC5V, 500mA)
  HDCP	yes
  Headphone connector	yes

  FEATURES

  Blue light reducer	yes
  Flicker-free	yes
  FreeSync support	HDMI: 1920 x 1080 @48-144Hz, DP: 1920 x 1080 @48-165Hz
  OSD languages	EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL
  Control buttons	Signal select/ Exit, +/ Volume, -/ i-Style Colour, Menu, Power
  User controls	picture adjust (contrast, brightness, overdrive, ACR, ECO, blue light reducer, Black Tuner, MBR, gamma), input select, audio adjust (volume, mute), store user settings, colour settings (colour temperature, 6-Axis, user preset), image adjust (i-Style colour, X-Res Technology, sharp & soft, HDMI RGB range, direct-drive mode, video mode adjust), language, setup menu (OSD H. position, OSD V. position, OSD time out, opening logo, AMD FreeSync Premium, LED), display information, reset
  Speakers	2 x 2W
  Convenience	Kensington-lock™ prepared, DDC2B, Mac OSX

  MECHANICAL

  Display position adjustments	height, tilt, pivot (rotation both sides)
  Height adjustment	130mm
  Rotation (PIVOT function)	90°
  Tilt angle	18° up; 3° down
  VESA mounting	100 x 100mm
  Cable management system	yes

  ACCESSORIES INCLUDED

  Cables	power, USB, HDMI, DP
  Other	quick start guide, safety guide

  POWER MANAGEMENT

  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	20W typical, 0.5W stand by, 0.3W off mode

  SUSTAINABILITY

  Regulations	CE, TÜV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH
  Energy efficiency class (Regulation (EU) 2017/1369)	E
  REACH SVHC	above 0.1%: Lead

  DIMENSIONS / WEIGHT

  Product Dimensions W x H x D	539.5 x 395(525) x 256mm
  Box dimensions W x H x D	697 x 413 x 198mm
  Weight (without box)	4.4kg
  Weight (with box)	6.4kg
  EAN code	4948570117734

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required
