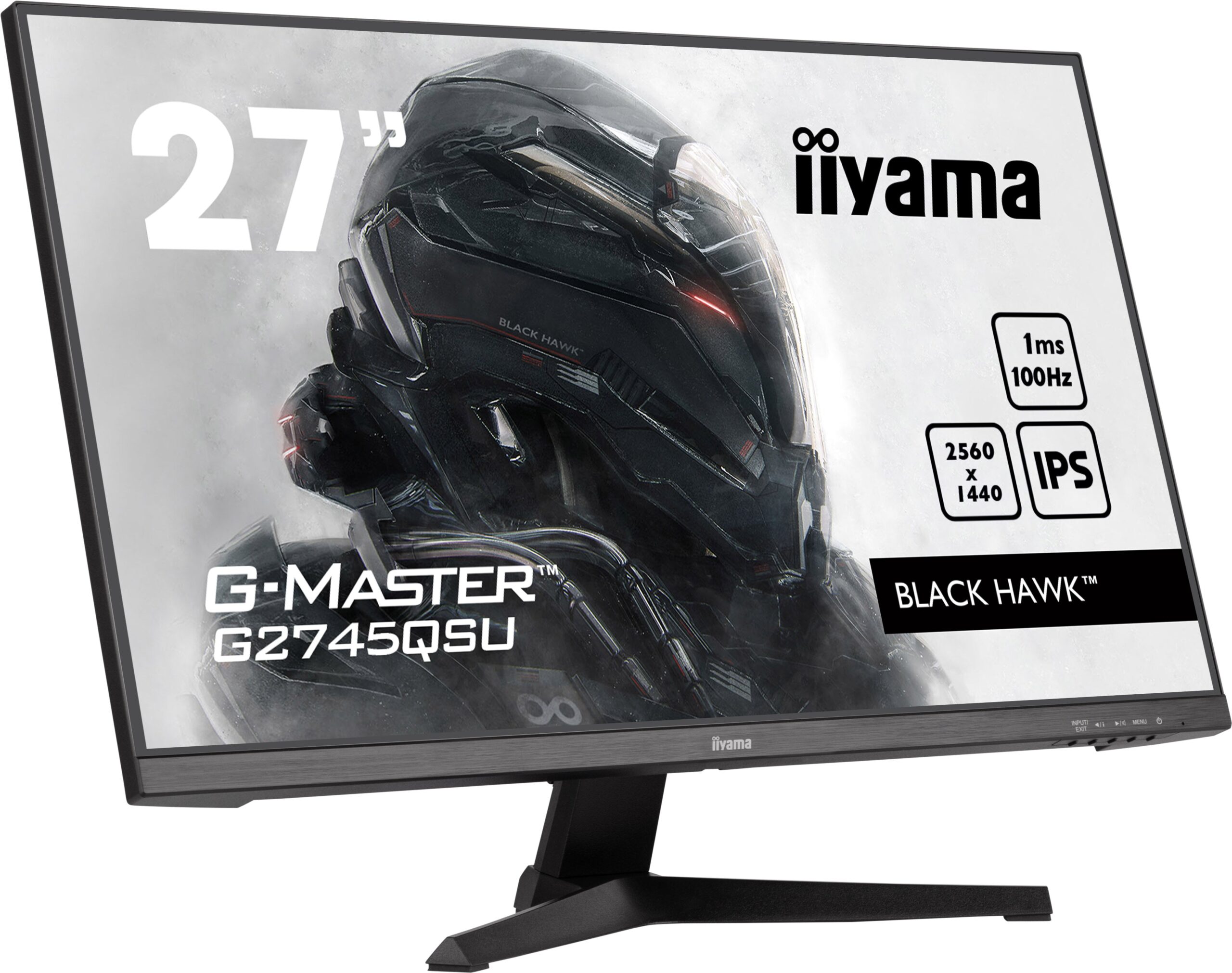

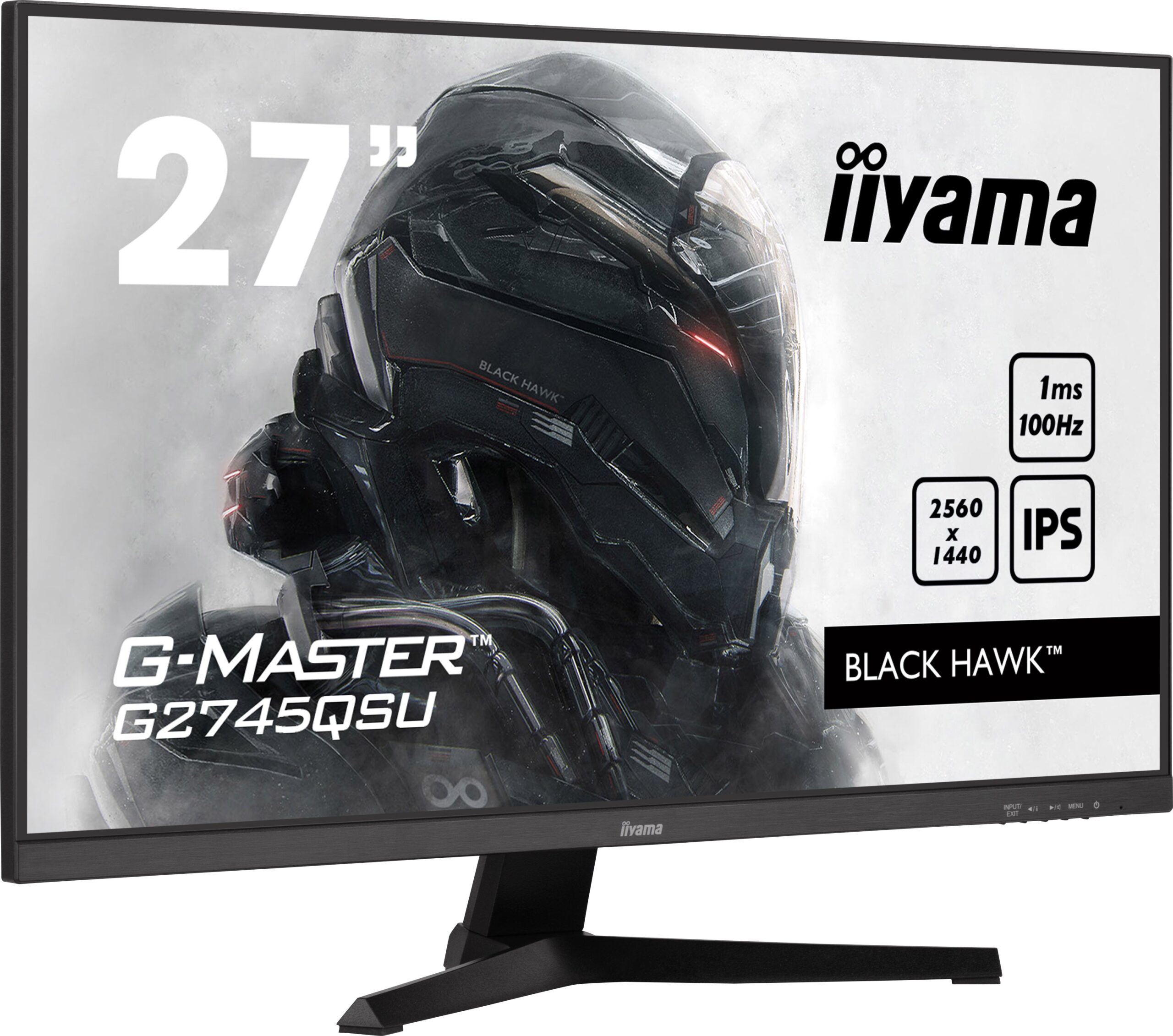

iiyama G-Master G2745QSU-B1 27″ 100Hz WQHD 1ms Gaming Monitor

• Description
• Specifications
• Warranty
• Downloads

• iiyama G-Master G2745QSU-B1 27″ 100Hz WQHD 1ms Gaming Monitor

  Get ahead with the G2745QSU Black Hawk with IPS Panel Technology and 1ms MPRT
  Indulge in exceptional gaming excellence with the 27″ G2745QSU Black Hawk monitor. This display boasts cutting-edge IPS panel technology, a 100Hz refresh rate, and an ultra-swift 1ms MPRT response time. Elevate your gaming adventure to the next level, thanks to FreeSync Technology and the Black Tuner function, ensuring crystal-clear visibility even in the darkest scenes.

  1MS
  Fast response time is key to ultra-smooth gaming. It reduces ghosting and blurring providing the user with an improved graphic performance.

  100HZ
  A 100Hz refresh rate translates into increased smoothness of the image. This means that flickering is reduced and therefore eye fatigue is also less noticeable. The increased frequency also means smoother transitions between contrasting colours, smoother motion scenes in both movies and gaming, and even reduced mouse cursor flickering.

  FREESYNC™ TECHNOLOGY

  IPS TECHNOLOGY
  Covering 100% of the sRGB colour range, this IPS panel provides outstanding colour accuracy and wider viewing angles guaranteeing high-fidelity, vivid battleground scenes.

• DISPLAY CHARACTERISTICS
  Diagonal	27″, 68.5cm
  Panel	IPS, matte finish
  Native resolution	2560 x 1440 @100Hz
  Aspect ratio	16:9
  Panel brightness	250 cd/m²
  Static contrast	1300:1
  Advanced contrast	80M:1
  Response time (MPRT)	1ms
  Viewing zone	Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89°
  Colour support	16.7 million
  Horizontal Sync	30 – 151kHz
  Viewable area W x H	596.7 x 335.7mm, 23.5 x 13.2″
  Pixel pitch	0.233mm
  Colour	Matte, Black

  INTERFACES / CONNECTORS / CONTROLS
  Signal input	HDMI x1 (v.1.4), DisplayPort x1 (v.1.2)
  USB HUB	x2 (v. 3.2 Gen 1 (5Gbps, DC5V, 900mA)
  HDCP	Yes
  Headphone connector	Yes

  FEATURES
  Blue light reducer	Yes
  Flicker free	Yes
  Adaptive Sync support	Adaptive Sync – 2560×1440 @48-100Hz
  Extra	i-Style Colour
  OSD languages	EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
  Control buttons	Power, Menu, Up/Right/Volume, Down/Left/Black Tuner/MBR/AMD FreeSync/Night Mode Button, Input Select/Exit
  User controls	Picture adjust (contrast, brightness, OD, AC, Eco, black tuner, colour saturation, MBR, AMD FreeSync), input source, audio settings (volume, mute audio), user modes, colour settings (6-Axis, gamma, blue light reducer, colour temperature, user preset), image adjust (i-Style Colour, sharp and soft, RGB range, video mode adjust), language, setup menu (OSD h. position, OSD v. position, OSD time, opening logo, LED), display information, recall
  Speakers	2 x 2W
  Convenience	Kensington-lock™ prepared, DDC2B, Mac OSX

  MECHANICAL
  Display position adjustments	Tilt
  Tilt angle	22° up; 4° down
  VESA mounting	100 x 100mm
  Cable management system	Yes

  ACCESSORIES INCLUDED
  Cables	Power, USB, HDMI, DP
  Other	Quick start guide, Safety guide

  POWER MANAGEMENT
  Power supply unit	Internal
  Power supply	AC 50 – 60V, 100/240Hz
  Power usage	21W typical, 0.5W stand by, 0.3W off mode

  SUSTAINABILITY
  Regulations	CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
  Energy efficiency class (Regulation (EU) 2017/1369)	E
  REACH SVHC	Above 0.1%: Lead

  DIMENSIONS / WEIGHT
  Product dimensions W x H x D	611.5 x 434 x 192.5mm
  Box dimensions W x H x D	688 x 465 x 125mm
  Weight (without box)	4.2kg
  Weight (with box)	5.9kg
  EAN code	4948570122776

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required

  ON-SITE SWAP OUT

  PIONEERING CUSTOMER SERVICE.

• Description	Downloads
  User manual	Download
  Technical specification	Download
  Drawing	Download
  UK Energy Label	Download
