iiyama G-Master G2230HS-B1 21.5″ Full HD 75Hz Gaming Monitor

• Description
• Specifications
• Warranty

• GAMING MONITORS – BLACK HAWK ™

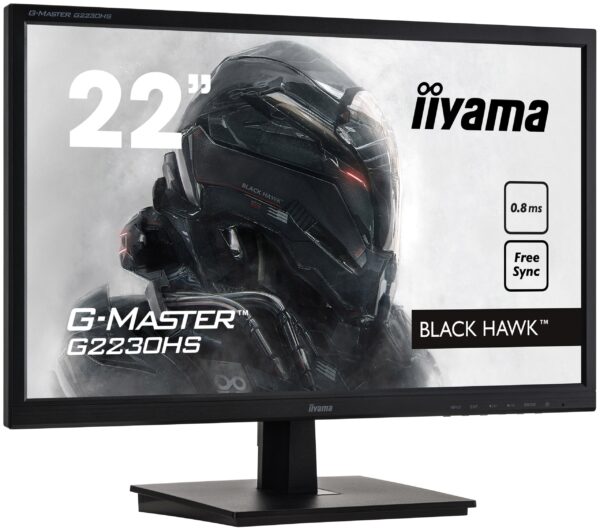

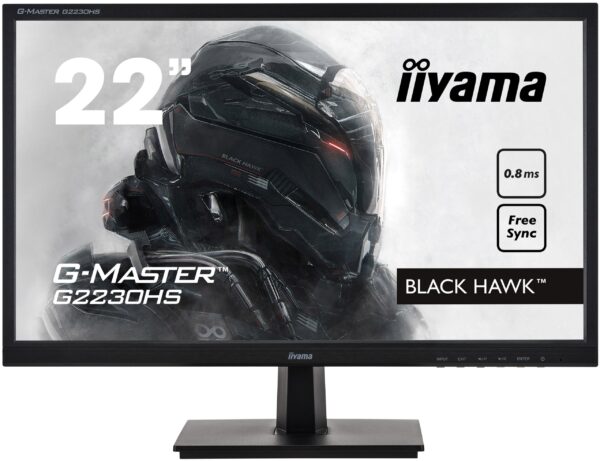

  G-MASTER G2230HS-B1


  Get in the game with the G2230HS Black Hawk with a 0.8ms response time

  The 21.5’’ G-Master G2230HS Black Hawk is the perfect companion at your side. Armed with FreeSync and a stunning 0.8ms response time, it will make your enemies shiver. And if darkness falls across the land, the Black Tuner function will enhance details in shadowed areas making sure no enemy can remain unseen.

  0.8MS

  Fast response time is key to ultra-smooth gaming. It reduces ghosting and blurring providing the user with improved graphic performance.

  FREESYNC™ TECHNOLOGY

  AMD FreeSync™ technology puts an end to choppy gameplay and broken frames with a fluid, artifact-free performance at virtually any framerate.

  PREDEFINED AND CUSTOM GAMING MODES

  Have it your way! Choose one of the predefined gaming modes (including FPS and strategy) or set and memorize your own settings.

  BLACK TUNER

  The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.

• DISPLAY CHARACTERISTICS

  Diagonal	21.5″, 54.7cm
  Panel	TN LED, matte finish
  Native resolution	1920 x 1080 @75Hz (2.1 megapixel Full HD, HDMI & DisplayPort)
  Aspect ratio	16:9
  Panel brightness	250 cd/m²
  Static contrast	1000:1
  Advanced contrast	80M:1
  Response time (GTG)	0.8ms
  Viewing zone	horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
  Colour support	16.7mln
  Horizontal Sync	30 – 83kHz
  Viewable area W x H	476.6 x 268.1mm, 18.8 x 10.6″
  Pixel pitch	0.248mm
  Colour	matte, black

  INTERFACES / CONNECTORS / CONTROLS

  Signal input	VGA x1 (max. 1920 x 1080 @60Hz) HDMI x1 (v.1.4, max. 1920 x 1080 @75Hz) DisplayPort x1 (v.1.2, max. 1920 x 1080 @75Hz)
  HDCP	yes
  Headphone connector	yes

  FEATURES

  Blue light reducer	yes
  Flicker-free	yes
  FreeSync support	DP & HDMI: 1920 x 1080 @48-75Hz
  OSD languages	EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
  Control buttons	Power, Menu/ Select, Scroll up/ Volume, Scroll down/ ECO, Exit/ i-Style Colour, Input Select
  User controls	picture adjust (contrast, brightness, OD, ACR, ECO, Blue Light Reducer, Black Tuner, colour saturation, gamma), geometry (H. position, V. position, pixel clock, phase), input select, audio settings (volume, mute, audio input), colour settings (colour temp., user preset), miscellaneous (i-Style colour, sharp & soft, HDMI RGB range, video mode adjust, store user settings), language, setup menu (OSD H. position, OSD V. position, OSD time out, opening logo, AMD FreeSync, display information), recall
  Speakers	2 x 1W
  Convenience	Kensington-lock™ prepared, DDC2B, Mac OSX

  MECHANICAL

  Display position adjustments	tilt
  Tilt angle	22° up; 5° down
  VESA mounting	100 x 100mm
  Cable management system	yes

  ACCESSORIES INCLUDED

  Cables	power, HDMI
  Other	quick start guide, safety guide, Cable management system

  POWER MANAGEMENT

  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	16W typical, 0.5W stand by, 0.5W off mode

  SUSTAINABILITY

  Regulations	CB, CE, TÜV-Bauart, EAC, VCCI-B, RoHS support, ErP, WEEE, REACH
  Energy efficiency class (Regulation (EU) 2017/1369)	D
  REACH SVHC	above 0.1%: Lead

  DIMENSIONS / WEIGHT

  Product Dimensions W x H x D	504.5 x 383 x 187mm
  Box dimensions W x H x D	633 x 139 x 420mm
  Weight (without box)	3.1kg
  Weight (with box)	4.2kg
  EAN code	4948570117819

• Warranty	Product	Cover
  Visioncare	Desktop LCD products (Monitors)  (17″ – 43″)	3 years on-site UK warranty. (Upgrades to 5 years available)
  Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
  LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

  HOW TO ACTIVATE YOUR WARRANTY

  There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

  Step one – Check that all connections have been properly made.

  Step two – Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

  Step three – If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

  Step four – Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

  Step five – Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

  Step six – Please ensure your product is clean and presentable before packaging it in the original box for collection.

  * Proof of purchase may be required
