Icron 4-Port USB 2.0 Gigabit Ethernet LAN Extender System | 00-00378
- Description
- Specifications
- Downloads
-
Icron 4-Port USB 2.0 Gigabit Ethernet LAN Extender System | 00-00378

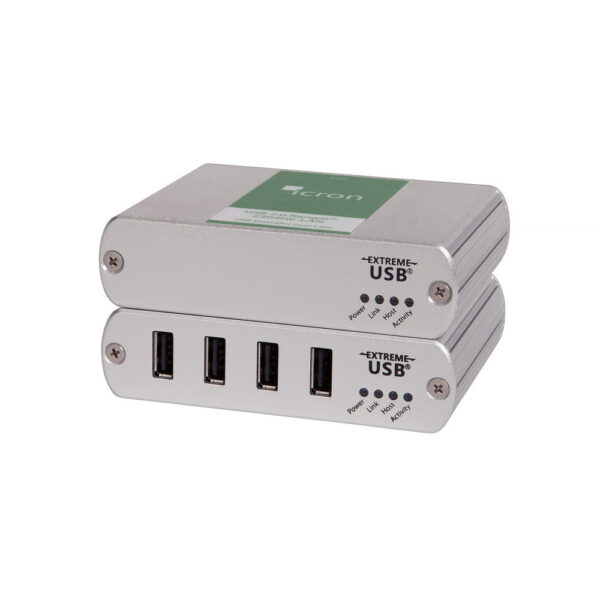

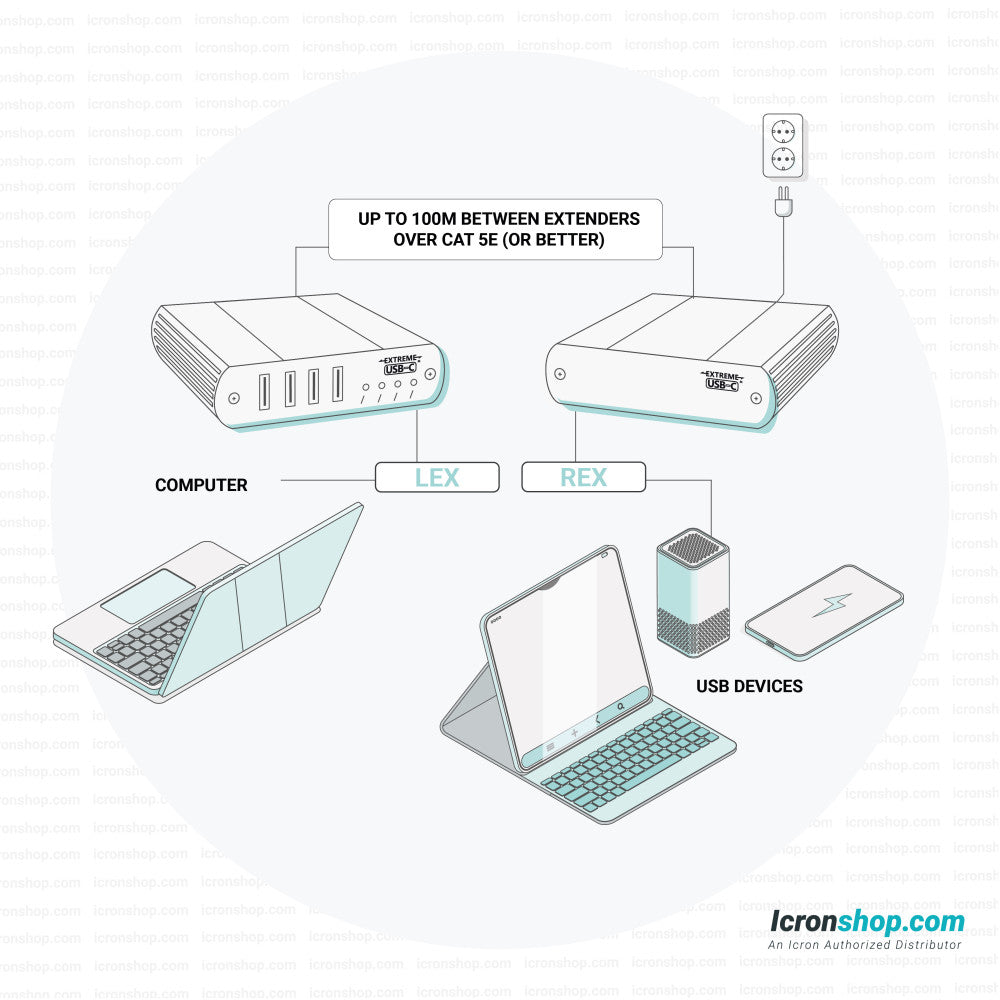

Icron’s USB 2.0 Ranger 2304GE-LAN extends USB 3.0, 2.0, and 1.1 peripherals such as keyboards, mice, flash drives, interactive whiteboards (e.g. webcams and audio devices) across a Gigabit Ethernet Local Area Network (LAN)
Icron’s USB 2.0 Ranger 2304GE-LAN extends USB 3.0, 2.0, and 1.1 peripherals such as keyboards, mice, flash drives, interactive whiteboards, and isochronous devices (e.g. webcams and audio devices) across a Gigabit Ethernet Local Area Network (LAN).
In addition, the Ranger 2304GE-LAN supports modern USB 3.0 controllers. Featuring the ExtremeUSB® technology, the Ranger 2304GE-LAN includes true plug and play (no software drives required) and compatibility with all leading operating systems. The extender supports up to 31 USB devices or hubs over LAN.
Icron’s Gigabit LAN USB extender also benefits from Icron’s latest ASIC-based design, an updated Cypress USB hub, and Realtek internal Ethernet PHY.
The Ranger 2304GE-LAN also benefits from Icron Technologies’ SwitchableUSB™ protocols. This technology enables the host and peripheral pairings to be controlled by another system, such as a video matrix switch. Product is sold as unbranded, turnkey integration, or available for private label.
-
Specification Details USB Type USB 2.0 Transmission Media Local Area Network Number of USB Ports 4 – Ports Max. Distance Up to 100m Power Adapter Location REX Power Requirements 24V DC, 1A USB Hub/Tier Usage 1 hub on REX -
Description Downloads Datasheet Downloads User Guide Downloads Quick Start Guide Downloads
