Icron 2-port USB 2.0 Extender Up To 100 Meters Over CATx Cabling | 00-00408

• Description
• Specifications
• Downloads

• Icron 2-port USB 2.0 Extender Up To 100 Meters Over CATx Cabling | 00-00408

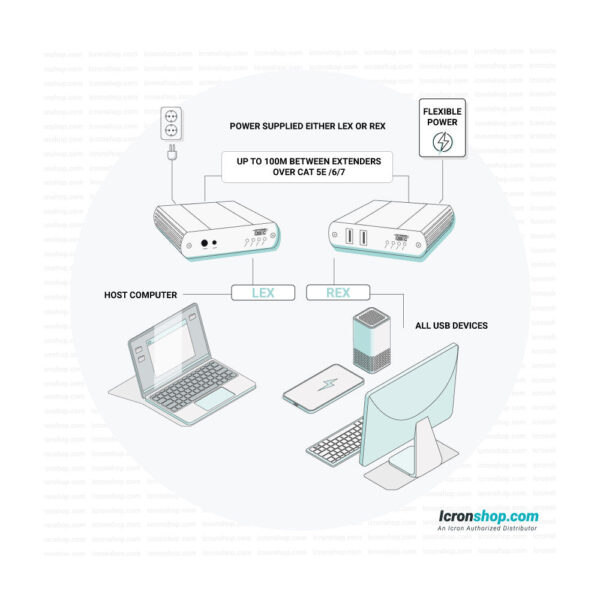

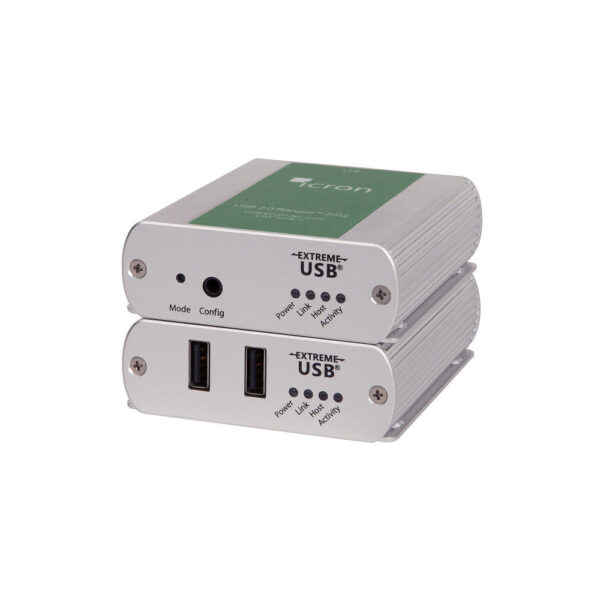

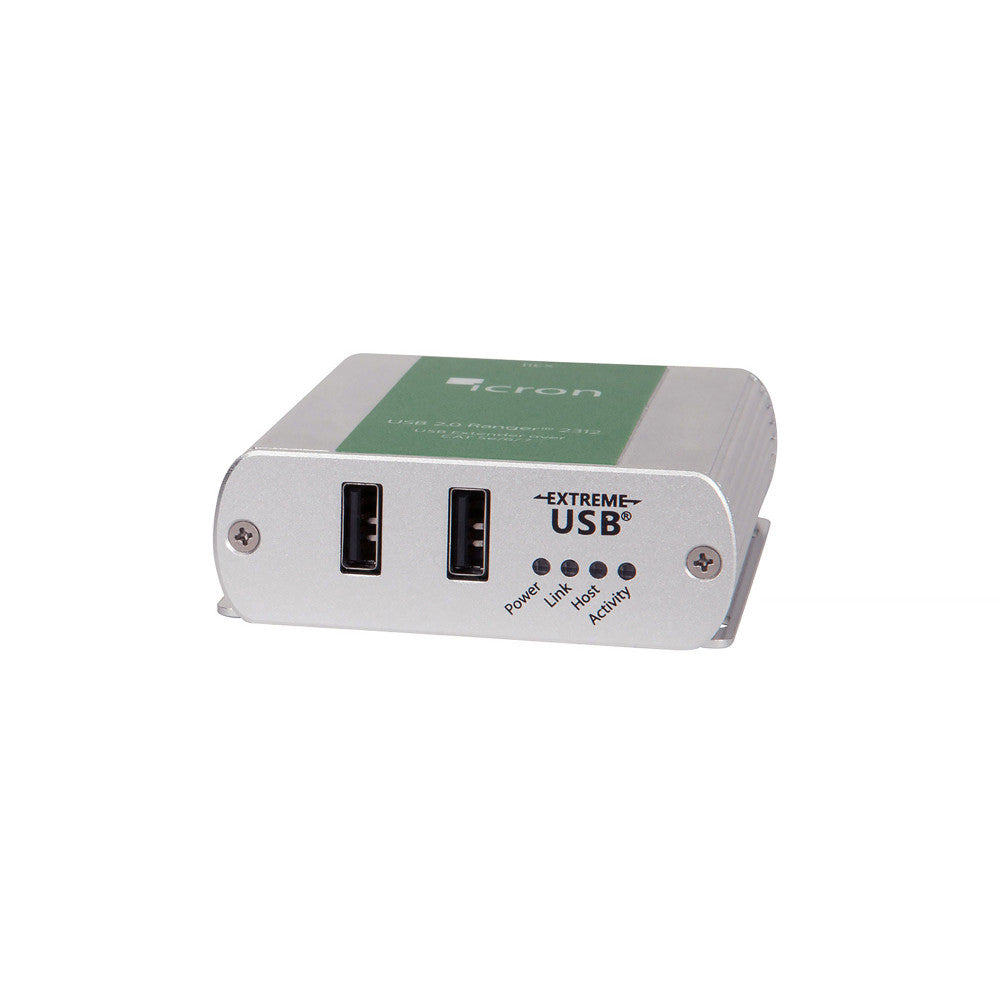

  The Ranger 2312 2-port USB Extender features updated firmware and a new ASIC based design.

  With ExtremeUSB built-in, Icron’s Ranger 2312 has the true plug-and-play capability, not requiring any drivers or software. As well as this, the Ranger supports all major operating systems (Windows, Mac OS X, and Linux). With a rugged design, this USB extender will be suitable for a range of industries such as digital signage, industrial automation, education, medical and machine vision cameras.

• Specification	Details
  USB Type	USB 2.0
  Transmission Media	Cat X
  Number of USB Ports	2 – Ports
  Max. Distance	Up to 100m
  Power Adapter Location	LEX or REX
  USB Throughput	480Mbps
  Power Requirements	24V DC, 1A
  USB Hub/Tier Usage	1 hub on REX

• Description	Downloads
  Datasheet	Downloads
  User Guide	Downloads
  Quick Start Guide	Downloads
