• HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch | JL684A

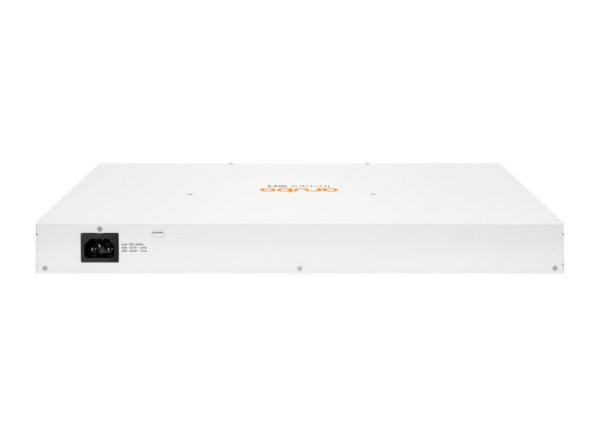

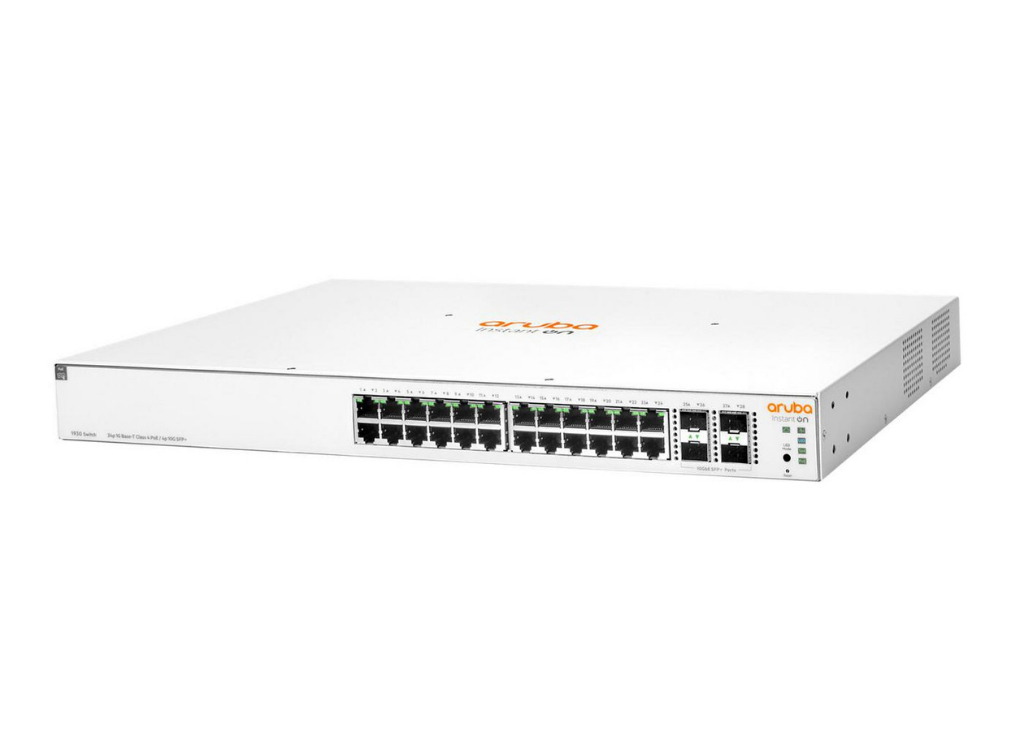

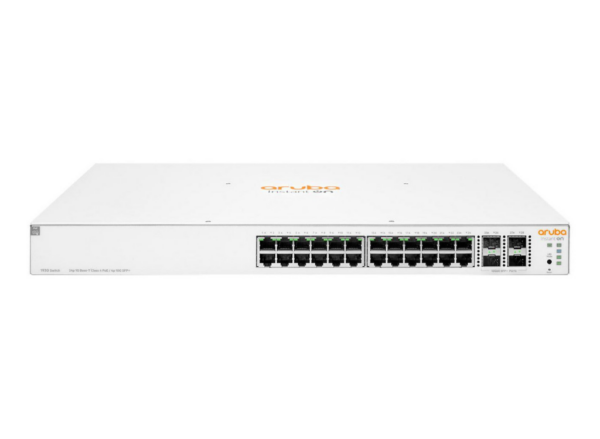

  Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch
  The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.


  Features

  Simplify Network Deployment and Management for Small Organizations
  – The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
  – The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
  – The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
  – The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.


  Keep Your Business Protected with Integrated Security Features
  – The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
  – Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
  – Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
  – Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.

  Deliver High Perfomance
  – The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
  – 8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
  – The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
  – The switch series is covered by the Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.

• Category	Specification Details
  Data Transmission
  Jumbo frames support	Yes
  Latency (1 Gbps)	2.4 µs
  Latency (10 Gbps)	1.3 µs
  Latency (10-100 Mbps)	4.7 µs
  MAC address table	16000 entries
  Packet buffer memory	1.5 MB
  Switching capacity	128 Gbit/s
  Throughput	95.23 Mpps
  Design
  Form factor	1U
  Product colour	White
  Rack mounting	Yes
  Stackable	No
  Legal Information
  EU ECCN Code	5A002
  UNSPSC Code	43222612
  US ECCN Code	5A002
  Logistics Data
  Harmonized System (HS) code	85176990
  Management Features
  Quality of Service (QoS) support	Yes
  Switch layer	L2+
  Switch type	Managed
  Web-based management	Yes
  Network
  10G support	Yes
  Auto MDI/MDI-X	Yes
  Auto-sensing	Yes
  Copper ethernet cabling technology	1000BASE-T/100BASE-TX/10BASE-T
  Flow control support	Yes
  Full duplex	Yes
  Link aggregation	Yes
  Networking standards	IEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1Qaz/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  Number of VLANs	256
  Port mirroring	Yes
  Rate limiting	Yes
  Spanning tree protocol	Yes
  VLAN support	Yes
  Operational Conditions
  Operating relative humidity (H-H)	15 – 95 %
  Operating temperature (T-T)	0 – 40 °C
  Storage relative humidity (H-H)	15 – 95 %
  Storage temperature (T-T)	-40 – 70 °C
  Package Dimensions
  Depth (package, cm)	56 cm
  Gross Weight (Package, kg)	5.42 kg
  Height (package, cm)	13 cm
  Width (package, cm)	45 cm
  Performance
  Flash memory	256 MB
  Harmonized System (HS) code	85176990
  Internal memory	512 MB
  Memory type	SDRAM
  Processor frequency	800 MHz
  Processor model	ARM Cortex-A9
  Ports & Interfaces
  Basic switching RJ-45 Ethernet ports quantity	24
  Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
  SFP+ module slots quantity	4
  Power
  AC input frequency	50 – 60 Hz
  AC input voltage	100 – 240 V
  Power consumption (max)	439 Watt
  Power source	AC
  Power supply included	Yes
  Power over Ethernet (PoE)	Yes
  Total Power over Ethernet (PoE) budget	370 Watt
  Product Dimensions
  Net Weight (Product, kg)	5.41 kg
  Product Depth	26.47 cm
  Product Height	4.39 cm
  Product Width	44.25 cm
  Security
  Access Control List (ACL)	Yes
  DHCP features	DHCP client
  IGMP snooping	Yes
  SSH/SSL support	Yes
