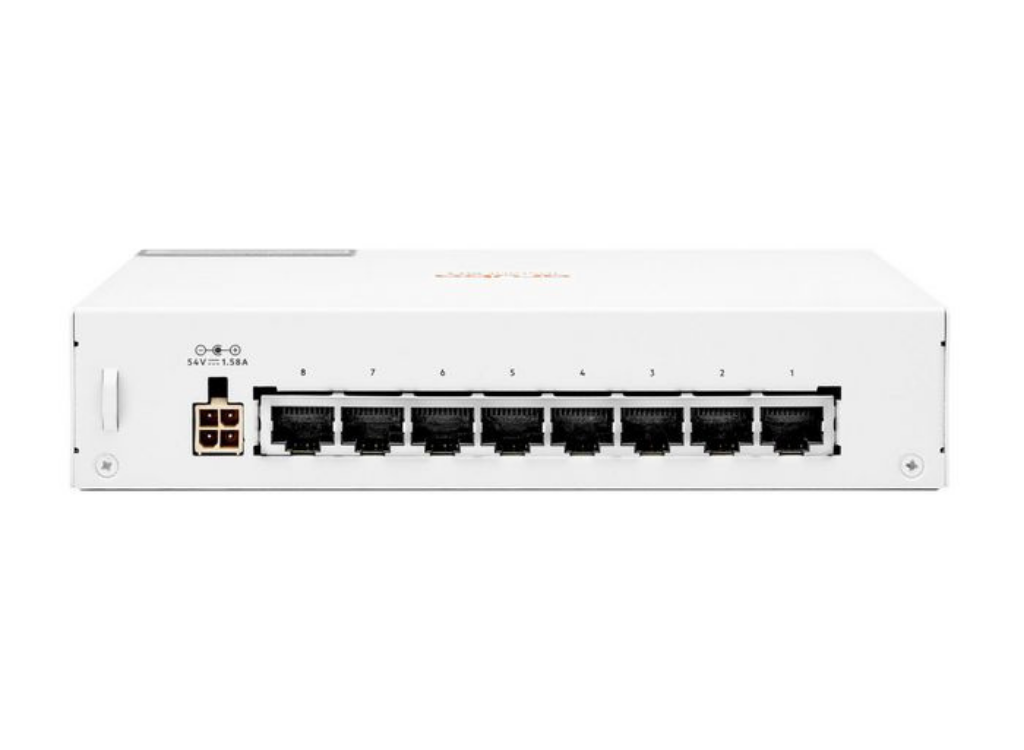

• HPE Aruba Instant On 1430 8G Class4 Poe 64W Network Switch | R8R46A#ABB

  The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.


  Features
  Unmanaged Ethernet Connectivity for Small Businesses
  – The Aruba Instant On 1430 Switch Series is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one (1) 5-port, two (2) 8-port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models.
  – With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.
  – Two dedicated 1G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.
  – Aruba Instant On Limited Lifetime support provides 24×7 phone support for the first 90 days and chat support for the entire warranty period. Community support is included for the life of the product.

  Plug-and-Play Operation
  – The Aruba Instant On 1430 Switch Series models are easy to use with zero configuration and no required ongoing administration.
  – The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.
  – No configuration beyond installation of optional 1GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.
  – Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).
  – Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.


  Energy Efficiency and Traffic Optimization
  – The Aruba Instant On 1430 Switch Series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity.
  – All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.
  – Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.
  – Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.
  – Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.

• Category	Specification Details
  Data Transmission
  Jumbo frames support	Yes
  Latency (1 Gbps)	1.8 µs
  Latency (10-100 Mbps)	2.7 µs
  MAC address table	8192 entries
  Packet buffer memory	2 MB
  Switching capacity	16 Gbit/s
  Throughput	11.9 Mpps
  Design
  Product colour	White
  Legal Information
  UNSPSC Code	43222612
  Management Features
  Quality of Service (QoS) support	Yes
  Switch layer	L2
  Switch type	Unmanaged
  Network
  10G support	No
  Auto-sensing	Yes
  Copper ethernet cabling technology	1000BASE-T/100BASE-TX/10BASE-T
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Flow control support	Yes
  Full duplex	Yes
  Half duplex	Yes
  Networking standards	IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  Operational Conditions
  Operating relative humidity (H-H)	15 – 95 %
  Operating temperature (T-T)	0 – 40 °C
  Storage relative humidity (H-H)	15 – 90 %
  Storage temperature (T-T)	-40 – 70 °C
  Package Dimensions
  Gross Weight (Package, kg)	1 kg
  Ports & Interfaces
  Basic switching RJ-45 Ethernet ports quantity	8
  Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
  Power
  AC input frequency	50 – 60 Hz
  AC input voltage	100 – 240 V
  Number of power supply units	1
  Power consumption (max)	90 Watt
  Power source	AC
  Power supply included	Yes
  Power over Ethernet (PoE)	Yes
  Total Power over Ethernet (PoE) budget	64 Watt
  Product Dimensions
  Net Weight (Product, kg)	0.77 kg
  Product Depth	15 cm
  Product Height	3.7 cm
  Product Width	17.7 cm
