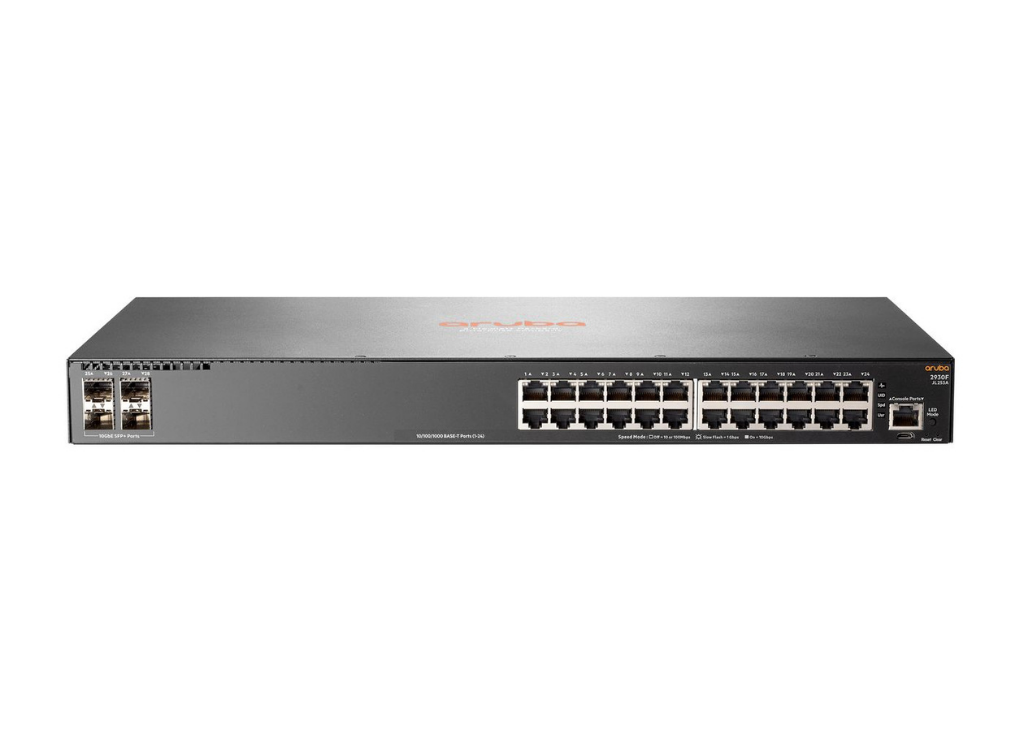

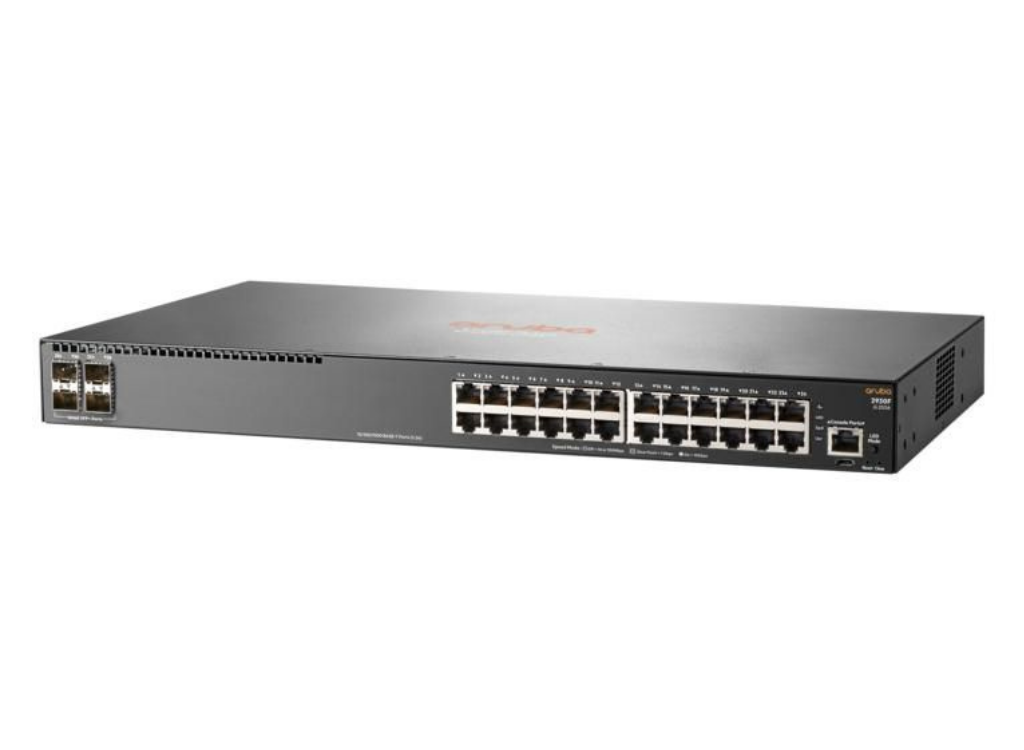

  Aruba 2930F 24G 4SFP+ Switch
  The Aruba 2930F Switch Series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices.

  A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. It supports 10GbE uplinks, PoE+, robust QoS, and RIP routing.


  Features

  High-Performance Access Layer Switches
  – The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
  – Delivers a consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
  – Convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
  – Robust basic Layer 3 feature set includes static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
  – Designed with a powerful ProVision ASIC and support for OpenFlow, the Aruba 2930F is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Software products.

  Performance and Power at the Edge
  – The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
  – Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
  – Supports up to 370 W of internal PoE+ power for wireless access points, cameras and phones.

  Security and Quality of Service You Can Rely on
  – The Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
  – Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
  – Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.

  Simplify with Integrated Wired/Wireless Management
  – The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
  – Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.
  – RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
  – Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.

• Category	Specification Details
  Data Transmission
  Jumbo frames support	Yes
  Latency (1 Gbps)	3.8 µs
  Latency (10 Gbps)	2.9 µs
  MAC address table	32768 entries
  Switching capacity	128 Gbit/s
  Throughput	95.2 Mpps
  Design
  Form factor	1U
  Product colour	Grey
  Rack mounting	Yes
  Stackable	Yes
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code	43222612
  US ECCN Code	5A991
  Management Features
  Quality of Service (QoS) support	Yes
  Switch layer	L3
  Switch type	Managed
  Web-based management	Yes
  Multicast Features
  Multicast support	Yes
  Network
  10G support	Yes
  Auto MDI/MDI-X	Yes
  Auto-sensing	Yes
  Copper ethernet cabling technology	1000BASE-T/100BASE-TX/10BASE-T
  Flow control support	Yes
  Full duplex	Yes
  IP routing	Yes
  Link aggregation	Yes
  Networking standards	IEEE 802.3/IEEE 802.3ab/IEEE 802.3u
  Rate limiting	Yes
  Routing entries	10000
  Spanning tree protocol	Yes
  VLAN support	Yes
  Operational Conditions
  Heat dissipation	100 BTU/h
  Operating relative humidity (H-H)	15 – 95 %
  Operating temperature (T-T)	0 – 45 °C
  Storage relative humidity (H-H)	15 – 95 %
  Storage temperature (T-T)	-40 – 70 °C
  Package Dimensions
  Depth (package, cm)	55.5 cm
  Gross Weight (Package, kg)	4 kg
  Height (package, cm)	12.5 cm
  Width (package, cm)	34.3 cm
  Performance
  Built-in processor	Yes
  Harmonized System (HS) code	85176990
  Internal memory	1024 MB
  Memory type	DDR3-SDRAM
  Processor frequency	1016 MHz
  Processor model	ARM Cortex-A9
  Ports & Interfaces
  Basic switching RJ-45 Ethernet ports quantity	24
  Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
  Console port	RJ-45
  Installed SFP+ modules quantity	4
  SFP+ module slots quantity	4
  Power
  AC input frequency	50 – 60 Hz
  AC input voltage	100 – 240 V
  Power consumption (max)	29.3 Watt
  Power consumption (typical)	19.5 Watt
  Power supply included	Yes
  Power over Ethernet (PoE)	No
  Product Dimensions
  Net Weight (Product, kg)	3.8 kg
  Product Depth	20.02 cm
  Product Height	4.39 cm
  Product Width	44.25 cm
  Protocols
  IPv4 FIB entries	10000
  IPv6 FIB entries	5000
  Routing protocols	IP
  Security
  Access Control List (ACL)	Yes
  DHCP features	DHCP server
  IGMP snooping	Yes
  SSH/SSL support	Yes
