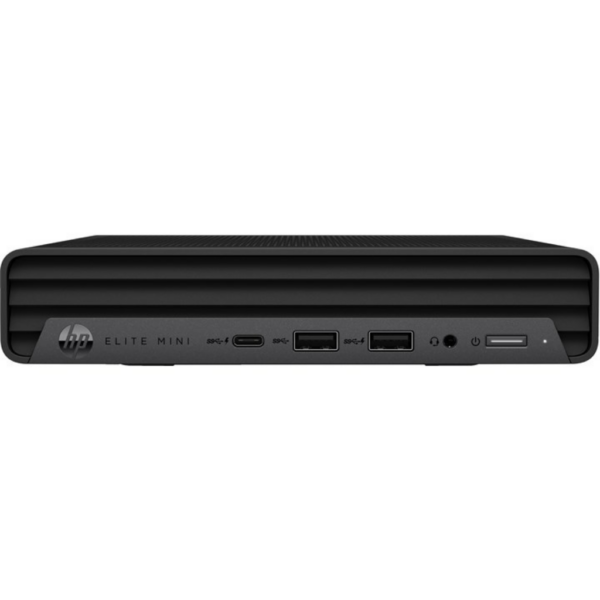

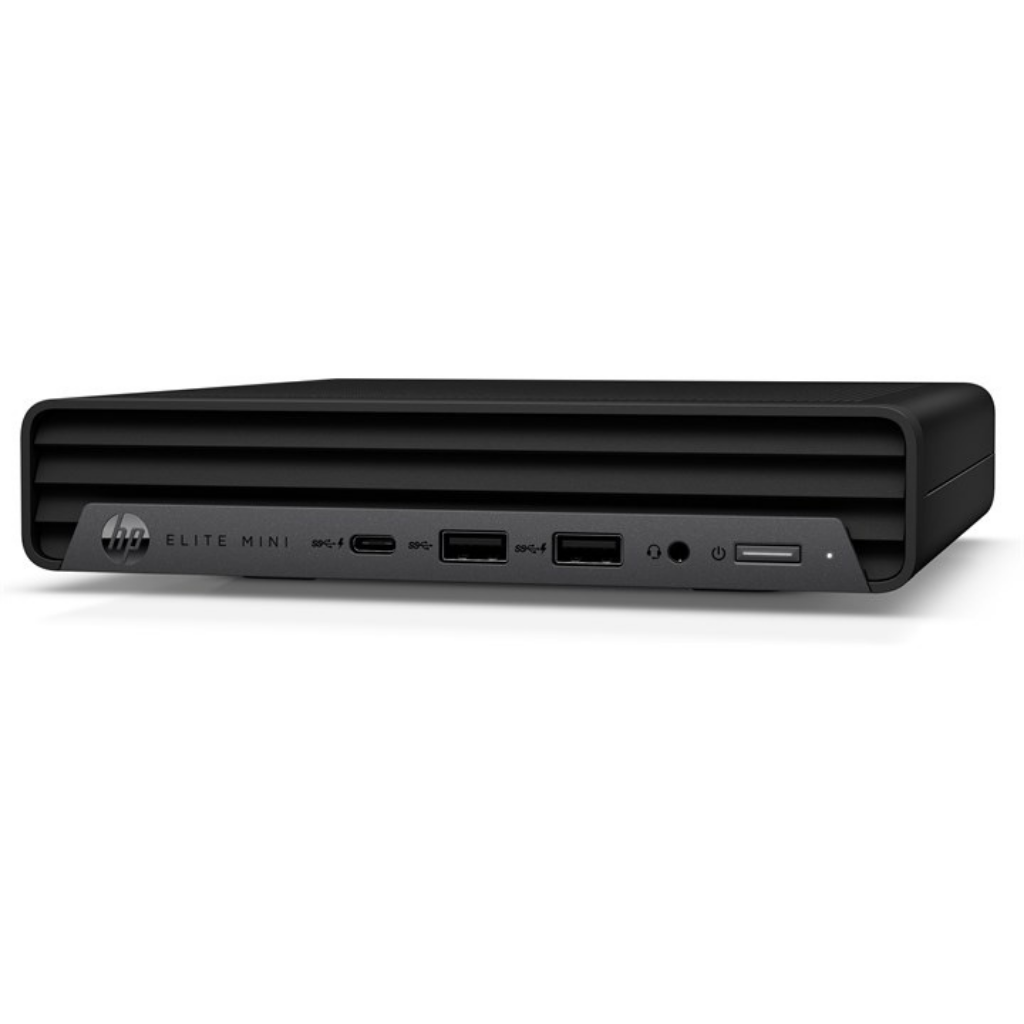

HP Elite Mini 800 G9 Desktop PC Intel® Core™ i7 16 GB DDR5-SDRAM NVIDIA GeForce RTX 3050

• Description
• Specifications
• Downloads

• HP Elite Mini 800 G9 Desktop PC Intel® Core™ i7 16 GB DDR5-SDRAM NVIDIA GeForce RTX 3050

  Small size. Big impact
  Get breakthrough performance with the latest Intel® processor[2] and DDR5 memory.

  Office and home deployment
  Take the HP Elite Mini 800 home with you so you can stay productive in the hybrid work world.

  Protected by HP Wolf Security
  HP Wolf Security for Business creates a hardware-enforced, always-on, resilient defense.

  Help protect our shared future
  At least 50 percent of all plastic used in this PC is post-consumer recycled plastic.

  Windows 11
  Work anywhere without compromising on performance or security with Windows 11 powered by HP’s collaboration and connectivity technology.

  Powerful Intel® processor
  Help speed up demanding business applications with the latest generation Intel® Core™ processors.

  Powering your creativity
  Power through creative applications using discrete graphics.

  HP Sure Sense
  Malware is evolving rapidly and traditional antivirus can’t always recognize new attacks. Protect your PC against never-before-seen attacks with HP Sure Sense, which uses deep learning AI to provide exceptional protection against advanced malware.

  Protect critical security processes
  Keep your critical applications and processes running even if malware tries to shut them down with the self-healing protection of HP Sure Run.

  Browse confidently
  Help protect your PC from websites and read only Microsoft Office and PDF attachments with embedded malware, ransomware, or viruses with hardware-enforced security from HP Sure Click.

  Speed up the basics of IT management
  The HP Manageability Integration Kit helps speed up image creation and management of hardware, BIOS, and security through Microsoft System Center Configuration Manager.

• Category	Details
  Processor
  Processor manufacturer	Intel
  Processor family	Intel® Core™ i7
  Processor generation	Intel Core i7-14xxx
  Processor model	i7-14700T
  Processor cores	20
  Processor threads	28
  Processor boost frequency	5 GHz
  Performance cores	8
  Efficient cores	12
  Performance-core Max Turbo Frequency	5 GHz
  Efficient-core Max Turbo Frequency	3.7 GHz
  Performance-core base frequency	1.3 GHz
  Efficient-core base frequency	0.9 GHz
  Processor cache	24 MB
  Processor cache type	L3
  Number of processors installed	1
  Processor base power	35 W
  Maximum turbo power	106 W
  Memory
  Internal memory	16 GB
  Maximum internal memory	64 GB
  Internal memory type	DDR5-SDRAM
  Memory layout (slots x size)	1 x 16 GB
  Memory slots	2x SO-DIMM
  Memory clock speed	5600 MHz
  Storage
  Total storage capacity	1 TB
  Storage media	SSD
  Total SSDs capacity	1 TB
  Number of SSDs installed	1
  SSD capacity	1 TB
  SSD interface	PCI Express
  NVMe
  SSD form factor	M.2
  Graphics
  Discrete GPU manufacturer	NVIDIA
  Discrete graphics card model	NVIDIA GeForce RTX 3050
  Discrete graphics card memory	4 GB
  Discrete graphics memory type	GDDR6
  Number of discrete graphics cards	1
  On-board GPU manufacturer	Intel
  On-board graphics card family	Intel® UHD Graphics
  On-board graphics card model	Intel UHD Graphics 770
  Network
  Top Wi-Fi standard	Wi-Fi 7 (802.11be)
  Wi-Fi standards	Wi-Fi 7 (802.11be)
  WLAN controller manufacturer	Intel
  WLAN controller model	Intel Wi-Fi 7 BE200
  Bluetooth version	5.4
  Ports & Interfaces
  USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
  USB 3.2 Gen 2×2 Type-C ports quantity	1
  HDMI ports quantity	1
  HDMI version	2.1
  DisplayPorts quantity	3
  Ethernet LAN (RJ-45) ports	1
  Design
  Chassis type	Mini PC
  Number of 2.5″ bays	1
  Product colour	Black
  Introduction year	2024
  Performance
  Motherboard chipset	Intel Q670
  Audio chip	Realtek ALC3252
  Software
  Operating system installed	Windows 11 Pro
  Power
  Power supply	180 W
  Operational Conditions
  Operating temperature (T-T)	10 – 35 °C
  Operating relative humidity (H-H)	10 – 90%
  Sustainability
  Sustainability certificates	ENERGY STAR
  Weight & Dimensions
  Width	177 mm
  Depth	175 mm
  Height	34 mm
  Weight	1.42 kg
  Package width	498 mm
  Package depth	132 mm
  Package height	235 mm
  Package weight	2.95 kg

• 622Y2ET#ABU : Datasheet
