Honeywell Eclipse MS5145 Handheld Barcode Scanner | MK5145-71A38-EU
Honeywell Eclipse MS5145 Handheld Barcode Scanner – Cable Connectivity – Light Grey – USB Cable Included – 72 scan/s – 178 mm Scan Distance – 1D – Laser – Single Line – Multi-interface

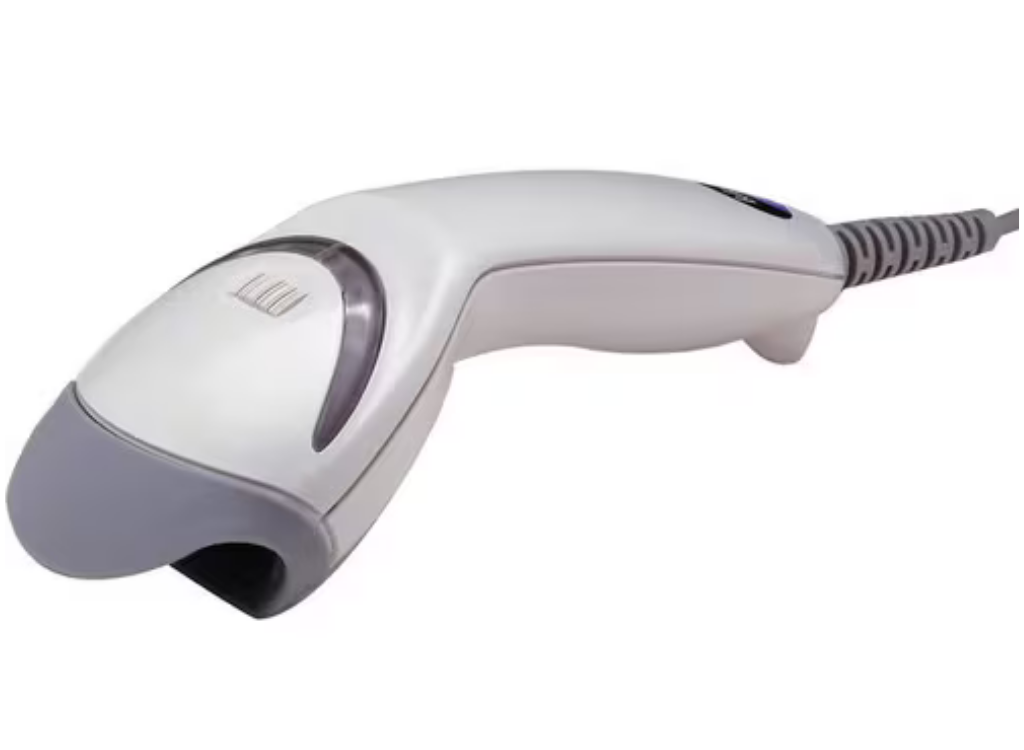

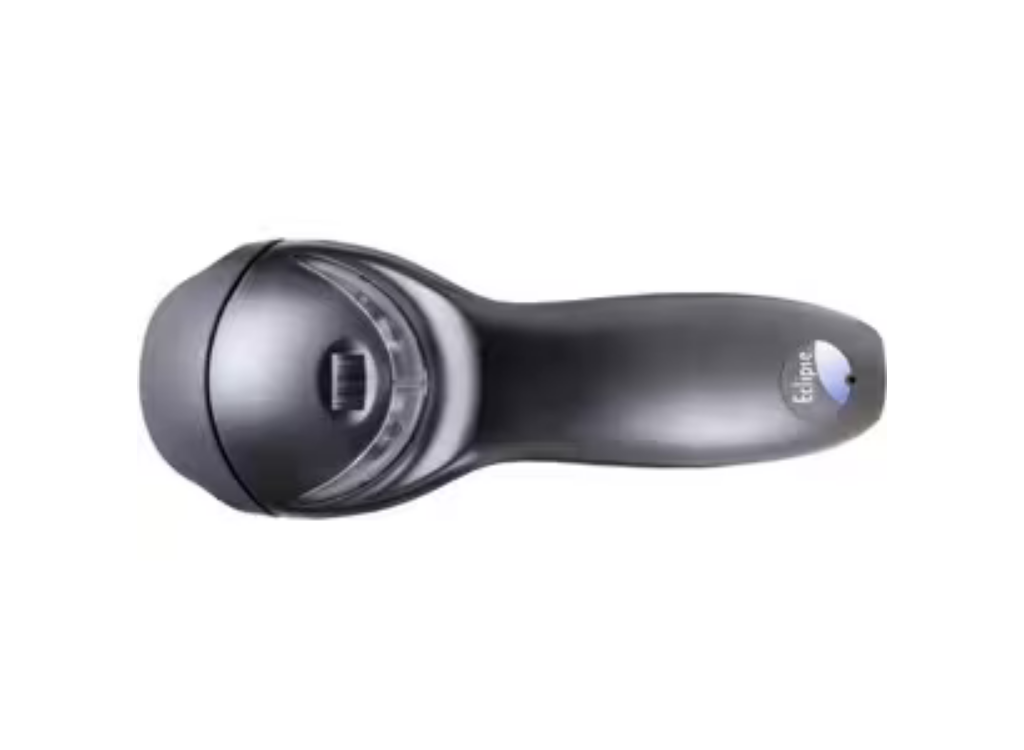

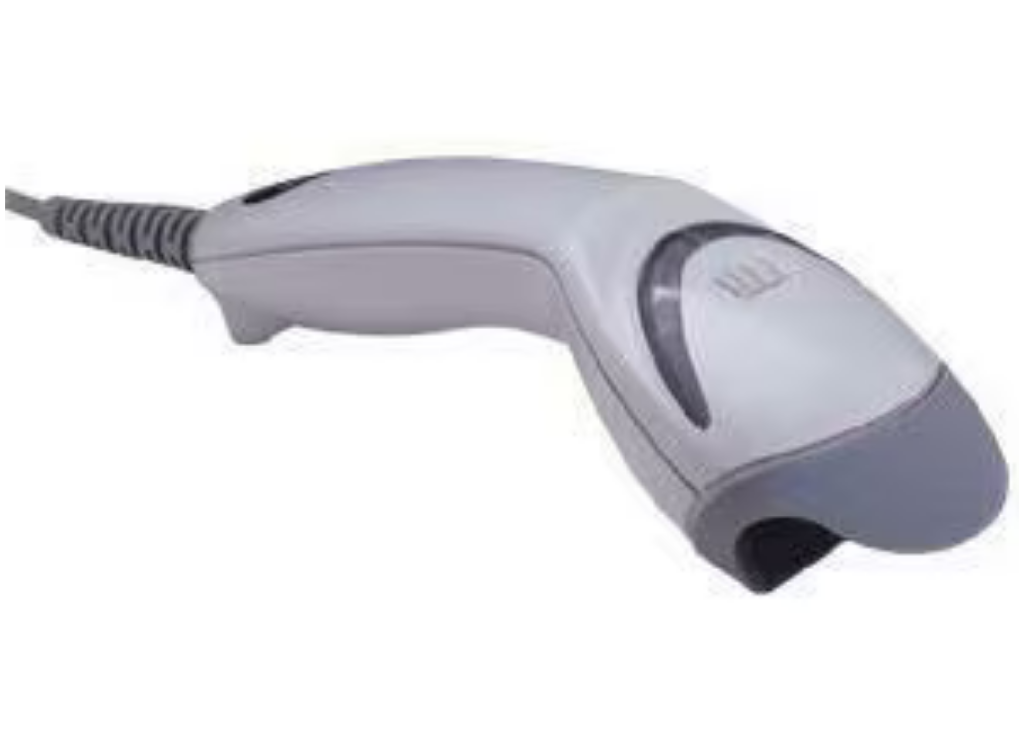

Metrologic’s Eclipse MS5145 Bar Code Reader is a single-line, handheld laser scanner. Equipped with Metrologic’s patented CodeGate technology, Eclipse can be used in a wide variety of applications. CodeGate technology allows the user to easily target the desired bar code and complete the data transmission with a simple press of a button. This makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.
Features
At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Allows productive and precise reading of 1D barcodes
Perfect for applications that require direct association with a workstation or a notebook
Powerful laser scan source provides 72 scan/s decode rate
Scan barcodes with a staggering speed of 72 scan/s -
ner:
Category Details Interfaces/Ports Multi-interface (USB, Keyboard Wedge) Additional Info USB Cable separate Environmentally Friendly Yes Physical Characteristics Weight (Approximate) 97 g Form Factor Handheld Height 35.6 mm Width 63.5 mm Depth 170.2 mm Product Color Light Grey General Information Product Type Barcode Scanner Manufacturer Part Number MK5145-71A38-EU Manufacturer Honeywell International, Inc Product Model MS5145 Product Name Eclipse MS5145 Bar Code Reader Product Line Eclipse Brand Name Honeywell Technical Information Barcode Symbology Supported Autodiscriminates all standard bar codes, including RSS Connectivity Technology Cable Scanning Distance 178 mm Light Source Laser Maximum Scan Resolution 0.10 mm Drop Specification Designed to withstand 1.5 m (5´) drops Scan Pattern Single Line Scan Rate 72 scan/s Cable Type Included USB Scanning Capability 1D Field of View (Horizontal) 50° Reading Angle (Skew) 52° Reading Angle (Pitch) 68° Maximum Ambient Light 4842 lux Minimum Print Contrast 35%
