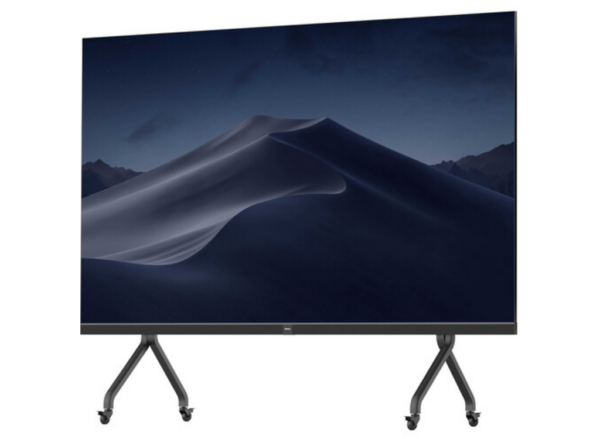

Hisense HAIO163DE 163″ 1080p Full HD LED All-In-One Display

• Description
• Specifications
• Downloads

• Hisense HAIO163DE 163″ 1080p Full HD LED All-In-One Display

  Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display. Delivering vivid detail and unrivalled color depth, the All-in-one 163” LED display will provide finishing touch to any quality meeting space.


  Ultra Picture Quality Chip
  Relying on Hisense’s super picture quality chip, supported by powerful algorithms, colour enhancement, multi-grayscale correction, MEMC, HDR, SR super resolution four major picture quality technologies, the picture quality is more detailed and vivid.


  Smart Display
  Automatically adjust the brightness of the LED all-in-one screen according to the environment. Automatic all-round monitoring of the screen status. Up to three intelligent screen casting methods.


  Stereo Surround Sound
  Equipped with 60W built in speakers, Dolby & DTS audio dual decoding, impactful bass and crisp treble to create a truly immersive stereo surround sound.


  Energy Saving
  With our efficient power supply and 3-in-1 minimalist ASIC architecture, along with common-negative driver and super energy-saving algorithms, we have significantly reduced energy consumption, aiding in minimizing environmental impact. Additionally, our advanced technology allows us to maintain a maximum temperature of 40°C for the screen body, ensuring users enjoy a comfortable and safe experience when close to the screen. This not only enhances user comfort but also prolongs the display’s lifespan. Overall, our commitment to innovation and sustainability enables us to create a high-performance display solution that prioritizes energy efficiency and user comfort.


  Automatic PQ Adjustment
  Hisense HAIO series, the spare lamp board can be directly replaced, intelligent reading lamp board data, automatically complete the colour correction


  Quick Installation and Easy Maintenance
  Complete installation within 1.5 hours for 2 persons with a fully automated configuration setup. Full front installation and maintenance helps to minimise installation space.


  Simple Precise Design
  Industrial aesthetic minimalist integrated design. The thinnest lightweight body at only 32.3mm means occupying less space for the display. An ultra-narrow bezel, 95% screen ratio and elegant design of wall bracket and mobile cart.

• Category	Specification
  Pixel Pitch	1.875mm
  Pixel Configuration	3 in one SMD (with Glue On Board)
  Screen Resolution (WxH)	1920 x 1080
  Module Dimensions (WxH)	150 x 337.5mm / 5.9 x 13.3 inch
  No. of Modules Per Screen (WxH)	24 x 6 (Total 144 Pcs LED Modules)
  Screen Dimensions With Frame	3604 x 2112 x 32.3mm / 141.8 x 83.1 x 1.27 inch
  With Mobile Cart Dimensions	3604 x 2662 x 1086.8mm / 141.8 x 104.8 x 42.7 inch
  Panel/Cabinet Dimensions (WxHxD)	600 x 337.5 x 32.3mm / 23.6 x 13.3 x 1.27 inch
  Weight (per panel / screen)	4kg / 162kg // 8.82lbs / 357.14lbs
  Pixel Density	284,444 pixels/m²
  Flatness of Cabinet	±0.05mm
  Cabinet Material	Die-cast Aluminium
  Grey Level	14 bits
  Aspect Ratio	16:9
  Service Access	Front
  Brightness	500 nits (100~500 nits Adjustable)
  Contrast Ratio	5,000:1
  Visual Viewing Angle (HxV)	150° x 140°
  Brightness Uniformity	95%
  Colour Uniformity	±0.003 Cx,Cy
  Processing Depth	14 bits
  Colour Temperature (Adjustable)	6500 K (2,000 ~ 9,300 K)
  Power Supply Voltage	100-240V, 50/60Hz
  Average Power Consumption	≤720W
  Max Power Consumption	≤2100W
  Refresh Rate	3,840Hz
  WiFi	2.4G & 5G
  Bluetooth	5.0
  Input	HDMI(2.0) IN x3, USB2.0 x1, USB3.0/Type-C x1, RS-232 x1, LAN x1
  Output	SPDIF x1, Audio Out x1
  Operating Temp/Humidity	0 – 40°C / 10% – 90%RH (no frost)
  Storage Temp/Humidity	-20 – 40°C / 10% – 65%RH (no frost)
  Expected LED Lifetime	100,000 Hrs
  Built-in Speaker	10W x 6
  External Speaker	3.5mm Audio external sound system connector
  Operating System	Android 9.0
  CPU	CA73*4 1.3GHz
  GPU	G52 MC1
  DDR	3GB
  ROM	64GB
  Languages	Chinese / English / French / German / Spanish / Italian / Polish / Arabic / Russian
  Packing Method	Flight case for Cabinets / Modules / Wall Bracket and Accessory
  Packaging Dimensions	1120 x 2100 x 768mm / 44.09 x 82.67 x 30.23 inch
  Net / Gross Weight	162kg / 230kg // 357.14lbs / 526.90lbs
  Mobile Cart Packaging Method	Wooden Box (For Mobile Cart) (Option)
  Mobile Cart Packaging Dimensions	2551 x 192 x 1037mm / 100.43 x 7.55 x 40.82 inch
  Mobile Cart Net / Gross Weight	57kg / 110kg // 125.66lbs / 242.50lbs
  Curve Support	Flat, Flat
  Controller	Embedded
  Standard Accessories	User Manual / Remote Control / Battery / Vacuum Tool / Wall Bracket
  Optional Accessories	Mobile Cart (LGR00401A), Hisense Dongle (HT002), Camera (HMC03-1080P, 25M), OPS (S02BDs&AA21E/5A811E)
  Available Regions	EU, APAC, SA, USA
