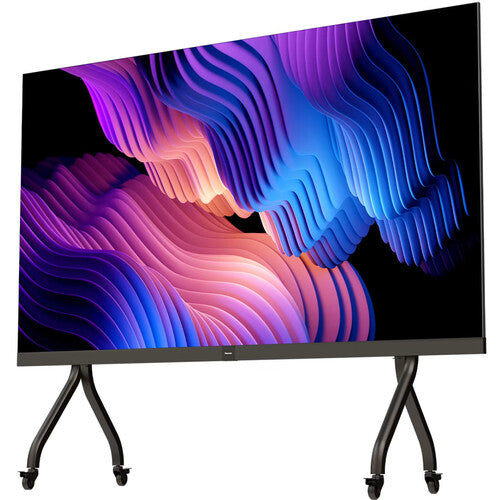

Hisense HAIO136 136” LED All-in-one Digital Signage Display

• Description
• Specifications
• Warranty
• Downloads

• Hisense HAIO136

  136” LED All-in-one Digital Signage Display

  Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display. Equipped with Hisense’s unique ASIC picture quality solution for precision dimming it controls each LED pixel to accurately express brightness and chromaticity information. Delivering vivid detail and unrivalled colour depth, the All-in-one 136” LED display will provide finishing touch to any quality meeting space.

  Simple Precise Design
  Industrial aesthetic minimalist integrated design. The thinnest lightweight body at only 27.8mm means occupying less space for the display. An ultra-narrow bezel, 95% screen ratio and elegant design of wall bracket and mobile cart.

  AI Picture Quality Solution
  The display adapts in real time to achieve the best picture parameters based on intelligent recognition of the screen content. The display controls each LED pixel to accurately express brightness and chromaticity information, significantly improving the brightness and contrast of the large screen.

  Stereo Surround Sound
  Equipped with 60W built in speakers, Dolby & DTS audio dual decoding, impactful bass and crisp treble to create a truly immersive stereo surround sound.

  Super Energy Saving
  Super energy saving standby design, no signal standby power consumption <0.5W. The energy-saving design can save more than 20% compared with conventional products in the industry under same working condition.

  Smart Display
  Automatically adjust the brightness of the LED all-in-one screen according to the environment. Automatic all-round monitoring of the screen status. Up to three intelligent screen casting methods.

  Quick Installation & Easy Maintenance
  Complete installation within 1.5 hours for 2 persons with a fully automated configuration setup. Full front installation and maintenance helps to minimise installation space.

  Smart Screen Casting
  Up to three intelligent screen casting methods. Rapid screen transmission via Dongle, support 4 split screen. Android phone NFC a touch cast screen, cell phone WPS sweep cast screen.

  Smart Detection
  Automatic all-round monitoring of the screen status. Real-time monitoring and dynamic adjustment, avoid short circuit and high temperature

  Smart Light Sensing
  Automatically adjust the brightness of the LED all-in-one screen according to the environment to avoid the screen being too bright or too dark

  Smart Calibration
  The LED modules can be replaced directly, and the replacement can be completed in 1 minute, and the display can be normalized without recalibration on site, making the installation and maintenance more troublefree.

  HDR
  Low brightness dimming being capable to show rich dark details. Show more details of the image via richer color peformance and brightness adjustment, and enhance color levels with consistent color saturation and detail, more vividly viewing experience whatever you’re watching.

  AI Precision Dimming
  Equipped with Hisense’s unique ASIC picture quality solution for precision dimming. Support AIPQ function, intelligent identification of contents, adaptive to achieve optimal picture display parameters, which controls each LED pixel to accurately express brightness and chromaticity information, significantly improving the brightness and contrast of large screens.

  Ultimate Motion
  With MEMC Tech, Ultimate Motion reduces blur in fast moving scenes, offering crisp and clear images for fast action sequences. Its smooth viewing experience puts you into the scene.

  Bright Color Balance Technology
  Intelligent recognition of presentation scenes, content, contrast, clarity fine adjustment, Ultimate color purity and tiny Brightness deviation, matching the corresponding best viewing effect, viewing more comfortable.

  Dolby & DTS Sound Dual Decoding
  Equipped with Dolby & DTS audio dual decoding, immersive stereo surround sound, making the bass more shocking, treble brighter, all-round to create a theater-grade shocking sound.

  Hi-Fi Stereo
  Built in 60W speakers (6x10W), surround sound, surging sound, cinema effect, bringing IMAX theater-like shocking sound.

  Simply Precise Design
  Industrial aesthetic minimalist integrated design, the thinnest body only 27.8mm, occupying less space.Lightweight body, Ultra-narrow bezel, 95% screen ratio; Elegant design of wall bracket and mobile cart

  Quick Installation and Easy Maintenance
  Factory pre-assembly. Installation within 1.5 hours for 2 persion. Auto configuration setup. Full front installation, maintenance, save the installation space.

  GOB Screen Lamination
  Optional GOB protective coating to avoid screen failure caused by impact, humidity, dust, etc. and enhance screen protection.

  Dynamic Energy Saving
  Dynamic energy saving & efficient cooling, compared to the conventional LED energy saving > 40%, screen temperature <40 °.

  Meeting room
  Huge screen clear display, support for multi-person teleconference, thinner body does not take up space, making the meeting office more convenient.

  Terrace Classroom
  The huge picture is clearly displayed to provide a better classroom learning experience for students. Support OPS devises with Windows system.Offers A various classrooms teaching forms and rich teaching contents

  Expert Conference Room
  Huge picture clear display, high reliability of the product, life expectancy of more than 100,000 hours.

• Parameter	Details
  Physical
  Pixel Pitch	1.5625 mm
  Pixel Configuration	3 in one SMD
  Screen Resolution (W x H)	1920×1080
  Module Dimensions (W x H)	150 x 337.5mm / 5.9 x 13.3inch
  No. of Modules Per Screen	20 x 5 (Total 100 Pcs LED Modules)
  Screen Dimensions (W x H x D)	3004 x 1774.5 x 32.3mm / 118.3 x 69.9 x 1.27inch (with Screen Frame)
  Cabinet Dimensions (W x H x D)	600 x 337.5 x 29.3mm / 23.6 x 13.3 x 1.15inch
  Weight (per Cabinet/per Screen)	4kg / 110Kg [8.82lbs / 242.55lbs]
  Pixel Density	409,600 pixels/m2
  Flatness Of Cabinet	± 0.05 mm
  Cabinet Material	Die-cast Aluminum
  Gray Level	14 bits
  Aspect Ratio	16:9
  Service Access	Front
  Optical
  Brightness	100~600 Nits Adjustable
  Contrast Ratio	5,000 : 1
  Visual Viewing Angle (H x V)	150° x 140°
  Brightness Uniformity	95%
  Color Uniformity	± 0.003 Cx,Cy
  Processing Depth	16 bits
  Color Temperature (Adjustable)	9300 K (2,000 ~ 9,300 K)
  Electrical
  Power Supply Voltage	100 – 240 V, 50/60Hz
  Average Power Consumption (W/ Screen)	≤ 800W
  Max Power Consumption (W/ Screen)	≤ 1800W
  Refresh Rate	3,840 Hz
  Operation Conditions
  Operating Temp/Humidity	0 – 40 °C/ 10% – 90%RH (no frost)
  Storage Temp/Humidity	-20 – 40 °C/ 10% – 65%RH (no frost)
  IP Rating	IP50
  Expected LED Lifetime (typ)	100,000 Hrs
  Speaker
  Built-in	10W×6
  External	3.5-mm AUDIO external sound system connector (prior to the built-in sound system connector)
  System
  OS	Android 9.0
  CPU	CA73*4 1.3GHz
  GPU	G52 MC1
  DDR	3GB
  ROM	64GB
  Language	Chinese/English(Default)/ French, German, Spanish, Italian, Polish, Arabic
  Features	HDR/EMMC/Low blue light/Dolby/DTS
  Certification
  Standard Certification	CE, CB, FCC, RCM, cTUVus
  Environment	RoHS, REACH
  Controller	Embedded
  Available Regions
  EU
  USA
  APAC
  SA

• Hisense Premium Commercial Display Warranty

  Hisense proudly provides a unique 3-year de-installation warranty, ensuring seamless operation of your signage and swift solutions if challenges arise.

  Curious about the Hisense Display Collection?
  For any inquiries or additional details on the Hisense Digital Signage Displays, feel free to reach out to our dedicated team at 020 8191 9223 or drop us an email at: [email protected]

• Document Type	Download Link
  136″ All-in-one Brochure	DOWNLOAD
  136″ All-in-one Datasheet	DOWNLOAD
  HAIO136 – User Manual	DOWNLOAD
