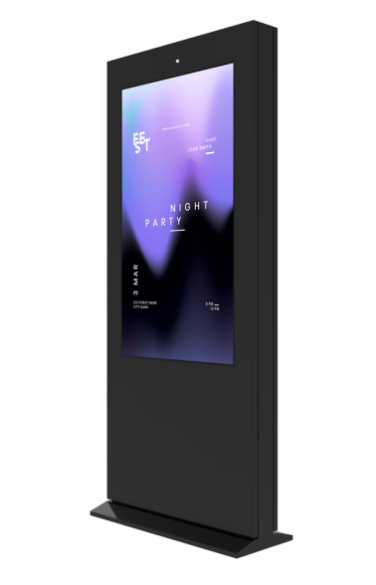

Hisense 86SOF25PT
86″ Fan Cooling All Weather Digital Signage Display
Hisense All Weather Digital Signage Display’s are ideal for any retail and business environments. Our 2500 nit high-bright screen provides clear content ensuring maximum engagement in any lighting conditions. The IP55 enclosure protects components in any conditions all year round.
Visible With Polarized Sunglasses
LED display correction technology could uniformly lighten several hundred thousand LED lights, presenting a uniform display effect with the same brightness and color scale.
Smart Brightness Sensor
Self-heat dissipation design, energy saving and noise reduction improve the service life.
IP Rated All Weather Displays
The IP rating provide full protection against dust and water projection. Built in intelligent heating and cooling, together with a smart automatic air circulation system. Anti vandal glass for protection from extreme environmental conditions and impacts to the display.
Efficient Heat Dissapation Management
Professional software for thermal simulation for cooling system design, which cools down the heat generated from every part of the product with high performance, preventing outside air from entering.
Easy Maintenance
Telecom-class routing design ensures the cabinet sealing performance. Front door access with lock for both wall mount monitor and kiosk models for easy operation and maintenance.
Safety Lock and Invisible Screws and Hinges
With Professional three-point anti-theft lock design, internal locking of bolts, no exposed high-strength steel doors, Hisense Outdoor Display can prevent criminals from picking locks and doing malicious damage. -
Category Details General Screen Size 86” Screen Active Area (mm) 1895 x 1066 mm Resolution UHD (3840 x 2160) Aspect Ratio 16:9 Brightness (nit) 2500 nits Contrast Ratio 1200:1 Viewing Angle (H/V) 178°/178° Backlight Life Cycle 50,000 Hrs Operation Hours 24/7 Response Time 8 ms Screen Orientation Portrait Touchscreen (Option) Touch Type Touch foil Touch Point 10-points Response Time ≤10ms System OS Android 7.1 CPU Amlogic Quad-core Cortex-A53, 1.5GHz GPU Mali-450 DDR 2G DDR4 ROM 16G EMMC (support expanded memory card up to 128G) Language Chinese/English Connectivity Input x2 HDMI IN/ x1 USB2.0/ x1 LAN x1 TF card slot/ x1 RS232 Output x1 HDMI OUT/ x1 AV OUT Network connection Wifi or LAN: Yes 3G/4G Connection: Optional Speaker Build-in Speaker Yes Thermal management Build-in fan Airflow Overheating Protection Yes Physical IP Rating IP55 Glass 6.8 mm (AR, Tempered & Laminated Glass) Metal Galvanized steel with powder coated Standard Color Black Dimensions 2800 x 1310 x 255 mm Net Weight 410 kg Packing Dimensions 2950 x 1520 x 580 mm Operation Working Environment Full outdoor Auto Brightness Control Light sensor Operation Temperature -20℃ to 45℃ Operation Humidity 5% to 90% Power Power Supply AC 110 / 220V, 50/60Hz Power Type Built-In Power Power Consumption 1500W (Max.) Available Regions EU APAC SA - Hisense Premium Commercial Display Warranty
Hisense proudly provides a unique 3-year de-installation warranty, ensuring seamless operation of your signage and swift solutions if challenges arise.
Curious about the Hisense Display Collection?
For any inquiries or additional details on the Hisense Digital Signage Displays, feel free to reach out to our dedicated team at 020 8191 9223 or drop us an email at: [email protected] -
Document Type Download Link Hisense 86SOF25PT 86″ Fan Cooling All Weather Digital Signage Display Datasheet DOWNLOAD
