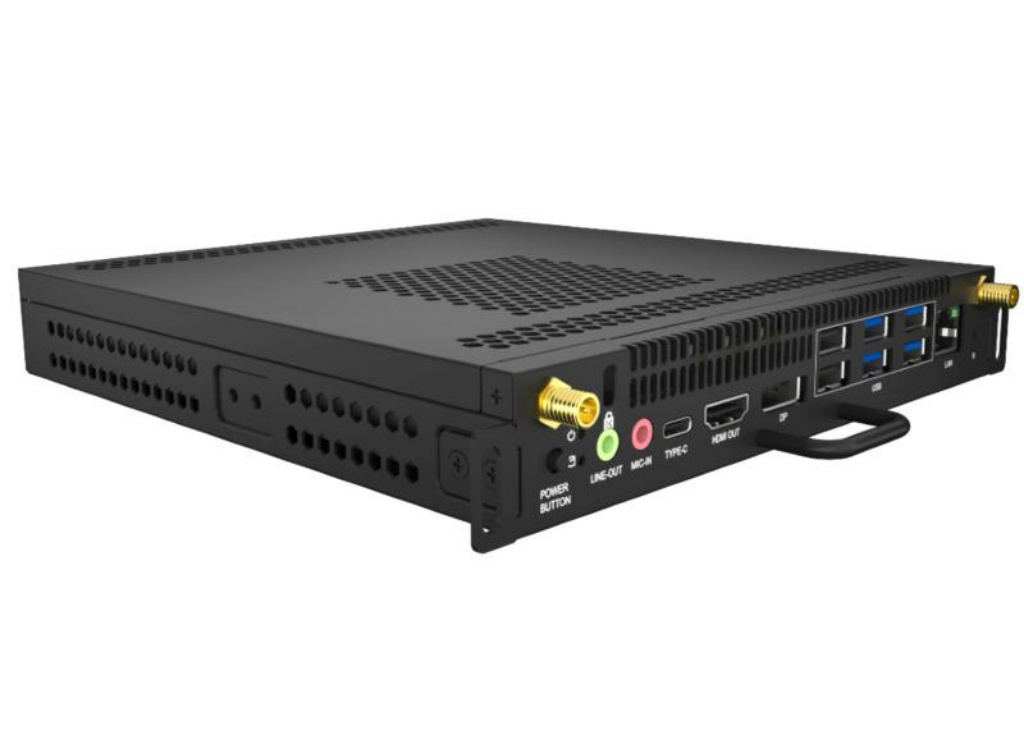

• Hikvision DS-D5AC12T7-16S5 OPS Module – Intel UHD Graphics for 12th Gen Intel Processors

  Intel UHD Graphics for 12th Gen Intel Processors, support 4K resolution

  Support M.2 nvme system disk quick start

  Support 4 USB 3.0 ports, 2 USB2.0 ports, 1 HDMI port, 1 DP interface，1 Type-C port

  Support Wi-Fi IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)

  Support TPM 2.0

• Category	Specification
  Built-in System
  Operation System	WIN11 ENT
  Processor	Intel® Core i7-12650H, 12th Gen
  CPU Clock Speed	2.3 GHz Base, 4.7 GHz Turbo
  CPU Cores	10
  CPU Threads	16
  Memory & Graphics
  Memory	8GB * 2
  Graphics	Intel UHD Graphics for 12th Gen Intel Processors
  Platform Architecture	Intel® Alder Lake H
  Cooling System
  Cooling System	Single Brass & Single Fan
  Storage
  Storage	512GB
  Interfaces
  Video & Audio Input	Audio in *1
  Video & Audio Output	HDMI1.4 * 1, DP 1.2 * 1, Audio out *1
  Network Interface	RJ45 (10/100/1000 Mbps) * 1, WIFI 6
  Data Transmission Interface	Bluetooth 5.2, USB 3.0 * 4, USB 2.0 * 2, Type-C * 1
  Antenna	2
  Power
  Standby Consumption	0.5W
  Input Voltage	12V-19V DC
  Max. Consumption	95W
  Working Environment
  Working Temperature	0°C – 40°C
  Working Humidity	10%-90%
  Storage Temperature	-20°C – 60°C
  Storage Humidity	10%-90%
  General
  Product Dimensions (W × H × D)	195 × 30 × 180 mm
  Package Dimensions (W × H × D)	Carton with a single module: 308 × 80 × 278 mm
  	Carton with five modules: 420 × 298 × 320 mm
  Net Weight	About 1.22 kg
  Gross Weight	Carton with a single module: About 1.36 kg
  	Carton with five modules: About 7.50 kg
  Color	Black
