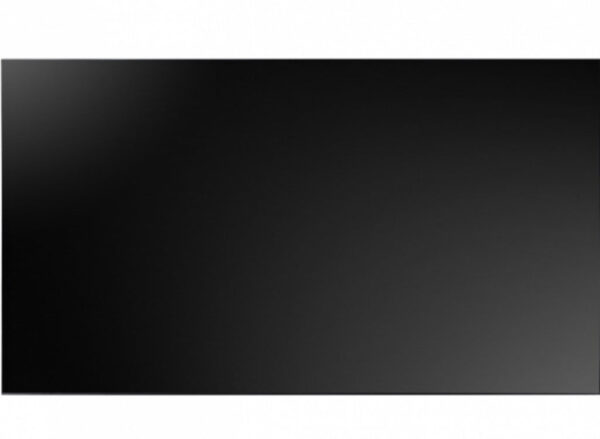

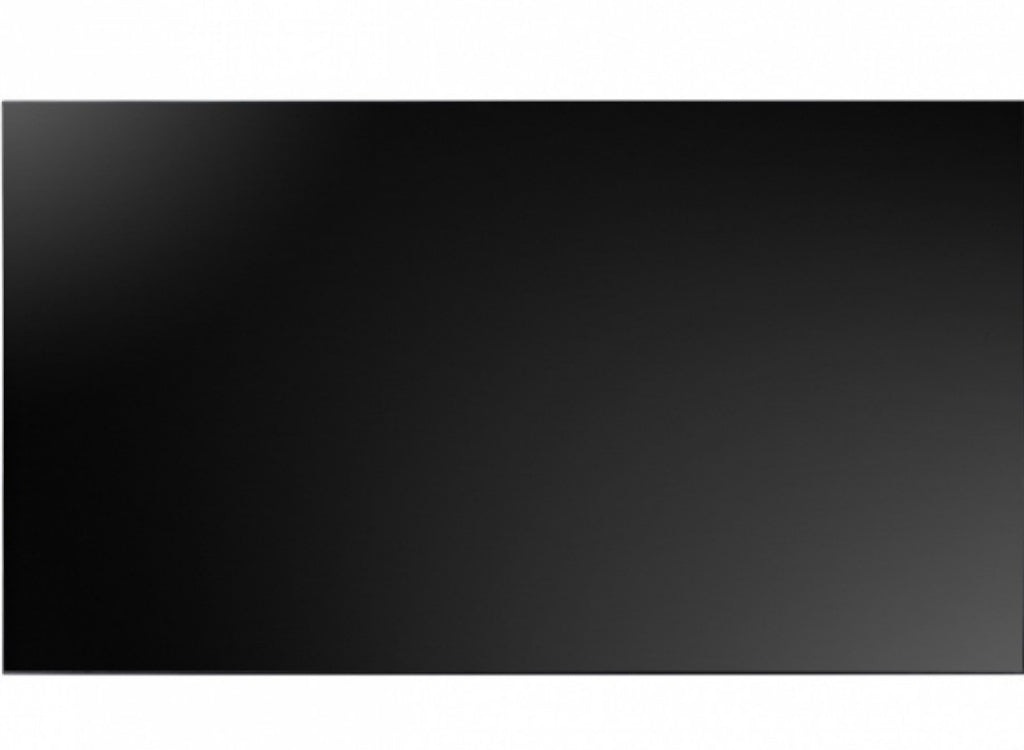

Hikvision DS-D2055LU-Y 55″ 3.5mm LCD Digital Signage Display
The DS-D2055LU-Y LCD display uses an industry-level ultra-narrow bezel design, which enables a bezel width of 3.5 mm between neighboring displays. The adopted direct-lit LED backlighting technology helps achieve ultra-high and uniform brightness of 500 cd/m² without boundary shadows. The display has abundant interfaces for video inputs, such as DVI, VGA, HDMI, and DP.
55-inch 3.5mm LCD Display Unit
4K signal input, auto loop up to 30 screens with HDMI interfaces
Switching between three picture modes: Monitoring, Meeting, and Movie
Factory calibration for color and brightness uniformity
Direct-lit LED backlight with uniform brightness and no boundary shadows
1920 × 1080 resolution, 178° viewing angle
Ultra-narrow 3.5 mm bezel design
Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
Stable and 24-hour continuous working
Metal casing for preventing from radiation and magnetic & electric field interference
Wall-mount and modular brackets available to meet various installation requirements -
Feature Specification Display Screen Size 55 inch Active Display Area 1209.6 (H) mm × 680.4 (V) mm Backlight Direct-lit LED backlight Pixel Pitch 0.63 mm Physical Seam 3.5 mm Bezel Width 2.3 mm (top/left), 1.2 mm (bottom/right) Resolution 1920 × 1080@60 Hz (downward compatible) Brightness 500 cd/m² Viewing Angle Horizontal 178°, vertical 178° Color Depth 8 bit, 16.7 M Contrast Ratio 1200:1 Response Time 8 ms Color Gamut 72% NTSC Surface Treatment Haze 25%, 3H Interface Video & Audio Input HDMI × 1, DVI × 1, VGA × 1, DP× 1, USB × 1 Video & Audio Output HDMI × 1 Control Interface RS232 IN × 1, RS232 OUT × 1 Power Power Supply 100-240 VAC, 50/60 Hz Power Consumption ≤ 187 W Standby Consumption ≤ 0.5 W Working Environment Working Temperature 0°C to 40°C (32°F to 104°F) Working Humidity 10% to 80% RH (non-condensing) Storage Temperature -20°C to 60°C (-4°F to 140°F) Storage Humidity 10% to 80% RH (non-condensing) General Casing Material SECC VESA 600 (H) mm × 400 (V) mm Product Dimension (W × H × D) 1213.5 mm × 684.3 mm × 71.74 mm (47.78” × 26.94” × 2.82”) Package Dimension Carton with two displays 1404 mm × 910 mm × 464 mm (55.28” × 35.83” × 18.27”) Carton with a single display 1404 mm × 910 mm × 464 mm (55.28” × 35.83” × 18.27”) Net Weight 27.23 ± 0.5 kg (60.03 ± 1.1 lb) for single display Gross Weight Carton with two displays 58.4 ± 0.5 kg (128.75 ± 1.1 lb) Carton with a single display 31.1 ± 0.5 kg (68.56 ± 1.1 lb) Packing List Carton with two displays LCD display × 2, power cable × 2, network cable × 2, 2-meter HDMI cable × 2, screw × 8, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1 Carton with a single display LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1 - Hikvision 5 Year Warranty. Hikvision takes quality seriously and puts a lot of effort into ensuring our products are both innovative and reliable.
-
Document Type Download Link Data Sheet Downloads Quick Start Guide Downloads User Manual Downloads
