Hikvision DS-D2055LE-G 55″ 1.8mm Digital Signage Display

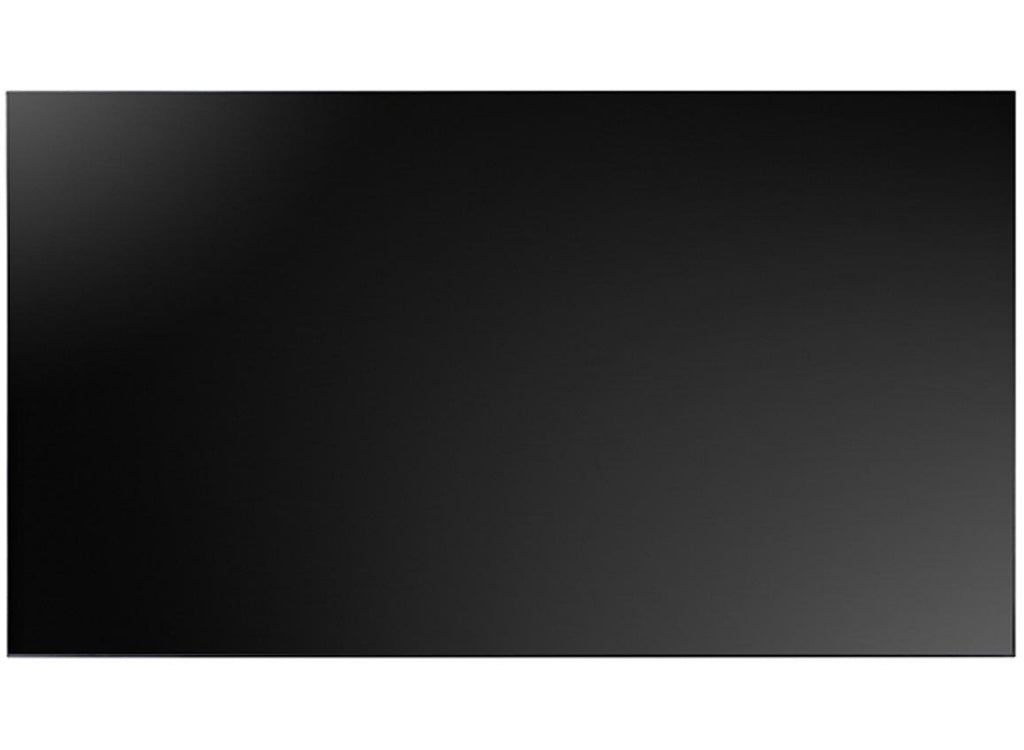

DS-D2055LE-G LCD Display
The DS-D2055LE-G LCD display uses an industry-level extreme-narrow bezel design, which enables a bezel width of 1.8 mm between neighboring displays. The adopted direct-lit LED backlighting technology helps achieve ultra-high and uniform brightness of 500 cd/m² without boundary shadows. The display has abundant interfaces for video inputs, such as DVI, VGA,HDMI, and DP.
55-inch 1.8mm LCD Display Unit
4K signal input, auto loop up to 30 screens with HDMI interfaces
Switching between three picture modes: Monitoring, Meeting, and Movie
Factory calibration for color and brightness uniformity
Direct-lit LED backlight with uniform brightness and no boundary shadows
1920 × 1080 resolution, 178° viewing angle
Extreme-narrow 1.8 mm bezel design
Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
Stable and 24-hour continuous working
Metal casing for preventing from radiation and magnetic & electric field interference
Wall-mount and modular brackets available to meet various installation requirements -
Feature Specification Display Screen Size 55 inch Active Display Area 1209.6 (H) mm × 680.4 (V) mm Backlight Direct-lit LED backlight Pixel Pitch 0.63 mm Physical Seam 1.8 mm Bezel Width 1.3 mm (top/left), 0.5 mm (bottom/right) Resolution 1920 × 1080@60 Hz (downward compatible) Brightness 500 cd/m² Viewing Angle Horizontal 178°, vertical 178° Color Depth 10Bit, 1.07 B Contrast Ratio 1000 : 1 Response Time 8 ms Color Gamut 72% NTSC Surface Treatment Haze 28%, 2H Interface Video & Audio Input VGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1 Video & Audio Output HDMI × 1 Control Interface RS232 IN × 1, RS232 OUT × 1 Power Power Supply 100-240 VAC, 50/60 Hz Power Consumption ≤ 192 W Standby Consumption ≤ 0.5 W Working Environment Working Temperature 0°C to 40°C (32°F to 104°F) Working Humidity 10% to 90% RH (non-condensing) Storage Temperature -20°C to 60°C (-4°F to 140°F) Storage Humidity 10% to 90% RH (non-condensing) General Casing Material SECC VESA 600 (H) mm × 400 (V) mm Product Dimension (W × H × D) 1212.21 mm × 683.06 mm × 69.5 mm (47.72” × 26.89” × 2.74”) Package Dimension Carton with two displays 1404 mm × 910 mm × 464 mm (55.28” × 35.83” × 18.27”) Carton with a single display 1404 mm × 910 mm × 464 mm (55.28” × 35.83” × 18.27”) Net Weight 27.6 ± 0.5 kg (60.85 ± 1.1 lb) for single display Gross Weight Carton with two displays 62.6 ± 0.5 kg (138.01 ± 1.1 lb) for carton with two displays Carton with a single display 35 ± 0.5 kg (77.12 ± 1.1 lb) for carton with a single display Packing List Carton with two displays LCD display × 2, power cable × 2, network cable × 2, 2-meter HDMI cable × 2, screw × 8, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1 Carton with a single display LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1 - Hikvision 5 Year Warranty. Hikvision takes quality seriously and puts a lot of effort into ensuring our products are both innovative and reliable.
-
Document Type Download Link Specification Sheet Downloads Commercial Datasheet Downloads Detailed Mechanical Drawing Downloads
