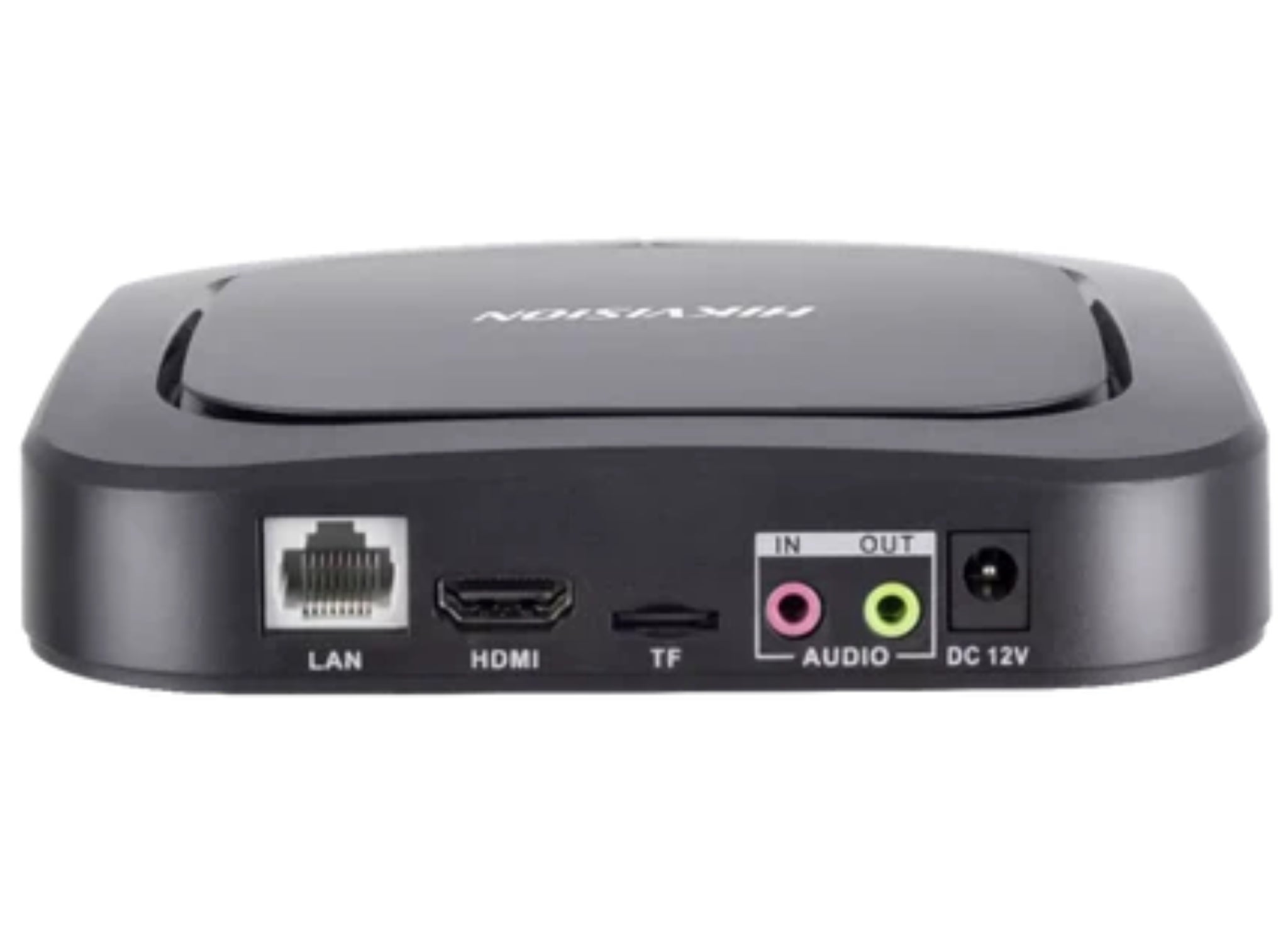

Hikvision Digital Signage Box | DS-D60E-B

• Description
• Specifications

• Hikvision Digital Signage Box


  Variable Materials Supports static and dynamic materials, including the application, pictures, audio, video, PDF, streaming media, webpage, live video, third-party data, etc.
  Flexible Program Schedule Supports free schedule and district display of multiple materials. Supports variable display modes: display by day, display by week, custom display, etc.
  Centralized Management Remotely control and manage one or more screens, such as timed startup/shutdown, timed brightness/volume, and screenshot previewing.
  Organization Feature 5-level organization is available for managing materials, programs, terminals, and users.
  Multilevel User Permission Supports creating custom users, and allocating permission for users according to user level.
  Multiple Security Safeguards 3-level check of materials, programs, and schedules to prevent mistake release. Screensaver to secure safe for broadcast contents. Encryption of data storage and transmission to avoid data tampering.
  Arbitrary Direction Remote Control The remote control, adopting wireless communication in 433 MHz, can control the information distribution box in arbitrary direction.

• Specification	Details
  Built-in System
  Processor	Intel® Core i5 9400H
  CPU Clock Speed	2.5GHz
  Platform Architecture	Intel® Coffeelake
  PCH	Intel® Z370
  Graphics	Intel® UHD Graphics 630
  Memory	8GB
  Storage	256GB
  NIC	Integrated 10/100/1000M Adaption
  Cooling System	Single Brass & Single Fan
  Interface
  Network Interface	RJ45 × 1
  Data Transmission	Bluetooth 4.2
  Antenna	2
  Video Output	HDMI × 1, DP × 1
  Power
  Input Voltage	12V-19V DC
  Max. Consumption	60W
  Standby Consumption	0.5W
  Working Environment
  Storage Temperature	-20°C to 60°C
  Storage Humidity	10%-90%
  Working Temperature	0°C to 40°C
  Working Humidity	10%-90%
  General
  Color	Black
  Dimensions (W × H × D)	180 × 195 × 30 mm
  Net Weight	About 1.24 kg
