• Hikvision Digital Signage Box | DS-D60C-B

  Variable Materials Supports static and dynamic materials, including the application, pictures, audio, video, PDF, streaming media, webpage, live video, third-party data, etc.

  Flexible Program Schedule Supports free schedule and district display of multiple materials.

  Supports variable display modes: display by day, display by week, custom display, etc.

  Centralized Management Remotely control and manage one or more screens, such as timed startup/shutdown, timed brightness/volume, and screenshot previewing.

  Organization Feature 5-level organization is available for managing materials, programs, terminals, and users.

  Multilevel User Permission Supports creating custom users, and allocating permission for users according to user level.

  Multiple Security Safeguards 3-level check of materials, programs, and schedules to prevent mistake release. Screensaver to secure safe for broadcast contents. Encryption of data storage and transmission to avoid data tampering.

  Arbitrary Direction Remote Control The remote control, adopting wireless communication in 433 MHz, can control the information distribution box in arbitrary direction.

• Category	Specifications
  Resolution Support	1920 × 1080@30/50/60 Hz, 1280 × 720@30/50/60 Hz, 3840 × 2160@30/50/60 Hz
  Built-in System
  Operating System	Android 8.1.0
  CPU	Cortex-A17, 4-core, 1.6 GHz
  Memory	2 GB
  Storage	16 GB (EMMC)

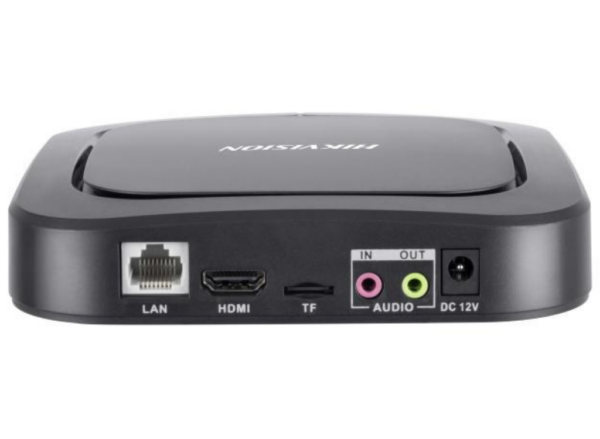

  Interfaces
  Video & Audio Input	AUDIO IN × 1
  Video & Audio Output	AUDIO OUT × 1, HDMI OUT × 1
  Network Interface	LAN × 1, Wi-Fi
  Data Transmission Interface	USB 2.0 × 2, Bluetooth 4.0
  Power
  Power Supply	12 VAC, 2 A
  Standby Consumption	≤ 1 W
  Working Environment
  Working Temperature	0 °C to 40 °C (32 °F to 104 °F)
  Working Humidity	10 % to 90 %
  Dimensions and Weight
  Product Dimensions	145 mm × 145 mm × 31.89 mm (5.7″ × 5.7″ × 1.3″)
  Package Dimensions	188 mm × 176 mm × 101 mm (7.4″ × 6.9″ × 4.0″)
  Net Weight	0.6 kg (1.3 lb.)
  Gross Weight	0.65 kg (1.4 lb.)
  Packing List	Power Adaptor × 1, Remote Control × 1
  Default Parameters	Supports a wide range of audio, video, and image formats

• Description	Downloads
  Datasheet	Download
