Hikvision 65″ 4K Ultra HD EDLA Certification Interactive Display With Built-in Camera | DS-D5C65RB/B

• Description
• Specifications
• Downloads

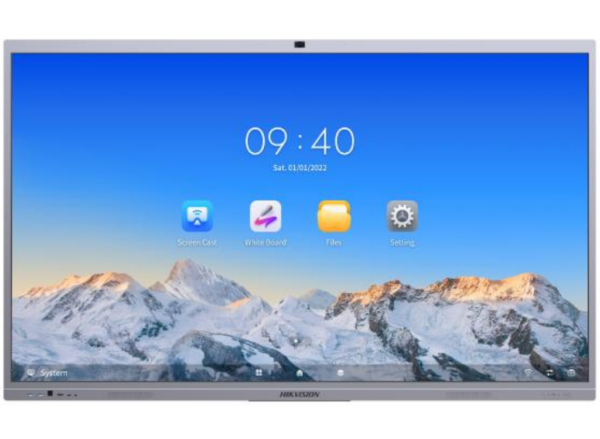

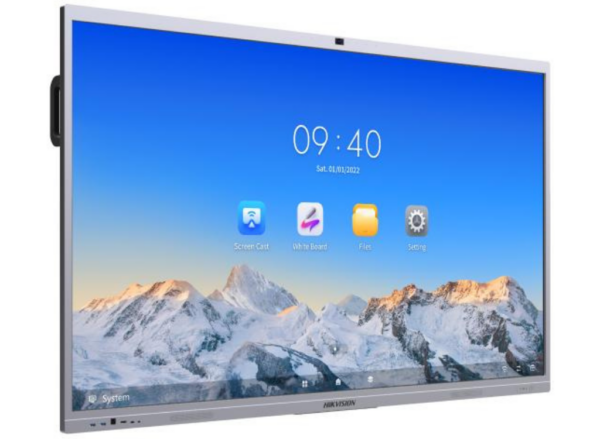

• Hikvision 65″ 4K Ultra HD Interactive Display | DS-D5C65RB/B

  UHD 4K display with resolution of 3840 × 2160.

  Anti-glare and anti-blocking design to ensure smooth interaction

  Dual systems of Android and Windows（Optional with OPS） saving cost and easy to use, video conference software are recommonded to run under Windows system.

  Quick response, at most 50-points touch control and smooth writing experience.

  Built-in network switch chip saves a network switch.

  All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.

  EDLA Certified

• Category	Specification
  Product Model	DS-D5C65RB/B
  Display Characteristics	– Screen Size: 65 inch – Backlight: DLED – Pixel Pitch: 0.124 x 0.372 mm
  	– Resolution: 3840 × 2160 @60 Hz – Brightness: 400 cd/m² (Typ.)
  	– Color Depth: 10 bit – Display Color: 1.07 G
  	– Response Time: 5 ms – Panel Type: VA
  	– Contrast Ratio: 5000:1 (Static), 30,000:1 (Dynamic)
  	– Color Gamut: 72% NTSC (CIE1931) (Typ.) – Refresh Rate: 60 Hz
  	– Viewing Angle: 178° (H)/178° (V) – Aspect Ratio: 16:9
  	– Surface Hardness: 9H (Pencil) 7 (Mohs)
  	– Surface Glass: Anti-Glare Glass – Surface Haze: 25% Haze
  	– Glass Bonding Method: Zero Lamination – Display Area: 1428.48mm x 803.52mm
  	– Working Duration: 7 × 16 H – Transmittance: 88% ± 3
  	– Lifespan: 50,000 hours
  Touch	– Type: Infrared Touch Screen – Touch Point: Up to 50-point multi-touch
  	– Touch Response Time: ≤ 2 ms – Minimum Touch Object: ≥ 1.5 mm
  	– Touch Precision: ± 0.5 mm – Touch Resolution: 32767 × 32767
  Built-in System	– Operating System: Android 13.0 – Memory: 8 GB – Built-in Storage: 128 GB
  	– Processor: Quad-core Cortex-A76 × 4 (2.4 GHz) and Cortex-A55 × 4 (1.8 GHz)
  	– GPU: Mali-G610 MC4 – HDCP Version: 2.3
  Camera	– Pixel: 48MP for Photos, 8 MP for Video – Field Angle: 93.4° diagonal
  	– Camera Resolution Ratio: Up to 4K
  Microphone	– Specification: Omni-directional 8-array layout – Voice Distance: 12 m
  Internal Function	– Loudspeaker: Built-in 2 × 20 W+25W – Bluetooth: BLE, supports 5.1
  	– NFC: Supports screen mirroring by Android phones – Light Sensor: Yes
  Interface	– Video & Audio Input: HDMI x 3, VGA x 1, DP x 1, Audio In x 1
  	– Video & Audio Output: HDMI Out x 1, Audio Out x 1, SPDIF Out x 1
  	– Control Interface: TOUCH-USB 3.0 x 3, RS232 x 1
  	– Network Interface: LAN (1000 Mbps) x 2, WiFi 6, 2.4G/5G
  	– Data Transmission Interface: USB 3.0 x 4, USB 2.0 x 1, Type-C x 2
  Power	– Power Supply: 100 to 240 VAC, 50/60 Hz – Standby Consumption: ≤ 0.5 W
  	– Average Consumption: < 107W
  General	– VESA: 600 mm × 400 mm (4 × M8-25 mm) – Product Dimensions: 1491.9 mm x 910.6 mm x 82.3 mm
  	– Package Dimensions: 1704 mm × 251 mm × 1073 mm
  	– Net Weight: 37.6 kg – Gross Weight: 47.6 kg
  Working Environment	– Temperature: 0 °C to 40 °C – Humidity: 10%~90% RH
