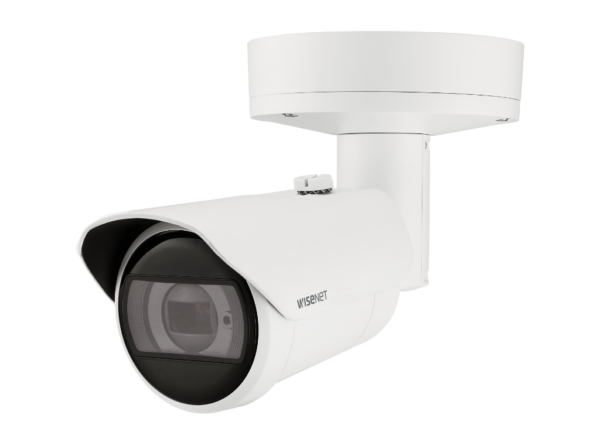

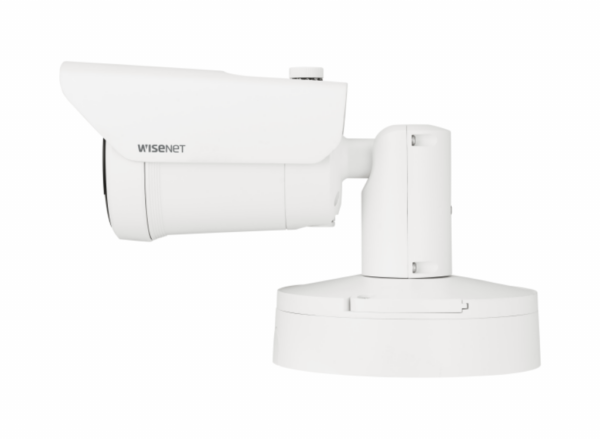

Hanwha 6MP AI IR Bullet Camera | XNO-C8083R

• Description
• Specifications
• Downloads

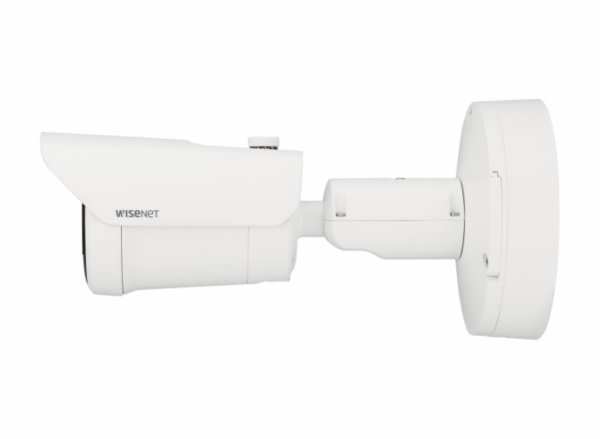

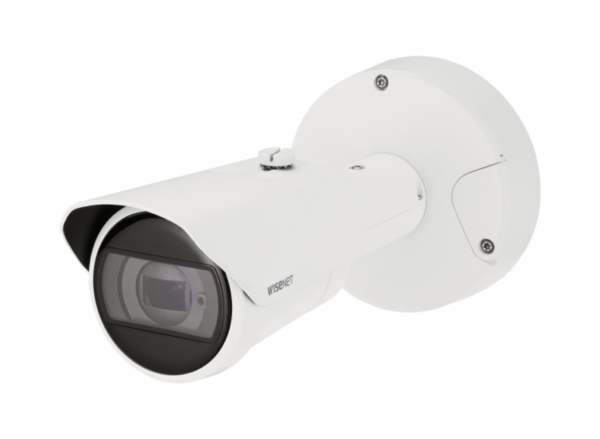

• Hanwha 6MP AI IR Bullet Camera | XNO-C8083R

  6MP resolution
  4.4~9.3mm (2.1x) motorised varifocal
  Colour: 0.04Lux (F1.3, 1/30sec, 30IRE), 0Lux (IR LED on)
  Maximum 30fps@6MP (H.265/H.264)
  WiseIR: IR viewable length 40m (131.23ft)
  Day & Night (ICR), extremeWDR (120dB), WiseNRⅡ (Using AI engine)
  H.265, H.264, MJPEG, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
  DIS with built-in Gyro sensor
  Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle – car, truck, bus, bicycle, motorcycle/Licence plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
  Analytics events : Defocus detection, Motion detection, Tampering, Fog detection Audio detection, Sound classification, Shock detection, Appear/Disappear
  IP66, IP67, NEMA4X, IK10

• Category	Specification
  Camera
  Lens viewing angle, diagonal	137.5 °
  Lens viewing angle, horizontal	112.1 °
  Lens viewing angle, vertical	58 °
  Viewing angle, diagonal	137.5 °
  Viewing angle, horizontal	112.1 °
  Viewing angle, vertical	58 °
  White balance	ATW/AWC/Indoor/Manual/Outdoor
  Design
  Form factor	Bullet
  IK code	IK10
  International Protection (IP) code	IP66, IP67
  Mounting type	Ceiling/wall
  Product colour	White
  Protection features	Dust resistant/Vandal proof/Water resistant
  Features
  NDAA Compliance	Yes
  Image sensor
  Optical sensor size	1/1.8 “
  Progressive scan	Yes
  Sensor type	CMOS
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code	46171610
  US ECCN Code	EAR99
  Lens system
  Focal length range	4.4 – 9.3 mm
  Number of lenses	1
  Zoom capability	Yes
  Network
  Ethernet LAN	Yes
  Streaming method	Multicast/Unicast
  Wi-Fi	No
  Night vision
  LED type	IR
  Night vision	Yes
  Night vision distance	40 m
  Operational conditions
  Operating temperature (T-T)	-50 – 55 °C
  Storage temperature (T-T)	-50 – 60 °C
  Package dimensions
  Depth (package,cm)	17.4 cm
  Gross Weight (Package, kg)	0.51975 kg
  Height (package,cm)	17.8 cm
  Width (package,cm)	34.8 cm
  Packaging content
  Number of cameras	1
  Performance
  Connectivity technology	Wired
  Day/night mode	Yes
  Dynamic range	120 dB
  Placement supported	Indoor & outdoor
  Type	IP security camera
  Wide Dynamic Range (WDR)	Yes
  Ports & interfaces
  Ethernet LAN (RJ-45) ports	1
  Power
  DC output voltage	12
  Power consumption (max)	13.2 Watt
  Power consumption (PoE)	12.95 Watt
  Power consumption (typical)	10.8 Watt
  Power source type	DC/PoE
  Product dimensions
  Net Weight (Product, kg)	1.643 kg
  Product Height	9.34 cm
  Product Width	9.34 cm
  Security
  Anti-flicker	Yes
  IP address filtering	Yes
  Security algorithms	EAP-LEAP/EAP-PEAP/EAP-TLS/HTTPS
  Storage
  Built-in HDD	No
  Card reader integrated	Yes
  Compatible memory cards	MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  Flash memory	512 MB
  Internal memory	4000 MB
  Maximum memory card size	512 GB
  Vendor information
  Brand Name	Hanwha
  Warranty	5 Year(s)
  Video
  Frame rate	30 fps
  Image stabilizer	Yes
  Maximum resolution	3328 x 1872 Pixels
  Noise reduction	Yes
  Total megapixels	6 MP
  Video recording	Yes
  Video streaming	Yes
  Weight & dimensions
  Diameter	9.34 cm
