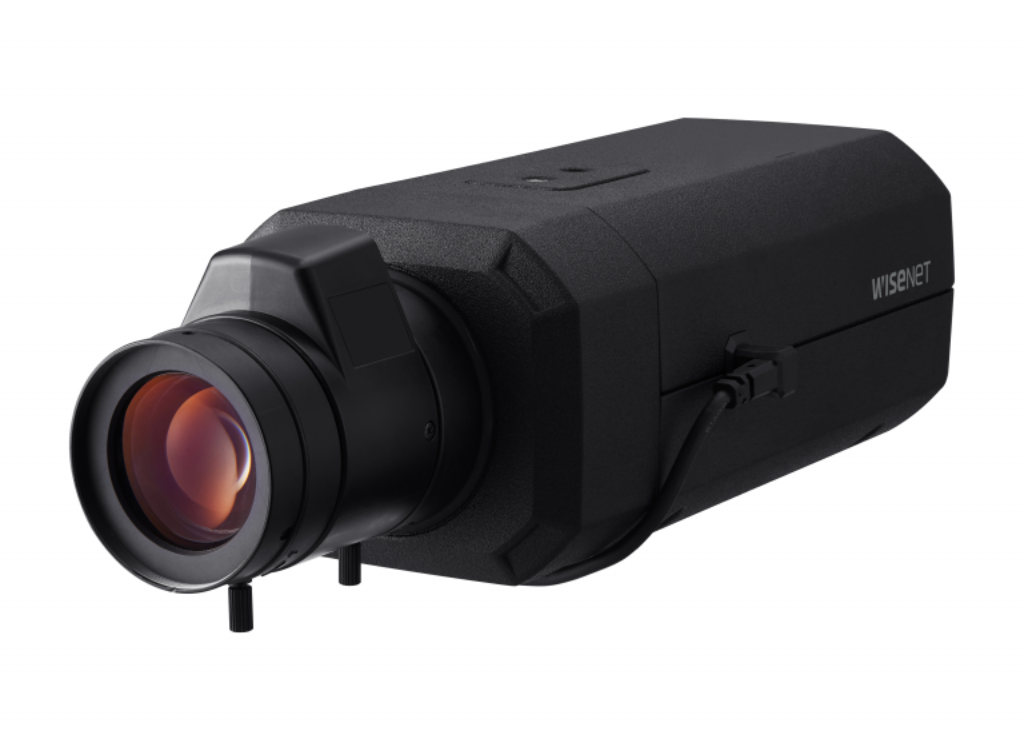

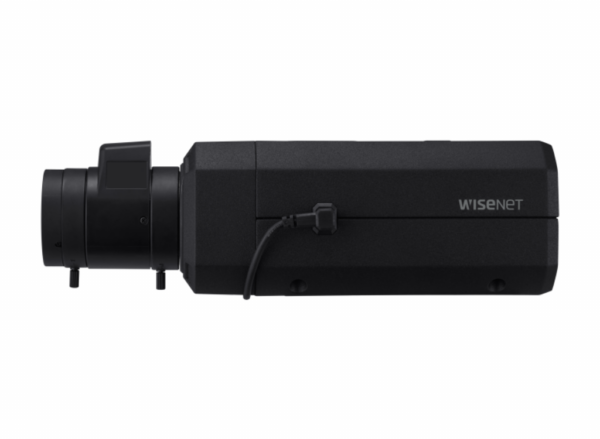

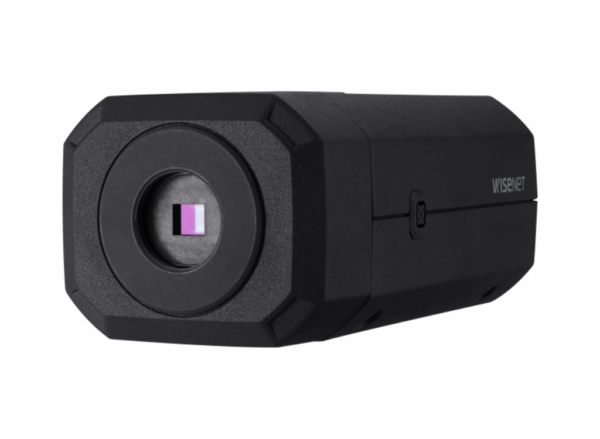

Hanwha 6MP AI Box Camera | XNB-8003
6MP resolution
Colour: 0.03 Lux (F1.2, 1/30sec, 30IRE), BW: 0.003 Lux (F1.2, 1/30sec, 30IRE)
Maximum 30 fps (H.265/H.264)
Day & Night (ICR), extremeWDR (120dB)
WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle – car, truck, bus, bicycle, motorcycle/Licence plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
Analytics events: Defocus detection, Motion detection, Tampering, Fog detection Audio detection, Sound classification, Shock detection, Appear/Disappear -
Category Property Value Audio Audio detection Yes Audio formats supported AAC-LC/ADPCM/G.711/G.711 μ-law/G.726 Audio input channels 1 channels Audio output channels 1 channels Camera Camera shutter speed 1/12000 Second Camera shutter type Electronic Minimum illumination 0.03 lx White balance ATW/AWC/Indoor/Manual/Outdoor Design Form factor Box Housing material Aluminium Mounting type Ceiling/wall Product colour Black Features NDAA Compliance Yes Image sensor Number of sensors 1 Optical sensor size 1/1.8 “ Sensor type CMOS Legal Information EU ECCN Code N/A UNSPSC Code 46171610 US ECCN Code EAR99 Management features Web browser Yes Network Ethernet interface type Fast Ethernet Ethernet LAN Yes Number of users 20 user(s) Quality of Service (QoS) support Yes Streaming method Multicast/Unicast Supported network protocols IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) Night vision Night vision Yes Operational conditions Operating relative humidity (H-H) 0 – 95 % Operating temperature (T-T) -10 – 55 °C Storage relative humidity (H-H) 0 – 90 % Storage temperature (T-T) -50 – 60 °C Package dimensions Depth (package,cm) 13.1 cm Gross Weight (Package, kg) 0.19125 kg Height (package,cm) 94 cm Width (package,cm) 23.5 cm Packaging content Number of cameras 1 Performance Connectivity technology Wired Day/night mode Yes Dynamic range 120 dB Infrared (IR) cut-off filter Yes Languages support Czech/Dutch/English/French/German/Greek/Hungarian/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Turkish Number of languages 17 People counting function Yes Placement supported Indoor & outdoor PTZ control Yes PTZ modes Digital PTZ/Preset point Type IP security camera Wide Dynamic Range (WDR) Yes Ports & interfaces BNC output ports 1 Ethernet LAN (RJ-45) ports 1 RS-422 ports 1 USB port Yes Power DC output voltage 12 Power consumption (max) 19 Watt Power consumption (Power over Ethernet (PoE)) 12.9 Watt Power consumption (typical) 9.5 Watt Power source type DC/PoE Product dimensions Net Weight (Product, kg) 0.88 kg Product Depth 16.5 cm Product Height 6.7 cm Product Width 8.1 cm Security Active tampering alarm Yes Alarm input channels 2 Anti-flicker Yes IP address filtering Yes Video motion detection Yes Storage Card reader integrated Yes Compatible memory cards MicroSD (TransFlash)/MicroSDHC/MicroSDXC Flash memory 512 MB Maximum memory card size 512 GB Vendor information Brand Name Hanwha Warranty 5 Year(s) Video Back Light Compensation (BLC) No Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR) Flip & mirror Yes Frame rate 120 fps Image stabilizer Yes Maximum resolution 3328 x 1872 Pixels Noise reduction Yes Privacy masking Yes Supported graphics resolutions 1024 x 768 (XGA)/1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2592 x 1944/2688 x 1520/3072 x 1728/320 x 240/640 x 360/640 x 480 (VGA)/720 x 480/720 x 576/800 x 448/800 x 600 (SVGA) Total megapixels 6 MP Video formats supported H.264/H.265/M-JPEG Video streaming Yes -
