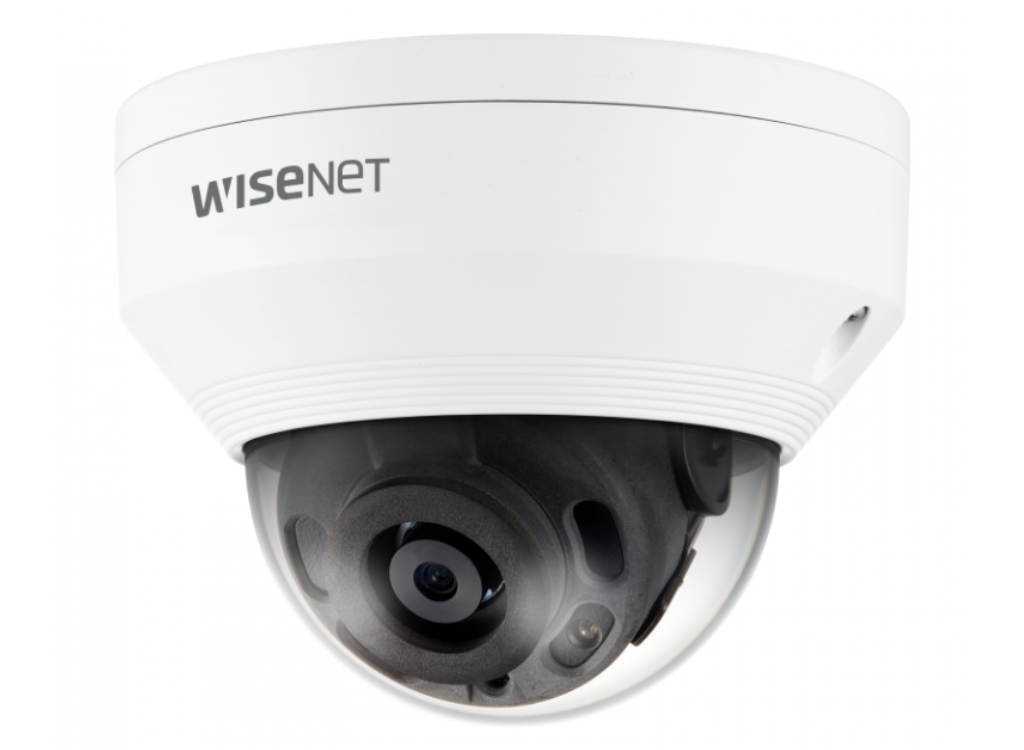

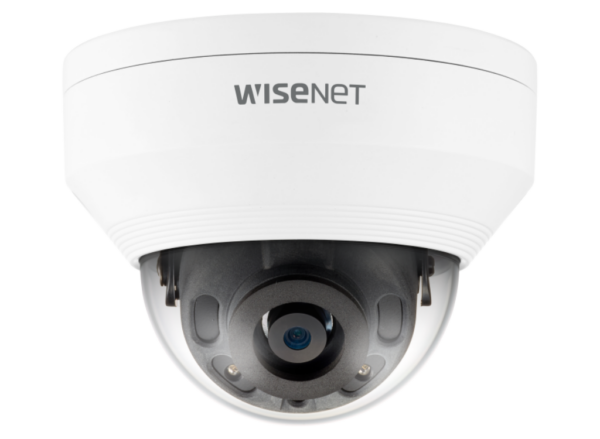

• Hanwha 5 MP Network IR Vandal Resistant Dome Camera with 4mm Lens | QNV-8020R

  5 Megapixel resolution
  Built-in 4mm fixed lens
  30fps@all resolutions (H.265/H.264)
  H.265, H.264, MJPEG codec supported, Multiple streaming
  Day & Night (ICR), WDR (120dB)
  Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
  micro SD (128GB) memory slot, PoE
  IR viewable length 25m, IP66, IK10
  Hallway view support
  Analog video out for easy installation
  LDC support (Lens Distortion Correction)

• Property Description	Property Value
  Video
  Imaging Device	1/2.8″ 5MP CMOS
  Resolution	5MP mode: 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
  	4MP mode: 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
  Max. Framerate	H.265/H.264: Max. 30fps/25fps (60Hz/50Hz) MJPEG: Max. 15fps/12fps (60Hz/50Hz)
  NETD	None
  Pixel Size	None
  Min. Illumination	Color: 0.15Lux (F1.6, 1/30sec) BW: 0Lux (IR LED on)
  Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
  Video Transmission Distance	None
  Lens
  Focal Length (Zoom Ratio)	4.0mm fixed focal
  Max. Aperture Ratio	F1.6
  Angular Field of View	H: 79.8° / V: 58.1° / D: 105.9°
  Min. Object Distance	None
  Focus Control	Fixed
  Lens Type	None
  Mount Type	None
  Optional Lens	None
  Pan / Tilt / Rotate
  Pan / Tilt / Rotate Range	0˚~350˚ / 0˚~67˚ / 0˚~355˚
  Pan Range	None
  Pan Speed	None
  Tilt Range	None
  Tilt Speed	None
  Rotate Range	None
  Sequence	None
  Preset Accuracy	None
  Operational
  Camera Title	Displayed up to 85 characters
  Direction Indicator	None
  Day & Night	Auto (ICR)
  Backlight Compensation	BLC, WDR, SSDR
  Wide Dynamic Range	120dB
  Digital Noise Reduction	SSNR
  Digital Image Stabilization	None
  Defog	None
  Motion Detection	4ea, polygonal zones
  Privacy Masking	6ea, rectangular zones
  Gain Control	Low / Middle / High
  White Balance	ATW / AWC / Manual / Indoor / Outdoor
  LDC	Support
  Electronic Shutter Speed	Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
  Digital PTZ	None
  Video Rotation	Flip, Mirror, Hallway view (90˚/270˚)
  Analytics	Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
  Business Intelligence	None
  Serial Interface	None
  Alarm I/O	Input 1ea / Output 1ea
  Alarm Triggers	Analytics, Network disconnect, Alarm input
  Alarm Events	File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
  Audio In	None
  Audio Out	None
  IR Viewable Length	25m (82.02ft)
  IR Illuminator (Optional)	None
  Water Removal	None
  Auto Tracking	None
  Coaxial Protocol	None
  Color Palettes	None
  Network
  Ethernet	RJ-45 (10/100BASE-T)
  Video Compression	H.265/H.264: Main/High, MJPEG
  Audio Compression	None
  Smart Codec	WiseStreamⅡ
  Video Quality Adjustment	H.264/H.265: Target bitrate level control MJPEG: Quality level control
  Bitrate Control	H.264/H.265: CBR or VBR MJPEG: VBR
  Streaming	Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
  Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
  Security	HTTPS (SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication (EAP-TLS, EAP-LEAP)
  Application Programming Interface	ONVIF Profile S/G/T SUNAPI (HTTP API) Wisenet open platform
  General
  Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
  Web Viewer	None
  Edge Storage	Micro SD/SDHC/SDXC 1slot 128GB
  Memory	512MB RAM, 256MB Flash
  Environmental & Electrical
  Operating Temperature / Humidity	-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C
  Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  Certification	IP66, IK10
  Input Voltage	PoE (IEEE802.3af, Class3)
  Power Consumption	PoE: Max 7.20W, typical 5.40W
  Mechanical
  Color / Material	White / Aluminum
  RAL Code	RAL9003
  Product dimensions / weight	Ø120.3×91.7mm (Ø4.74×3.61″), 510g (1.12 lb)
  Conduit hole	None
  Hanging mount (Dome)	SBP-122HMW
  Skin cover (Dome)	None
  Weather cap (Dome)	SBV-120WCW
  Power module	None
  Backbox	SBV-120GW
  DORI (EN62676-4 standard)
  Detect (25PPM/ 8PPF)	62.0m (203.39ft)
  Observe (63PPM/ 19PPF)	24.8m (81.36ft)
  Recognize (125PPM/ 38PPF)	12.4m (40.68ft)
  Identify (250PPM/ 76PPF)	6.2m (20.34ft)
