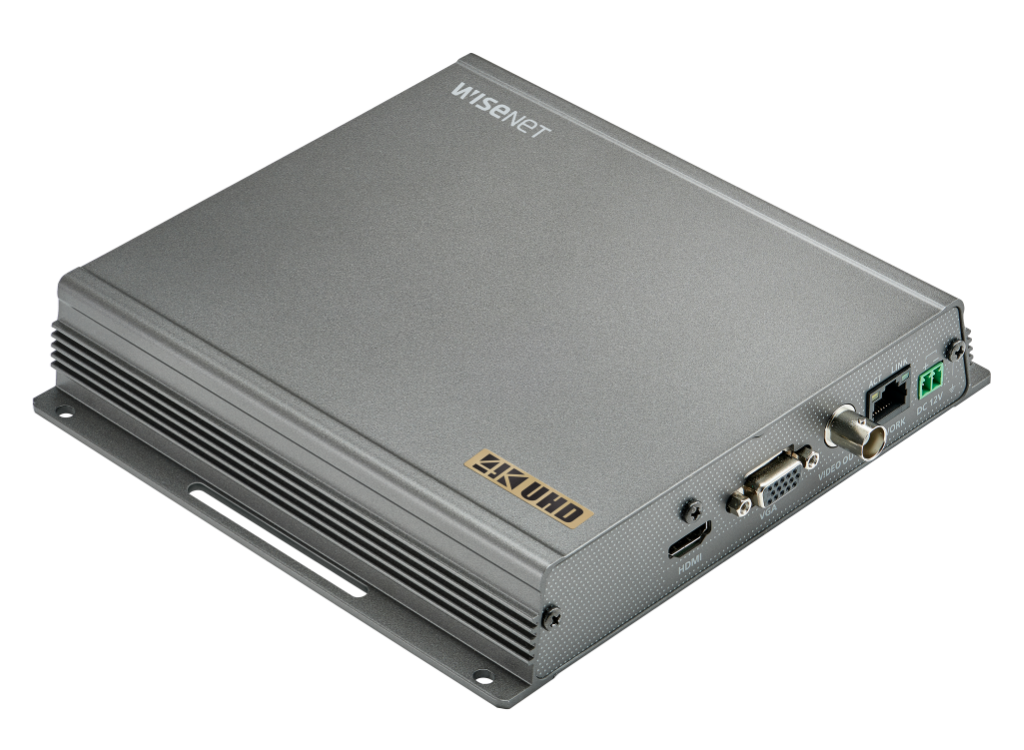

Hanwha 48CH Video Decoder | SPD-151

• Description
• Specifications
• Downloads

• Hanwha 48CH Video Decoder | SPD-151

  • Video decoding up to 48 cameras on HDMI / VGA

  • 1 camera decoding on BNC

  • Max. 4K resolution@HDMI, Max. 1080p@VGA

  • Various view mode
  – (HDMI) 1 / 2×2 / 3×3 / 4×4 / 5×5 / 6×6 (32Ch Only)
  – (VGA) 1 / 2×2 / 3×3 / 4×4
  – (BNC) 1 Tile merge support

  • 12V DC, PoE

  • Up to 49CH, H.265 / H.264 / MJPEG codec

  • Layout Sequence Support

  • Management using Web-Viewer

• Category	Specifications
  Features
  Housing Material	Metal
  Product Colour	Grey
  Network
  Cabling Technology	10/100/1000BaseE-T(X)
  Operational Conditions
  Operating Humidity	20 – 85 %
  Operating Temperature	0 – 40 °C
  Package Dimensions
  Depth	22.7 cm
  Height	13.5 cm
  Width	23 cm
  Performance
  Channels Quantity	48 channels
  Maximum Frame Rate	30 fps
  Maximum Video Resolution	3840 x 2160 Pixels
  Video Formats Supported	H.264/H.265/M-JPEG
  Ports & Interfaces
  DC-in Jack	Yes
  USB 2.0 Ports Quantity	1
  Power
  Power Consumption (Max)	8.4 Watt
  Product Dimensions
  Net Weight	1.944 kg
  Depth	18.78 cm
  Height	3.4 cm
  Width	17.8 cm

• Description	Downloads
  Datasheet	Download
