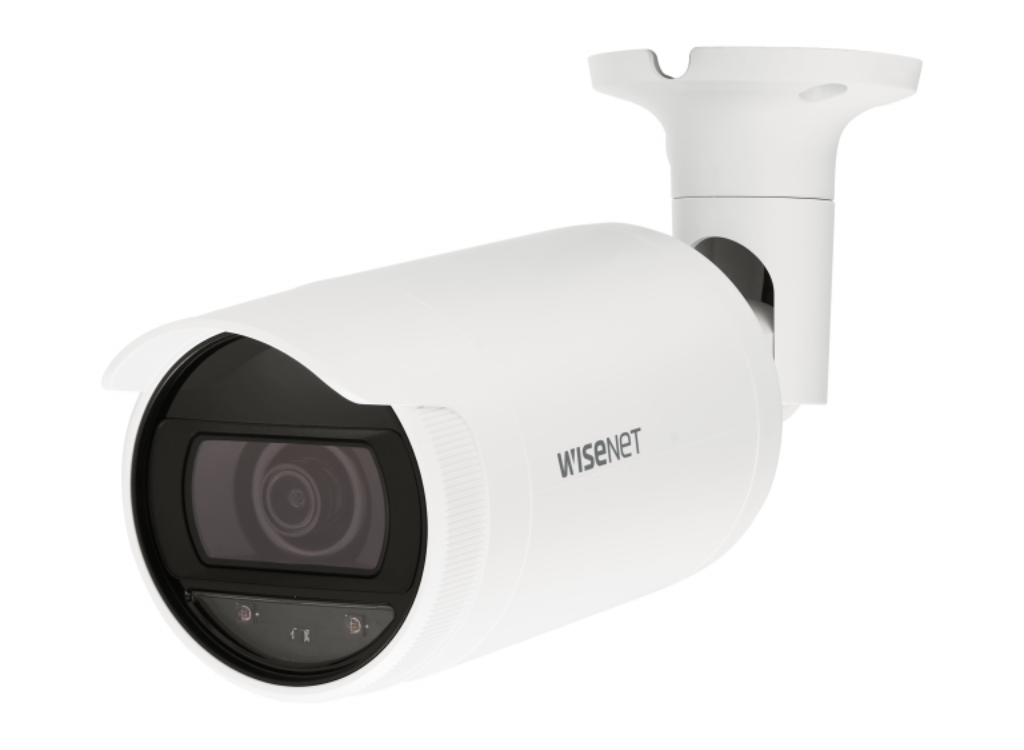

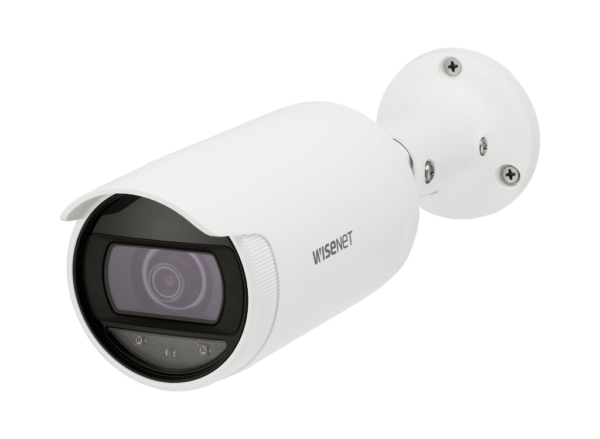

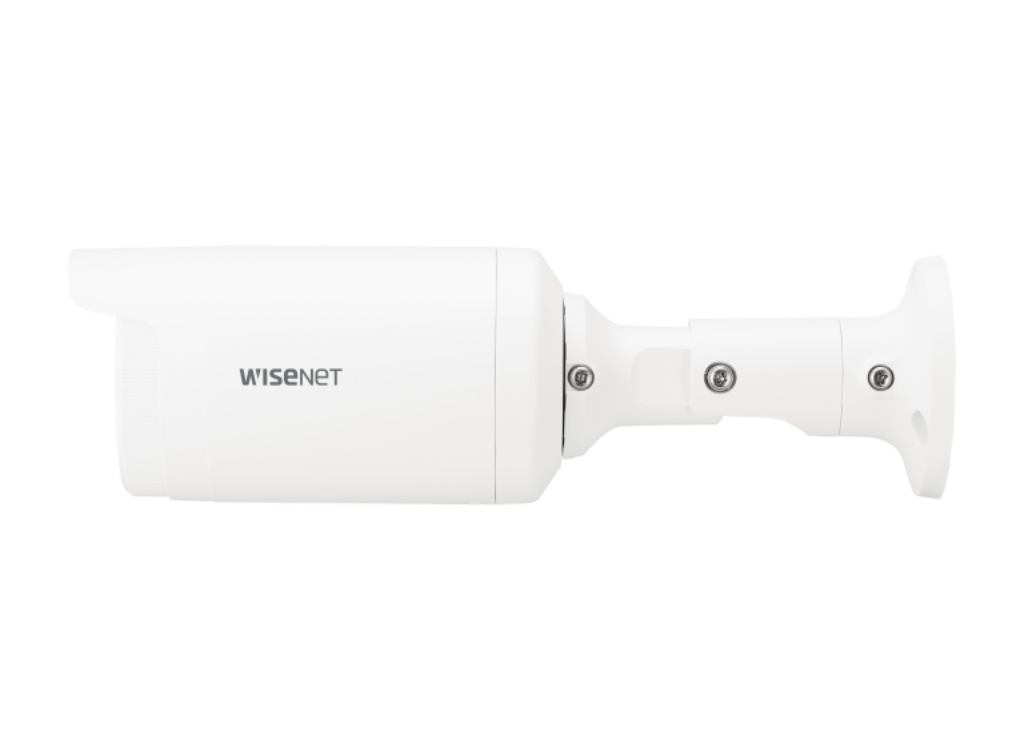

• Hanwha 2MP IR Bullet Camera | ANO-L6022R

  2 megapixel (1920 x 1080) resolution
  4mm lens w/ 84.3° HFoV
  30fps@ all resolutions (H.265/H.264)
  H.265/H.264, MJPEG codec supported, Multiple streaming
  Day & Night (ICR), WDR (120dB)
  Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
  Micro SD/SDHC memory slot (Max. 32GB), PoE
  Hallway view, WiseStream II support
  IR viewable length 30m
  IP66 support

• Category	Property Description	Property Value
  Video	Imaging Device	1/2.8″ CMOS
  	Resolution	1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360
  	Max. Framerate	H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 10fps
  	Min. Illumination	Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux (IR LED on)
  Lens	Focal Length (Zoom Ratio)	4mm fixed focal
  	Max. Aperture Ratio	F2.0
  	Angular Field of View	H: 84.3° / V: 45.6° / D: 98.3°
  	Min. Object Distance	0.5m(1.64ft)
  	Focus Control	Fixed
  Operational	Camera Title	Displayed up to 15 characters
  	Day & Night	Auto(ICR)
  	Backlight Compensation	BLC, WDR, SSDR
  	Wide Dynamic Range	120dB
  	Digital Noise Reduction	SSNR
  	Motion Detection	4ea, rectangular zones
  	Privacy Masking	6ea, rectangular zones
  	Gain Control	Low / Middle / High
  	White Balance	ATW / AWC / Manual / Indoor / Outdoor
  	LDC	Support
  	Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
  	Video Rotation	Flip, Mirror, Hallway view(90˚/270˚)
  	Analytics	Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
  	Alarm Triggers	Analytics
  	Alarm Events	File upload via FTP and e-mail Notification via e-mail SD/SDHC recording at event triggers
  IR	IR Viewable Length	30m(98.43ft)
  Network	Ethernet	RJ-45(10/100BASE-T)
  	Video Compression	H.265/H.264 : Main/High, MJPEG
  	Smart Codec	WiseStreamⅡ
  	Bitrate Control	H.265/H.264: CBR or VBR MJPEG: VBR
  	Streaming	Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles)
  	Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
  	Security	HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
  	Application Programming Interface	ONVIF Profile S/G/T SUNAPI(HTTP API)
  General	Webpage Language	English
  	Edge Storage	Micro SD/SDHC 1slot 32GB
  	Memory	512MB RAM, 256MB Flash
  Environmental & Electrical	Operating Temperature / Humidity	-30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH * Start up should be done at above -20°C(-4°F)
  	Storage Temperature / Humidity	-30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH
  	Certification	IP66
  	Input Voltage	PoE(IEEE802.3af, Class2)
  	Power Consumption	Max 6.4W, Typical 5.0W
  Mechanical	Color / Material	White / Plastic
  	RAL Code	RAL9003
  	Product Dimensions / Weight	Ø78.0×262.0mm(Ø3.07×10.31”), 390g(0.86lb)
  DORI (EN62676-4 standard)	Detect (25PPM/ 8PPF)	42.4m(139.17ft)
  	Observe (63PPM/ 19PPF)	17.0m(55.67ft)
  	Recognize (125PPM/ 38PPF)	8.5m(27.83ft)
  	Identify (250PPM/ 76PPF)	4.2m(13.92ft)
