Gigabyte GP-P850GM 850W PC Power Supplies – GP-P850GM-UK
- Description
- Specifications
- Downloads
-

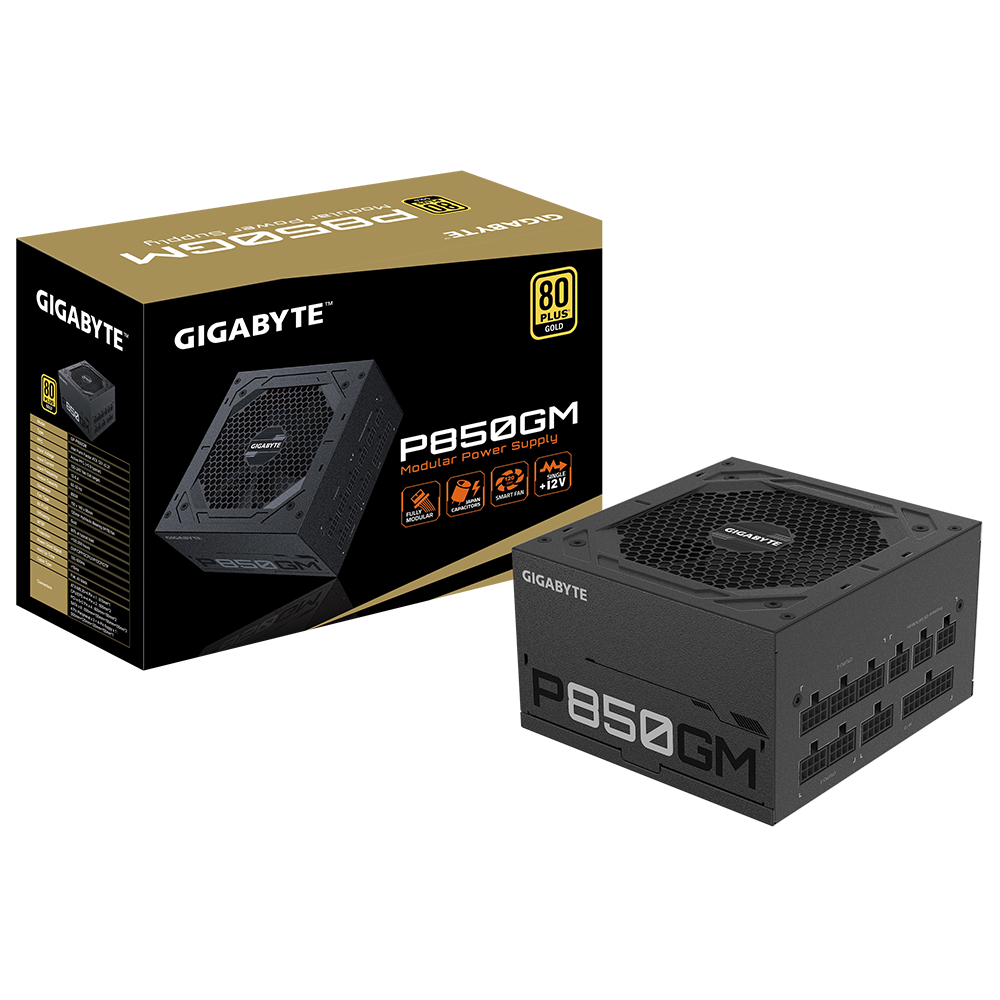

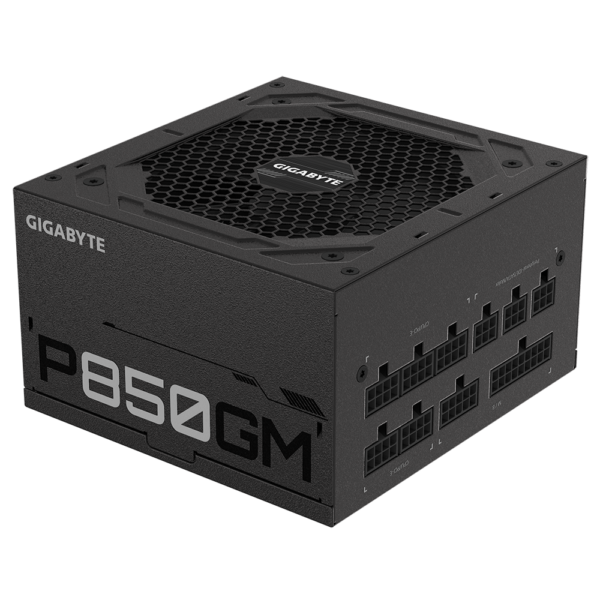

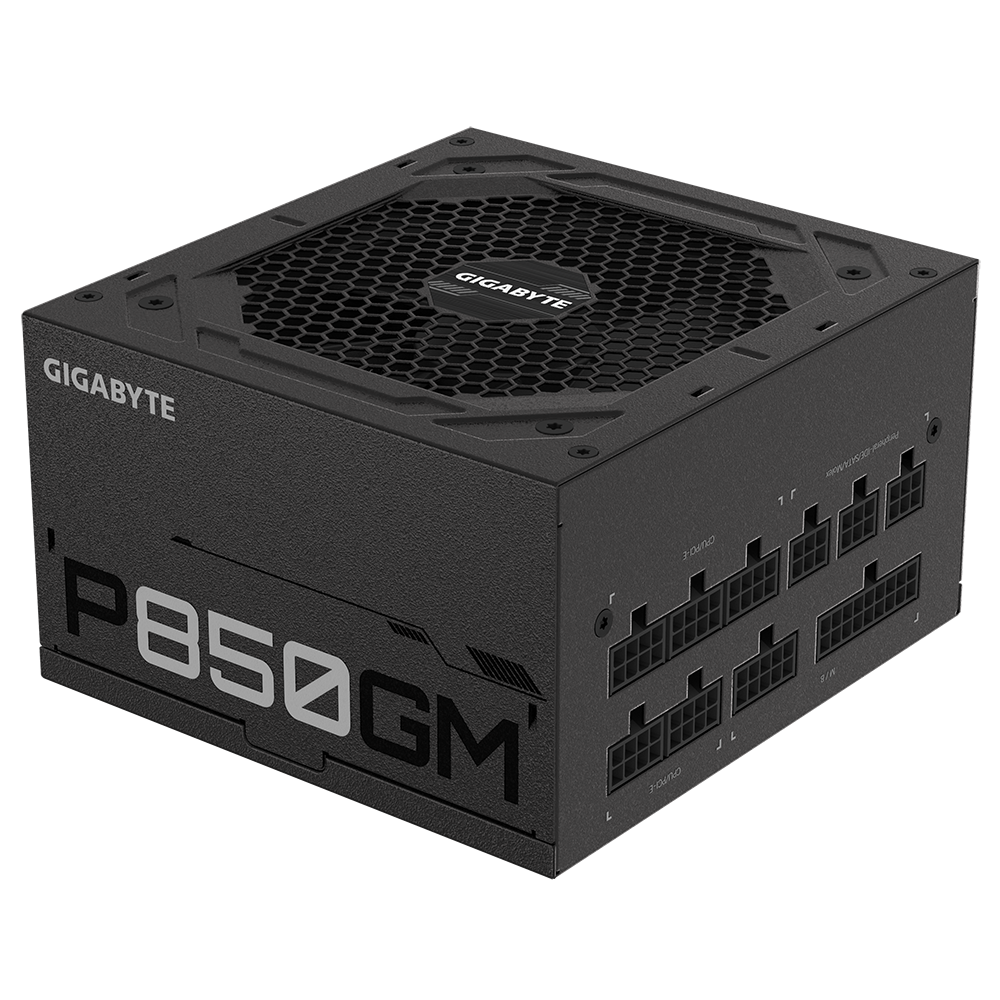

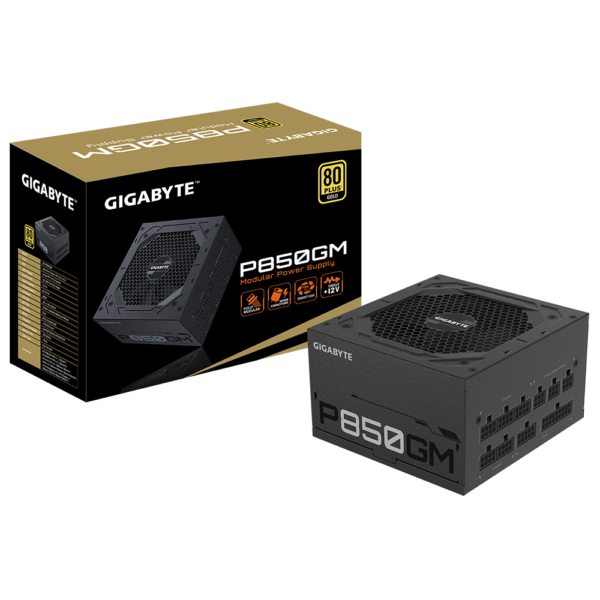

Gigabyte GP-P850GM 850W PC Power Supplies
Features
80 PLUS Gold certified
Fully modular design
120mm Smart Hydraulic Bearing (HYB) Fan
Main Japanese capacitors
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
Compact size
5 years warranty (Adjusted according to different regions)FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.HIGH QUALITY JAPANESE CAPACITORS

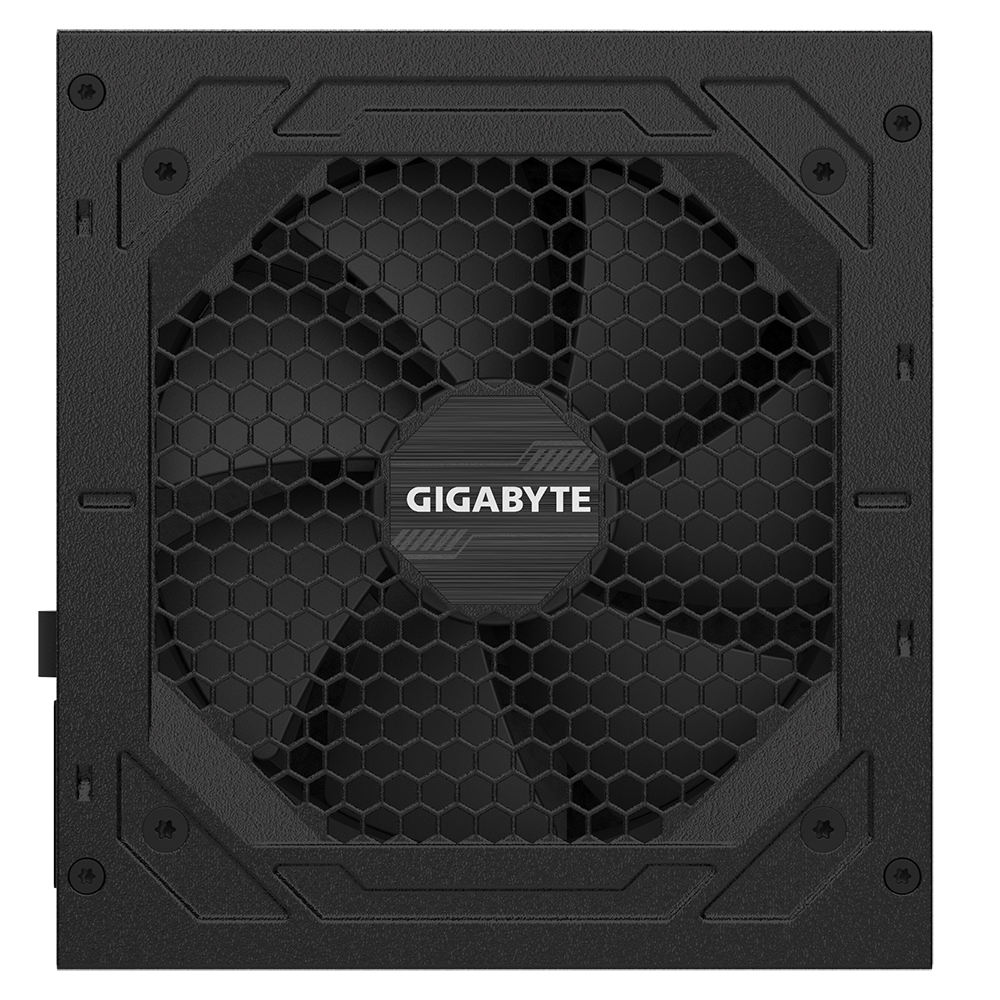

The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
OCP: Over Current Protection
OTP: Over Temperature Protection
OVP: Over Voltage Protection
OPP: Over Power Protection
UVP: Under Voltage Protection
SCP: Short Circuit Protection -
Feature Specification Model GP-P850GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6 A Input Frequency 60-50 Hz Output Capacity 850W Fan Type 120mm Hydraulic Bearing (HYB) fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-500ms Hold Up Time >16ms Cable Type Flat, All black Connectors 1 x ATX/MB 20+4 Pin 2 x CPU/EPS 4+4 Pin 4 x PCI-e 6+2 Pin 8 x SATA 3 x 4 Pin Peripheral 1 x 4-Pin floppy Dimensions (W x H x D) 140 x 86 x 150mm -
Description Downloads GP-P850GM-UKPowerManual.pdf Download
