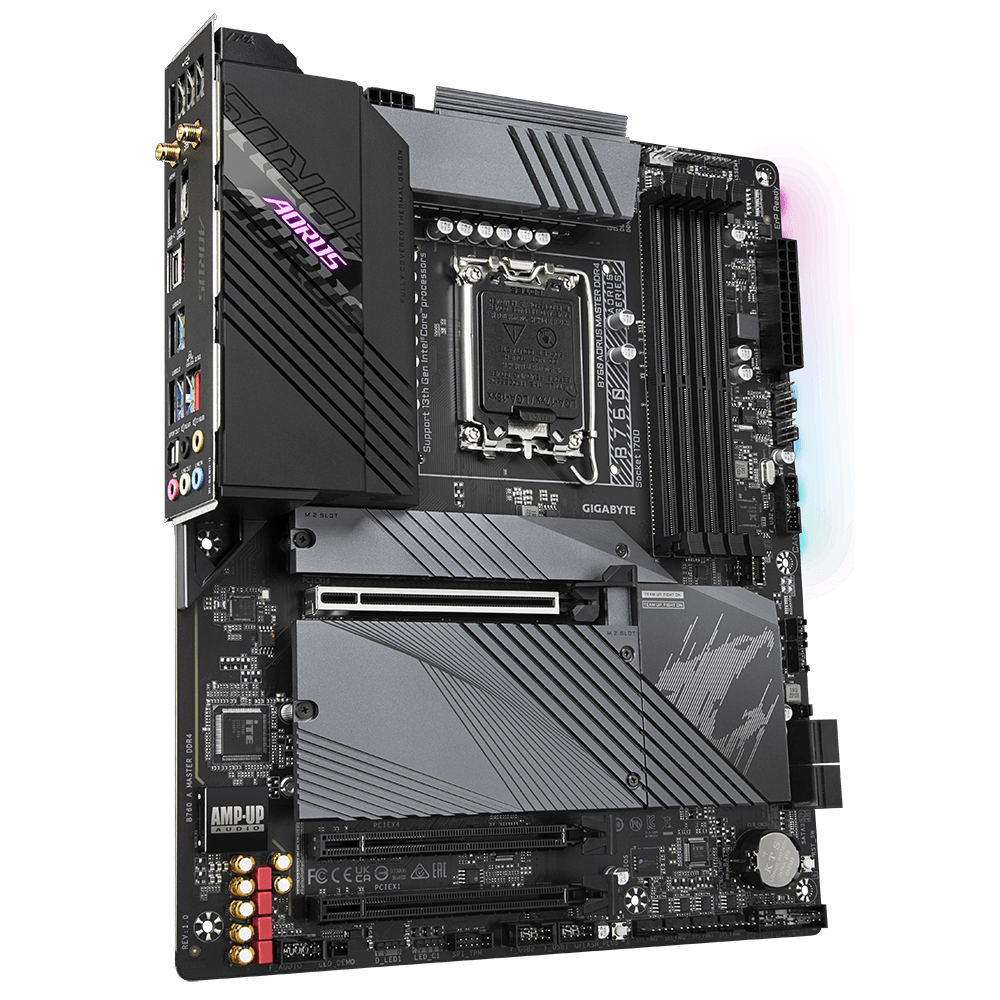

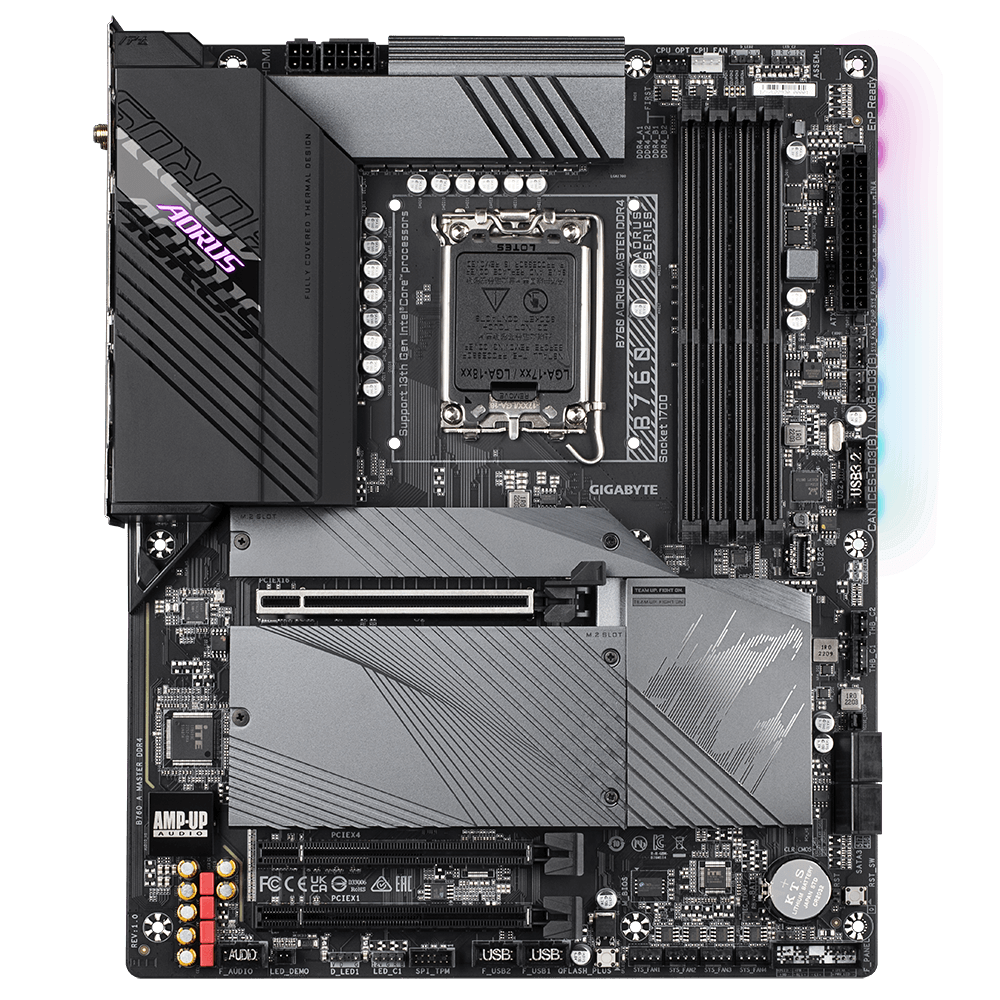

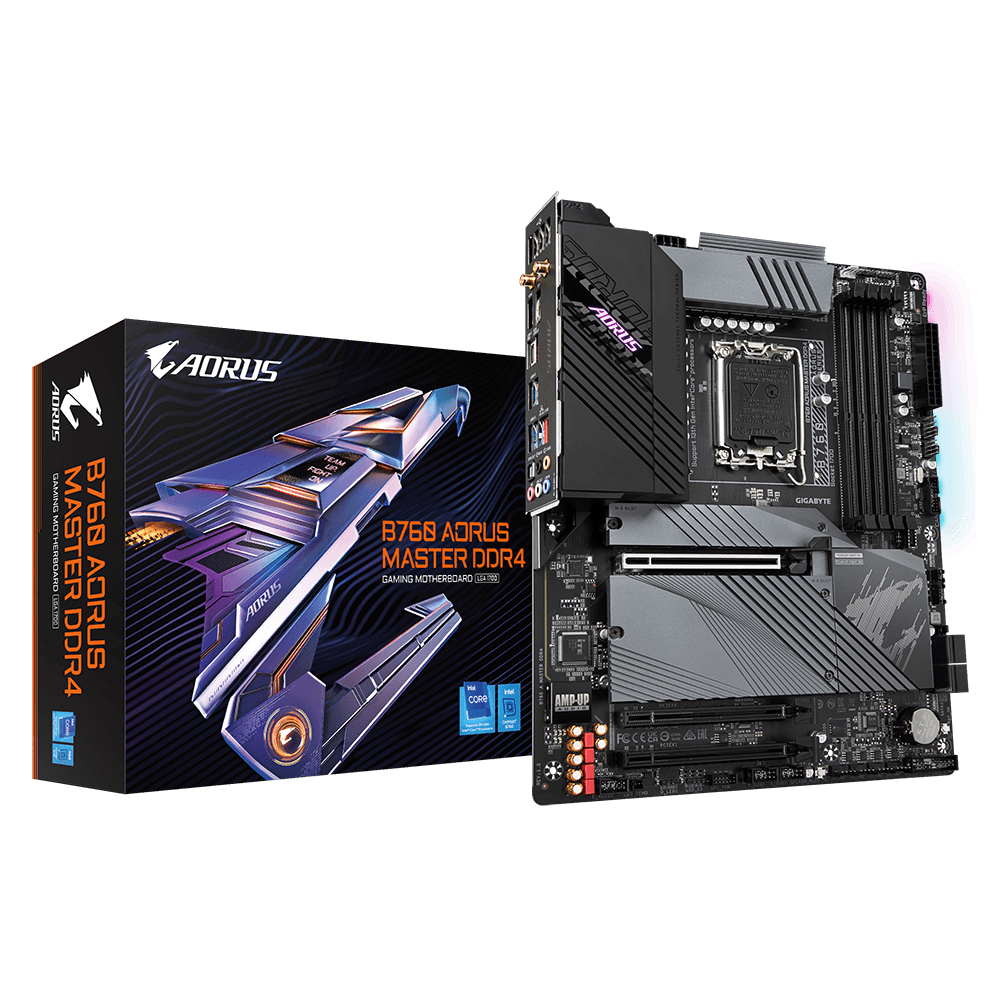

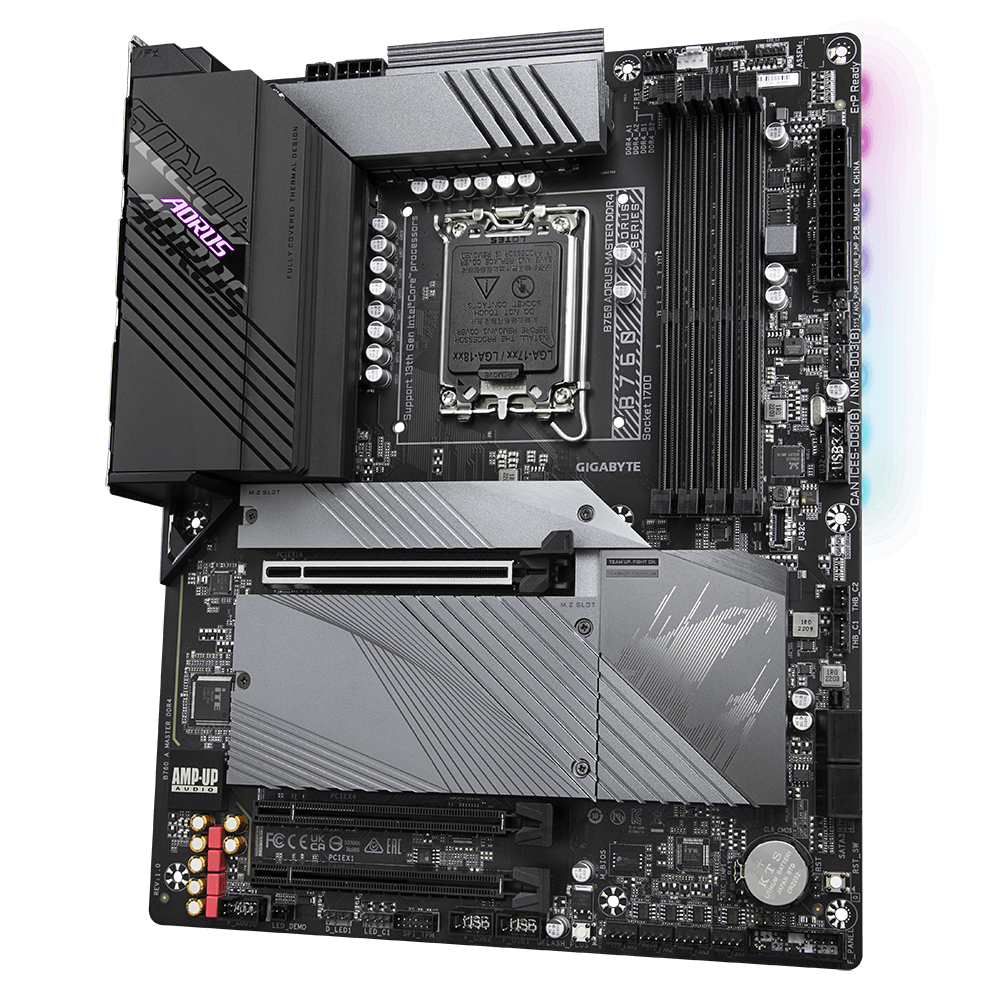

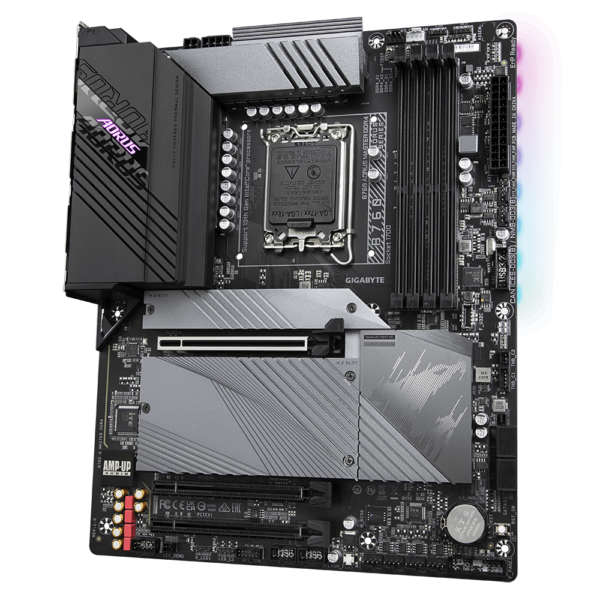

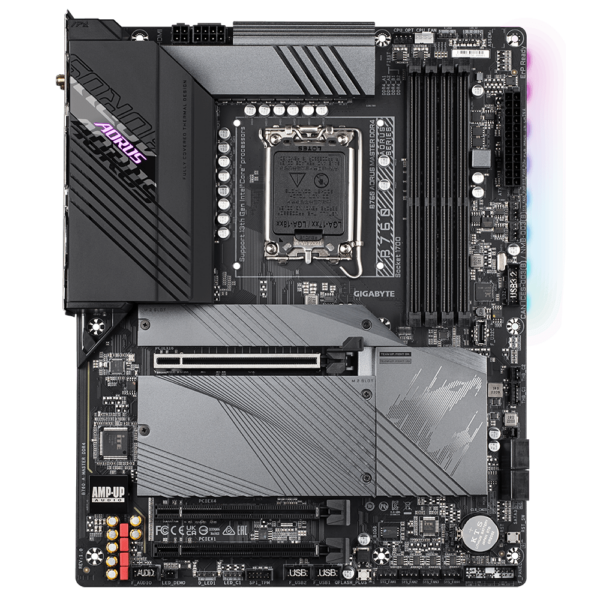

Gigabyte B760 AORUS MASTER DDR4 Motherboard

Gıgabyte B760 AORUS MASTER DDR4 Motherboard

• Description
• Specifications

• B760 AORUS MASTER DDR4 (rev. 1.0)
  Supports Intel® Core™ 14th/ 13th /12th processors

  Unparalleled Performance：Twin 16*+1+1 Phases Digital VRM Solution

  Dual Channel DDR4：4*DIMMs with XMP Memory Module Support

  Next Generation Storage：3* M.2 Connectors, including 2* PCIe 4.0 x4

  Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance

  EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design

  Fast Networks：Intel® 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax

  Extended Connectivity：Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI

  Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection

  Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

  UNPARALLELED PERFORMANCE
  Twin Digital VRM Design
  PCIe 4.0 Design
  DDR4 XMP
  2 x PCIe 4.0 x4 M.2
  PerfDrive

  With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

  OUTSTANDING THERMAL DESIGN
  Thermal Design
  Fully Covered MOSFET Heatsink
  2X Copper PCB
  Smart Fan 6

  GIGABYTE Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

  CONNECTIVITY
  802.11ax Wi-Fi 6E
  2.5GbE LAN
  Rear USB-C® 20Gb/s
  Front USB-C® 10Gb/s
  Hi-Fi Audio

  GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

  PERSONALIZATION
  UEFI BIOS
  GIGABYTE Control Center
  Multi-Key

  GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

  ULTRA DURABLE
  DIY Friendly
  Q-Flash Plus

  GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

  Key Feature
  Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors

  Unparalleled Performance：Twin 16*+1+1 Phases Digital VRM Solution

  Dual Channel DDR4：4*DIMMs with XMP Memory Module Support

  Next Generation Storage：3* M.2 Connectors, including 2* PCIe 4.0 x4

  Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance

  EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design

  Fast Networks：Intel® 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax

  Extended Connectivity：Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI

  Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection

  Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

  * 8+8 phases parallel power design

• Specification	Details
  CPU	LGA1700 socket: Support for 14th, 13th, 12th Gen Intel Core, Pentium Gold, and Celeron CPUs*
  	L3 cache varies with CPU
  	* Refer to “CPU Support List” for more information
  Chipset	Intel B760 Express Chipset
  Memory	Support for DDR4 memory modules up to 5333 MHz (O.C.)
  	4 x DDR4 DIMM sockets, up to 128 GB (32 GB single DIMM capacity)
  	Dual-channel memory architecture
  	Support for ECC and non-ECC memory modules
  	Support for Extreme Memory Profile (XMP) modules
  Onboard Graphics	Integrated Intel HD Graphics with HDMI and DisplayPort support
  Audio	Realtek ALC1220-VB CODEC
  	High Definition Audio
  	2/4/5.1/7.1-channel
  	Support for S/PDIF Out
  LAN	Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  Wireless Communication	Intel Wi-Fi 6E AX211 with Wi-Fi 6 and Bluetooth 5.3 support
  Expansion Slots	CPU: 1 x PCIe x16 slot (PCIe 4.0 x16)
  	Chipset: 1 x PCIe x16 slot (PCIe 3.0 x4)
  	1 x PCIe x16 slot (PCIe 3.0 x1)
  Storage Interface	CPU: 1 x M.2 connector (Socket 3, PCIe 4.0 x4/x2 SSD support)
  	Chipset: 1 x M.2 connector (Socket 3, PCIe 4.0 x4/x2 SSD support)
  	1 x M.2 connector (Socket 3, PCIe 3.0 x4/x2 SSD support)
  	4 x SATA 6Gb/s connectors
  USB	Chipset: 1 x USB Type-C port (USB 3.2 Gen 2×2)
  	1 x USB Type-C port (USB 3.2 Gen 2) on internal header
  	1 x USB 3.2 Gen 2 Type-A port (red)
  	4 x USB 2.0/1.1 ports (internal headers)
  Internal I/O Connectors	Various power connectors, fan headers, LED strip headers, M.2 sockets, SATA connectors, etc.
  Back Panel Connectors	USB ports, DisplayPort, HDMI, LAN port, audio jacks, etc.
  I/O Controller	iTE I/O Controller Chip
  H/W Monitoring	Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control, noise detection
  BIOS	256 Mbit flash, licensed AMI UEFI BIOS, various standards
  Unique Features	GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus
  Bundled Software	Norton Internet Security (OEM version), LAN bandwidth management software
  Operating System	Support for Windows 11 64-bit, Windows 10 64-bit
  Form Factor	ATX Form Factor; 30.5cm x 24.4cm
