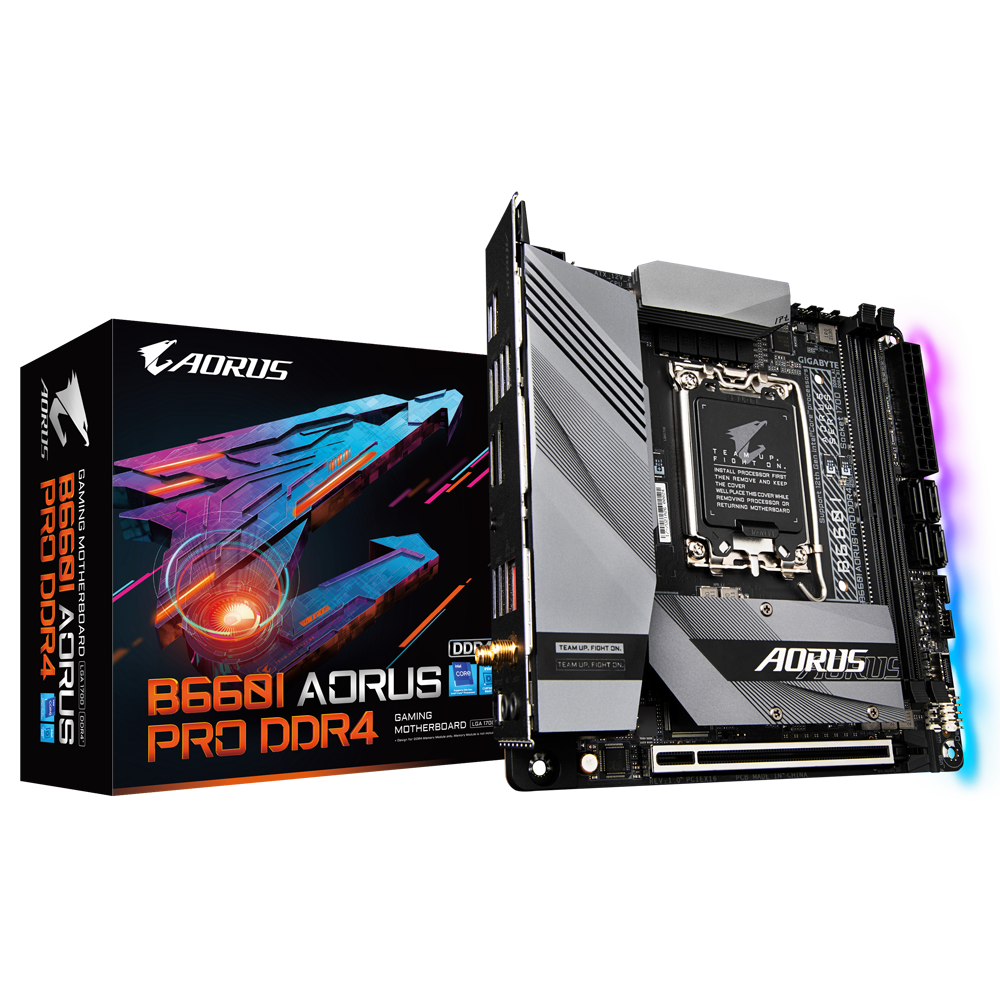

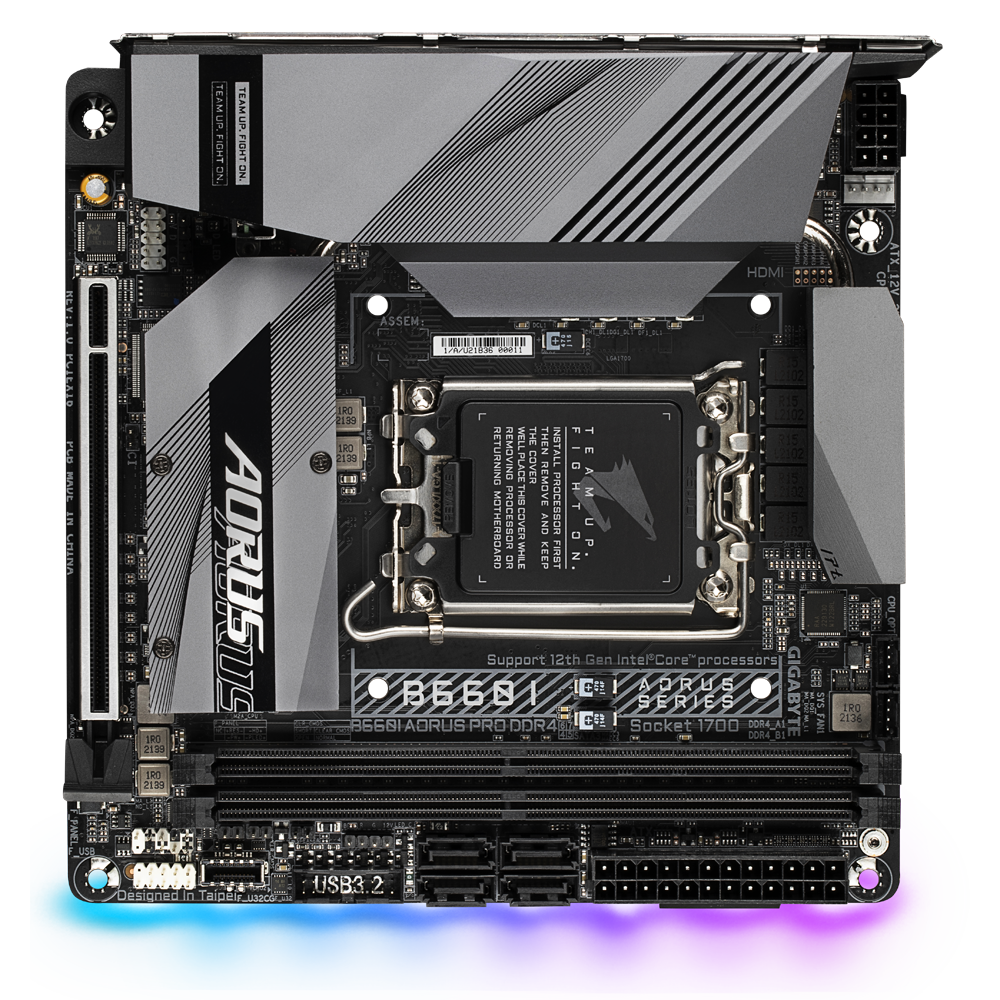

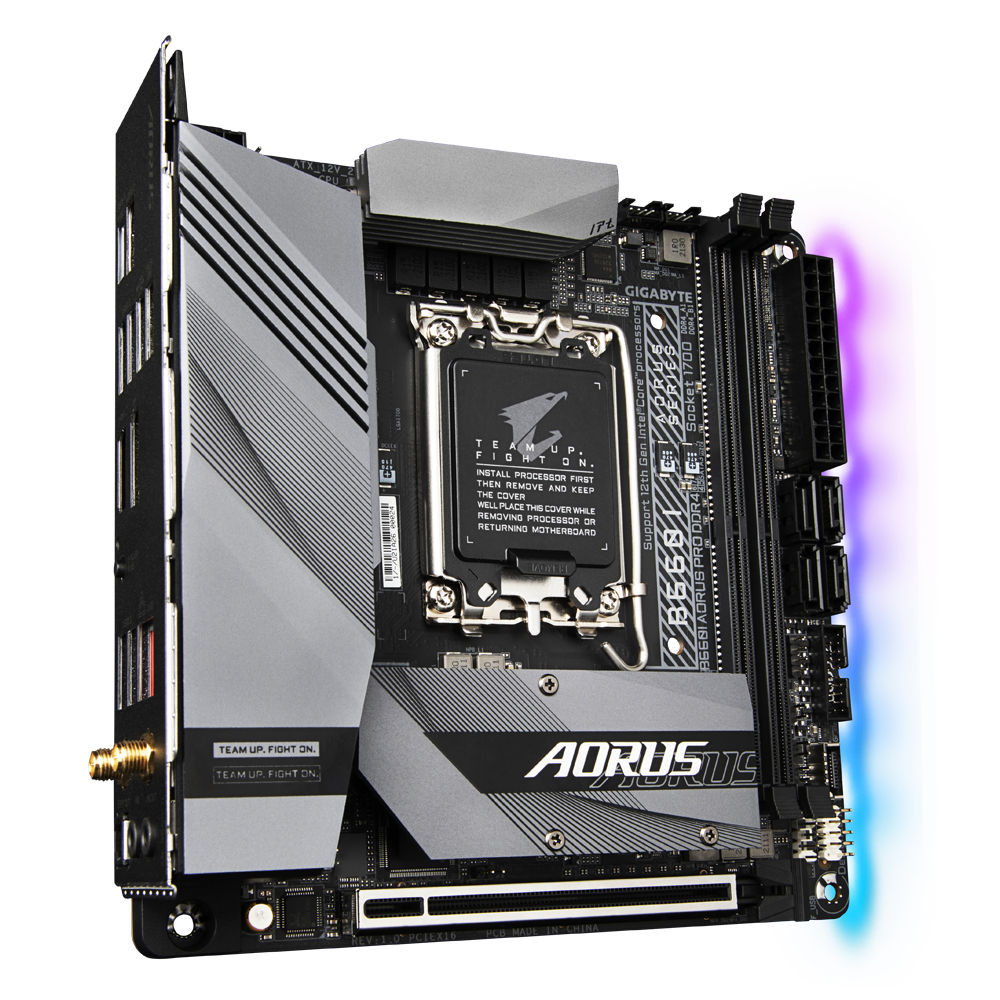

  B660I AORUS PRO DDR4
  PERFORMANCE UNLEASHED
  Rule supreme with the B660 AORUS gaming motherboards. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake’s performance in all its gaming glory.


  UNPARALLELED PERFORMANCE
  With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE B660 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.

  ADVANCED THERMAL SOLUTION
  GIGABYTE B660 Series Motherboards’ Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming.

  CONNECTIVITY
  GIGABYTE B660 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity.

  PERSONALIZATION
  GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

  ULTRA DURABLE
  GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.​

  Intel® B660 Mini-ITX AORUS Motherboard with Direct 8+1+1 Phases Digital VRM Design, Advanced Thermal Solution , PCIe 4.0 M.2 with Enlarged Thermal Guard, Intel® 2.5GbE LAN, WIFI 6 802.11ax , 8-ch HD Audio with Audio Caps, HDMI 2.0, RGB FUSION 2.0, Q-Flash Plus
  Supports 12th Gen Intel® Core™ Series Processors

  Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

  Direct 8+1+1 Phases Digital VRM Solution with 90A SPS

  Shielded Memory Routing for Better Memory Overclocking

  Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate

  WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna

  Blazing Fast Intel® 2.5GbE LAN with Bandwidth Management

  Ultra-Fast NVMe PCIe 4.0*x4 M.2 with Thermal Guard

  Rear USB 3.2 Gen 2 Type-C® and Front USB 3.2 Gen 1 Type-C® for Connecting devices

  Pre-installed IO Shield for easy and quick installation

  RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips

  Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

  Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

• Component	Specification
  CPU	LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors (L3 cache varies with CPU). Refer to “CPU Support List” for more information.
  Chipset	Intel B660 Express Chipset
  Memory	Support for various DDR4 memory modules with speeds ranging from 2133 MT/s to 5333 MT/s. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory. Dual-channel memory architecture. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode). Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Support for Extreme Memory Profile (XMP) memory modules.
  Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support. 1 x DisplayPort (max resolution 4096×2304@60 Hz, support for DP 1.2 and HDCP 2.3). 1 x HDMI port (max resolution 4096×2160@60 Hz, support for HDMI 2.1 and HDCP 2.3). Support for native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support).
  Audio	Realtek Audio CODEC. High Definition Audio. 2/4/5.1/7.1-channel audio support. Support for S/PDIF Out.
  LAN	Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). Wireless Communication module with Wi-Fi and Bluetooth support.
  Expansion Slots	1 x PCI Express x16 slot running at x16 (conforms to PCI Express 4.0 standard).
  Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support). Chipset: 4 x SATA 6Gb/s connectors. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10.
  USB	Chipset: 1 x USB Type-C port on the back panel with USB 3.2 Gen 2 support. 1 x USB Type-C port with USB 3.2 Gen 1 support available through the internal USB header. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel. 2 x USB 3.2 Gen 1 ports available through the internal USB header. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header). Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel.
  Internal I/O Connectors	Various connectors including power, fan, LED, M.2, SATA, front panel, audio, USB, and more.
  Back Panel Connectors	1 x USB Type-C port with USB 3.2 Gen 2 support. 1 x USB 3.2 Gen 2 Type-A port (red). 4 x USB 3.2 Gen 1 ports. 2 x USB 2.0/1.1 ports. DisplayPort and HDMI ports. Q-Flash Plus button. RJ-45 LAN port. SMA antenna connectors. Optical S/PDIF Out connector. Audio jacks.
  I/O Controller	iTE I/O Controller Chip.
  H/W Monitoring	Voltage, temperature, fan speed, water cooling flow rate detection. Fan fail warning. Fan speed control (depending on the cooler installed).
  BIOS	1 x 256 Mbit flash. Licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
  Unique Features	Support for various applications in APP Center. @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer. Support for Q-Flash Plus, Q-Flash, and Xpress Install.
  Bundled Software	Norton Internet Security (OEM version), cFosSpeed.
  Operating System	Support for Windows 11 64-bit and Windows 10 64-bit.
  Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm.
