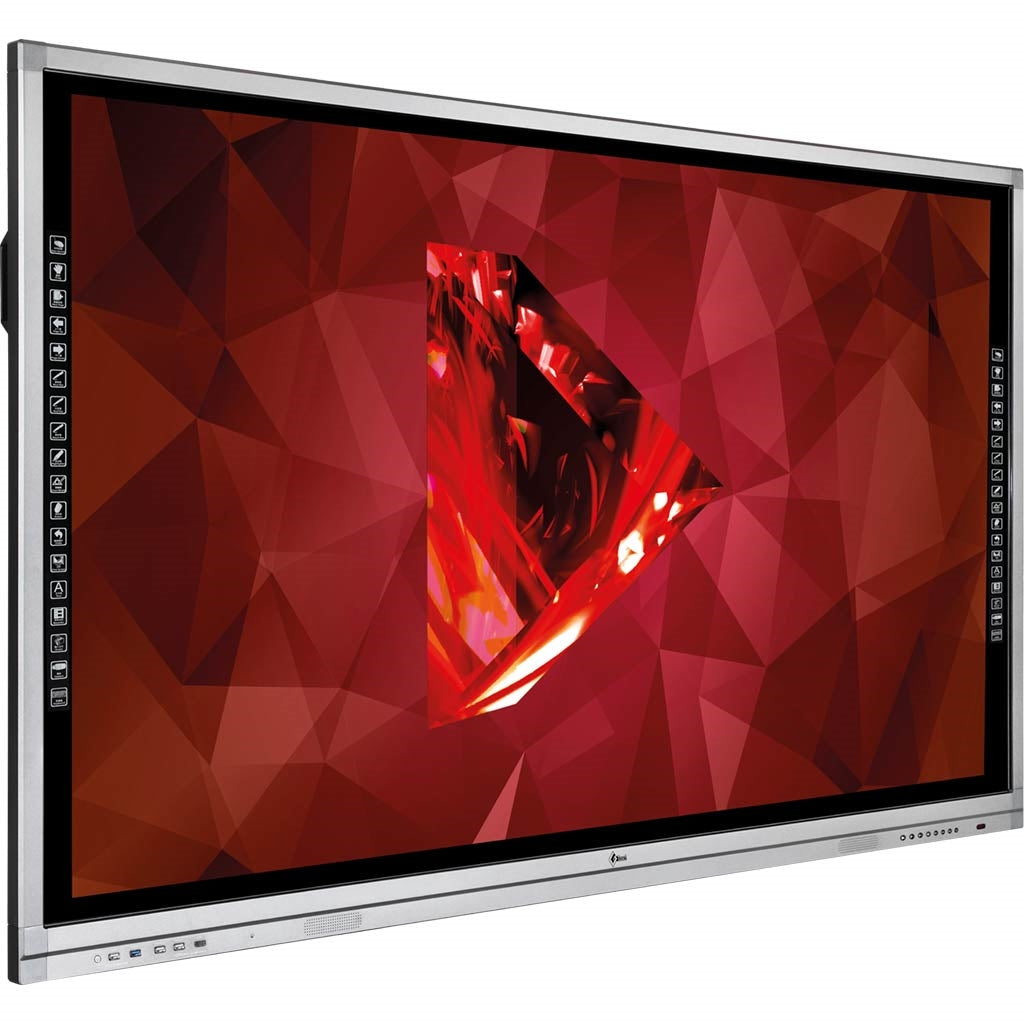

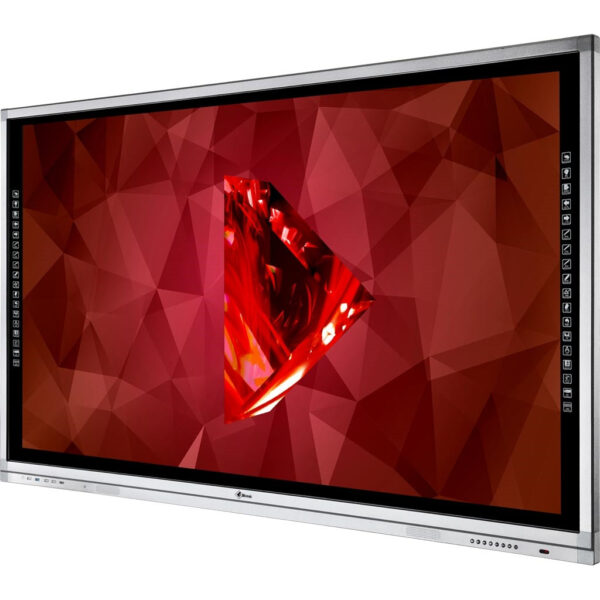

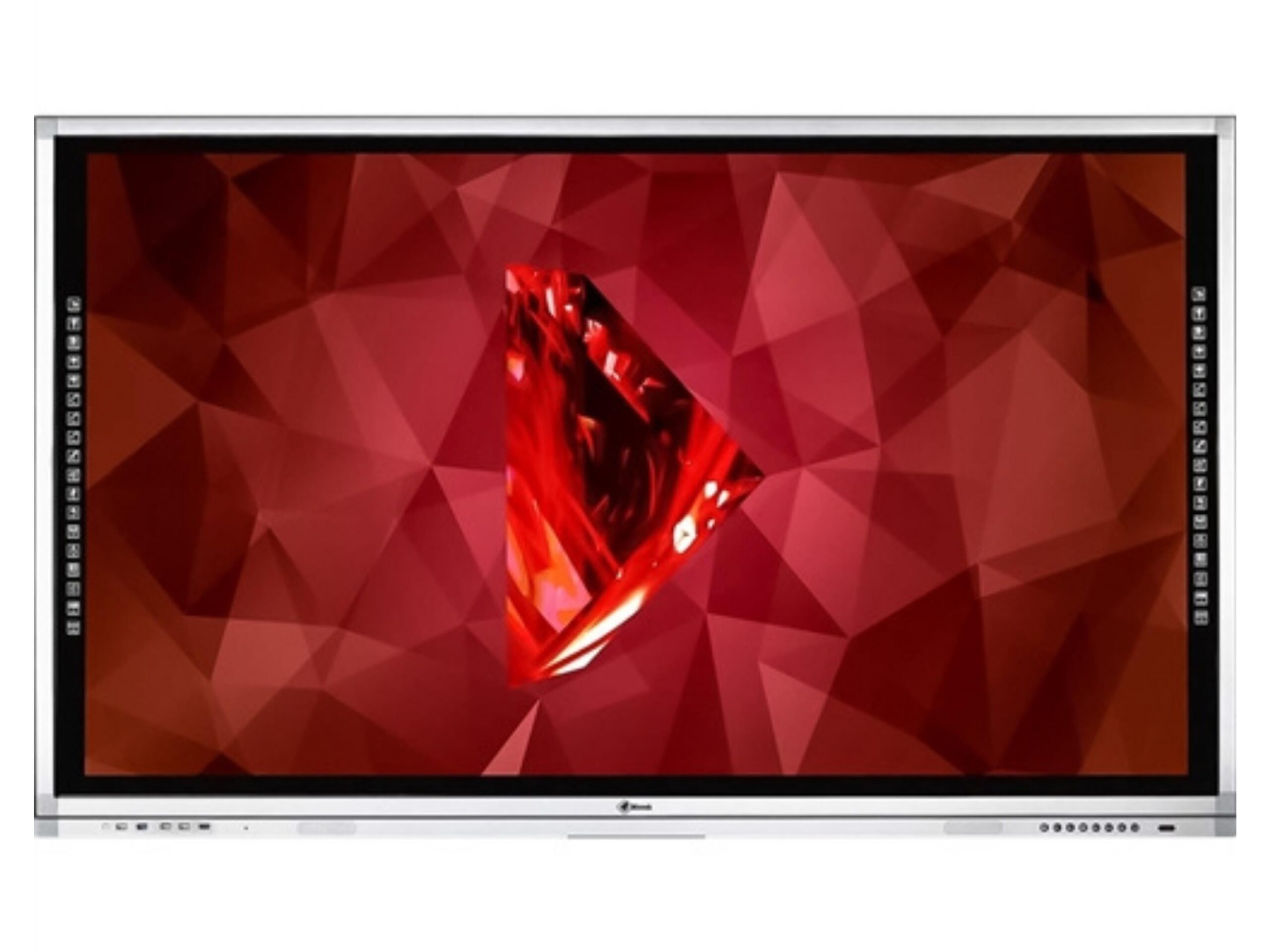

G-TOUCH® RUBY
Everything you need in a touchscreen!
The G-Touch® Ruby is everything you need in an interactive display. The G-Touch® Ruby is packed with features that will enhance your presentations. The Ruby includes industry-leading 4K image quality with anti-glare, toughed glass, and 20-point touch.
The G-Touch® Ruby interactive display is also incredibly easy to use due to the user interface. User interface is one of the most important factors when developing digital technology. Developing a 3-touch rule allows users to access any function within 3 touches, ensuring an intuitive and easy way to use our G-touch® screens.
Multi Touch
With multi-touch technology several people can work and collaborate on the screen at once. This allows you to also benefit from multi-touch software.
Blue Light Filter
The blue light filter decreases the amount of blue light displayed on the screen of the device. This can help reduce digital eye strain, which will make your eyes feel less tired by the end of the day.
Anti-Glare
All of our G-Touch® screens have the latest anti-glare technology. This coupled with the brightness of our LED panel enable content to be viewed in any environment.
Gesture Control
The G-Touch® has been developed to be as easy to use as possible.Gestures reduce the number of touches needed on the screens as complicated functions can be completed with simple swipes.
Dual Pen
The intuitive G-Touch® screen can recognise when you are using a pen or finger.
OPS Slot
All G-Touch® models have the option to add a built-in PC. Our simple ‘slide and secure’ fitting options allow for easy upgrades.
Front Facing Speakers
Crystal clear audio via the front facing speakers is ideal when incorporating video presentations or remote sessions.Connectivity Various Inputs and Outputs
Buttons and connection ports are now front facing for easy access, and side facing for a neater and more permanent option, allowing devices to be connected through a range of multiple inputs; this makes it ideal for a variation between permanent and visiting staff and guests.
A multitude of different devices can be connected through a range of inputs and outputs, allowing the G-Touch® Ruby to easily integrate with all standard technology already in the classroom and workplaces.
Genee Wireless Display Mirroring
The G-Touch® Ruby has built in wireless display mirroring. This allows everyone in the room to cast their Apple, Google, Android or PC device directly to the screen. Allowing the option for immediate feedback by reviewing answers on the screen.
With more and more working spaces becoming digital, it is important for devices to be able to integrate with each other.
The G-Touch® Ruby allows users to cast their Google and Apple devices without the need for third party applications. Simply, press screen mirroring on your device, enter the code which is displayed on the touchscreen and you will be connected.
Built-In Android
The G-Touch® Ruby interactive display comes complete with an Android operating system and the ability to download apps from the Genee App Store. The Android system also allows users to cast their device onto the screen, and seamlessly use our Genee Vision Visualisers. -
Property Value Screen G-TOUCH® RUBY 75″ 4K Product Code TOU100020 Backlight LED Display area 1650 x 928mm Display ratio 16:9 Resolution 3840 x 2160 Pixel (4K) Display colours 8bit Response time 8ms Viewing angle 178o Brightness 370cd/m2 Touchscreen glass Tempered glass; New Generation Anti-glare glass ; Surface Hardness: >H7 Speaker output power 15W x 2 Speaker position Front-facing Power consumption Maximum <350W Standby Mode ≤0.5W Touch sensor Infrared Touch point 20 point touch Writing tools Pen, Stylus or Finger Front Interface Inputs HDMI 1.4 x1, USB x1, USB x2 AV Inputs HDMI 2.0/1.4 x3, DP x1 USB x4 AV Outputs HDMI out x1, Line Out x1, SPDIF out x1 Other USB 2.0 x1, USB 2.0 x1, RS232 x1, RJ45 x1, USB 3.0 x1, OPS Slot x1 Supported media formats Image: JPEG, BMP, PNG Video: MPEG1, MPEG2, MPEG4, H.264, H.265, MOV, MJPEG, FLV (Supports 1080P, 4K HD Decoding) Audio: MP3, M4A, (AAC) Positioning accuracy (mm) 1 Communication interface USB Front/side I/O port Yes Android system 8 (848) CPU ARM Cortex A73 RAM / ROM 3G / 16G Upgradable to 32G Over the air updates Yes Outline Dimension (without wall mount bracket thickness) 1768 x 1066 x 114 Packing Dimension 1923 x 1215 x 280 Net Weight 59KG Gross Weight 83KG OPS slot Yes Software Project Flow (Trial), SPARK II, Genee App Store, Genee TruCast, Genee Pawtals, Genee Control (Optional Remote Management) Warranty 5 Year Warranty subject to registration within 28 days, terms and conditions apply. Included Remote Control with batteries, USB cable, HDMI cable, VGA cable, Audio Cable, Wi-Fi Dongle, Magnetic Pen and Holder. -
Warranty
5 Years Manufacturer Warranty
