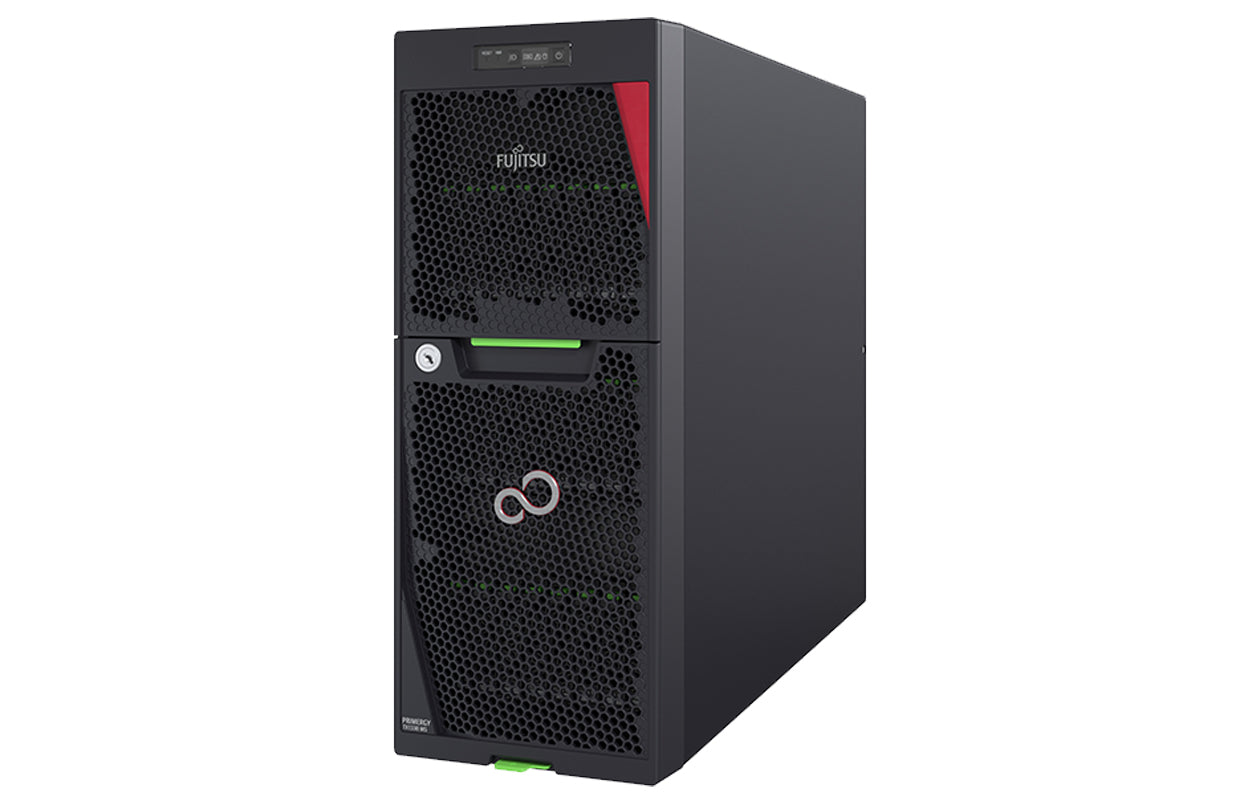

Fujitsu PRIMERGY TX1330 M5 Tower Intel Xeon E E-2336 2.9 GHz 16 GB DDR4-SDRAM 500 W Server
HIGHLY EXPANDABLE AND PERFORMANCE ORIENTED
Powerful compute and memory for excellent performance across both individual and virtualized, standard business workloads. Furthermore, the design is ideal for securely managing large datasets with its substantial storage (24x 2.5-inch, or 12x 3.5-inch devices) advanced RAID, dual Gigabit LAN (plus advanced options) and security features (3-way lock, TPM 2.0).
TOP OF THE LINE UPGRADEABILITY
Grow with the business with 4x PCIe Gen4/3 slots (2x Gen4) for upgrades (RAID, networking and graphics) while a rack upgrade kit enables scale-out deployment. M.2, dual MicroSD devices enable effective software boot, while new high data-rate USB 3.2 Gen2 USB ports enhance connectivity.
KEEP PACE WITH EXPANDING USAGE SCENARIOS
New high efficiency, redundant power supplies offer enhanced reliability and lower energy expenditure despite heavy usage scenarios. Cool-safe Advanced Thermal Design technology allows for an expanded range of operation and reduced noise, enabling deployment in public areas.
EASY MANAGEMENT AND SERVICEABILITY
The iRMC S6 and Fujitsu Infrastructure Manager (ISM) suite enable efficient and simplified server and infrastructure management, boosting IT administrator productivity. The design also has hot-plug components and quick access of critical components to enable easy serviceability. -
Category Feature Description Manu Part # VFY Features No OS, Intel Xeon E-2336 (12MB Cache, 2.9GHz), 16GB (3200MHz) DDR4-SDRAM (1 x 16) Processor Special Features Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel Software Guard Extensions (Intel SGX) Yes Enhanced Intel SpeedStep Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Trusted Execution Technology Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel 64 Yes CPU configuration (max) 1 Processor Processor family Intel Xeon E Maximum number of SMP processors 1 Processor boost frequency 4.8 GHz Processor cache 12 MB Idle States Yes Number of processors installed 1 Processor frequency 2.9 GHz Embedded options available No Processor model E-2336 Execute Disable Bit Yes Processor manufacturer Intel Memory Internal memory type DDR4-SDRAM Memory clock speed 3200 MHz Memory slots 4x DIMM Internal memory 16 GB ECC Yes Memory layout (slots x size) 1 x 16 GB Maximum internal memory 128 GB Certificates Certification CB, GS, CE, NRTLc/us, FCC, ICES-003, NMB-003, VCCI, JIS 61000-3-2, EAC, KC, CCC, RCM, BSMI Ports & Interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports 1 VGA (D-Sub) ports 1 Total number of SATA connectors 7 DisplayPorts 1 Ethernet LAN (RJ-45) ports 3 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports 2 USB 2.0 ports 4 Design Chassis type Tower Redundant fans support Yes Product color Black Rack mounting Yes Storage RAID support Yes Supported HDD sizes 2.5″ Hot-Plug support Yes Number of HDDs supported 8 Optical drive type No Weight & Dimensions Height 456.2 mm Width 177.2 mm Depth 521.7 mm Weight 26.4 kg Sustainability Sustainability compliance Yes Sustainability certificates RoHS, WEEE Network LAN controller Intel I210 Ethernet LAN Yes Ethernet interface type Gigabit Ethernet Cabling technology 10/100/1000Base-T(X) Expansion Slots PCI slots 1 PCI Express x4 (Gen 3.x) slots 2 PCI Express x8 (Gen 4.x) slots 2 Software Operating system installed No Operational Conditions Operating temperature (T-T) 5 – 45 °C Operating relative humidity (H-H) 10 – 85% Performance Trusted Platform Module (TPM) Yes Trusted Platform Module (TPM) version 2.0 Noise level 22 dB Power Redundant power supply (RPS) support Yes Power supply input frequency 50 / 60 Hz Power supply input voltage 100 – 240 V Power supply 500 W Number of redundant power supplies supported 2 -
