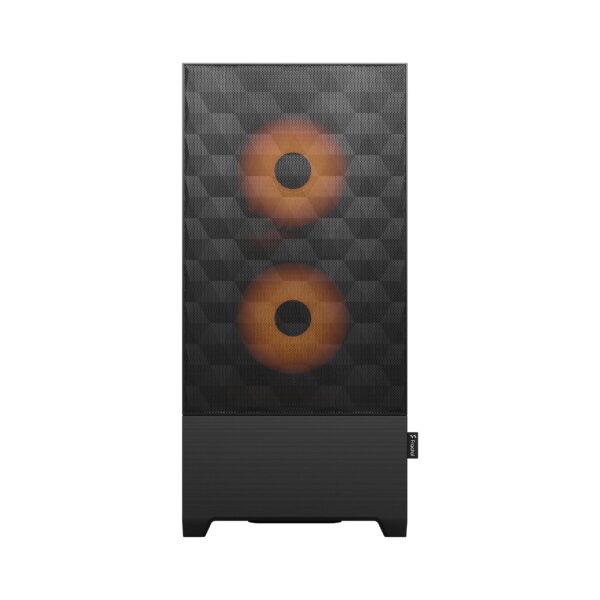

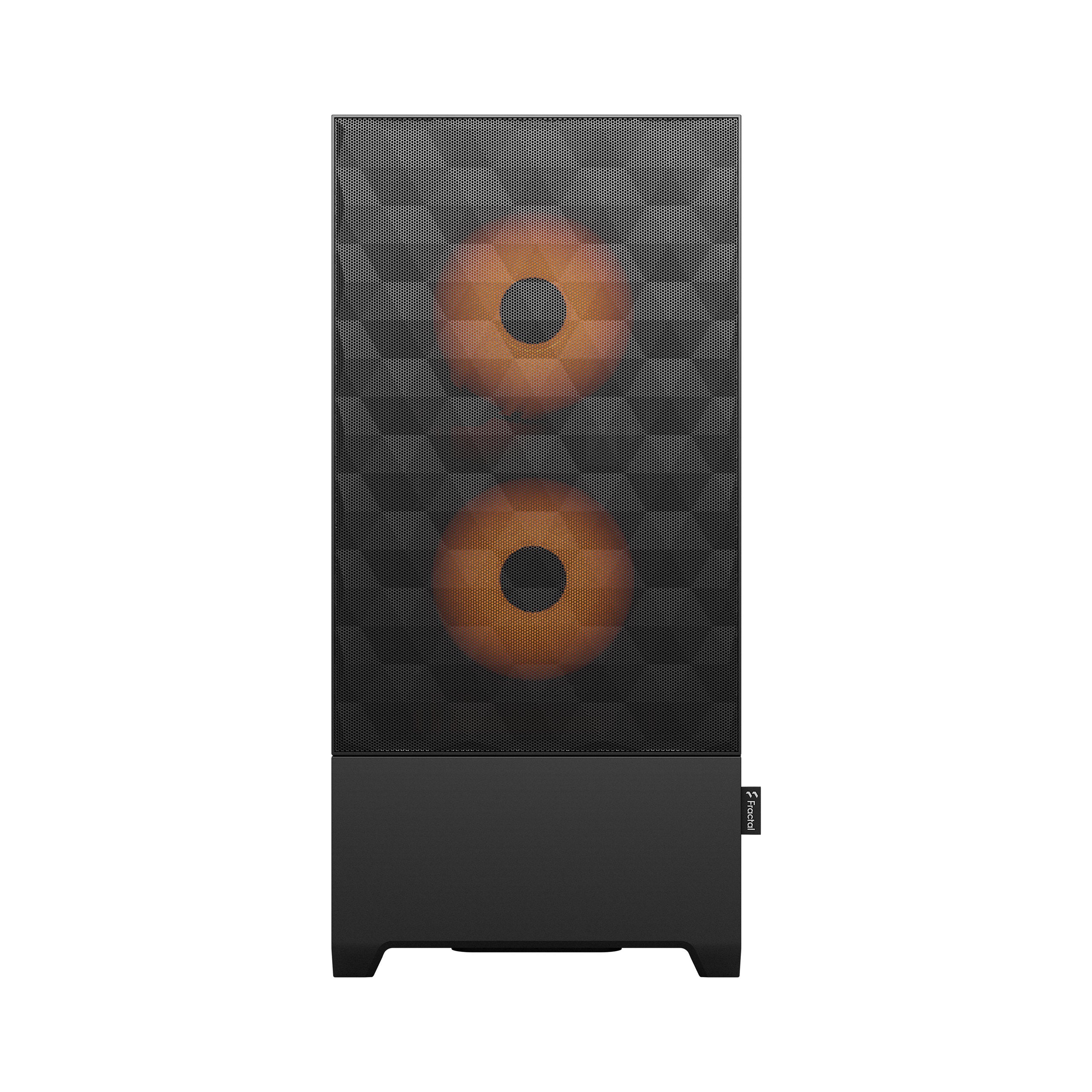

Fractal Design Pop Air RGB Orange Core Mid Tower Tempered Glass PC Case – FD-C-POR1A-05

Fractal Design Pop Air RGB Orange Core Mid Tower Tempered Glass PC Case – FD-C-POR1A-05

• Description
• Specifications
• Downloads

• Fractal Design Pop Air RGB Orange Core Mid Tower Tempered Glass PC Case


  A case of attitude
  The vividly colored motherboard plates, drive trays and exterior accents create a fresh, expressive feel

  A hidden compartment
  Two neatly concealed 5.25” bays with storage drawer and magnetic cover

  Openly expressive
  The easy-to-clean front mesh acts as a dust filter while allowing high airflow

  Flexible storage support
  Two ultra-versatile storage trays each support a 3.5” and a 2.5” drive simultaneously. A dedicated SSD bracket for 2x 2.5” is also included
  Easy cable management with multiple tie-down points, pre-mounted cable ties and convenient extra-large pass-through holes

  Show off your build
  Easily mounted tempered glass side panel lets you showcase your components. (TG models only)
  Holds radiators up to 280 mm in the front, 240 mm in the top and 120 mm in the rear
  The honeycomb patterned front mesh creates a striking visual effect that gives the Pop series a premium feel

  USB-C ready I/O panel
  Features a new ARGB controller and power LEDs
  Easily installed USB-C module available separately

• Specifications
  Dedicated 2.5″ drive mounts	4 (2 included)
  Combined 3.5/2.5” drive mounts	3 (2 included)
  5.25” drive mounts	2
  Expansion slots	7
  Front interface	2x USB 3.0* (* USB 3.1 Gen 2 Type-C add-on available separately), Audio, RGB controller (RGB Versions only)
  Total fan mounts	5x 120 mm or 4x 140 mm
  Front fan (RGB version)	2x 120/140 mm (2x Aspect 12 RGB included)
  Front fan (Non-RGB version)	2x 120/140 mm (2x Aspect 12 included)
  Top fan	2x 120/140 mm
  Rear fan (RGB version)	1x 120 mm (1x Aspect 12 RGB included)
  Rear fan (Non-RGB version)	1x 120 mm (1x Aspect 12 included)
  Bottom fan	N/A
  Dust filters	Top (perforated plastic), PSU (nylon), Front (perforated steel)
  Cable routing grommets	No
  Fixed cable ties	Yes, 2 pcs
  Captive thumbscrews	HDD brackets, SSD brackets, Side panels
  Left side panel	Tempered glass (Pop Air TG) or Solid steel (Pop Air Solid)
  Right side panel	Solid steel
  Compatibility
  Motherboard compatibility	ATX / mATX / Mini ITX
  Power supply type	ATX
  PSU max length	170 mm
  GPU max length	405 mm with front fan mounted
  CPU cooler max height	170 mm
  Front radiator	Up to 280 mm
  Top radiator	Up to 240 mm (max 46 mm RAM height)
  Rear radiator	1x 120 mm
  Bottom radiator	N/A
  Cable routing space	19 mm
  Dimensions
  Case dimensions (LxWxH)	473.5 x 215 x 454 mm
  Net weight	7.2kg (Pop Air TG and Pop Air RGB TG) / 6.80kg (Pop Air Solid)
  Package dimensions (LxWxH)	548 x 307 x 537 mm
  Gross weight	8.7kg (Pop Air TG and Pop Air RGB TG) / 8.3kg (Pop Air Solid)
  Other
  Package contents	Pop Air case, Accessory bag, User manual
  Warranty	2 Years

• Description	Downloads
  FD-C-POR1A-05ProductSheet.pdf	Download
  FD-C-POR1A-05UserGuide.pdf	Download
