• Fluke MicroScanner PoE Tester Kit

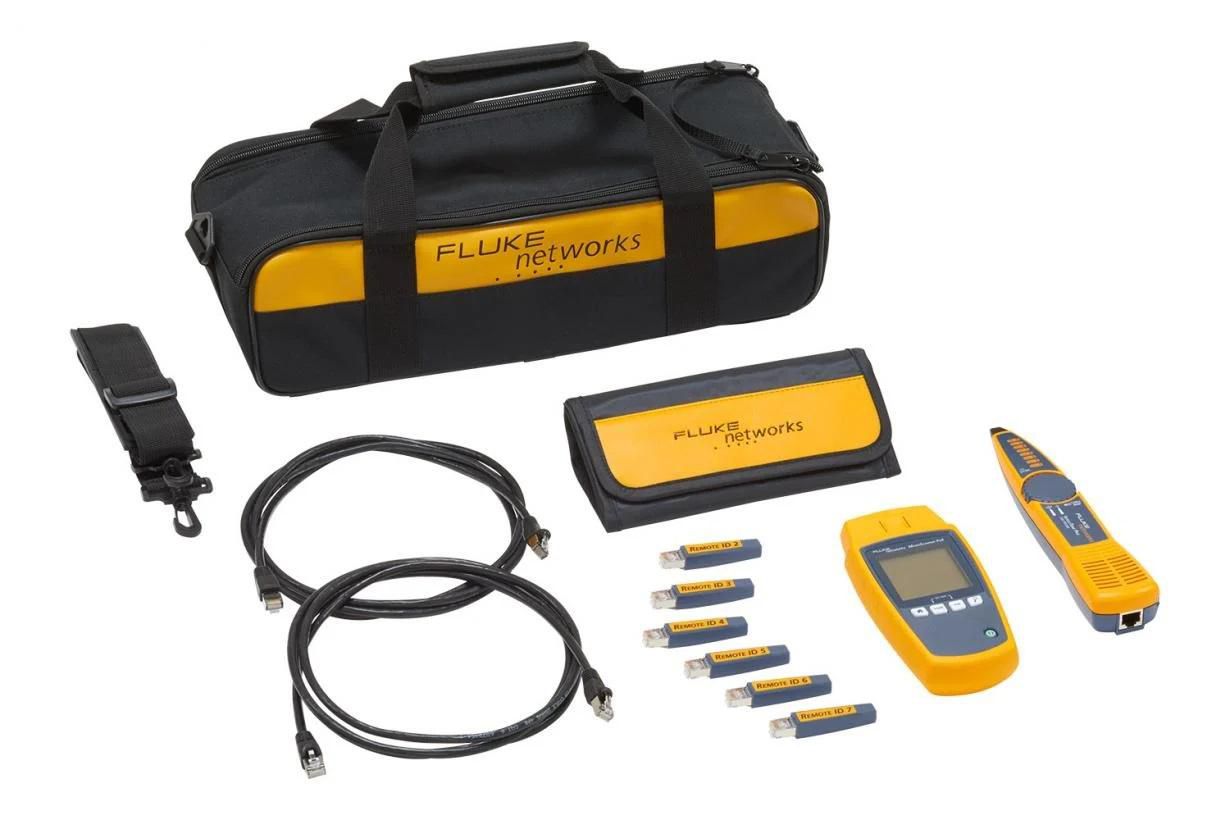

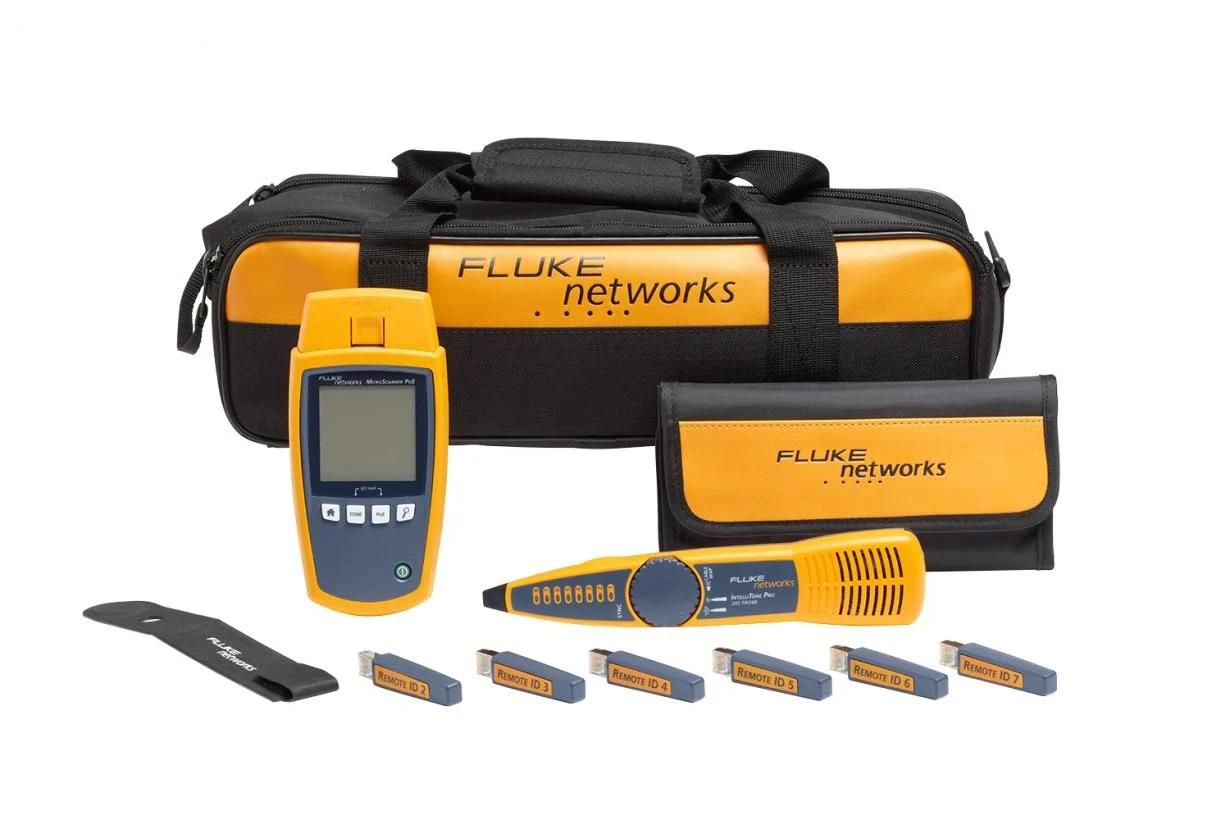

  UTP/FTP/SSTP, RJ45/RJ11, LCD, 2 x AA, 7.6 x 16.3 x 3.6 cm, 300 g, IntelliTone Pro 200 Probe
  MicroScanner™ PoE finds common errors and switch power capacity. Cables often fail in harsh industrial environments where cables are exposed to vibration, extreme flexing, moisture, expansion and contraction from temperature change. Failures result in costly production downtime so it’s important to quickly identify where the cable is broken so it can be replaced or repaired. MicroScanner™ PoE performs continuity tests on all wires in a few seconds and displays results graphically so you can see opens, shorts, and cross wires. It also reports which end of the cable has a problem and reports the distance to an open connection within the cable.


  The MicroScanner™ PoE also allows for easy installation/maintenance on IT, Security, PoE lighting, Ethernet based HVAC devices and IP based Building Automation systems. Troubleshoot quickly and easily with the oversized backlit LCD screen that displays clear results in bright light or complete dark with intuitive icons, and support of Class 1 to 8 PoE.

• Category	Feature	Details
  Legal Information	EU ECCN Code	N/A
  	UNSPSC Code (Icecat)	43222643
  	US ECCN Code	5B991
  Operational Conditions	Operating Humidity (H-H)	0 – 90%
  	Operating Temperature (T-T)	0 – 45°C
  	Storage Temperature (T-T)	-20 – 60°C
  Package Dimensions	Depth (cm)	42 cm
  	Gross Weight (kg)	1.73 kg
  	Height (cm)	17 cm
  	Width (cm)	19 cm
  Packaging Content	Batteries Included	Yes
  	Cables Included	LAN (RJ-45)
  	Manual	Yes
  	Storage Pouch	Yes
  Power	Battery Technology	Alkaline
  	Battery Type	AA
  	Number of Batteries	2
  Product Dimensions	Net Weight (kg)	1.44 kg
  	Depth (cm)	16.3 cm
  	Height (cm)	3.6 cm
  	Width (cm)	7.6 cm
  Technical Details	Built-in Display	Yes
  	Cable Type	UTP, FTP, SSTP
  	Display Type	LCD
  	Max Cable Length	460 m
  	Networking Standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
  	On/Off Switch	Yes
  	Product Colour	Black/Blue/Yellow
  	Product Type	PoE Tester
  	Supported Connectors	RJ-11, RJ-45
  	Test Type	PoE Testing
  Vendor Information	Brand Name	Fluke
  Categories	Main Category	Network
  	Subcategory 1	Accessories
  	Subcategory 2	Network Testers & Analyzers
