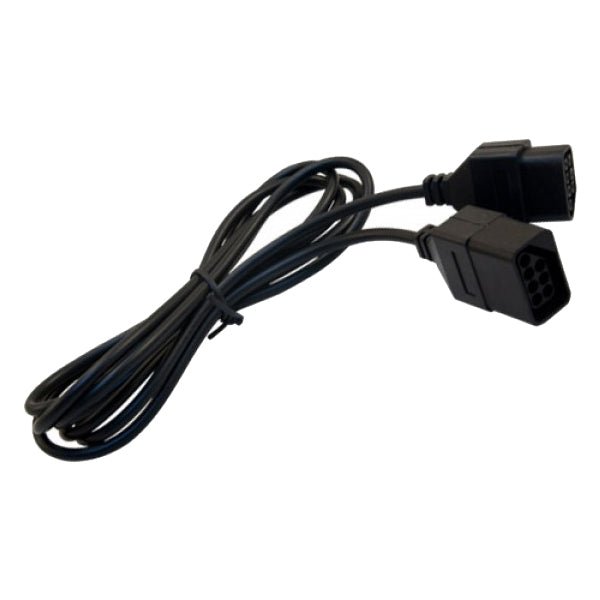

Extension cable for original NES Nintendo controllers 1.8m 6FT wire – black | ZedLabz
Features:
– Controller extension cable for original Nintendo NES.
– 1.8 metres length (6ft).
– Simple plug and play operation.
– Enjoy extra freedom and space when gaming.
– Compatible with Nintendo NES controllers only.
Description:
Play more comfortably with a ZedLabz controller extension cable for Nintendo NES, this high quality extension cable allows you to sit further away from your TV screen for a more enjoyable gaming session.
With an extra 1.8 meters of plug and play cable you can instantly, simply plug in the extension lead between your console and joypad and enjoy more freedom right away.
Compatible with the Nintendo NES console only model NES-001, not compatible with other Nintendo consoles.
Cables are NOT compatible with special controllers, only 5pins of the cable are live, which works with all normal controllers
Pinout / wiring information:
Left 4 pin row top to bottom:
1- Ground 0V
2 – Cup Shift register clock
3 – Out 0 Shift register latch
4 – D1 Data gamepad
Right 3 pin row top to bottom:
5 – VCC power 5V
6 – D3 Data special controller – NOT Functional
7 – D4 Data special controller – NOT Functional
